Aco COMO-PRO-POST-V1-LITE Mailbox with Built-in Video Intercom (without
drawer)
A mailbox with a built-in video intercom from the third-generation COMO-PRO
series. This elegant solution combines a reliable intercom system and a modern
pass-through mailbox.
The LITE version is sold as a front and back set (without drawer), meaning it
does not include a metal pass-through tunnel. This means that the element
connecting the two panels in the wall or post must be purchased separately or
made yourself if, for example, the design requires a non-standard distance or
the drawer needs to be fitted differently.
LITE is an economical entry-level variant with a simplified design and slightly
less expandability than the full standard version.

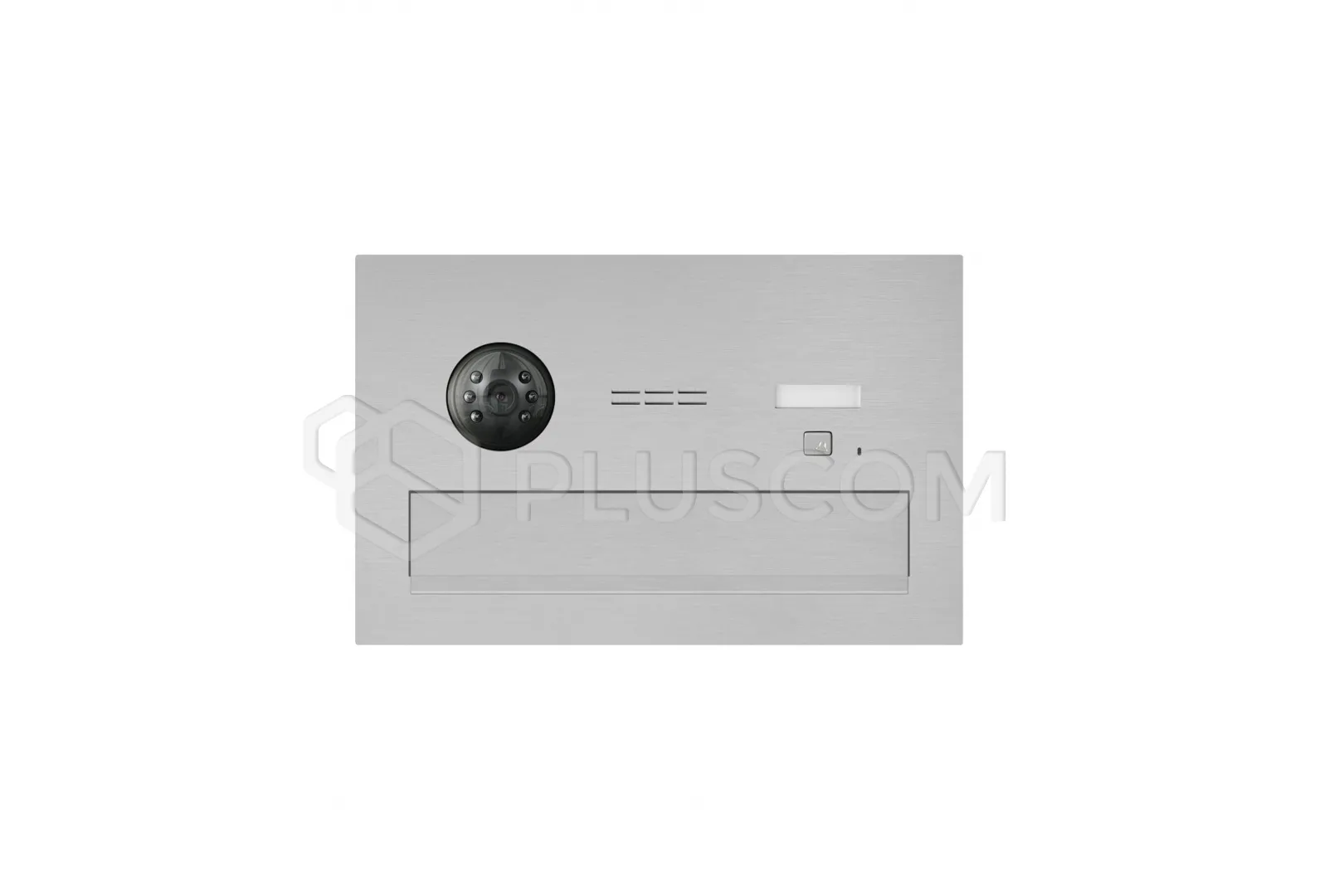

The front panel is equipped with a proximity tag reader and illuminated button
and description field.
The version is equipped with a color camera with adjustable viewing position
and LED night lighting in infrared.
The C4 size mailbox is secured from the outside with a flap self-falling, and
with a key-operated door from the rear a transparent sign to check whether
there are letters. Adjustable drawer depth allows for customization length to a
fence post or wall.
The built-in intercom panel ensures convenient and simple operation and high
sound quality. It is fully compatible with the entire series of COMO-PRO
panels, as well as with all PRO series devices.
The device has many amenities for the people using it disability:
- acoustic and optical signaling of panel functions
- auto-opening function: automatically opening the door when someone calls
(function activated in GLASS-PRO-7/MPRO7 receivers or using optional PRO-I/O
module connected to the system bus)
- opening the door without having to answer the call: using additional
button or e.g. remote control (required connection to the panel terminals or
to the optional PRO-I/O module connected to the system bus)
- possibility to connect an additional acoustic or lighting device
signaling the ringing (requires optional PRO-I/O module connected to system
bus)
FEATURES
- interior door with key lock and transparent sign
- large capacity of the parcel locker
- intuitive and comfortable operation and configuration
- individually illuminated call button with illuminated descriptive
space
- access control – built-in proximity key fob reader, integrated with the
description field
- support for 10 proximity tags
- possibility to use up to 10240 proximity tags (available from a
computer)
- acoustic information in the premises about opening the door (ringing) -
only for key fobs assigned to a given premises (possibility to turn off the
function from the computer)
- support for many expansion modules increasing the functionality of the
system
- home automation: control of external devices, e.g. entrance gate,
barrier, lighting, roller blinds (optional PRO-I/O module connected to the
system bus required)
- possibility to connect multiple receivers ringing simultaneously
- receiver presence detection (The panel will not ring if there is no
receiver)
- possibility to connect various types of electric strikes
- output for direct connection of an electric strike
- possibility to control the electromagnetic valve
- possibility of powering the output for connecting an electric strike from
a separate power supply (DC or AC)
- possibility to connect an external opening button
- option of secured door opening control: the electric strike is connected
to the optional PRO-I/O module (relay contacts), and the panel activates the
opening via the system bus
- possibility to connect an additional acoustic or light device in the
premises to signal ringing (optional PRO-I/O module connected to the system
bus required)
- compatible with all digital devices operating in the PRO, PRO-A (COMO)
systems
- connection of two panels in one system: 1 x master and 1 x slave
(optional PRO-VIDEO-SW2-60 (G3) module required)
- possibility to connect additionally 4 external cameras in the system
(optional PRO-VIDEO-SW2-60 (G3) module required for each additional
camera)
- adding and removing proximity tags using the "master" tag
- programming settings and updating software via the system bus (optional
PRO-USB computer interface required)
- compatible with earlier generations of the PRO system
- individual number of each device: DevID
- search for all devices in the system
- individual or group device management
- ability to manage devices and updates in a running system
- one software to support all devices: PRO 3 Manager
- possibility to order an additional shorter drawer, intended for shallower
walls: COMO-PRO-POST-INBOX-SHORT, adjustment range from 203 to 290 mm
TECHNICAL PARAMETERS:
- Supply voltage: 15VDC ±5%
- Power consumption in standby mode: ~2.5W
- Maximum current consumption: 400mA
- Electric strike supply voltage: 12VDC – 15VDC
- Permissible load on the electric strike output: 1.5A
- High resolution color camera (min. 600 lines) with a 2.8mm wide-angle
lens
- Adjustable position of camera viewing direction
- Infrared LED backlight +/- 20° horizontal
- Output type: normal or reverse (default: normal)
- Lock activation time: 0.6 to 25s (default: 4s)
- Type of output control: impulse for electric strike (factory) or
constants to relay
- Connector Type: RJ45 Jack / ARK Removable Screw Connectors
- Standard of supported proximity cards (RFID): Unique 125 kHz
- Maximum number of supported proximity cards: 10 (or 10210 available from
the computer application)
- Housing material: Stainless steel
- Resistance of external opening input (INPUT): ≤ 20Ω, input type: normally
open (NO)
- INPUT delay time: 0 – 25s (default: 0s)
- Front panel dimensions: 180 x 280 x 35 mm
- Back panel dimensions: 180 x 280 x 25 mm
