Aco COMO-PRO-POST-A1-LITE Mailbox with built-in intercom (without drawer)

Aco COMO-PRO-POST-A1-LITE Mailbox with Built-in Intercom (without drawer)

A mailbox with a built-in intercom from the third-generation COMO-PRO series. This elegant solution combines a reliable intercom system with a modern, pass-through mailbox.
The LITE version is sold as a front and back set (without the drawer), meaning it does not include a metal pass-through tunnel. This means that the element connecting the two panels in the wall or post must be purchased separately or made yourself if, for example, the design requires a non-standard distance or the drawer needs to be fitted differently.
LITE is an economical entry-level variant with a simplified design and slightly less expandability than the full standard version.

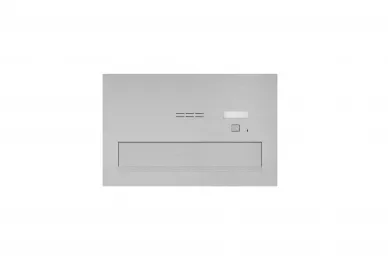

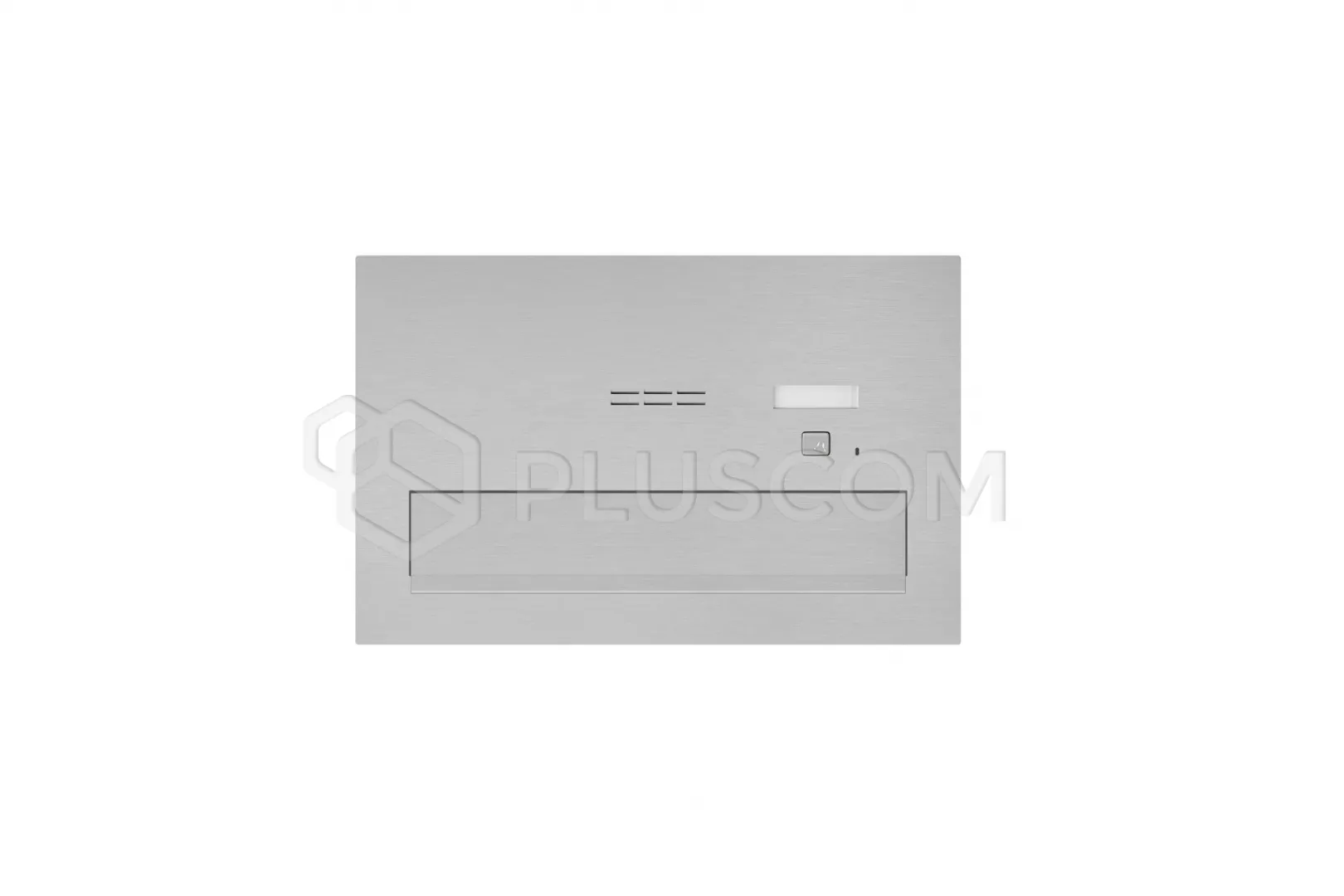

The front panel is equipped with a proximity key fob reader and an illuminated button and a description field. The C4-sized mailbox is secured from the outside with a self-closing flap, and from the back with a key-operated door with a transparent sign for checking whether mail is present.
The built-in intercom panel ensures convenient and simple operation and high-quality sound. It is fully compatible with the entire COMO-PRO series of panels and all PRO series devices.

The device has many amenities for the people using it disability:

• acoustic and optical signaling of panel functions
• auto-opening function: automatically opening the door when someone calls (function activated in GLASS-PRO-7/MPRO7 receivers or using optional PRO-I/O module connected to the system bus)
• opening the door without having to answer the call: using additional button or e.g. remote control (required connection to the panel terminals or to the optional PRO-I/O module connected to the system bus)
• possibility to connect an additional acoustic or lighting device signaling the ringing (requires optional PRO-I/O module connected to system bus)

FEATURES

• interior door with key lock and transparent sign
• large capacity of the parcel locker
• intuitive and comfortable operation and configuration
• individually illuminated call button with illuminated descriptive space
• access control – built-in proximity key fob reader, integrated with the description field
• support for 10 proximity tags
• possibility to use up to 10240 proximity tags (available from a computer)
• Acoustic information in the premises about opening the door (ringing) - only for key fobs assigned to a given premises (possibility to turn off the function from the computer)
• support for many expansion modules increasing the functionality of the system
• home automation: control of external devices, e.g. entrance gate, barrier, lighting, roller blinds (optional PRO-I/O module connected to the system bus required)
• possibility to connect multiple receivers ringing simultaneously
• receiver presence detection (The panel will not ring if there is no receiver)
• possibility to connect various types of electric strikes
• output for direct connection of an electric strike
• possibility to control the electromagnetic valve
• possibility of powering the output for connecting an electric strike from a separate power supply (DC or AC)
• possibility to connect an external opening button
• option of secured door opening control: the electric strike is connected to the optional PRO-I/O module (relay contacts), and the panel activates the opening via the system bus
• possibility to connect an additional acoustic or light device in the premises to signal ringing (optional PRO-I/O module connected to the system bus required)
• compatible with all digital devices operating in the PRO, PRO-A (COMO) systems
• connection of two panels in one system: 1 x master and 1 x slave (optional PRO-VIDEO-SW2-60 (G3) module required)
• possibility to connect additionally 4 external cameras in the system (optional PRO-VIDEO-SW2-60 (G3) module required for each additional camera)
• adding and removing proximity tags using the "master" tag
• programming settings and updating software via the system bus (optional PRO-USB computer interface required)
• compatible with earlier generations of the PRO system
• individual number of each device: DevID
• search for all devices in the system
• individual or group device management
• ability to manage devices and updates in a running system
• one software to support all devices: PRO 3 Manager
• possibility to order an additional shorter drawer, intended for shallower walls: COMO-PRO-POST-INBOX-SHORT, adjustment range from 203 to 290 mm

TECHNICAL PARAMETERS:

• Supply voltage: 15VDC ±5%
• Power consumption in standby mode: ~2.5W
• Maximum current consumption: 400mA
• Electric strike supply voltage: 12VDC – 15VDC
• Permissible load on the electric strike output: 1.5A
• Output type: normal or reverse (default: normal)
• Lock activation time: 0.6 to 25s (default: 4s)
• Type of output control: pulse for electric strike (factory) or constant for relay
• Connector Type: RJ45 Jack / ARK Removable Screw Connectors
• Standard of supported proximity cards (RFID): Unique 125 kHz
• Maximum number of supported proximity cards: 10 (or 10210 available from the computer application)
• Housing material: Stainless steel
• Resistance of external opening input (INPUT): ≤ 20Ω, input type: normally open (NO)
• INPUT delay time: 0 – 25s (default: 0s)
• Front panel dimensions: 180 x 280 x 35 mm
• Back panel dimensions: 180 x 280 x 25 mm
