Aco CDNV-CAM ST Dome camera module for CDNP

ACO CDNV-CAM ST Dome camera module with video combiner dedicated to CDNP digital exchanges

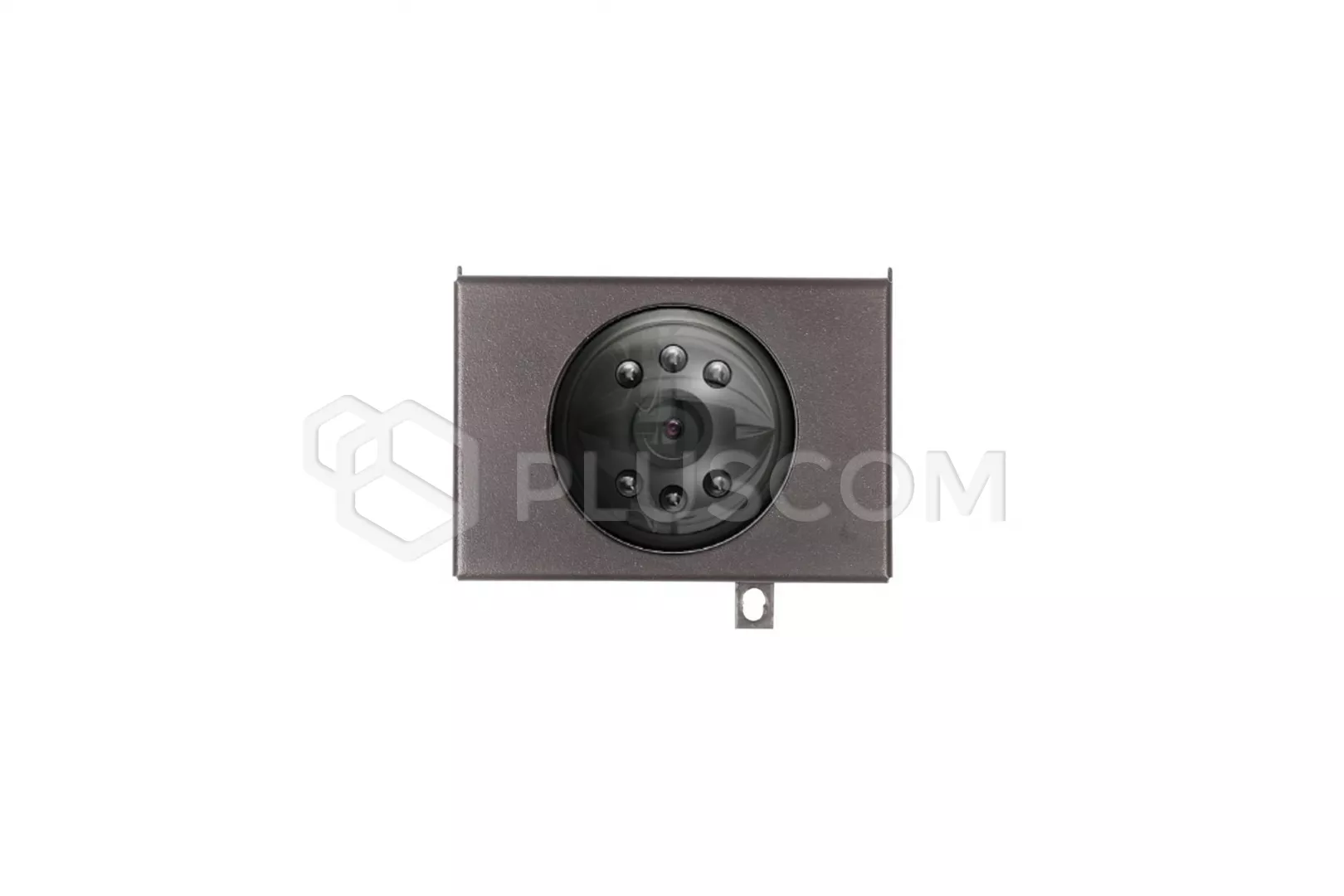

CDNV-CAM is a dome camera module dedicated to CDNP digital exchanges with a CDNVS-CAM video combiner mounted directly to the headquarters.
High-resolution color camera (min. 600 lines), with a 2.8 mm wide-angle lens. Adjustable direction position camera observation, along with LED infrared +/- 20° to each side. Perfect image day and night. The video signal output is differential V+ and V-.

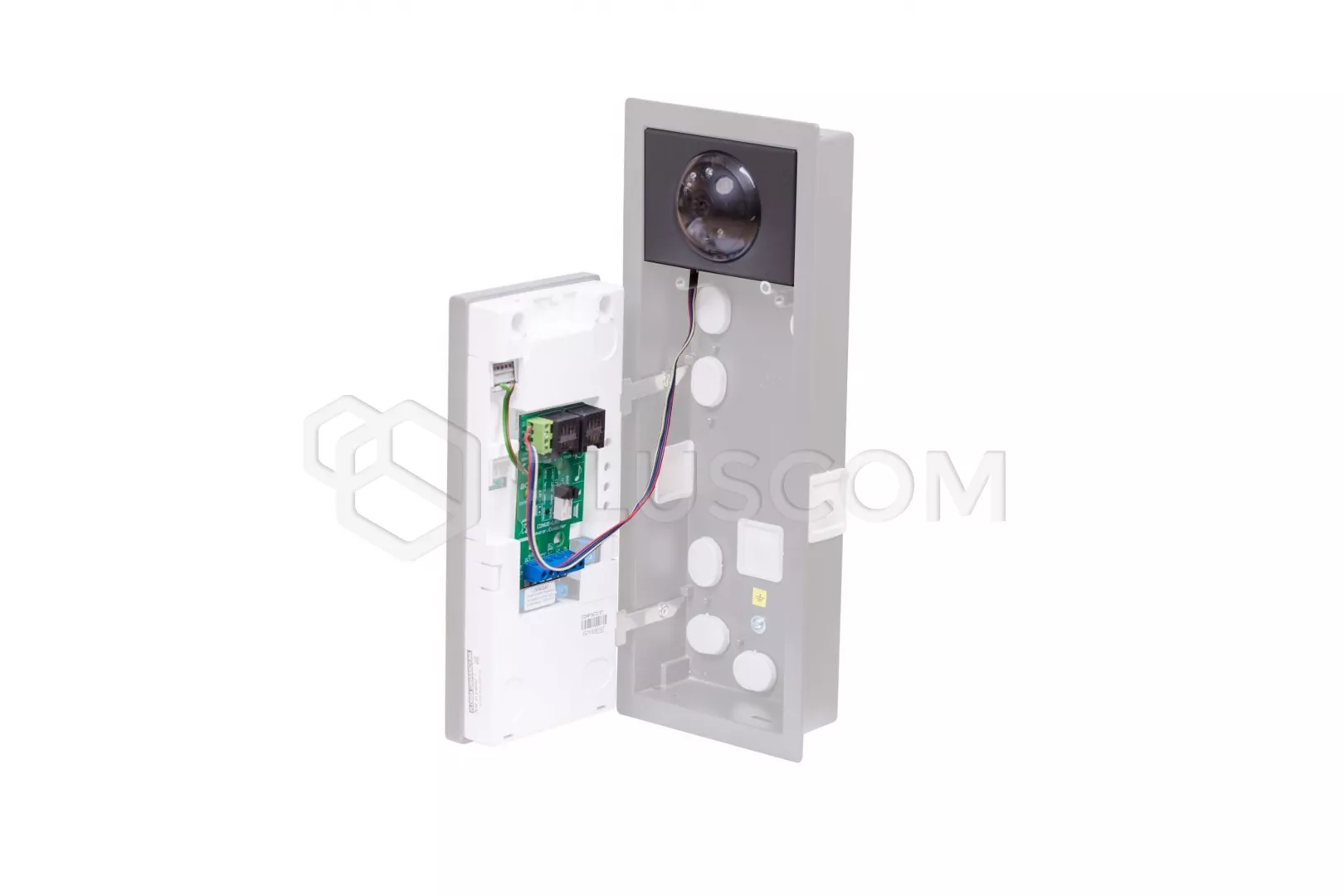

The module is compatible with digital panels from the CDNP group and only with aluminum frames CDN-R-M-AL ST and with steel wall-mounted CDN-P2-M NT boxes.

FEATURES:

• High resolution color camera (min.600 lines) with 2.8mm wide-angle lens
• adjustable position of the camera observation direction +/- 20° in each direction with infrared LED backlight
• perfect image day or night
• module resistant to weather conditions and acts of vandalism
• universal use for Master and Slave control panels
• used in CDNP series control panels only with aluminum frame
• inserts power, differential video, and audio line into the system bus
• comes complete with combiner board and connecting tape
• operating temperature: -20 to 50ºC

The camera module is included with the CDNVS-CAM. It is a universal video combiner mounted directly to the control panel board, is required to transmit the video signal through the system bus based on UTP cat. 5e or 6. The combiner allows you to connect the power supply to the panel and introduces the power supply, the image from the panel camera, and the signal into the bus audio (LINE) and the audio signal from the previous panel (ML). The output and input of the combiner are RJ-45 connectors for the system bus.

SPECIFICATION:

• Power supply: 15VDC ±5%, 125mA
• Standby power consumption: ~1.6W
• Execution: powder coated galvanized steel
• Installation type: digital: cat. 5e or 6
• Exits:
• • CDNV-CAM
  • • 2 x ARK connectors V+ and V- video connection
  • CDNVS-CAM combiner
  • • 1 x RJ45 socket (system bus out)
    • 1 x EXTMOD plug connector for switching the camera image between panels
    • 2 x ARK connectors CDNV-CAM camera power connection
• Inputs:
• • CDNV-CAM
  • • 2 x ARK connectors power connection from combiner
    CDNVS-CAM combiner
    • 1 x RJ45 socket (system bus input)
    • 2 x ARK connectors to connect the V+ and V- video signal from the CDNV-CAM camera
• Dimensions: 61×88mm
