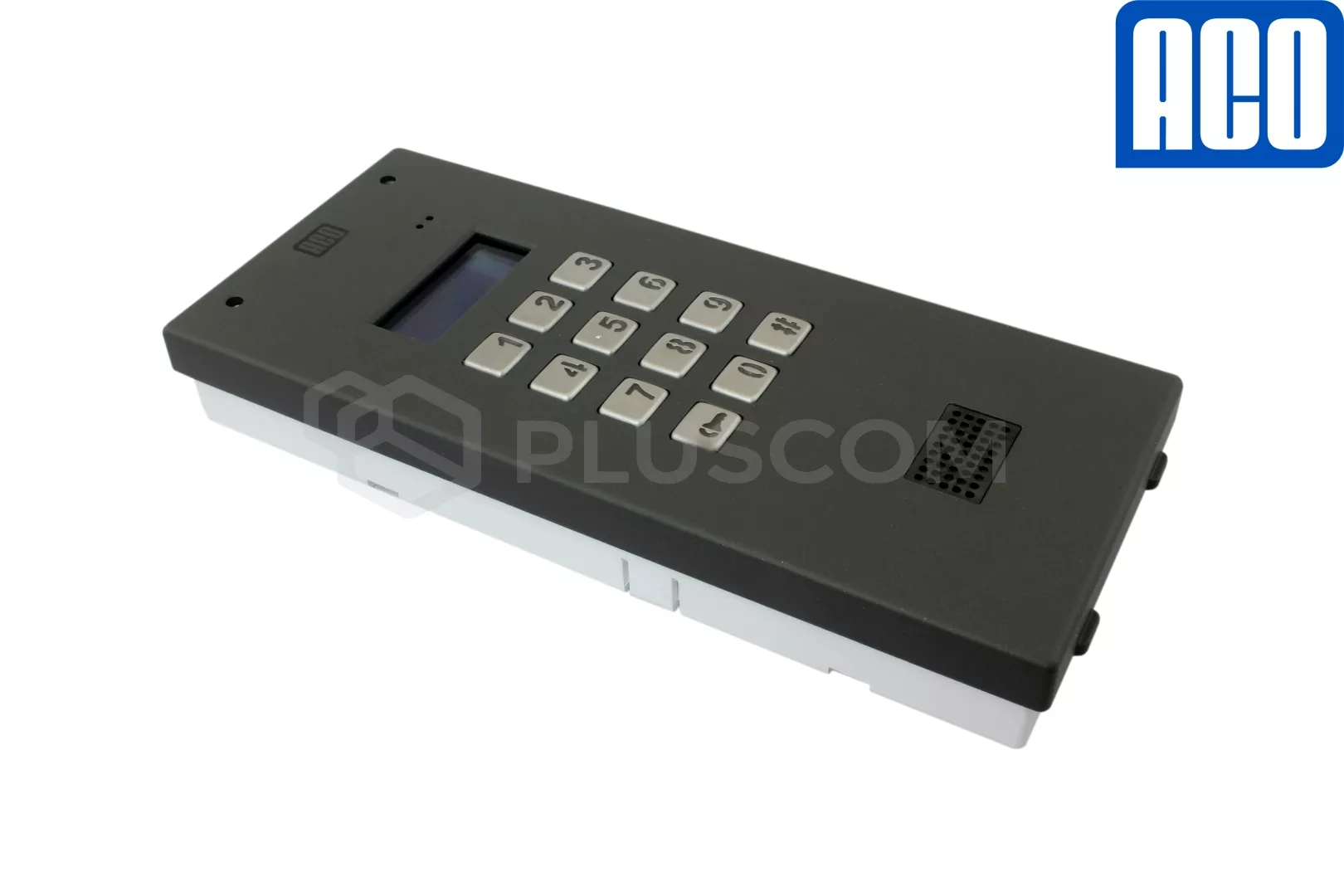

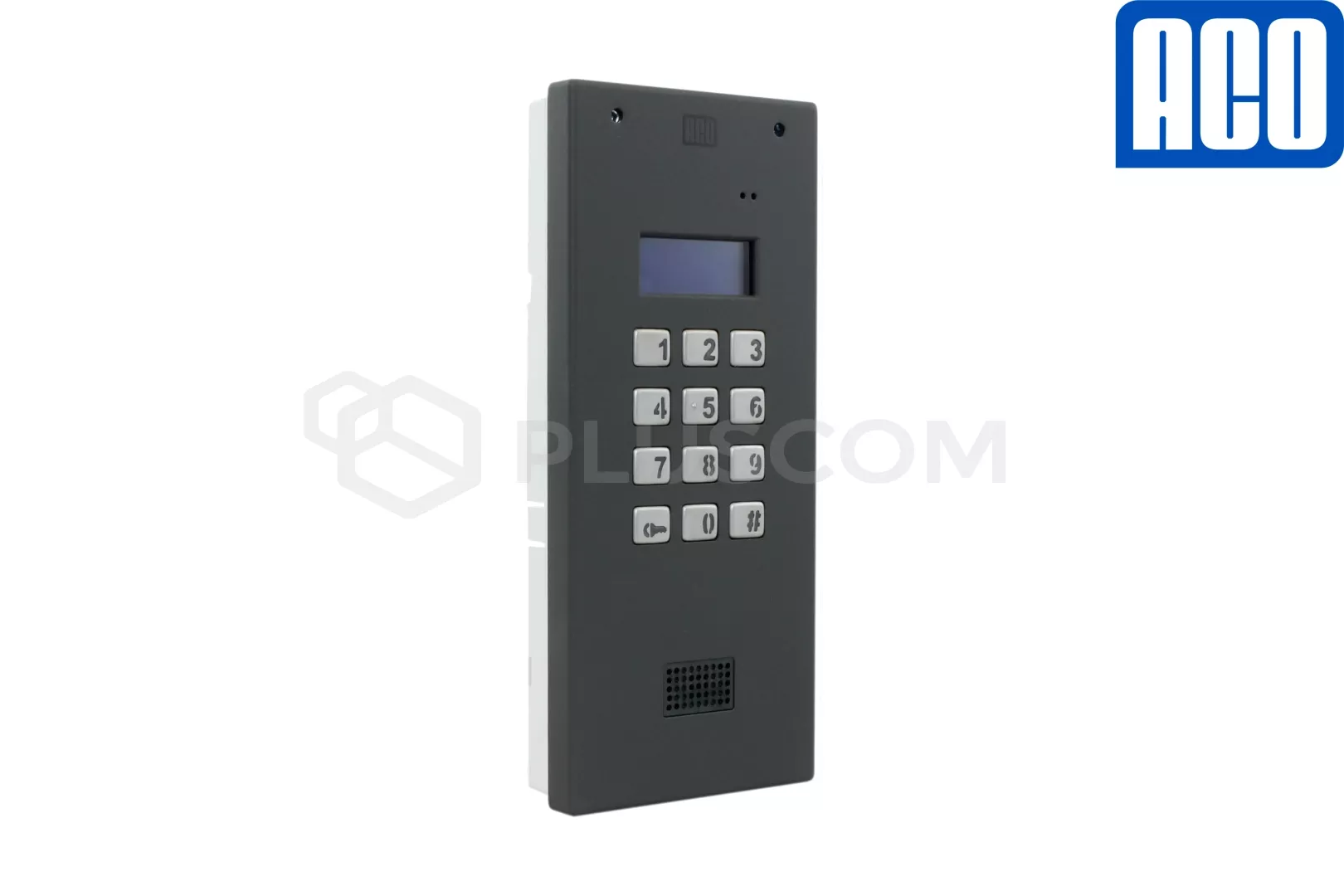

Aco CDNP7ACC Digital door entry panel with RFID reader

ACO CDNP7ACC ST Digital door entry system with code lock and proximity reader

The CDNP7ACC Master intercom exchange is a modern device dedicated to multi-family housing, equipped with:

• digital dialing of the apartment number
• code door opening
• Unique 125kHz proximity key fob reader


W ''7'' CDN series devices introduced a number of new functions and facilities. The appearance of the panel has become more modern, added new configuration options and changed design to protect electronics and facilitate assembly and connection.

Features for disabled

• backlit keypad buttons, optionally with stamped Braille alphabet characters
• panel function sound or visual signalling
• automatic or remote (using a button) door opening without answering a call and possibility to connect an additional sound or light call signalling device (CDN-U) in an apartment

ATTRIBUTES

• weatherproof and vandalism resistant
• easy assembly and installation thanks to special holders in the frame for hanging the control panel during installation
• available codes: 255 locators (4-digit), 5 administrators (4 or 6-digit), 1 installer (8-digit)
• support up to 6144 proximity tags
• any number of key fobs assigned to each unit (from pool 6144)
• any number of key rings for administrator’s access, not assigned to the premises (from the pool 6144)
• any number of proximity keys for the installer’s access with the possibility to enter the settings
• adjustable talk time (40-120 seconds)
• support for multiple expansion modules to increase system functionality
• acoustic information in the premises about opening the door (calling)
• only for key rings assigned to the premises (possibility of disabling the function)
• support for multiple expansion modules to increase system functionality
• operation in multi-part master/slave/Multimaster systems
• home automation: control of external devices, e.g. gate, barrier, lighting, roller blinds, with a code lock, key ring, receiver. An optional CDN-I/O module is required for slave panels.
• switching on or off access to control external devices separately for each unit
• possibility to connect multiple receivers under the same number (only active receivers)
• wide range of possibilities for individual configuration of the settings for each unit
• intuitive and comfortable operation and configuration
• corridor opening function
• option to change the range of ringing numbers in groups (from the computer)
• group caller number change option (from the computer)
• possibility to set the option to call without a call for 8 premises
• self-opening function for each apartment
• possibility to enter 6-character display text during a doorman redirection
• adjustable number of openings during conversation (1-3)
• operation of electric strikes and jumpers of various types
• 8 priority additional numbers with individual ringing parameter settings
• serial number of the device displayed in the computer program
• call forwarding function for additional numbers
• programming from the control panel and computer using the optional CDN-USB cable
• free software available in the “download” tab
• compatible with digital group devices: CDNP, Inspiro and Familio P/PV

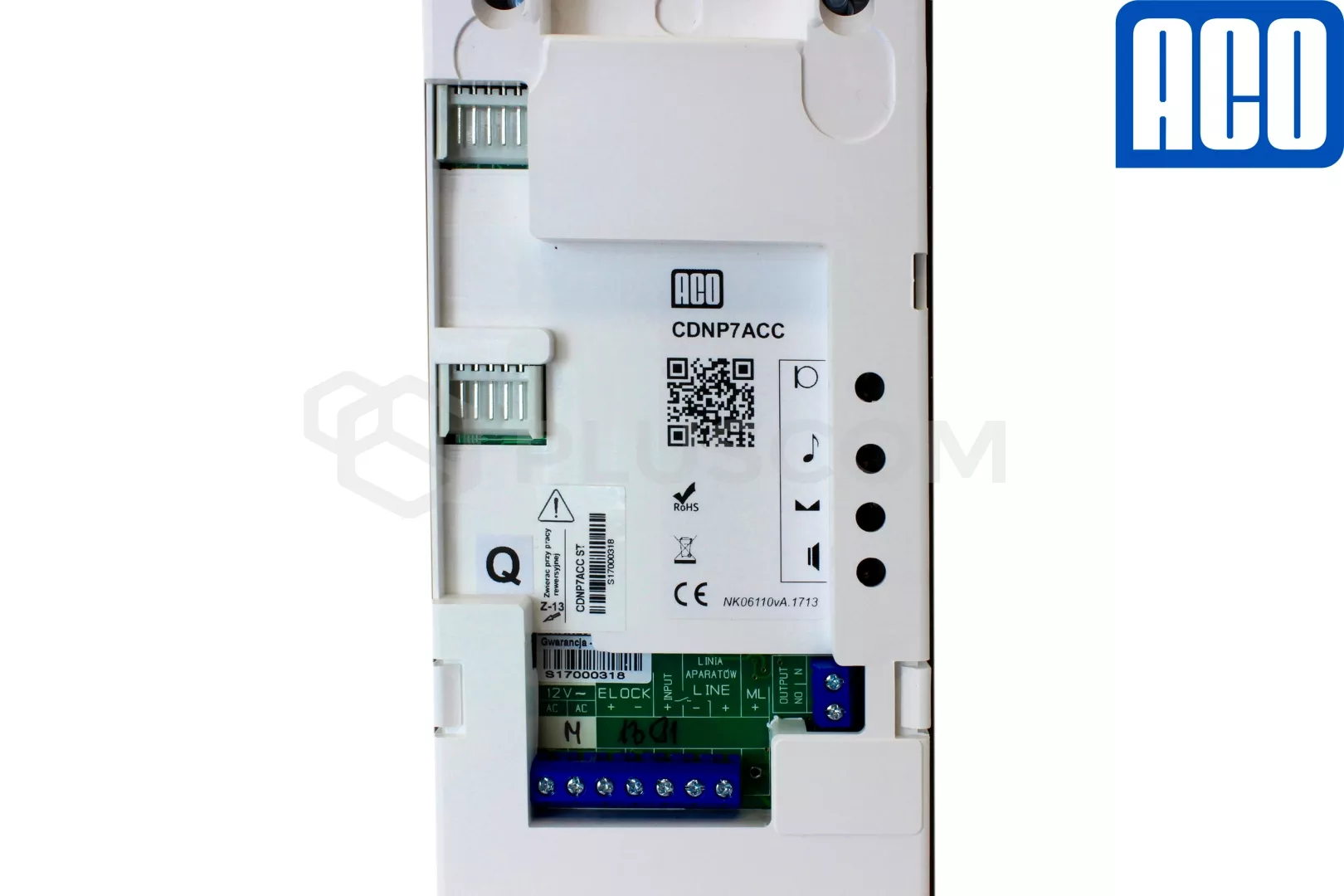

INPUT FUNCTIONS:

• direct activation of the electric strike connected to the doorphone panel (headquarters)
• calling the selected place

OUTPUT FUNCTIONS:

• first output to connect:

  • traditional electric strike (max. 1A)
  • reverse electric strike (max 0.5A)
  • EXTMOD for connecting the CDN-PK relay module (max. 5A)
• second NO relay output to connect:

  • home automation (max. 2A, DC 30V)

TECHNICAL PARAMETERS:

• power supply: 15V DC / 200mA or 12V ± 0.5V AC
• combination lock
• ACC - Unique 125kHz standard proximity key fob reader

• installation type: Digital: 2-wire - system P or UTP cat. 5e / 6 - PV system
• max. number of subscribers: 255 premises
• mounting method depending on the choice of frame:

  • flush-mounted
  • surface
• dimensions: 206x88x29.3mm
• power consumption in standby mode: ~ 0.6W
• execution:

  • powder coated aluminum alloy housing
  • flat front of the housing flush with the mounting frame

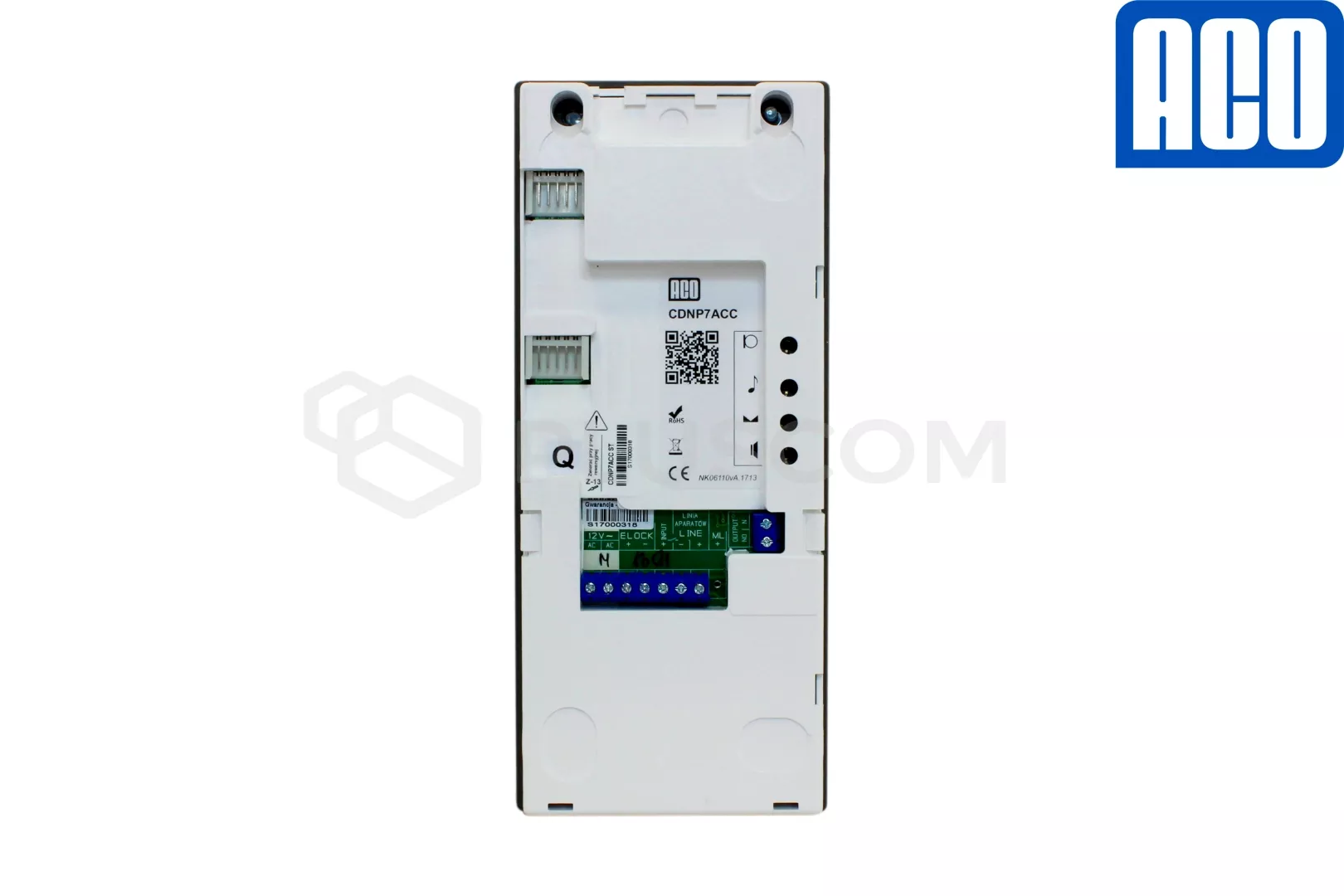

  • additional plastic rear casing that covers the electronics
  • stainless steel keyboard
• color: steel (ST)
