Aco CDN-R-M-AL ST Medium aluminum flush-mounted frame

30,07 EUR including 20.00% VAT
Product code: #25478
Manufacturer: ACO
  • Installation method: flush
  • Dimensions: 291 x 111mm
  • Made of: powder coated aluminum alloy
  • Dedicated to the CDN series
  • Color: steel (ST)
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Aco CDNP7ACC Digital door entry panel with RFID reader Aco CDN-2NP ST 2 Calling buttons Aco CDN-5N ST Small description list Aco CDN-230E ST Electronic occupants list Aco CDNC BR Cyfral / bartar door entry panel with a combination lock Aco CDNA GR Analogue door entry system

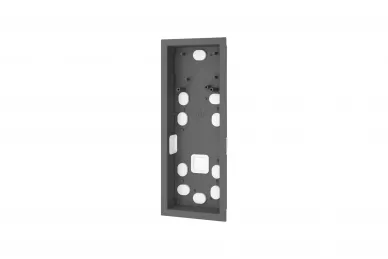

CDN-R-M-AL ST Medium aluminum frame for CDN series


Medium CDN-R-M-AL ST flush-mounted frame made of powder coated aluminum alloy. Secures anti-theft control panel, resistant to vandalism and weather conditions. It allows you to connect with each other any number of frames horizontally or vertically by means of connecting elements (MONT-RPT-CDN). It has rubber seals for wires.

The frame is compatible with all CDN add-on modules (except CDNVK - use CDNV-CAM) and with all CDN exchanges, however for exchanges CDNP6 / CDNA / CDNC an additional MONT-R-AL-CON plate must be installed.

TECHNICAL PARAMETERS:
  • Made of 1.5mm powder coated aluminum alloy
  • Dimensions:
    • 291 x 111mm
    • mounting dimension 273 × 93.4 × 37.5 (including 1.5mm flange)
  • Mounting method: recessed
  • Color: steel (ST)

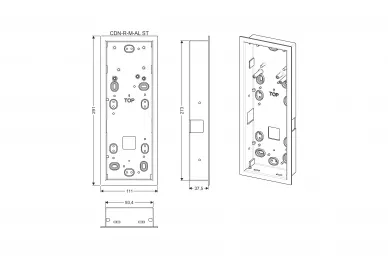

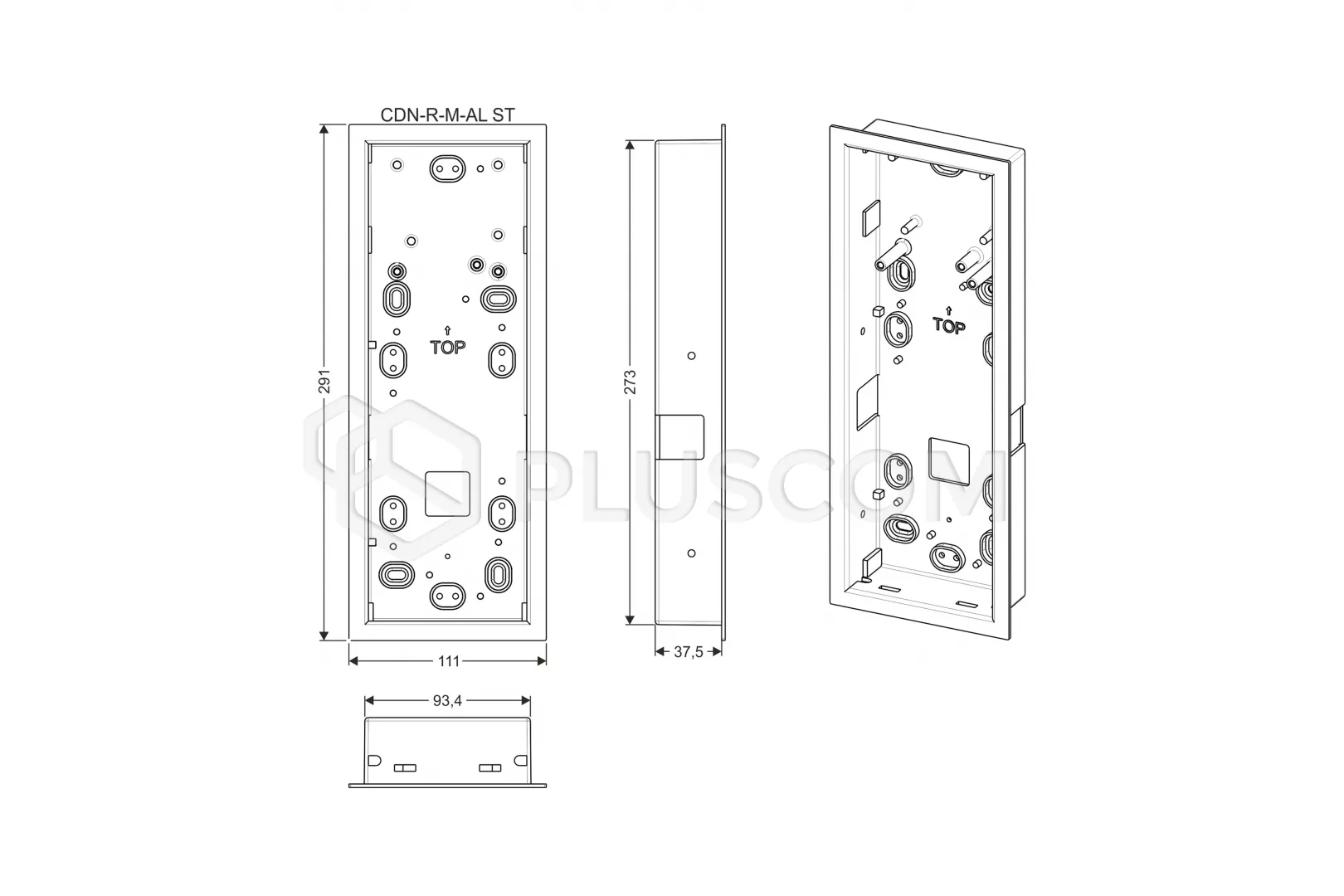

Dimensions:

Dimensions:

Download
Datasheet 0.46 MB
