JiS 1420 12-24V AC / DC Universal electric strike left/right with a switch

Universal electric strike JiS 1420 12-24V AC / DC left / right with switch

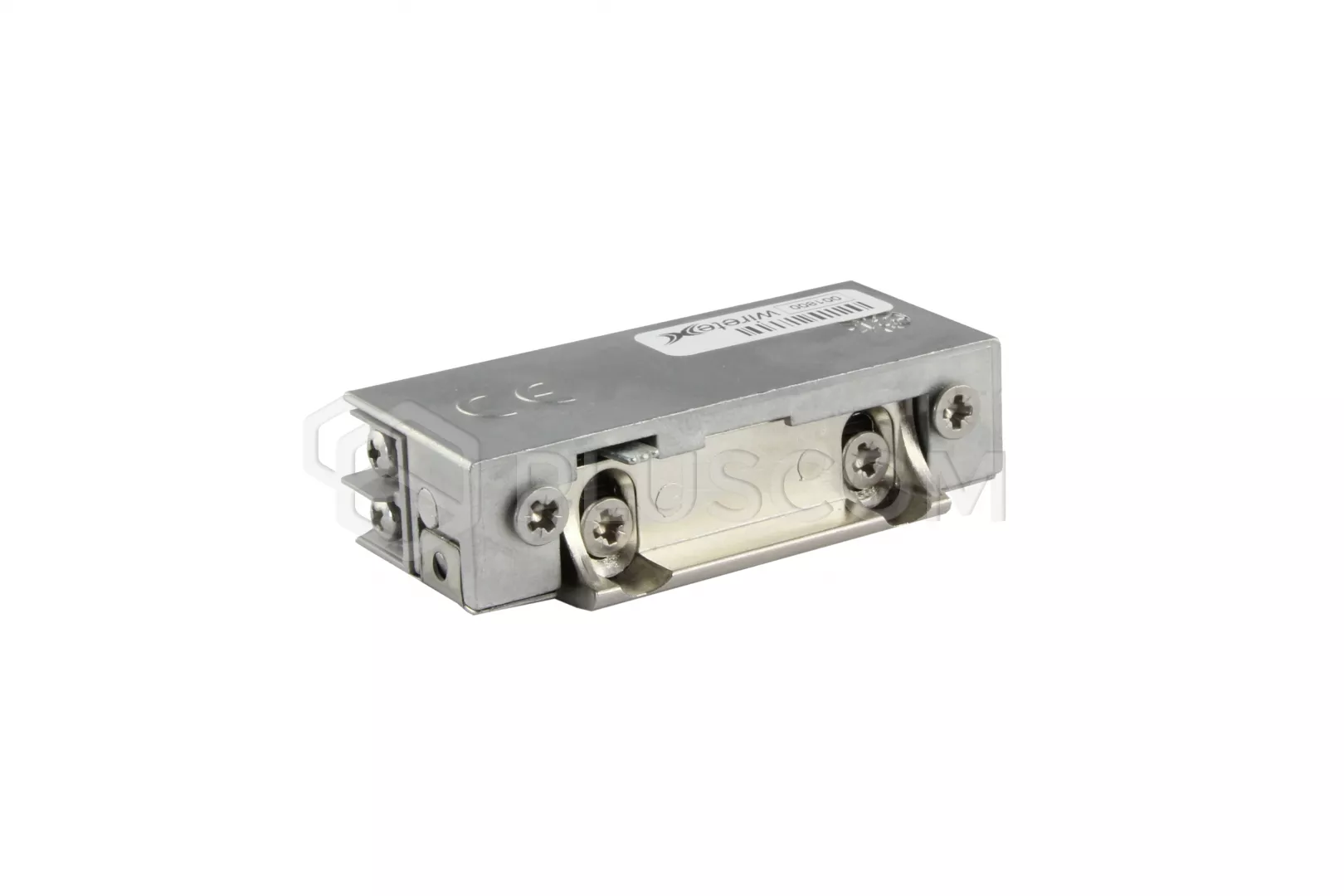

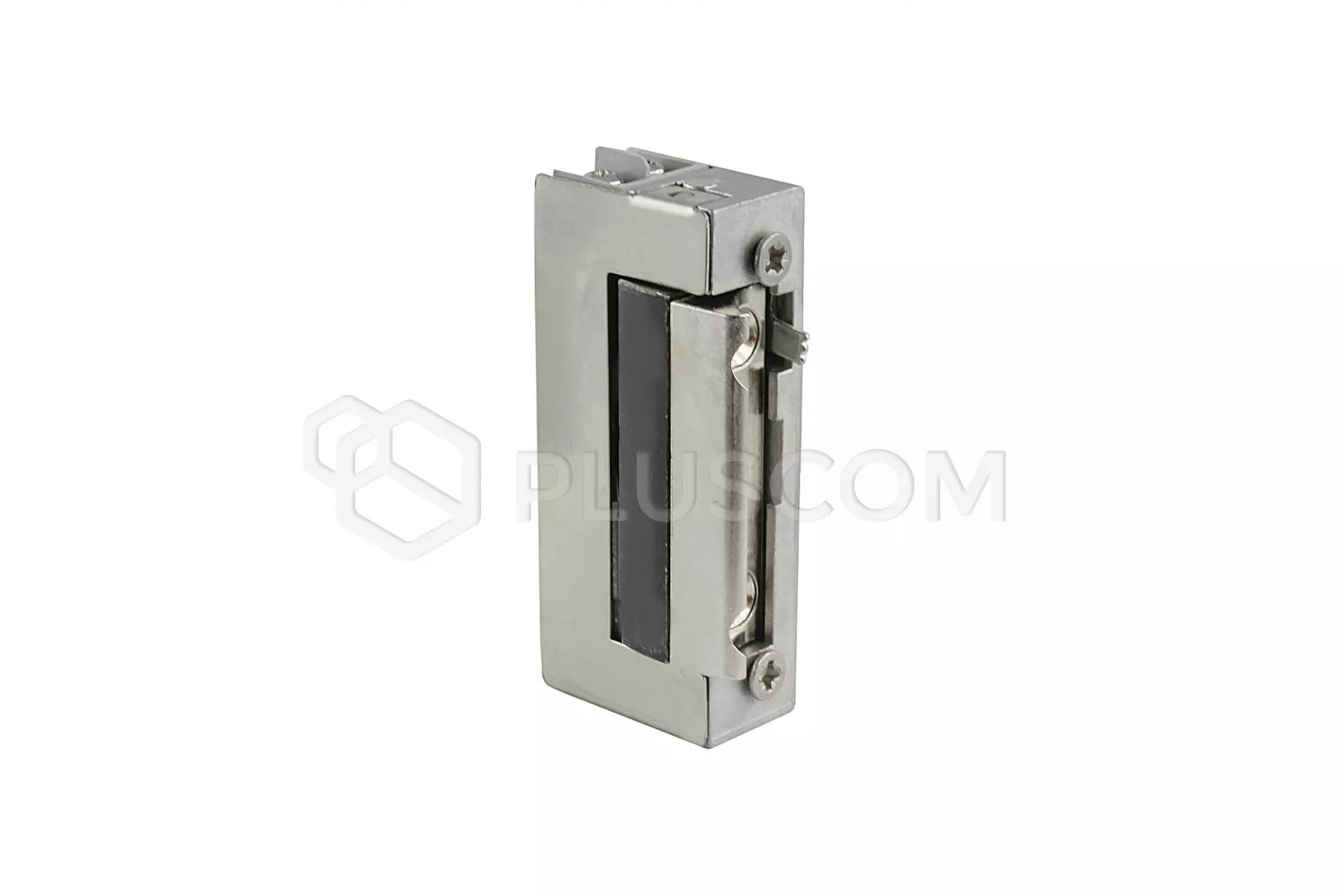

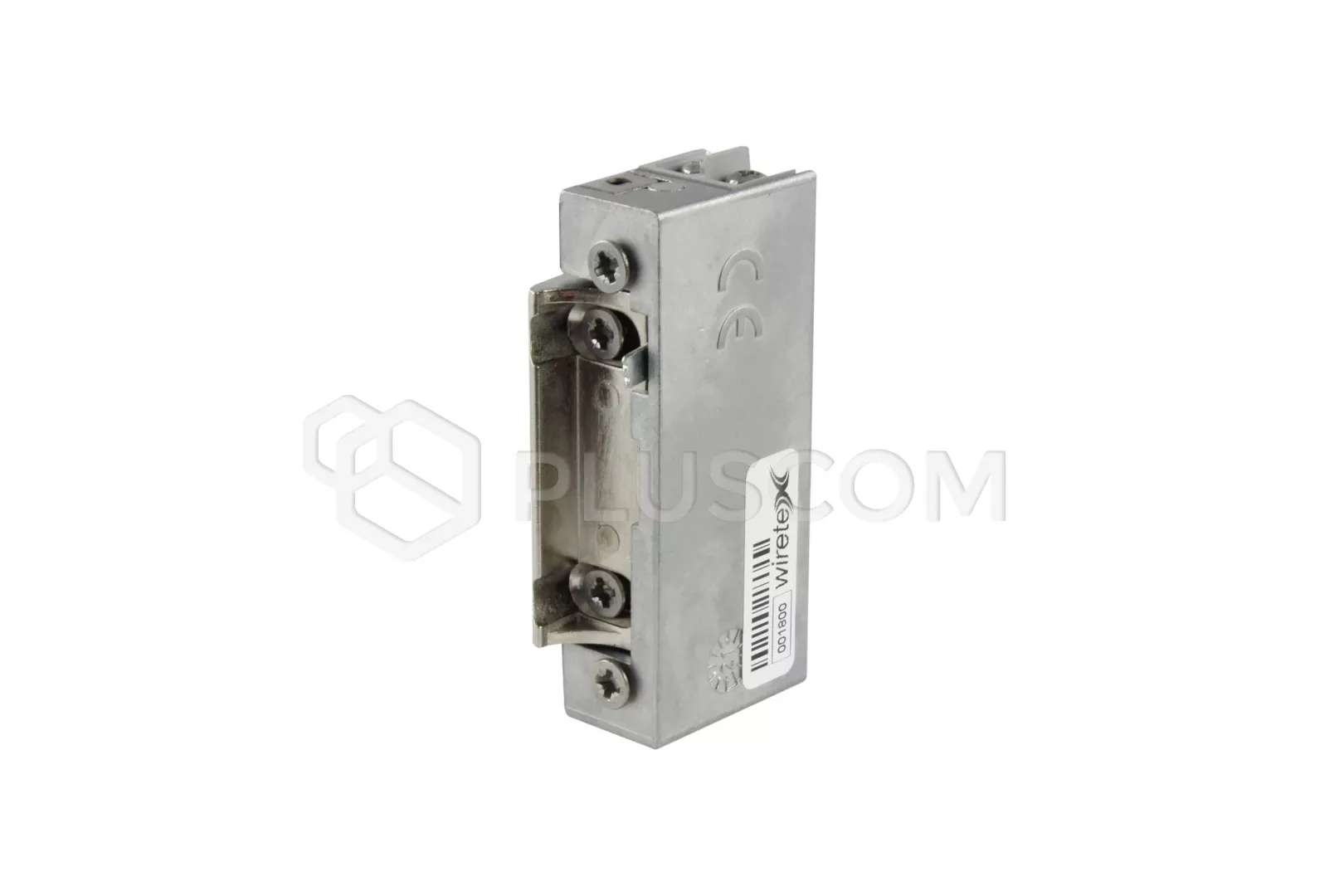

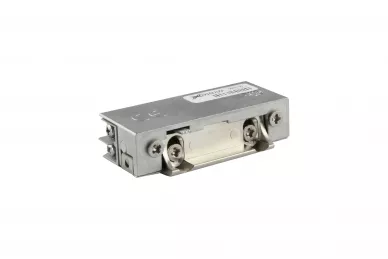

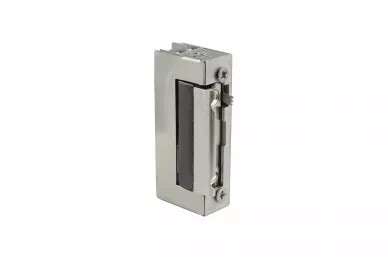

JiS 1420 12-24V AC / DC is the basic model of an electric strike with a switch, which can be installed in left / right door frames, thanks to its small dimensions it is intended is for use in narrow profiles.

The electric strike can be operated with 12V DC / 12V AC or 24V DC / 24V AC. The control can be realized by the access control system, video intercom, intercom, or by means of a normally open button.


PRINCIPLE OF OPERATION:
Applying voltage to the coil causes the release of the lock after a voltage decay the electric strike locks immediately. In order for the electric strike to be open, the voltage must be present at the terminals at all times. Additionally, the electric strike is equipped with mechanical switch that can only be actuated with the door open. It releases the lock and the door can be opened without giving any electrical impulses for any time.

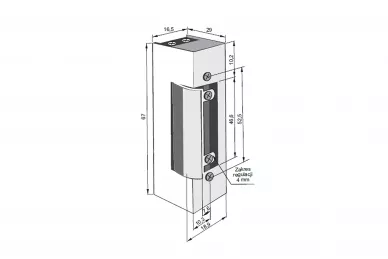

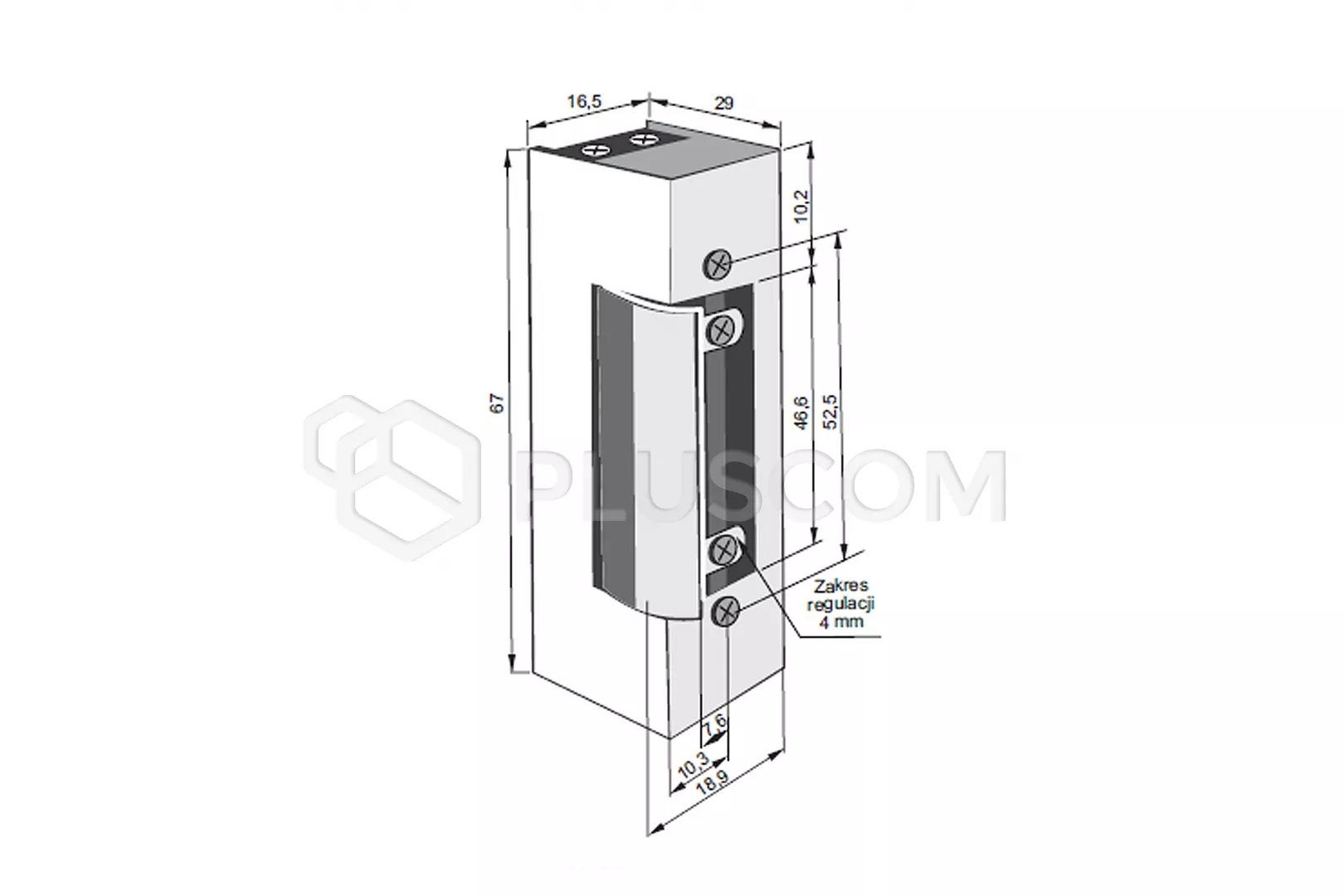

DIMENSIONS AND ADJUSTMENT:

• & quot; language & quot; the electric strike can be adjustable in the range 4mm.
• 52mm mounting bolt spacing
• universal left / right

• 16.5mm width
