Aco CDN-R2-M Medium flush frame

35,84 EUR including 19.00% VAT
Product code: #14244
Manufacturer: ACO
  • Installation method: flush
  • Dimensions: 290,5x111mm
  • Material: stainless steel
  • Dedicated to: CDNP7 control panel

Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Aco CDNP7ACC Digital door entry panel with RFID reader

ACO CDN-R2-M Medium frame for CDNP7

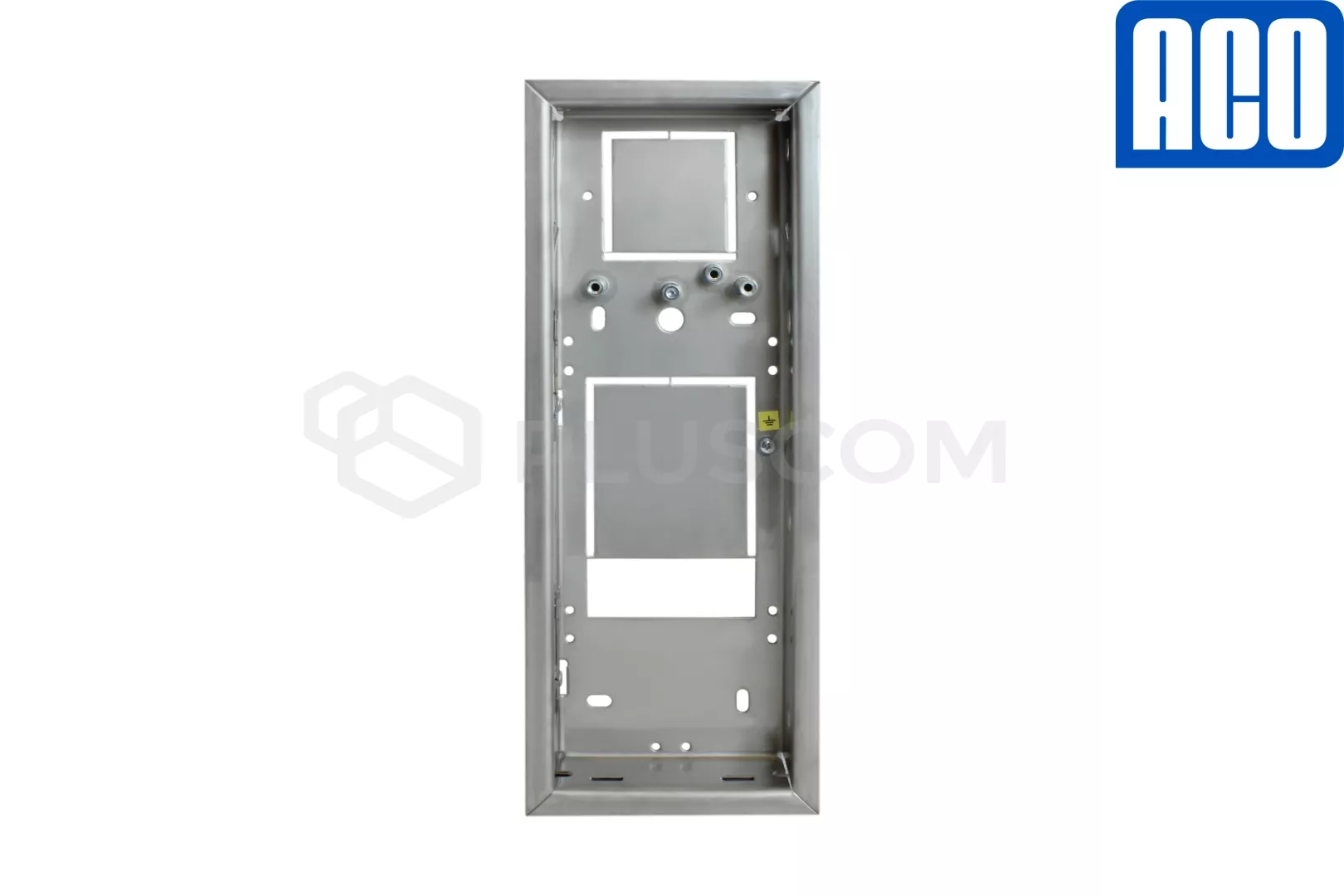

Front view:

Front view:

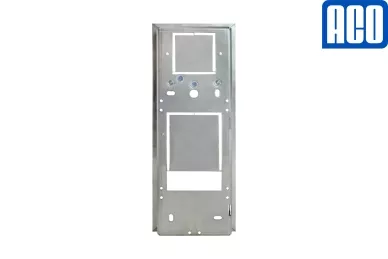

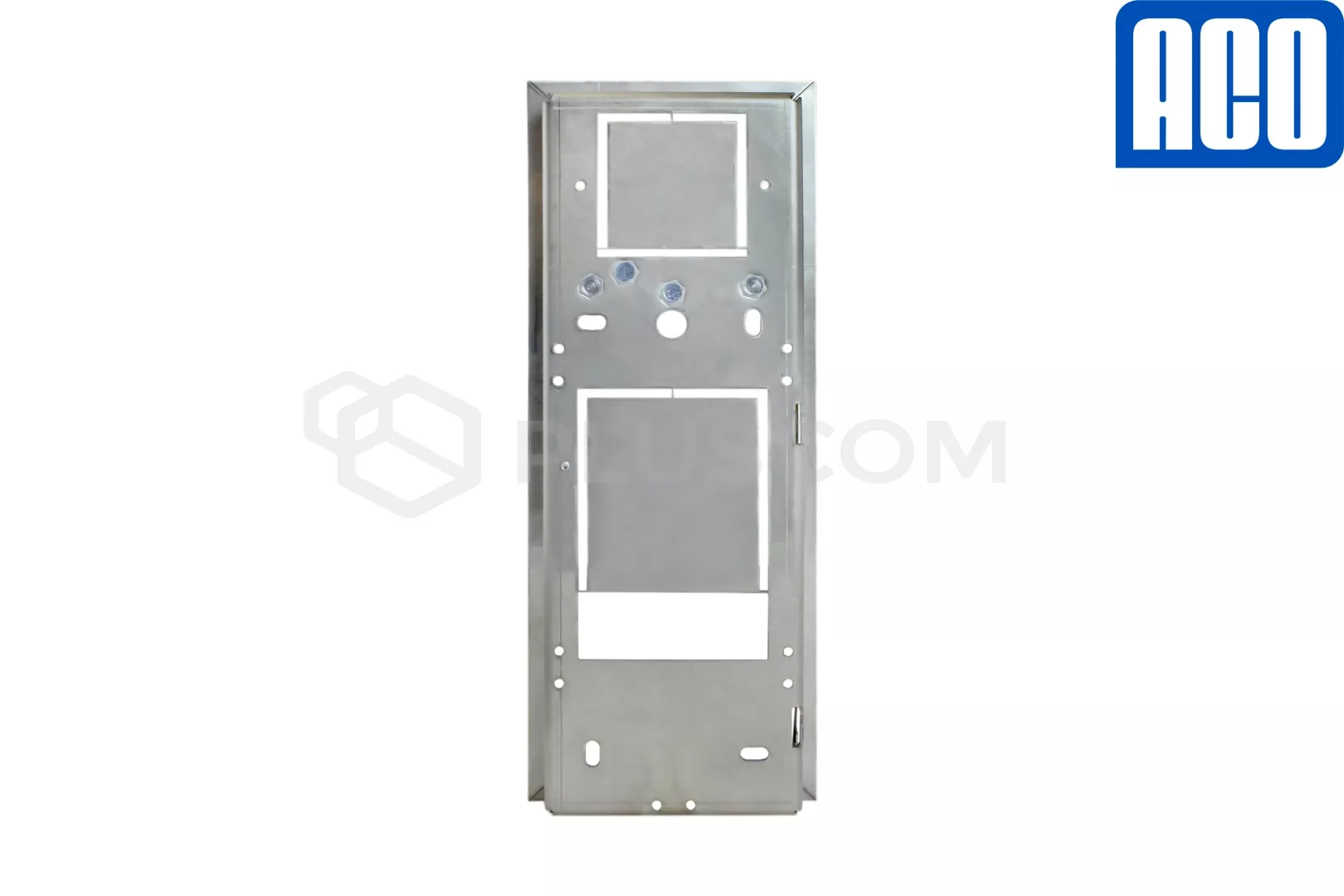

Rear view:

Rear view:

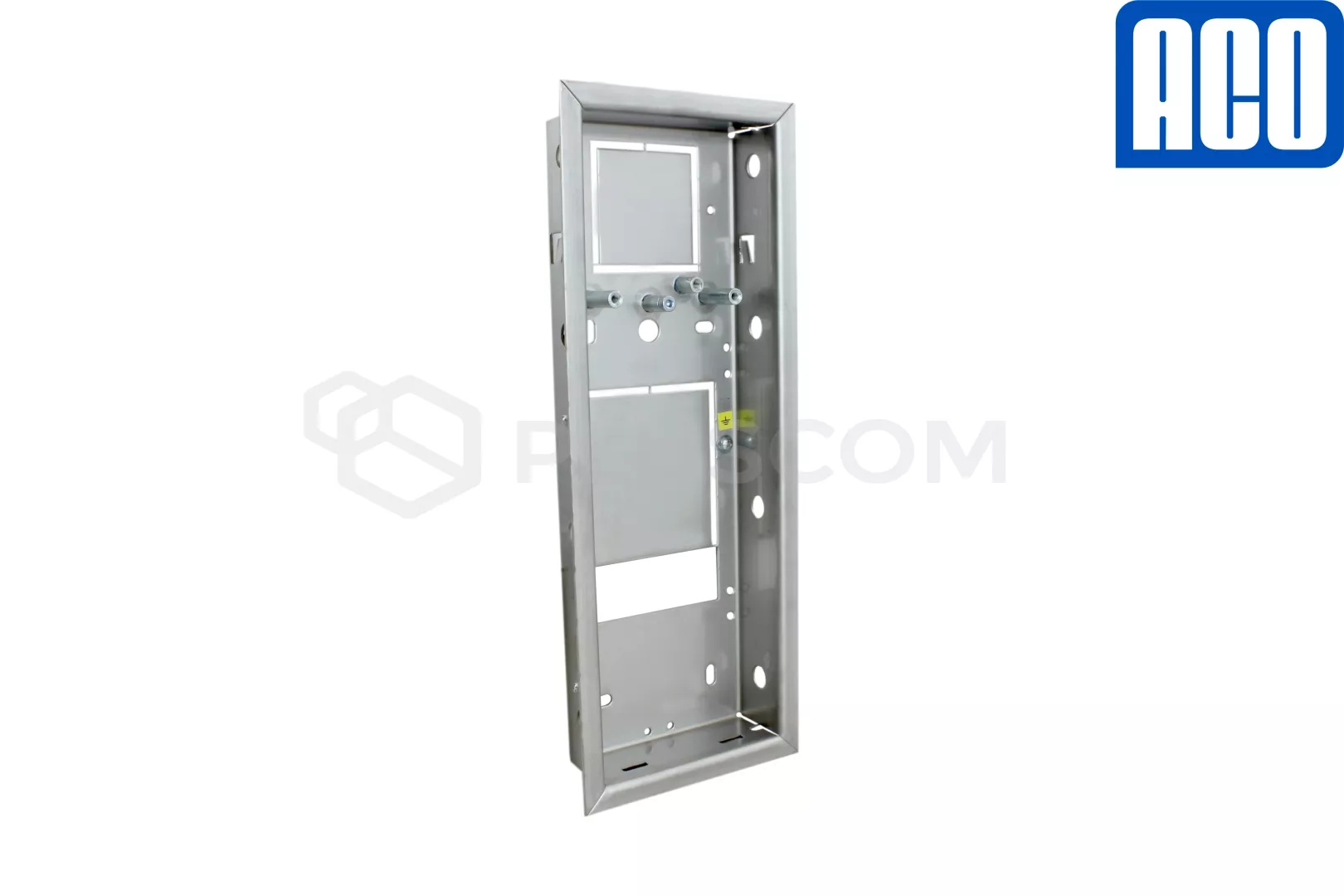

The small CDN-R2-M concealed frame made of stainless steel is dedicated for mounting the CDNP7 control panel and one small module, for example a descriptive list, an electronic renter list or a camera module.

The frame has special holders for hanging the control panel during installation

It is possible to connect R2 frames horizontally or vertically with each other using connection elements.

TECHNICAL PARAMETERS:
  • Material: 1.5 mm thick stainless steel
  • Dimensions: 290.5x111mm
  • Installation dimension: 271.5x92x33.5mm
  • Mounting method: concealed
DESIGNED FOR:
  • control panel: CDNP7
  • one small module eg. 2NP, 5N, 5NACC, CDNVK, 230E

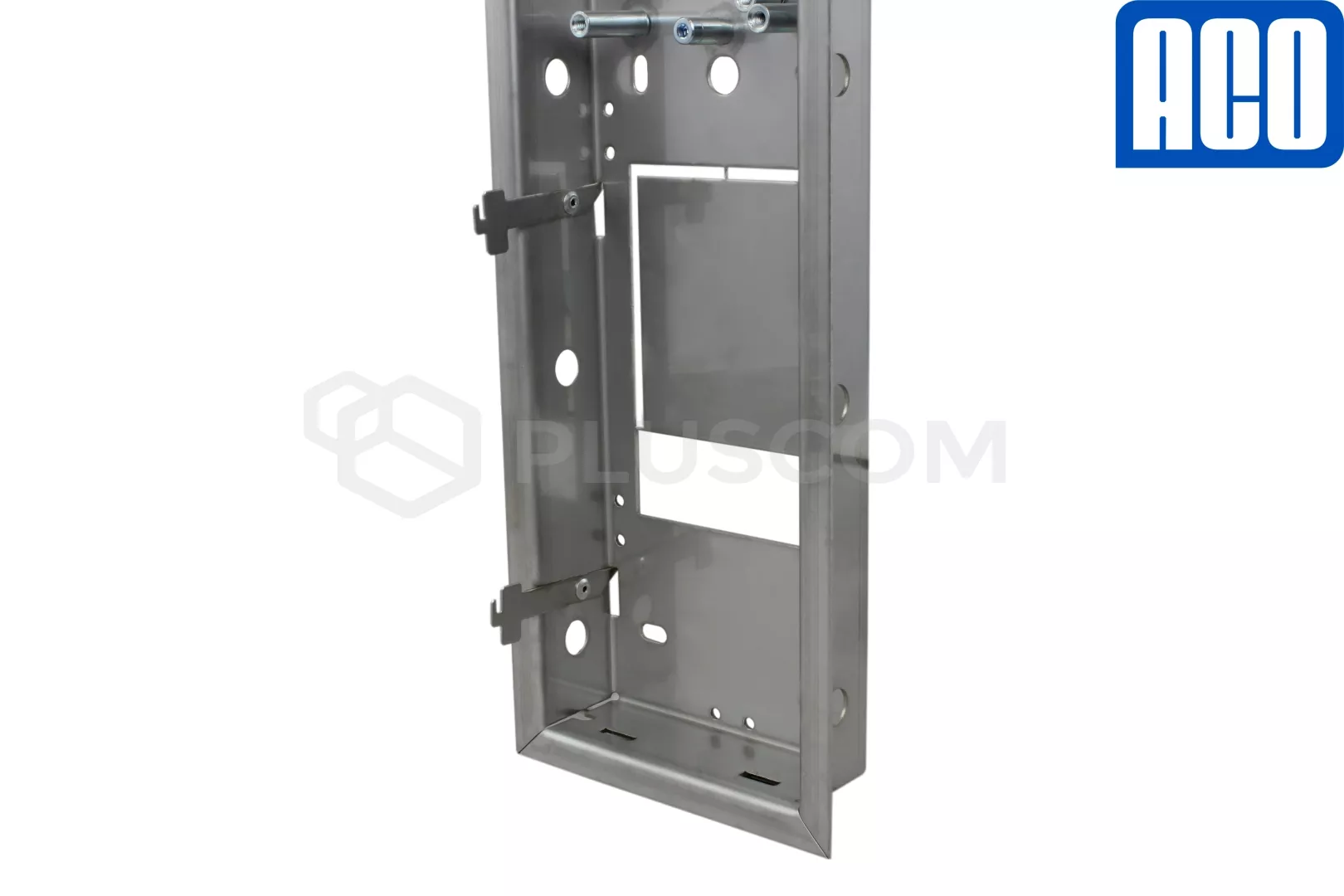

Handles for the control panel:

Handles for the control panel:

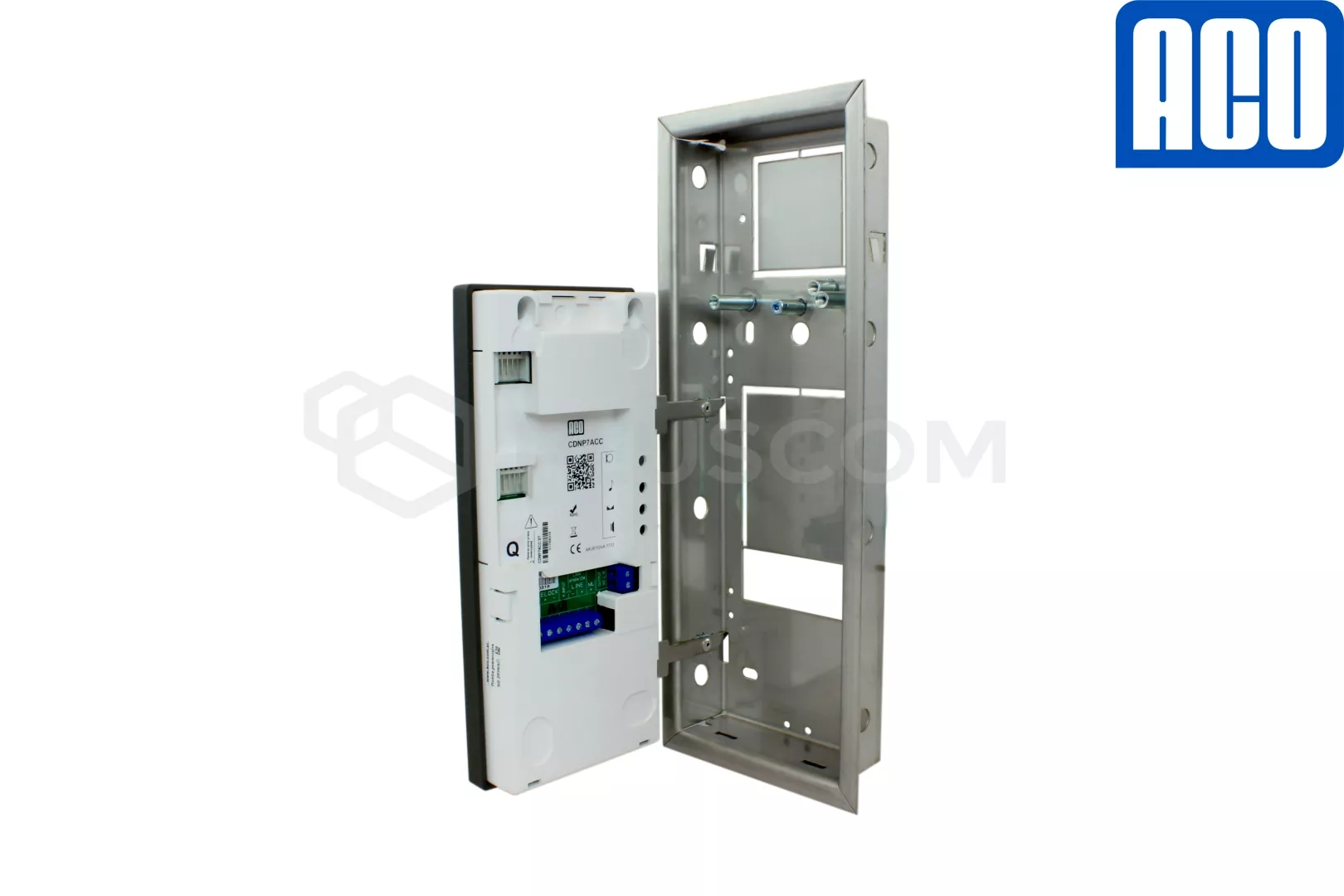

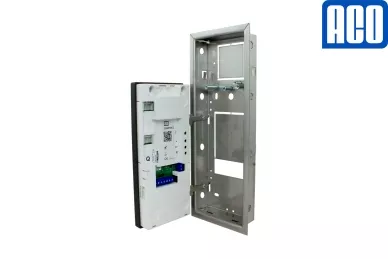

Fixing the control panel during installation:

Fixing the control panel during installation:
