CAME FAST PLUS ATOMO set for swing gates with a
maximum sash weight of 200 kg and max. length 2.3m

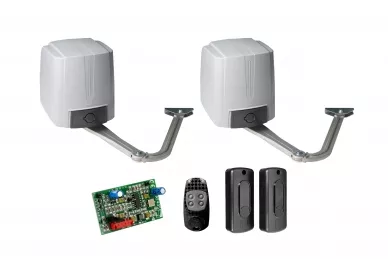

PACK CONTAINS:
|
CAME FAST PLUS ATOMO Set for double-leaf gates
|
Fast is a broken arm actuator for leaf-length gates up
to 2.3 m. It is adapted to the specific installation requirements: can be
mounted on posts with a width of 20 cm.
It is equipped with a multifunctional control unit that can be connected all
possible safety and control devices.
The construction of the actuator and the broken arm make the actuator a perfect
match with architect of the gate, and above all, it does not require any
modifications to the posts. Actuator has limit switches, no stops are required
to be mounted in backing either on the opening or on the closure. The actuator
has been designed to to be ready for operation even in critical weather
conditions.
Actuator features:
- limit switches built into the actuators enable quick and easy precise
regulation of the opening and closing points of the sash
- possibility of automatic gate closing
- gate stop with remote control
- fixed gate protection, open / close commands are ignored if there is an
obstacle in the gate clearance
Fast requires very little space and is easy to install on the gate posts.
The
AT04EV remote control provides radio control of the
dynamically variable code o frequency 433.92 MHz, which gives a high level of
safety of use, and makes the code impossible to copy.
Each time you press a button on the transmitter, one of more than 4 is sent
billions of possible code combinations according to the complex algorithm that
only the receiver can decode. This technique prevents cloning the code to be
sent.
DIR photocells are distinguished by a modern look and very
small sizes. Thanks to the use of the IP54 tightness class and appropriate
mounting accessories, DIR photocells can be mounted both inside and outside and
out.
They have a modular structure, thanks to which their assembly can be at
different heights.
The principle of operation of the DIR photocell is based on the synchronization
between the transmitter and the receiver - this event takes place after
connecting the power supply. Means, that each receiver cooperates only with the
corresponding transmitter, eliminating thus possible interference with the
signal from external sources.
The
AF43S frequency card , included in the kit, works in
frequency 433.92 MHz and supports TOP and TAM fixed code control as well with
the ATOMO rolling code.

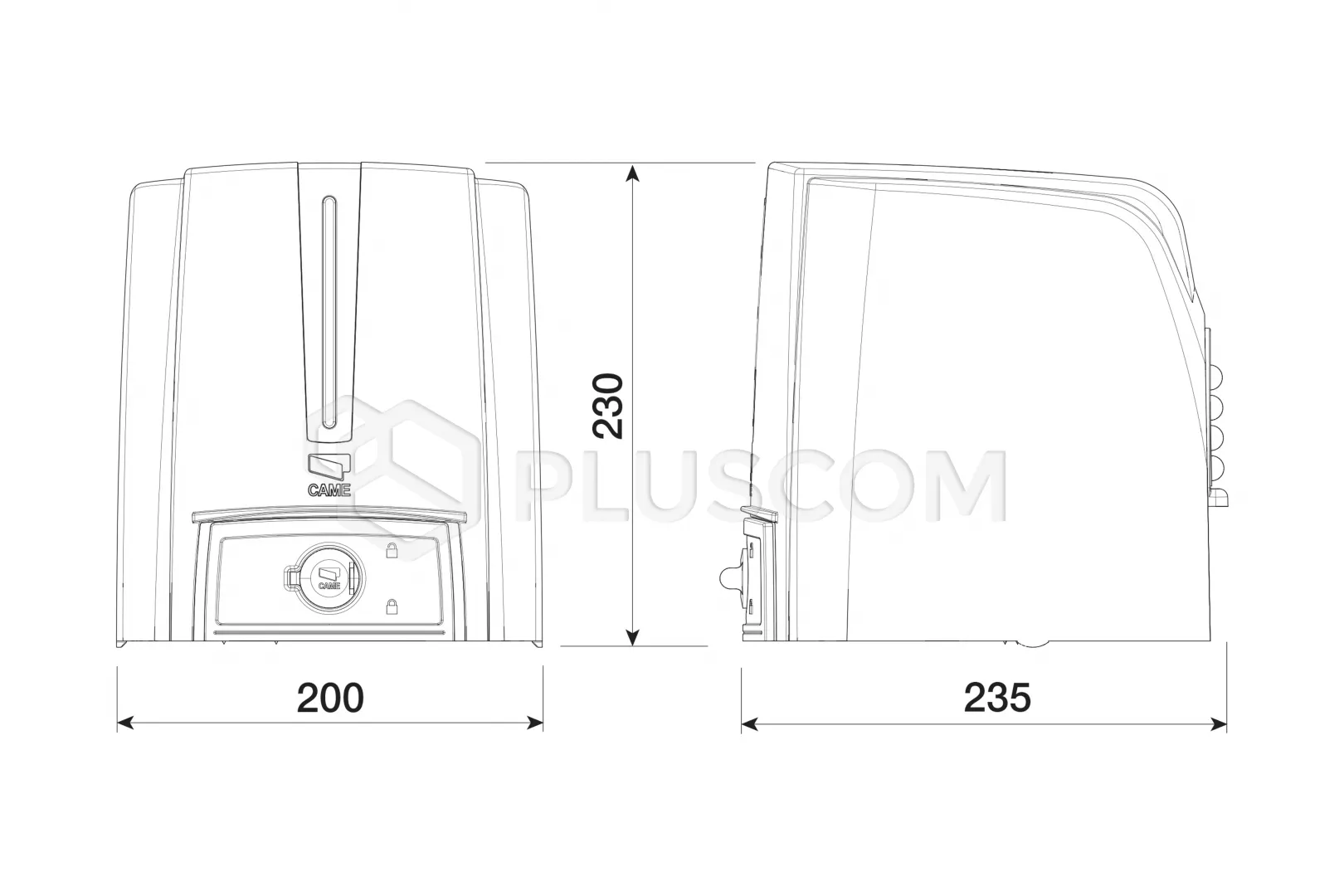

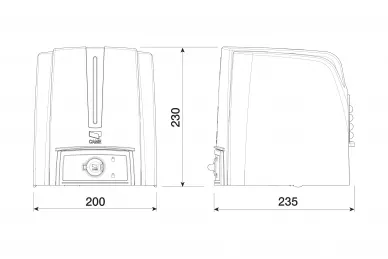

Dimensions:
TECHNICAL PARAMETERS:
- power supply: 230V 50/60 Hz
- motor power supply: 230V AC
- motor current consumption: 1.4A
- maximum engine power: 160W
- opening time (up to 90 °): 15s
- working temperature: -20 ° C ~ 55 ° C
- degree of protection: IP54
- dimensions: 200x230x235mm
- weight: 12.7kg

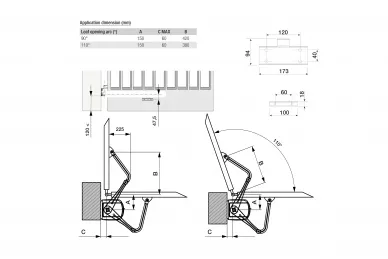

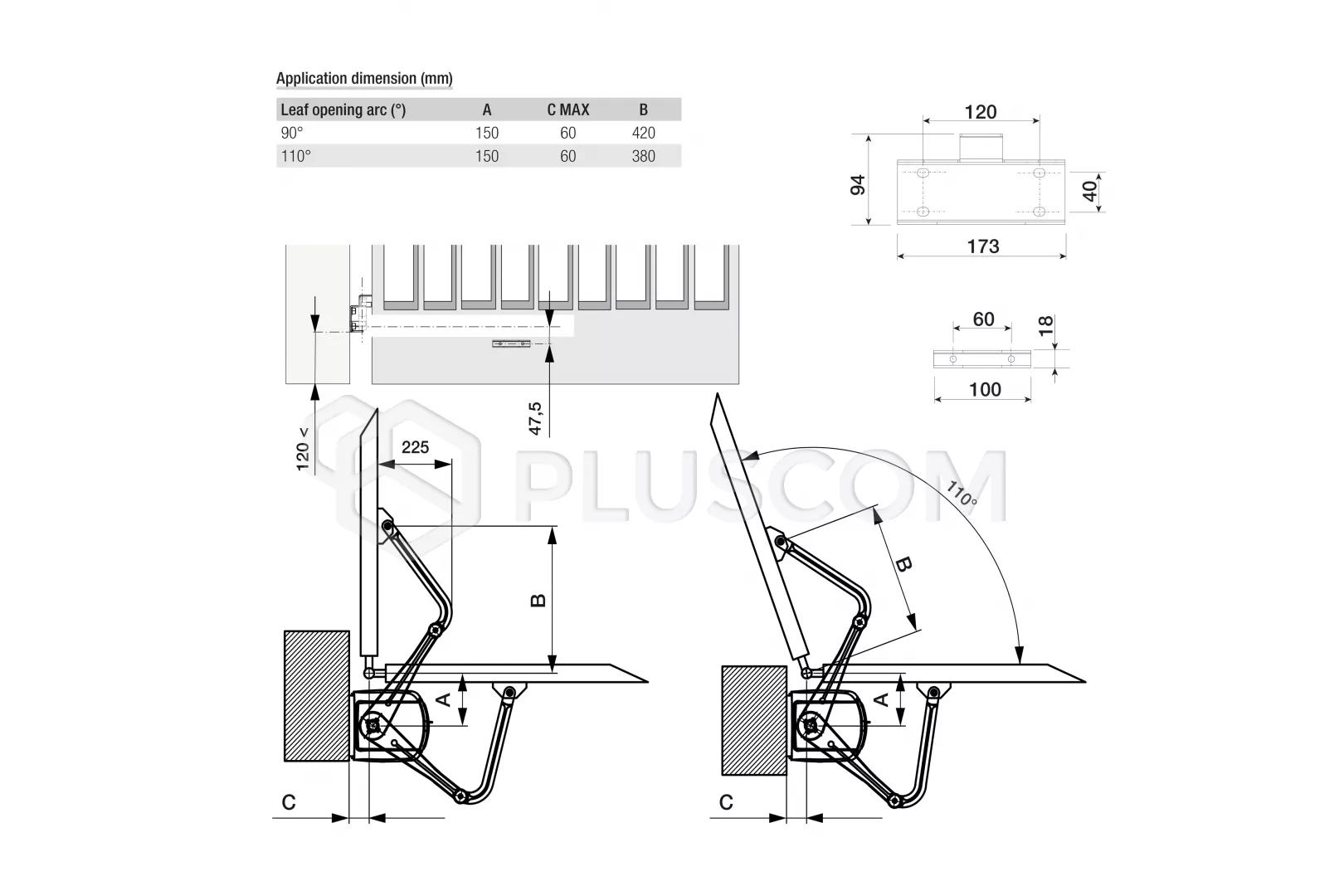

Determining the assembly dimensions:
