AJAX StarterKit Wireless Alarm Kit (White)
StarterKit is a wireless alarm system that includes motion and magnetic
sensors, a remote control with an alarm button, and a hub for system control.
This hardware is sufficient to protect the entrance to your property.
When a burglar opens the door, the system triggers an alarm and notifies users
and security agencies.
StarterKit uses several communication channels, including at least GSM and
Ethernet.
New Ajax devices can be added to any starter kit.

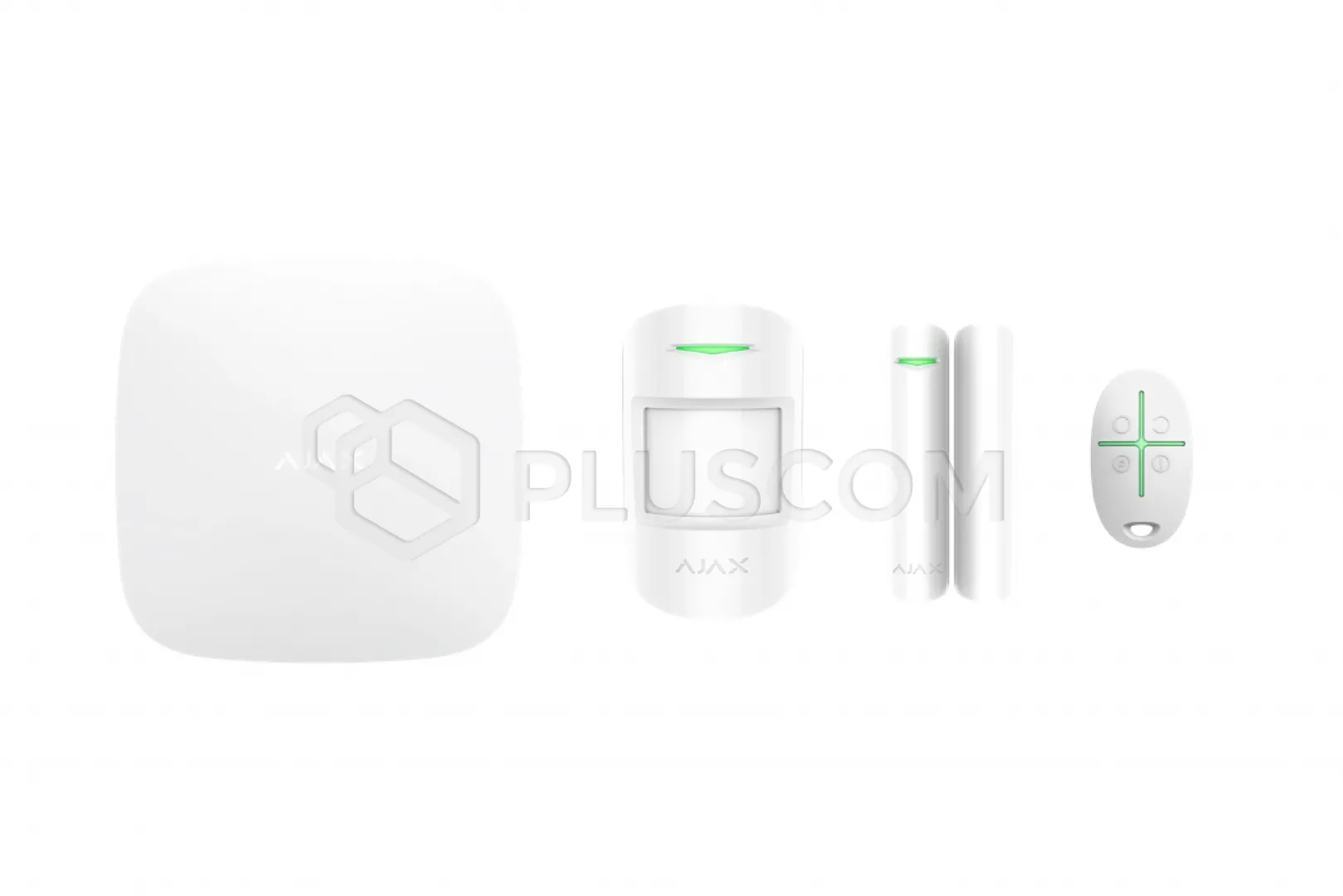

The kit includes:
- 1x Intelligent HUB Control Panel
- 1x MotionProtect Wireless Motion Sensor
- 1x DoorProtect Wireless Magnetic Sensor
- 1x SpaceControl Wireless Key Fob
FEATURES:
- Helps protect against break-ins through windows and doors
- Sends alarms to the owner's smartphone and to the Alarm Monitoring
Station via GSM or Ethernet
- Controlled via a mobile app and key fob
Operation Principle
The sensors detect the presence of an intruder and
the opening of a window or door. The Hub sends an alarm notification to the
Alarm Monitoring Station and to the system owner's smartphone.
Features
The starter kit's capabilities are expanded by connecting
fire and flood sensors, automated devices, and cameras.
Installation and Configuration
The devices install in 30 minutes. The
sensors are connected and configured using a mobile app, and then mounted on
the included SmartBracket.
Technical Specifications:
- Maximum number of connected devices: 100
- Maximum number of users: 50
- Mobile apps:
- iOS 13.0 and later
- Android 5.0 and later
- Alarm signal delivery time: 0.15 seconds
- Jeweller radio technology:
- Communication range with the central unit - up to 1,700 m in open space
- Two-way communication between devices
- Radio frequency bands:
- 866.0 – 866.5 MHz
- 868.0 – 868.6 MHz
- 868.7 – 869.2 MHz
- 905.0 – 926.5 MHz
- 915.85 – 926.5 MHz
- 921.0 – 922.0 MHz
(depending on sales region)
Self-regulated RF output power – up to 20 mW
AES-based block encryption
Device polling period – 12–300 seconds
- Communication channels: Ethernet, GSM (850/900/1800/1900 MHz)
- SIM card support: Micro SIM 2G
- Video monitoring: Up to 10 cameras or DVRs
