EuFIX R223 adapter for the Fibaro FGR-223 module

41,84 EUR including 23.00% VAT
Product code: #21793
Manufacturer: Fibaro
  • For FIBARO FGR-223
  • For TH35 DIN rail
  • Supply voltage: 230V AC
  • Buttons S1 and S2
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,51 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

EuFIX R223 adapter for the FIBARO FGR-223 module

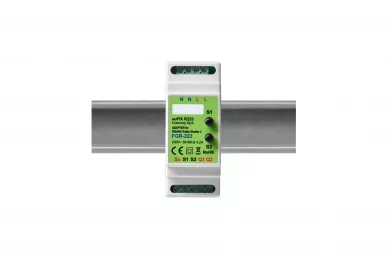

The R223 adapter is used for safe installation of the FIBARO FGR-223 module in electrical switchboards.

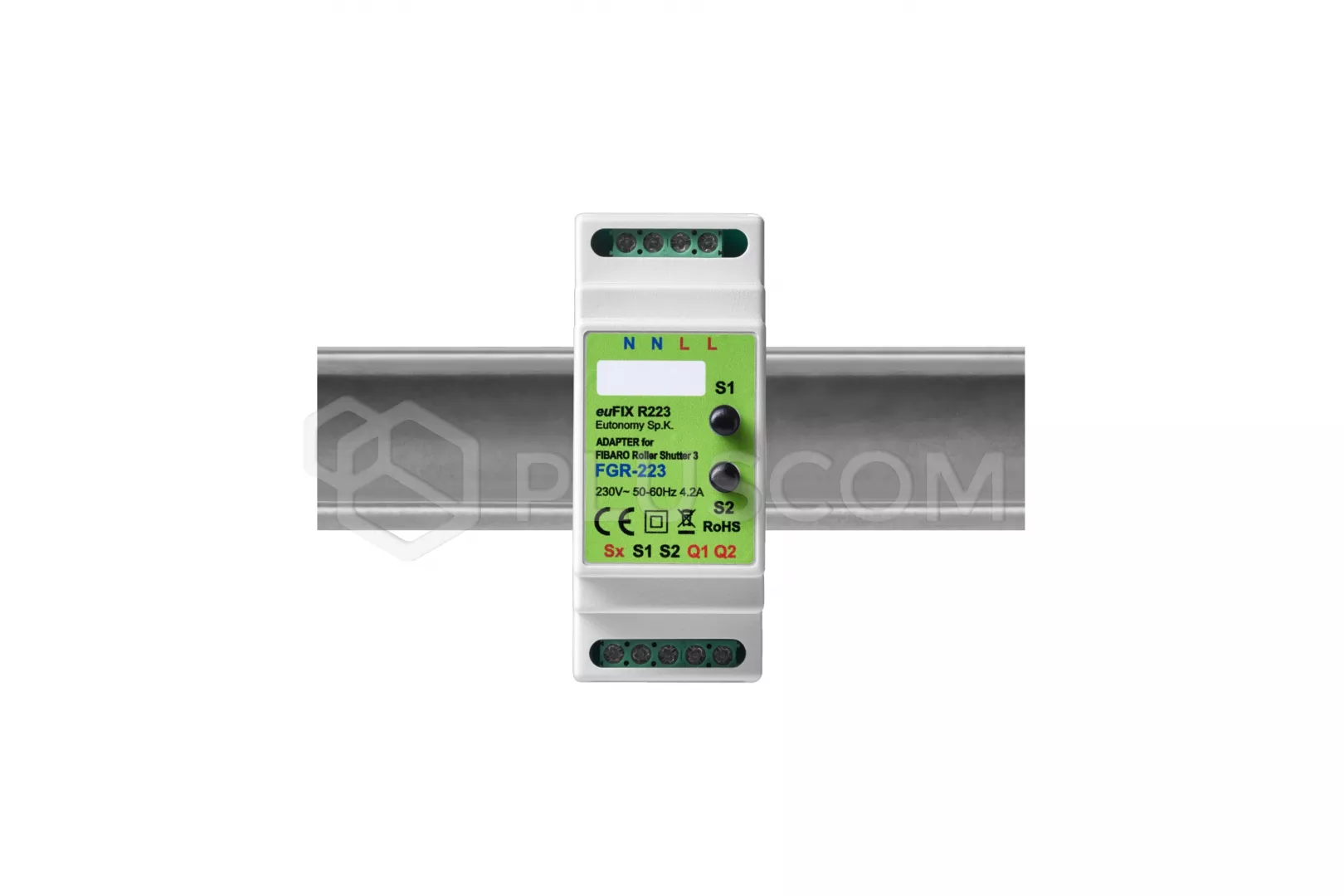

The adapter consists of a housing for mounting on a TH35 DIN rail and a plate carrier, with terminals for connecting power, input signals and output and control buttons. The FIBARO module is mounted to the board FGR-223. In the upper part, the housing has micro-buttons S1 and S2 used for diagnostics. We can also register the module in the system with the S1 button Z-Wave or remove it from the system.

TECHNICAL DATA:
  • supply voltage: 230V AC
  • load power: 4.2A
  • housing dimensions: 34.8 x 87.3 x 64.7mm
  • width in modules: 2 TE modules
  • cross-sectional area of connection cables: max. 2.5mm2
  • maximum length of cables connected to inputs Sx, S1, S2: 10m
  • working temperature: od 0°C do +35°C
