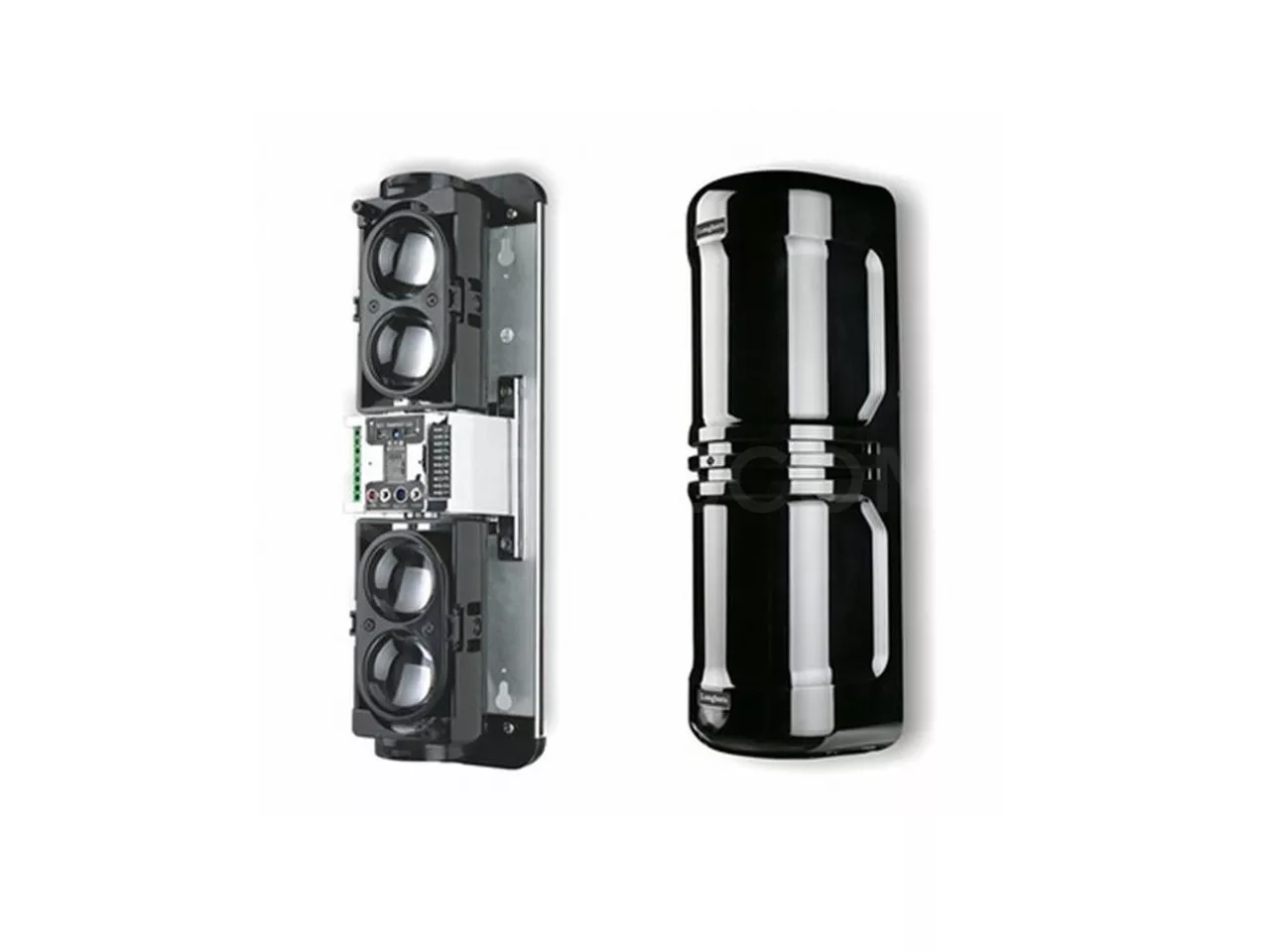

VIDQ 250 Triad active infrared barrier

185,53 EUR including 23.00% VAT
Product code: #6074
Manufacturer: Vidicon
  • Range: 250m
  • Detection Method: four infrared beam
  • Calibration: LED indicator

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Infrared barrier VIDQ 250 uses four infrared beam. Alarm will be given after discontinuation of all four beams. This reduces the number of false alarms that could be caused by small animals, birds or falling leaves.

The calibration of the transmitter and receiver facilitates the LED. Strap with LEDs indicating the quality of the received beam. Adjustment is possible in the horizontal plane of 120 ° (+/- 20 °), the vertical of 10 degrees (+/- 5 °).

Includes:
  • barrier infrared transmitter, receiver
  • mounting brackets
  • mounting screws
Specifications:
  • outdoor range: 250m
  • indoor the range: 500m
  • number of beams: 4
  • detection method: simultaneous intersection of all beams
  • source of radiation: infrared pulse
  • response time: 50 ÷ 700ms
  • alarm output: relay output: NO / NC. Output load: AC / DC 30 [V], 0.5 [A]
  • power supply: DC 12 - 24V AC 11 - 18V
  • maximum power consumption: 25mA TX, RX 80mA
  • heater: TX 250mA, 250mA RX
  • operating temperature and humidity: -25 ° C ... 70 ° C, 5% ... 95%
  • tamper output: NC

Download
Manual 0.74 MB
Datasheet 0.44 MB
