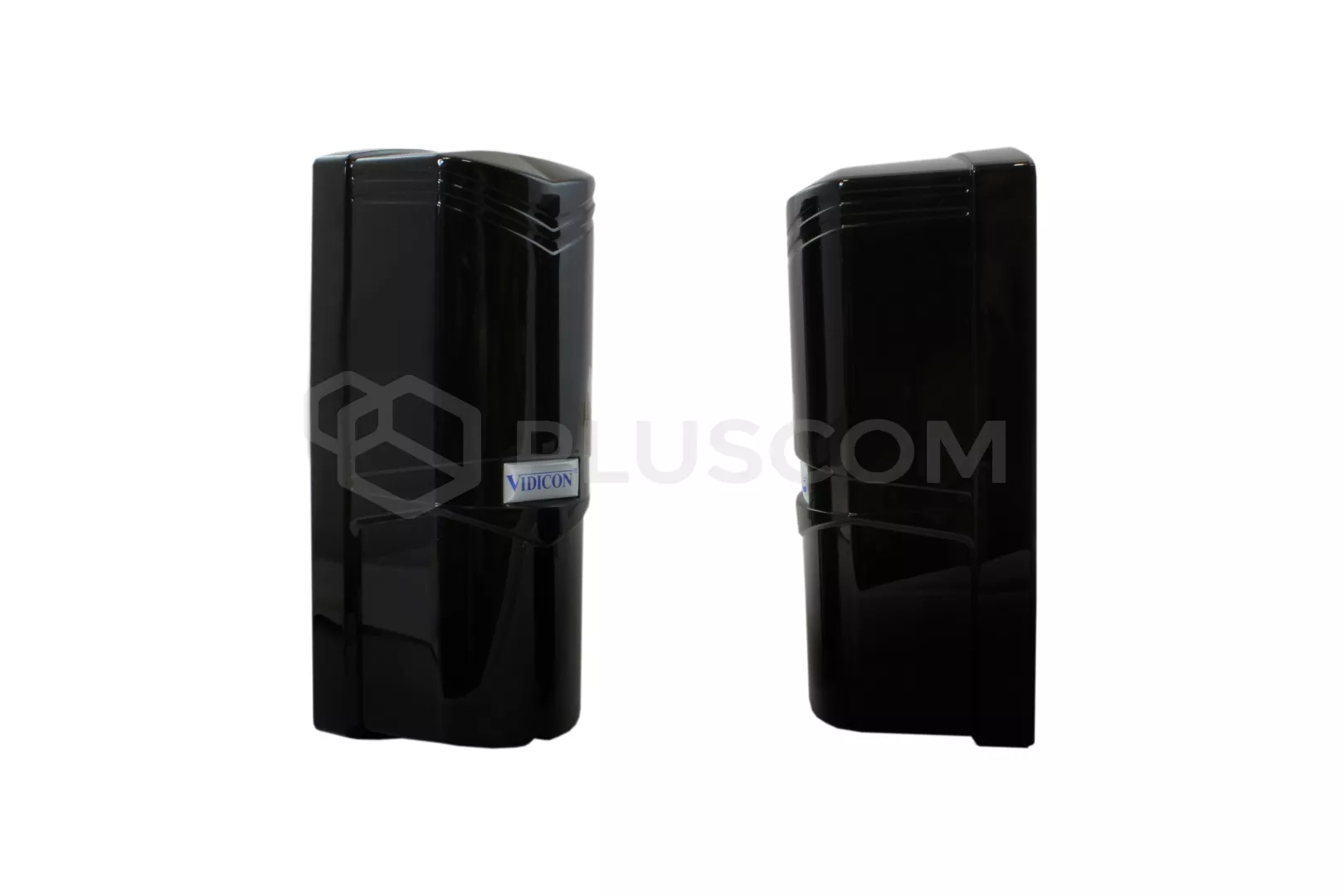

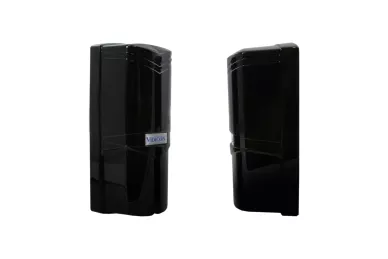

VIDD 100 Dual active infrared barrier

VIDD 100 Dual infrared barrier

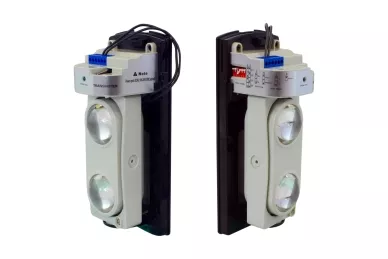

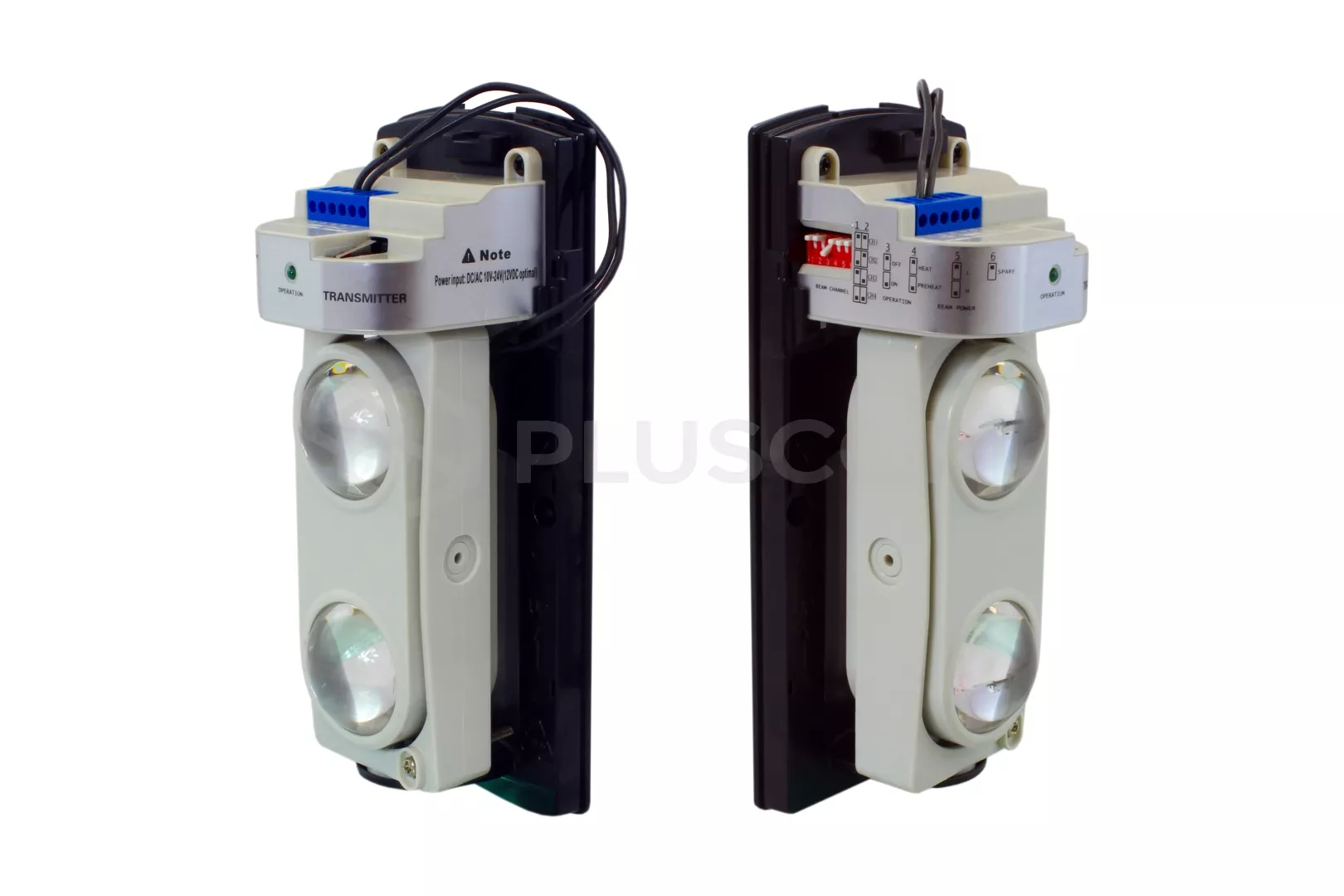

Transmitter:

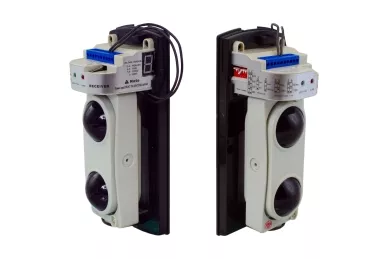

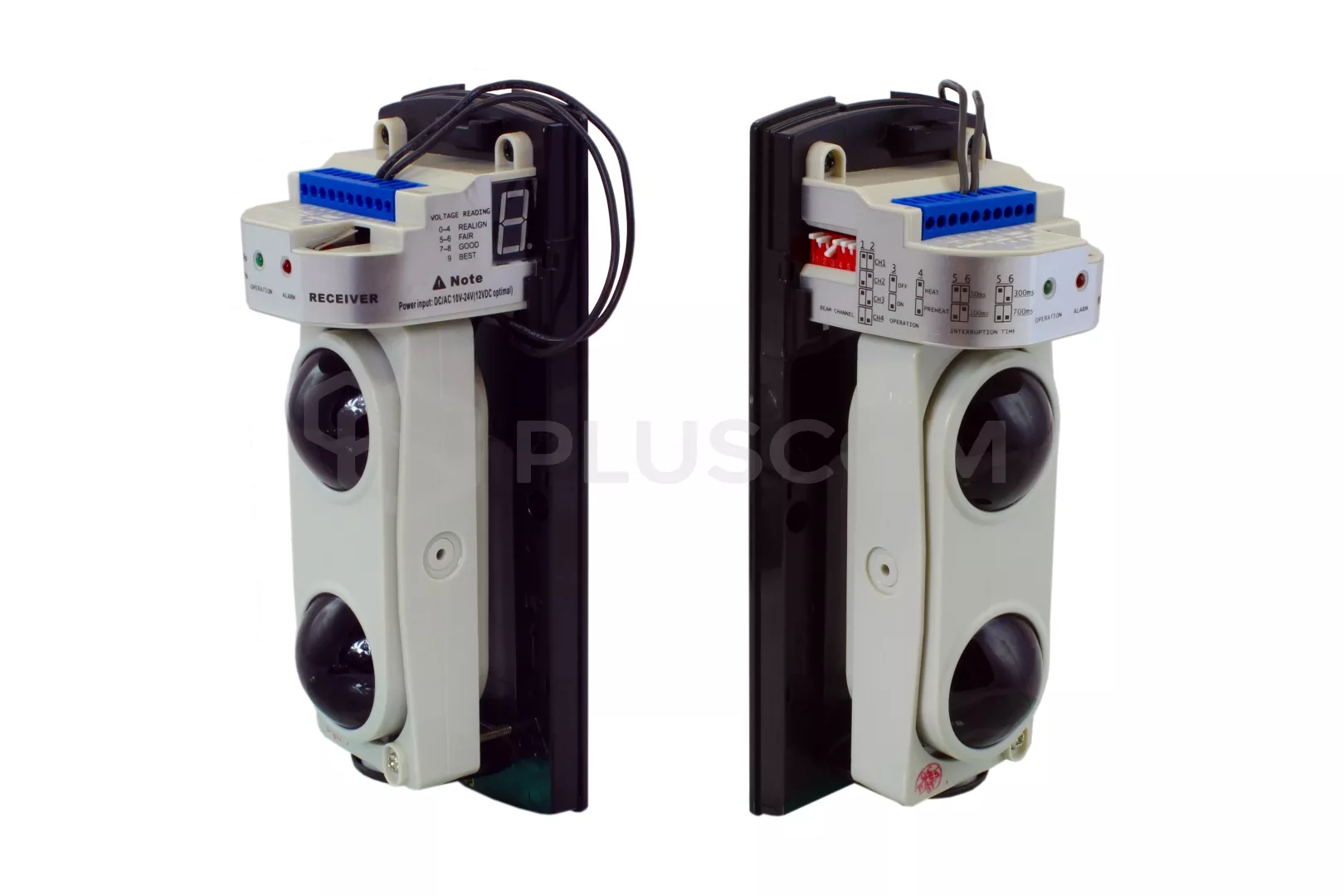

Receiver:

VIDD 100 infrared barrier uses two infrared beams. Alarm will be given after discontinuation of the two beams. This reduces the number of false alarms that could be caused by small animals, birds or falling leaves.

The calibration of the transmitter and receiver facilitates hole collimation, and LED indicator for the strength of the received signal. Adjustment is possible in the horizontal plane of 120° (+/- 20°), the vertical of 10 degrees (+/- 5°).
Barriers have the ability to set:

• one of the four operating channels
• interruption time
• alarm time

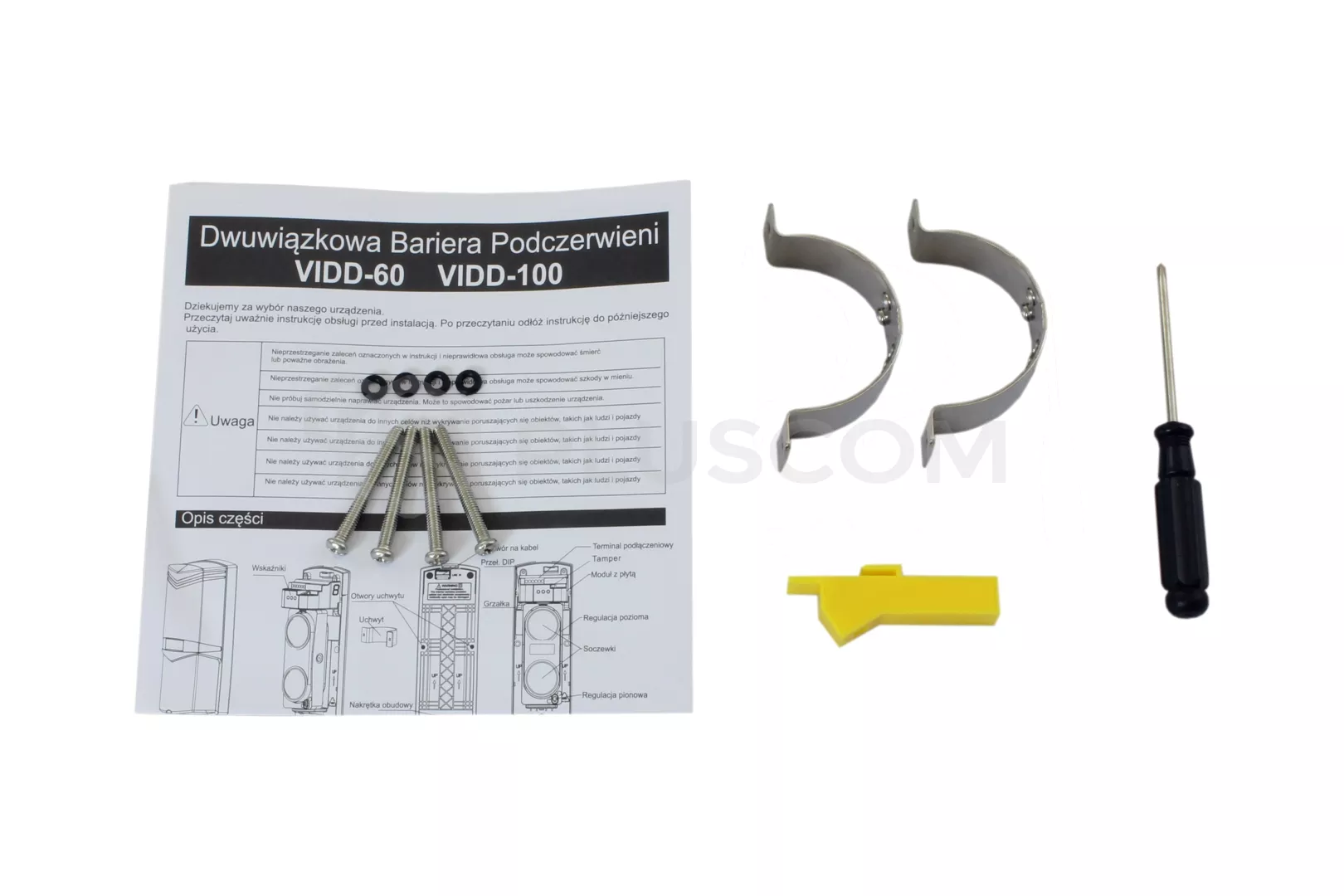

Accessories:

Includes:

• barrier infrared transmitter, receiver
• mounting brackets
• mounting screws


• outdoor range: 100m
• indoor range: 200m
• number of beams: 2
• detection method: simultaneous intersection of all beams
• source of radiation: infrared
• response time: 50 ÷ 250ms
• alarm output: relay output: NO / NC. Output load: AC / DC 30 [V], 0.5[A]
• power supply: DC 12 - 24V AC 11 - 18V
• maximum power consumption: 13mA TX, RX 40mA
• heater: TX 150mA, 150mA RX
• operating temperature and humidity: -25°C...70°C, 5%...95%
• tamper output: NC
• frequency: 4 channels work
