Universal Pulsar AWO622

77,82 EUR including 22.00% VAT
Product code: #10571
Manufacturer: Pulsar
  • dedicated for DIN rail mounted devices
  • battery space: 2x17Ah/12V
  • 2x DIN rail 330mm/18
  • Dimensions: 375x355x95mm
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Universal Pulsar AWO611 surface mounted Pulsar PKAZ169 Set for DIN enclosures Universal Pulsar AWO621 surface mounted Universal Pulsar AWO613 Universal Pulsar AWO612

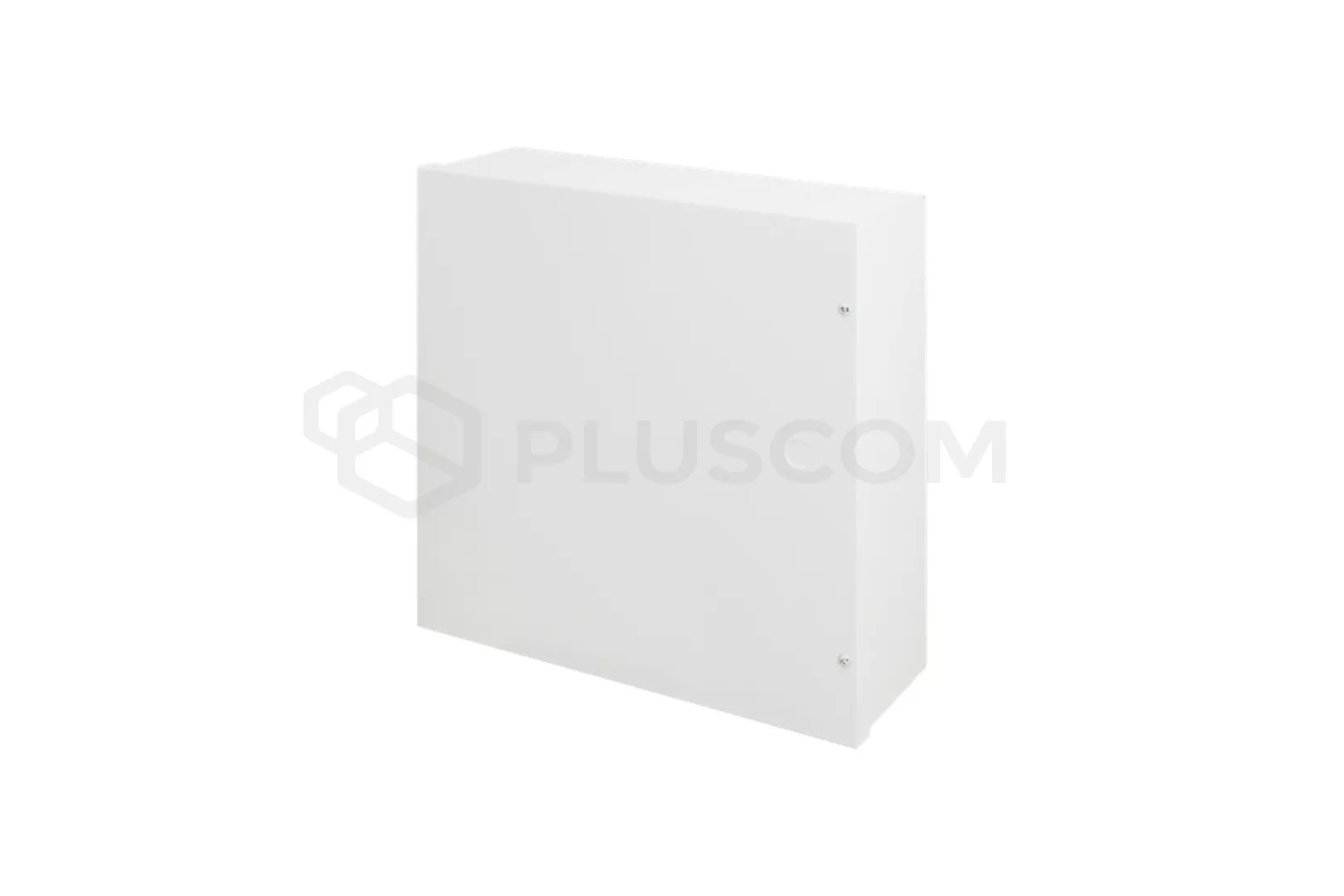

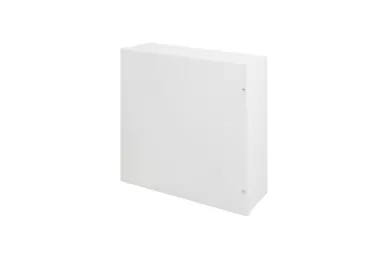

Pulsar AWO622 universal metal casing for devices mounted on a DIN rail

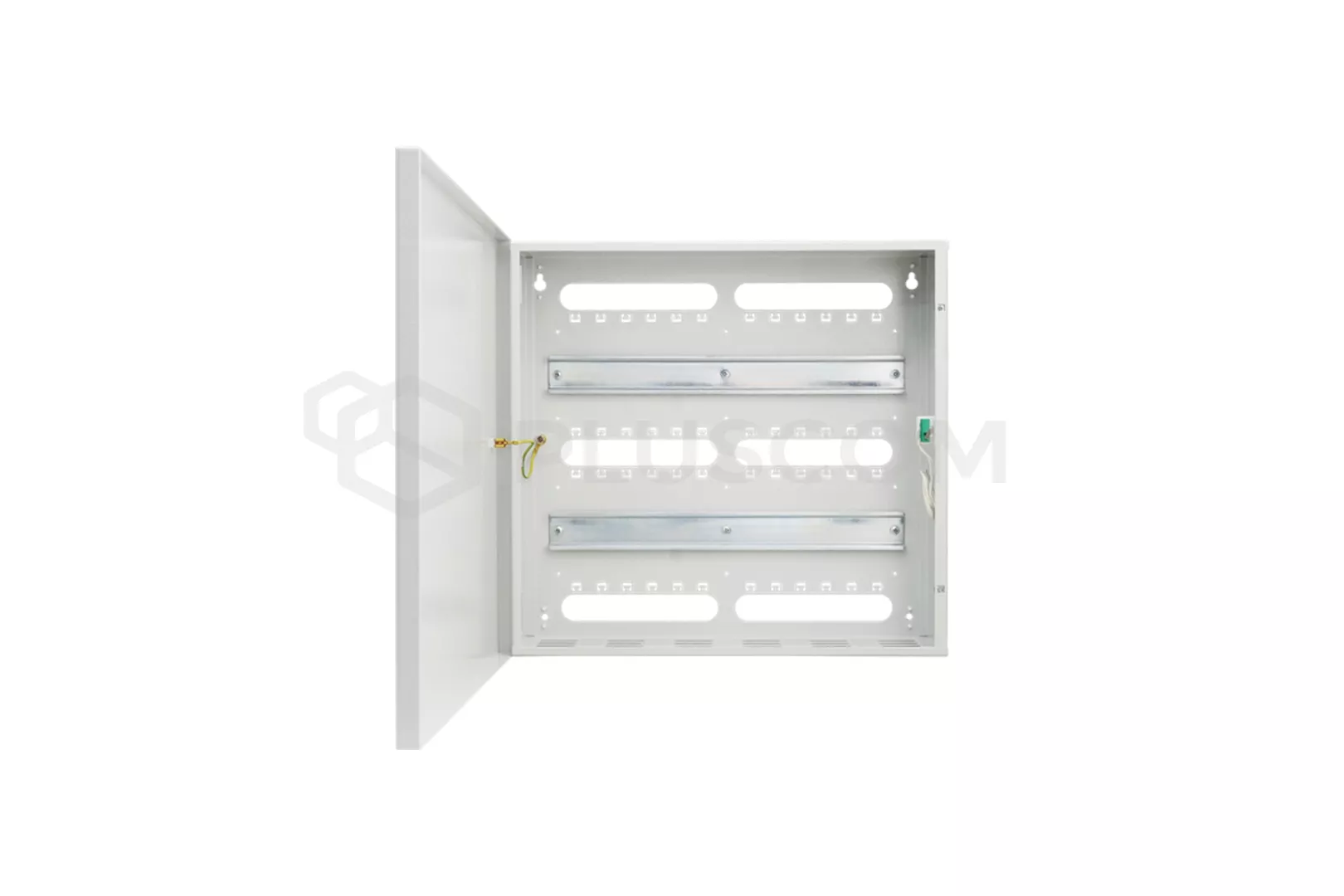

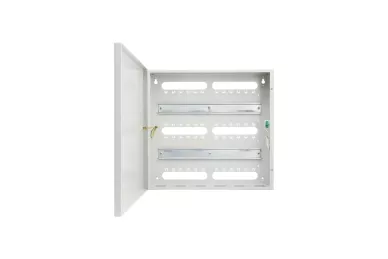

Due to its construction, the AWO622 enclosure can be used as an element integrating electrical systems, automation systems, CCTV, Access Control Systems, IDS, etc. It is dedicated to equipment mounted on a DIN rail (TH35mm).The enclosure is fitted with 2 DIN rails with a length of 330mm, which corresponds to 18 fields of the "S" fuse. Battery space for two 17Ah / 12V batteries. Tamper protection (opening of the housing) included.

Universal Pulsar AWO622

Universal Pulsar AWO622

Pulsar AWO622

Pulsar AWO622



SPECIFICATIONS:
  • Material: sheet DC01 RAL7035color
  • place for the battery: 2x17Ah/12V
  • Enclosure: 20IP
  • dimensions: 375x355x95+8mm
  • closing: screwed x 2, optional: lockable,
  • distance from wall 8mm

DESTINATION:

  • Electric fuses of the „S” type
  • Transformers of the following series: TRP, TRZ, TOR
  • Power supplies of the following series:
    • PS-15xxx, PS-40xxx, PS-60xxx, PS-100xxx, PS-150xxx, PS-200xxx
    • DINxxx
  • Built-in buffer power supplies of the following series:
    • PSB-25xxx, PSB-35xxx, PSB-50xxx, PSB-75xxx, PSB-100xxx, PSB-155xxx, PSB-300xxx
    • PSBOC25xxx, PSBOC35xxx, PSBOC50xxx, PSBOC75xxx, PSBOC100xxx, PSBOC155xxx, PSBOC300xxx
  • Buffer power supply modules of the following series:
    • MSRDxxx

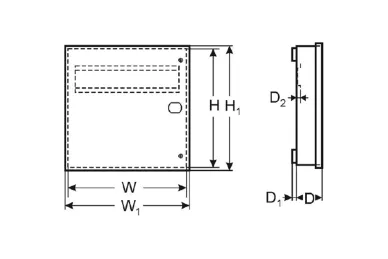

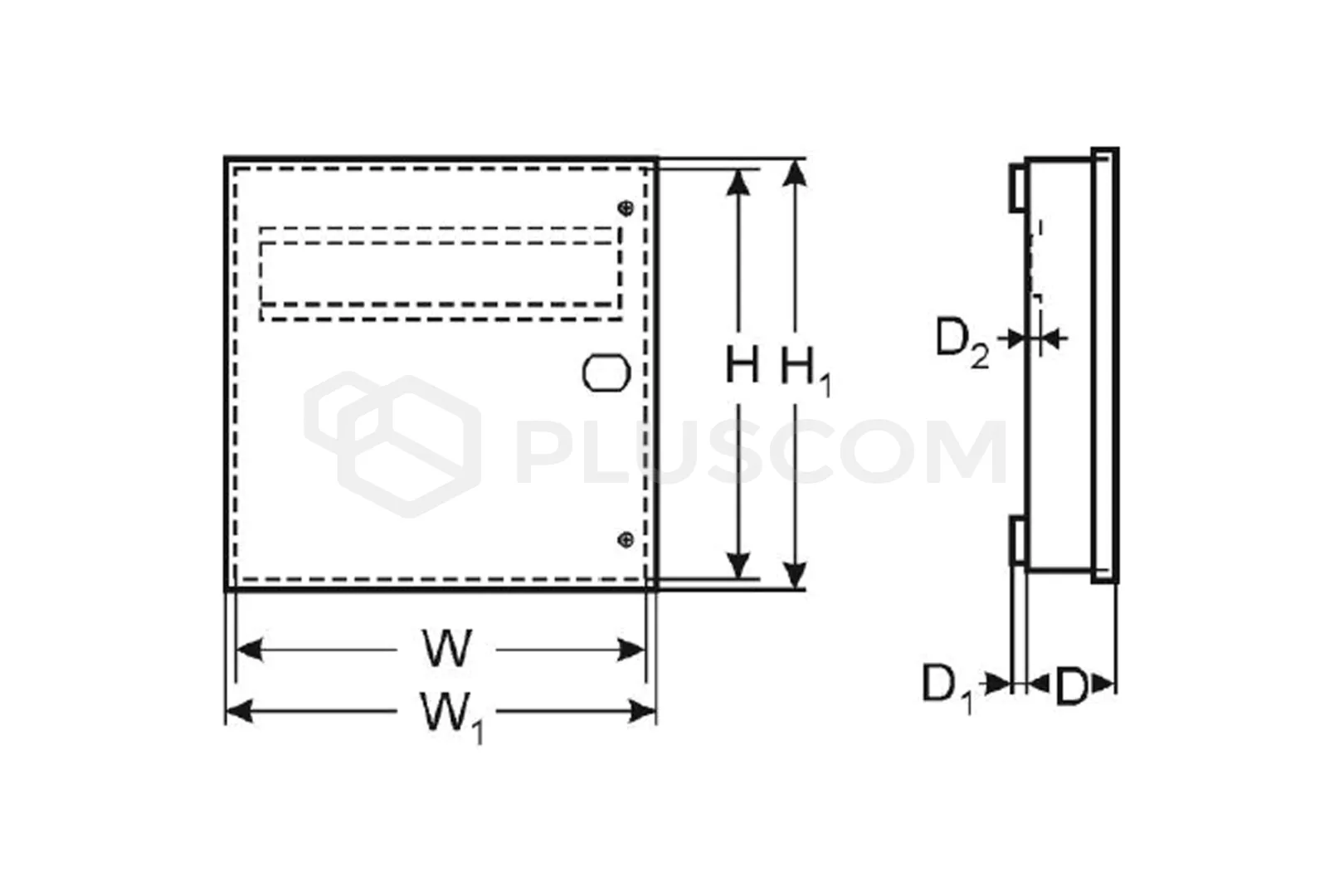

Dimensions:

Dimensions:

Download
Data Sheet 0.65 MB
Instruction 0.56 MB
Declaration CE 0.32 MB
