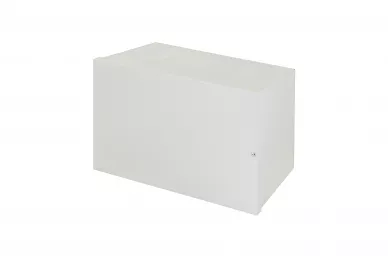

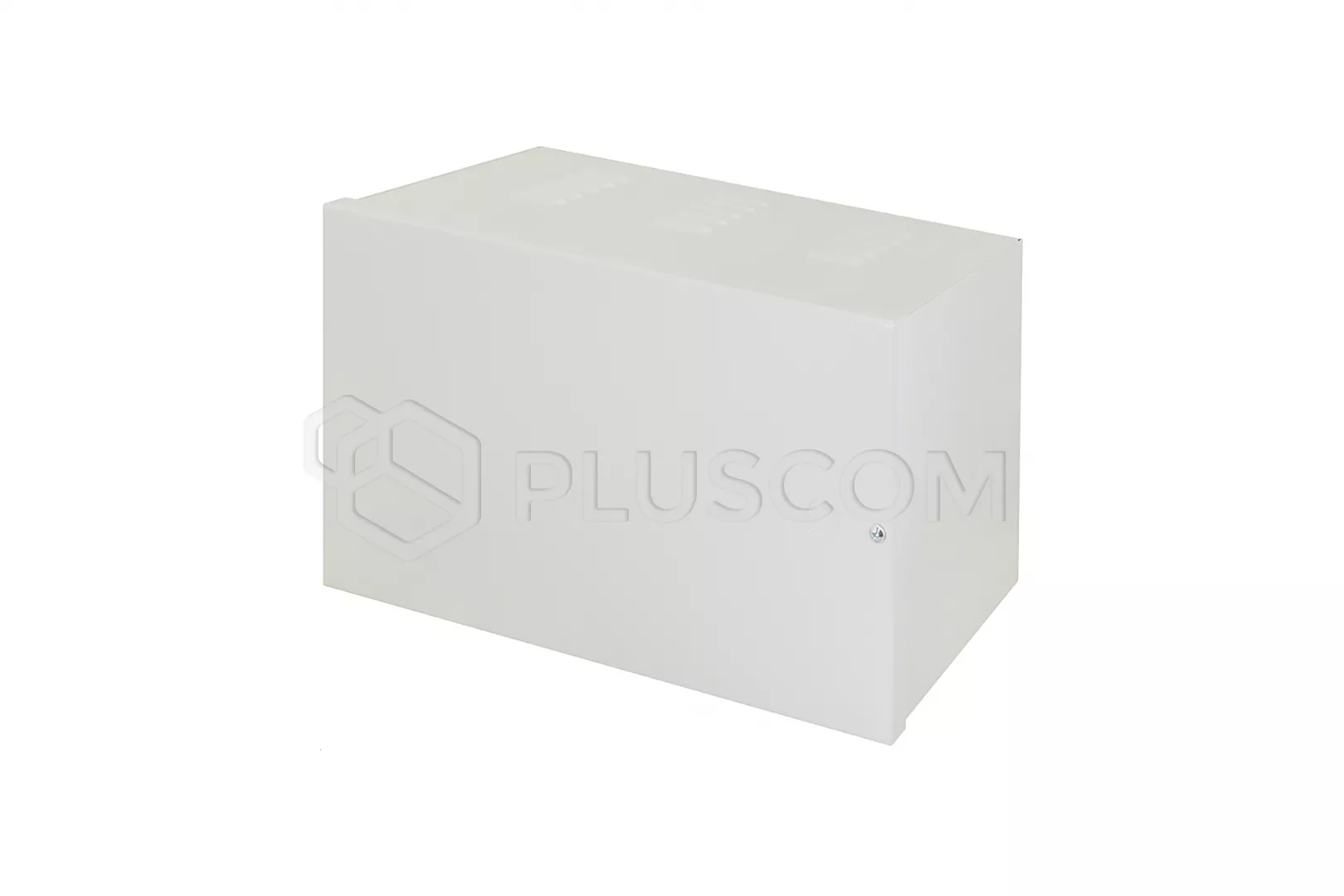

Universal Pulsar AWO611 surface mounted

Pulsar AWO611 universal metal casing for devices mounted on a DIN rail

Due to its construction, housing can be used as an element integrating electrical installations, automation systems, CCTV, Access Control, Intrusion Detection System etc. It is dedicated for DIN rail mounted devices (TH35mm).

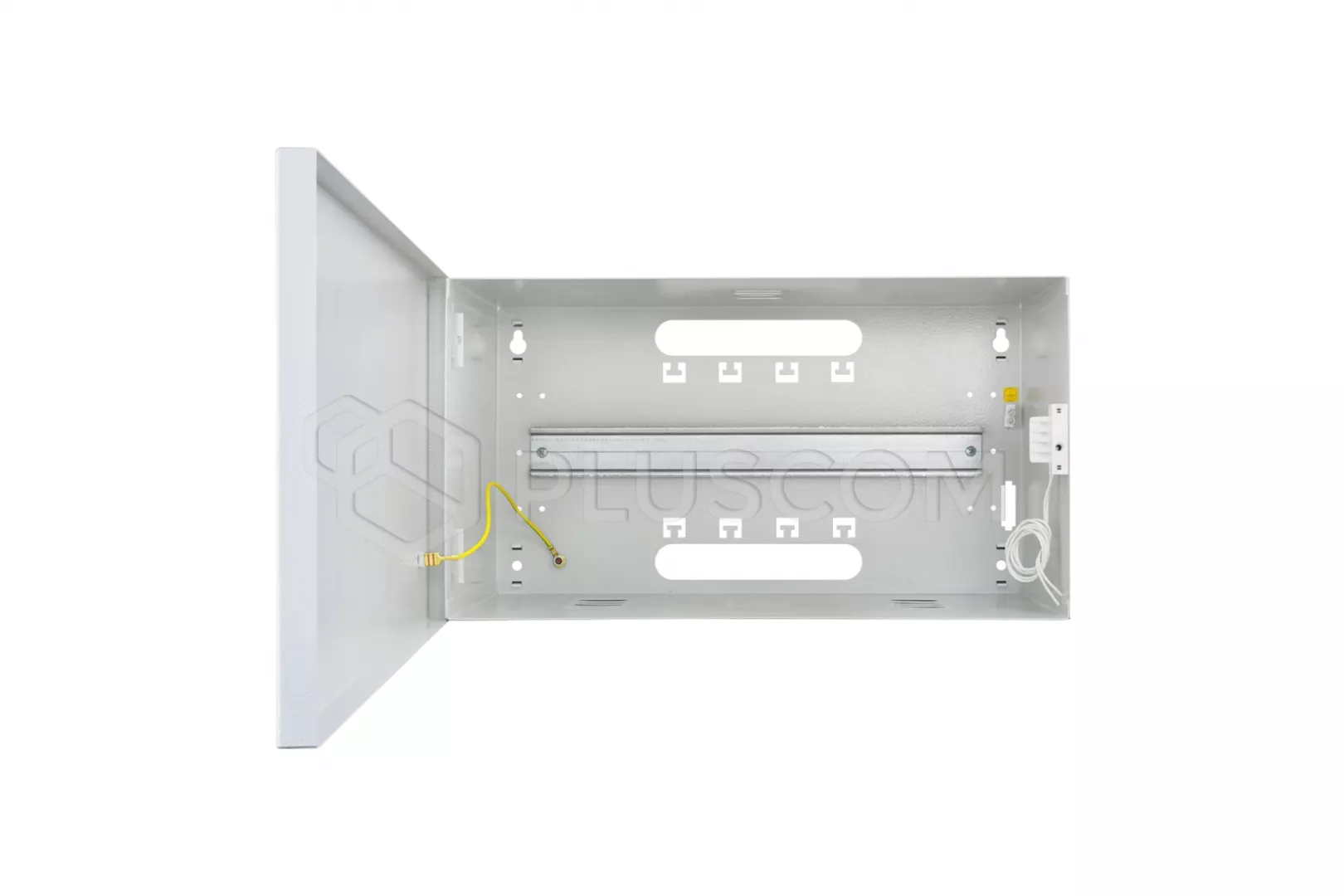

The enclosure is fitted with a bottom mounted DIN rail with a length of 130mm.
It has space for a battery: 2 x 7Ah / 2 x 17Ah.

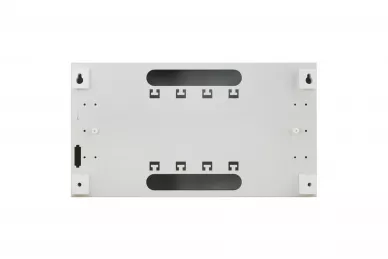

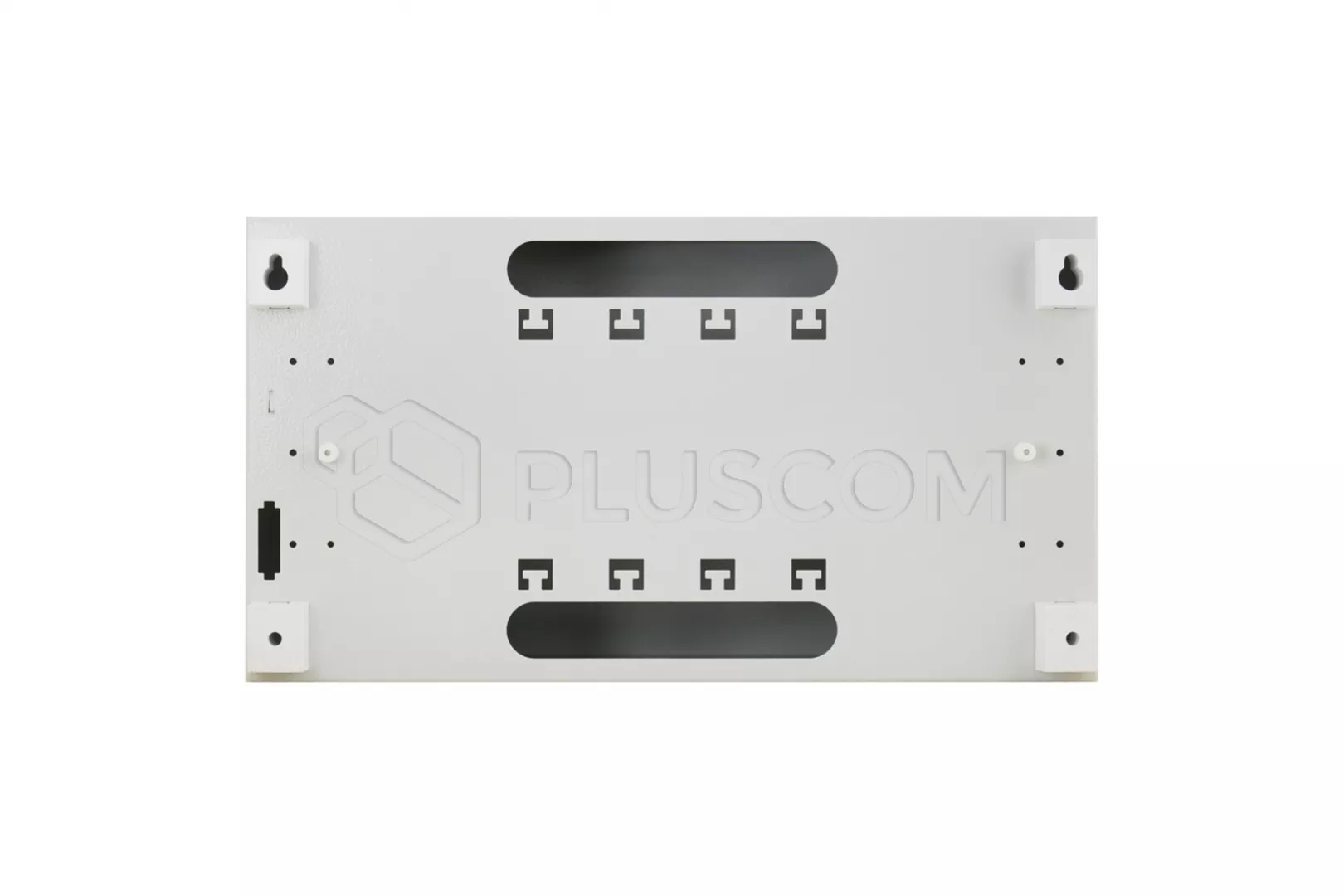

The set includes a tamper switch (indicating enclosure opening). In the standard option the enclosure is mounted with 2 screws from the front.

Universal Pulsar AWO611 surface mounted

Universal Pulsar AWO611 surface mounted

• Material: sheet DC01 RAL7035 color
• Enclosure: IP20
• Number of DIN rails: 1
• length of DIN rail: 320mm
• number of „S” type fields: 18
• distance from wall: 14mm
• Tamper protection: 1x microswitch: opening
• Closing: screwed: screw, at the front
• Dimensions: 375 x 205 x 155mm
• Weight: 3.6kg

DESTINATION:

• Electric fuses of the „S” type
• Transformers of the following series: TRP, TRZ using bracket DIN – AWO466 or AWO467
• Power supplies of the following series: PS-15xxx, PS-40xxx, PS-60xxx, PS-100xxx, PS-150xxx, PS-200xxx using bracket DIN – PSDIN1 or PSDIN2, DINxxx
• Built-in buffer power supplies of the following series: PSB-25xxx, PSB-35xxx, PSB-50xxx, PSB-75xxx, PSB-100xxx, PSB-155xxx, PSB-300xxx, PSBOC25xxx, PSBOC35xxx, PSBOC50xxx, PSBOC75xxx, PSBOC100xxx, PSBOC155xxx, PSBOC300xxx using bracket DIN – PSDIN1 or PSDIN2
• MEAN WELL power supplies for DIN rail of the following series: MDR, DR, HDR, EDR, NDR, SDR DRP, DRH, WDR, TDR, DRC, DR-UPS40 (buffer module), DRDN20, DRDN40, DR-RDN20 (redundant modules)
• MEAN WELL built-in power supplies of the following series: RS, LRS, RD, RSP, HRP, QP, AD, ADD, SCP using adapter Din DRP-03
