Time relay module Pulsar AWZ 526

20,44 EUR including 19.00% VAT
On stock. Ships in one business day
Delivery time: 3 - 5 days
Product code: #10650
Manufacturer: Pulsar
  • Power supply: 10-14VDC
  • Time range: 1s-5min/li>
  • max. load connection: 1A 50V AC/30V DC
  • The control inputs: S+, S-, R-
  • Optical indication
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,82 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Time relay module Pulsar AWZ 525 Time relay module Pulsar AWZ 516

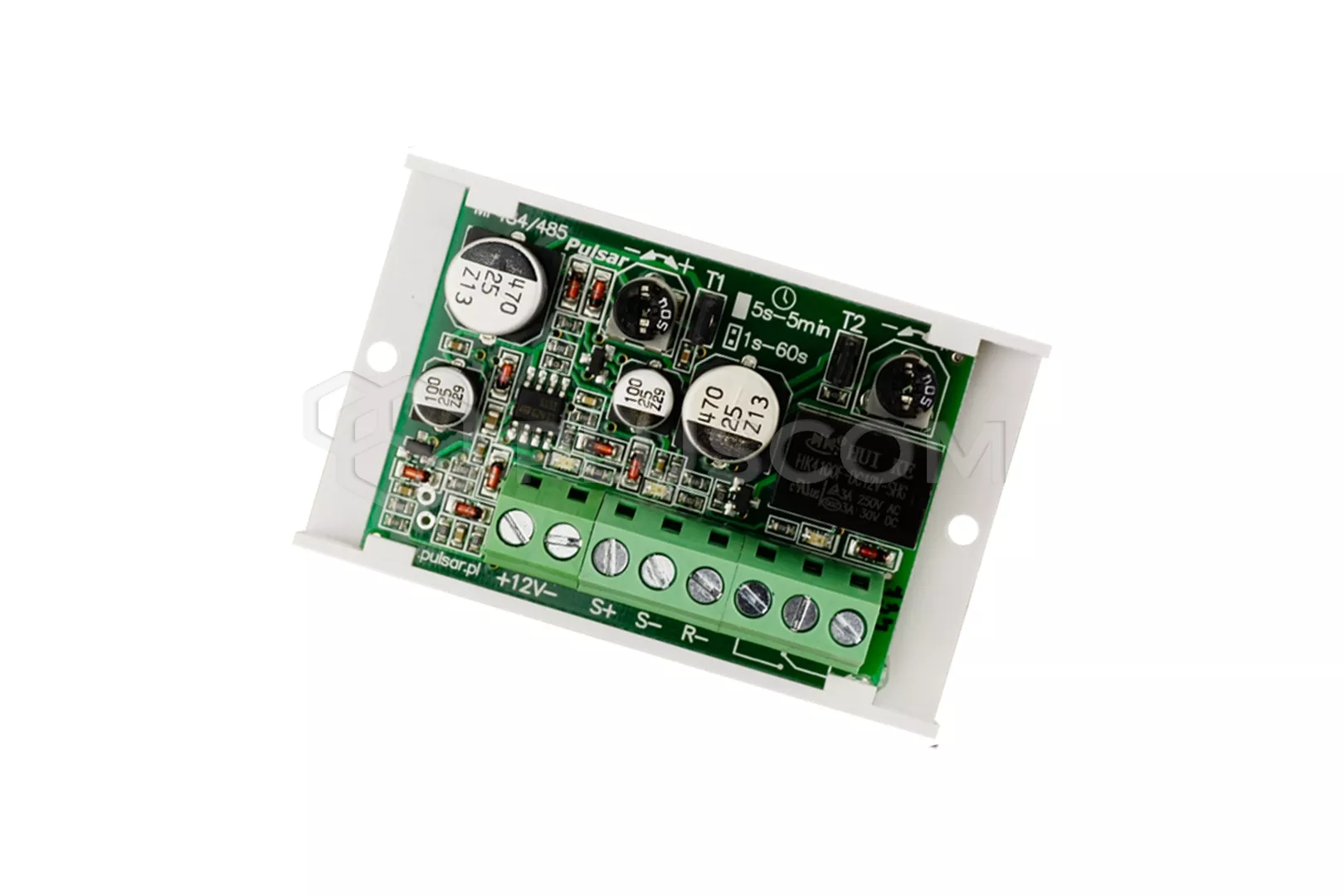

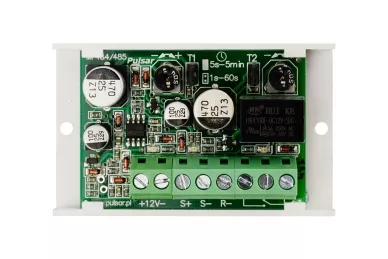

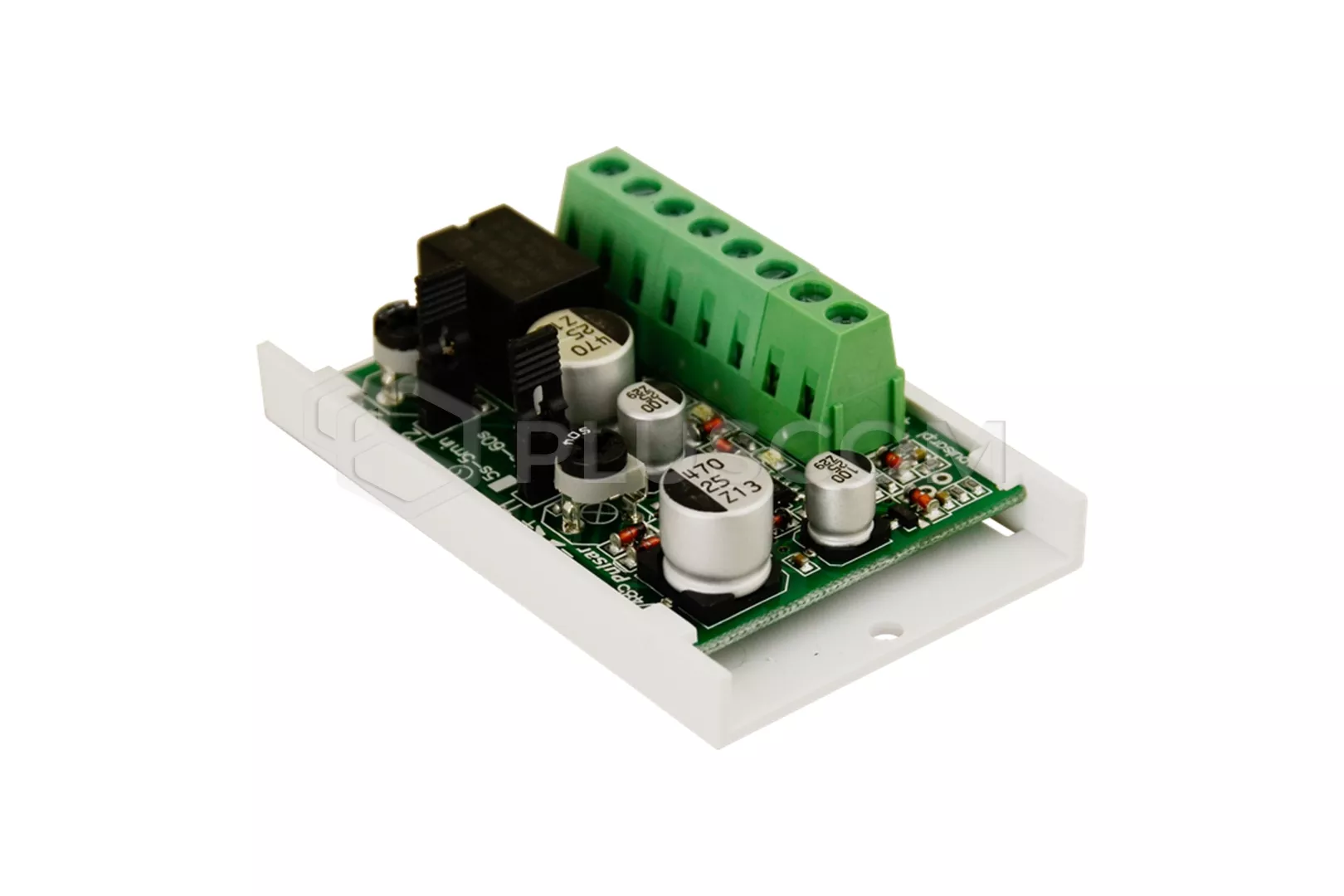

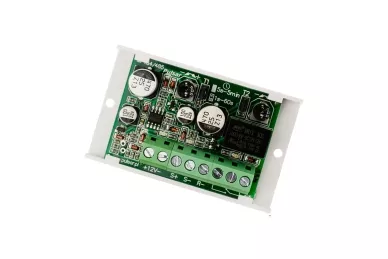

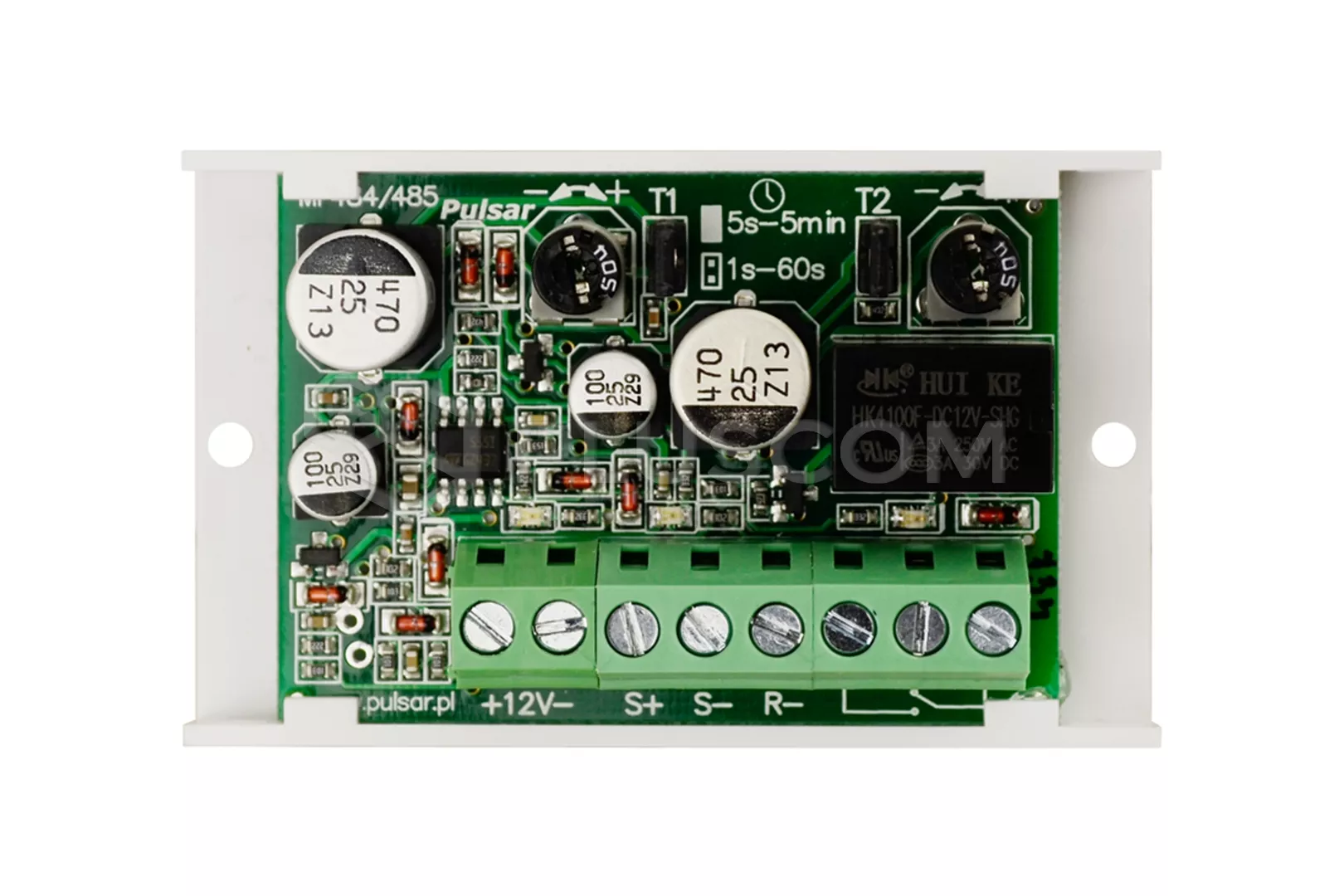

PC4 Time relay module Pulsar AWZ 526

The PC4 time module is a transceiver that allows Activation of the relay for the T2 time after the T1 trigger time. The T1 and T2 times can be adjusted in the range from 1 second to 5 minutes.
The relay can be used in door opening circuits, locks, gate closing systems, alarm systems, Intrusion Detection Systems, Access control systems and many others.

Time relay module Pulsar AWZ 526

Time relay module Pulsar AWZ 526


SPECIFICATIONS:

  • Supply voltage 10÷14V DC
  • Power consumption 15mA/35mA
  • Number of relays: 1
  • Maximum connection voltage 50V AC /30V DC
  • Maximum connection current 1 A
  • The control inputs:
    • S+ input 10÷14V DC control
    • S- input 0V (GND) control
    • R- input 0V (GND) control
  • Optical indication
  • Dimensions: 70x43x23mm
  • Weight: 0,06kg

Time relay module Pulsar AWZ 526

Time relay module Pulsar AWZ 526

Download
Datasheet 0.18 MB
Declaration CE 0.32 MB
User Manual 0.25 MB
