Time relay module Pulsar AWZ 516

34,87 EUR including 23.00% VAT
Product code: #10643
Manufacturer: Pulsar
  • The number of relays: 1
  • The number of contacts: 1
  • Supply voltage: 10-16V DC
  • 18 time-logic programs
  • three function buttons, LED display
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Time relay module Pulsar AWZ 526 Time relay module Pulsar AWZ 525

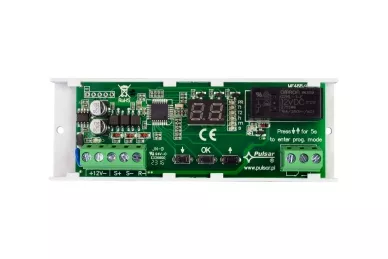

Time relay module Pulsar AWZ516

The PC1 time module is a transceiver allowing execution of time-logic programs. The device is characterized by versatility, high accuracy of the measured time based on the crystal oscillator and the possibility of its precise and repeatable adjustment. The relay can be used to extend short control impulses, e.g. controlling the operation locks, electromagnetic jumpers, bistable control, etc. The relay is used in automation and control circuits and access control projects, with logical dependencies on the state of: the controller, door opening sensor (reed switch), exit button, etc.

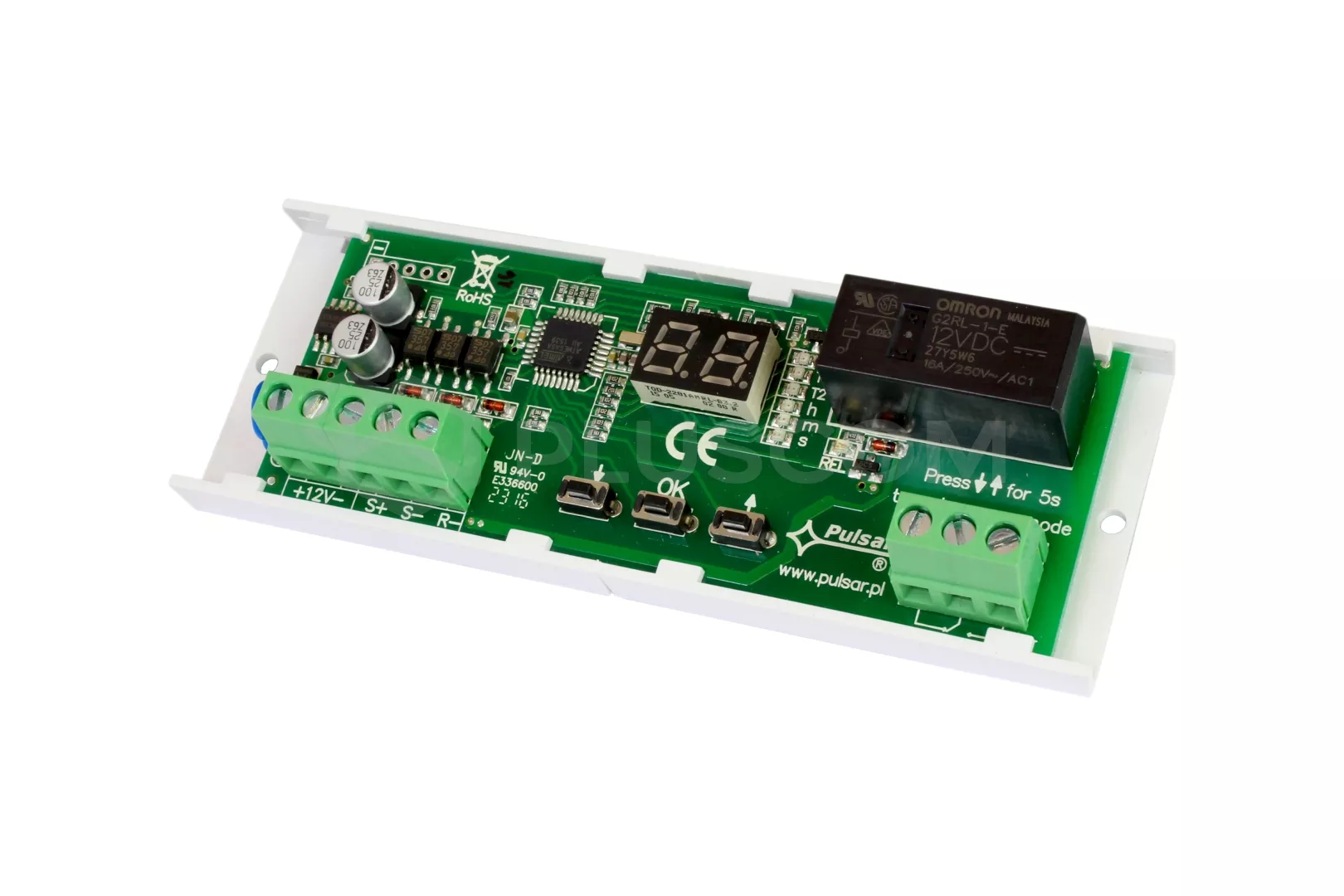

Time relay module Pulsar AWZ 516

Time relay module Pulsar AWZ 516


FEATURES:
  • 10-16V DC power supply
  • 18 time-logic programs
  • the range of measured times: up to 100 hours
  • high precision time measurements
  • high load capacity of relay contacts
  • LED display
  • three function buttons
  • activated by plus ''S +'' or mass ''S-''
  • reset input activated by mass ''R-''
  • optical indication of power supply and relay output status
  • the possibility of implementing additional time-logic programs

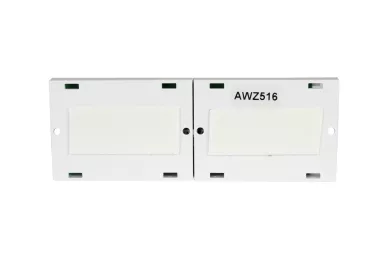

Mounting: adhesive tape or screws

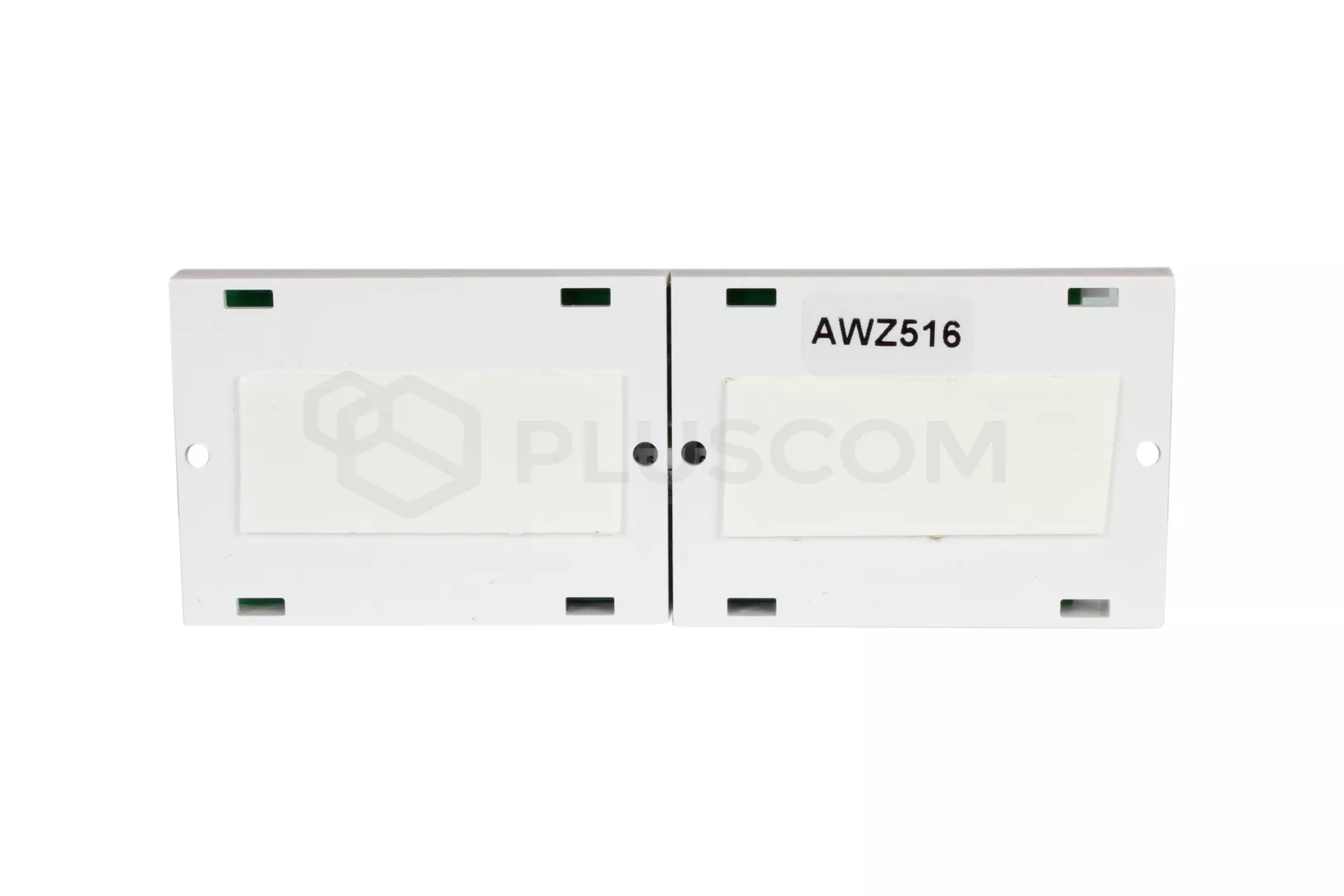

Mounting: adhesive tape or screws
Download
Datasheet 0.1 MB
Instruction 0.84 MB
CE Declaration 0.14 MB
