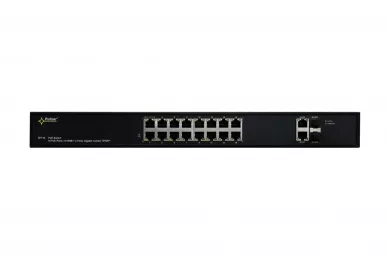

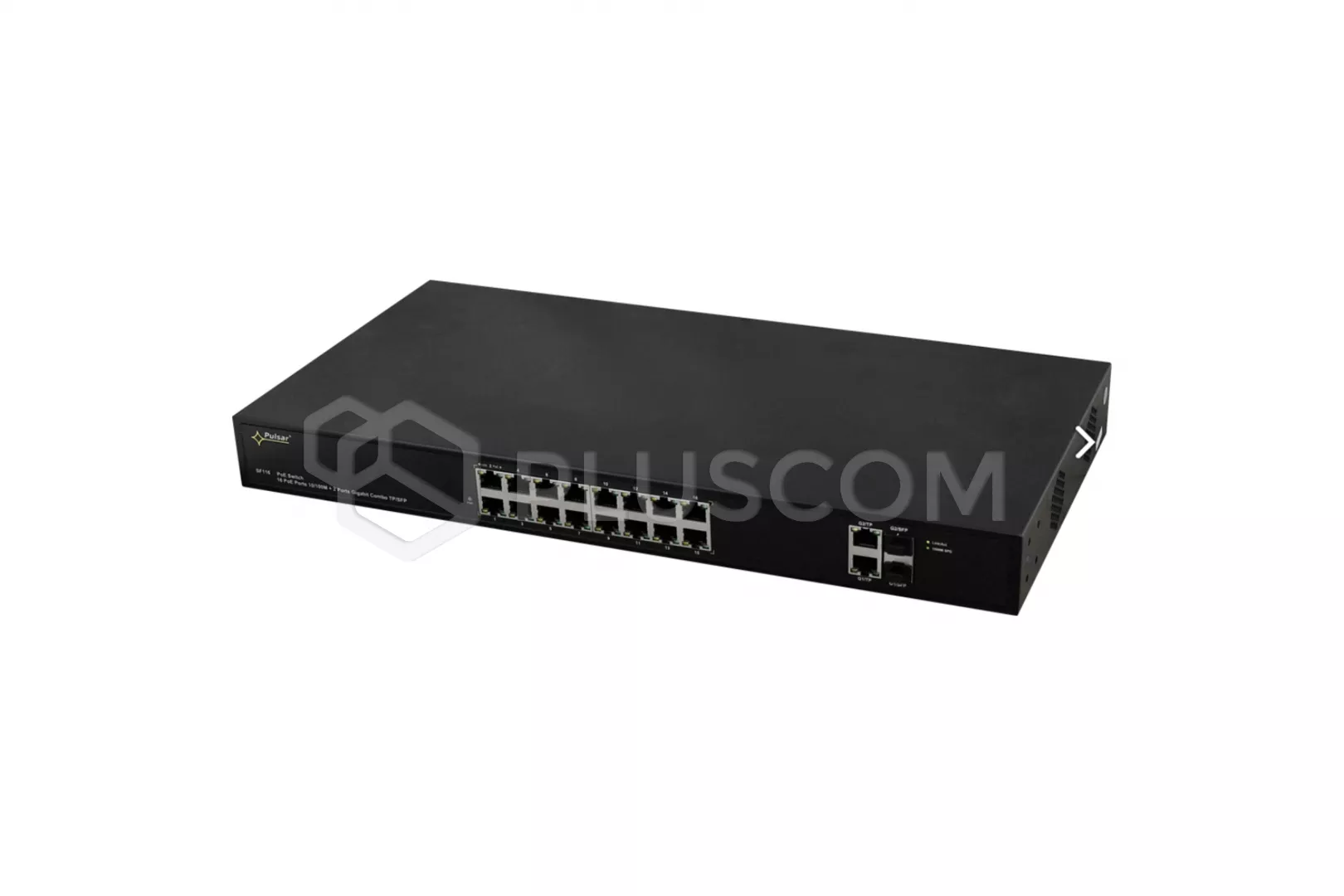

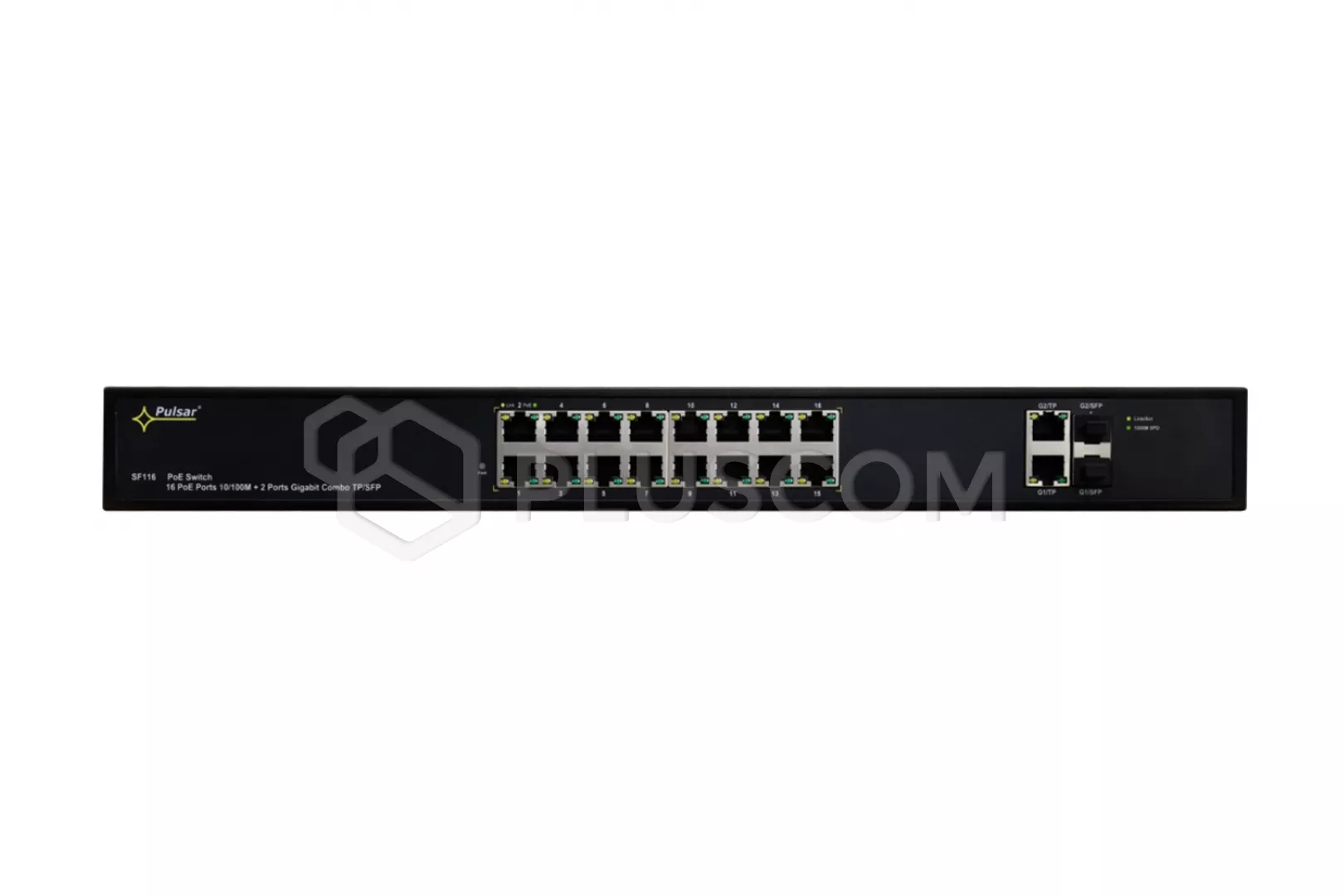

Pulsar SF116 Switch 16x LAN PoE +2x UP-LINK

Pulsar SF116 is a 16-port PoE switch designed to power IP cameras and other network devices, eg. Routers, Access Points compliant with IEEE 802.3af/at
Switch PoE Pulsar SF116 for 16 IP cameras

Switch PoE Pulsar SF116 for 16 IP cameras


PoE is available on ports 1-16 The G1/TP and G2/TP ports is used for connection of another network device via RJ45 connector. The switch is fitted with SFP slots (marked as G1/SFP and G2/SFP), the use of fiber optic module (GBIC) allows fiber optic transmission.
Supports auto-learning and auto-aging of MAC addresses (16K size).

PoE technology allows data transfer and power supply using a single cable. This simplifies installation by eliminating additional power cables and reduces costs. Using PoE switch Pulsar company can install a camera where there is no possibility of connecting them to the power supply.

SPECIFICATIONS AND FEATURES:
  • 18 ports
  • 16 PoE ports
  • 2x UPLINK G1, G2 TP/SFP
  • PoE IEEE 802.3af/at, DC 52V, 30W per port
  • LED indication the operating status
  • dimensions: 442x44x224mm
  • weight: 3.1kg
  • operating temperature: -10°C...+45°C
IN THE BOX:
Additional mounting allow for the installation of the switch in rack 19''
