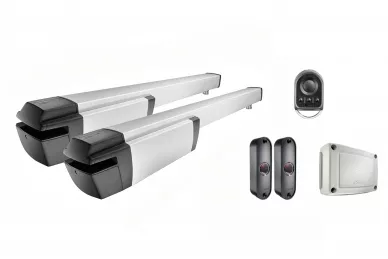

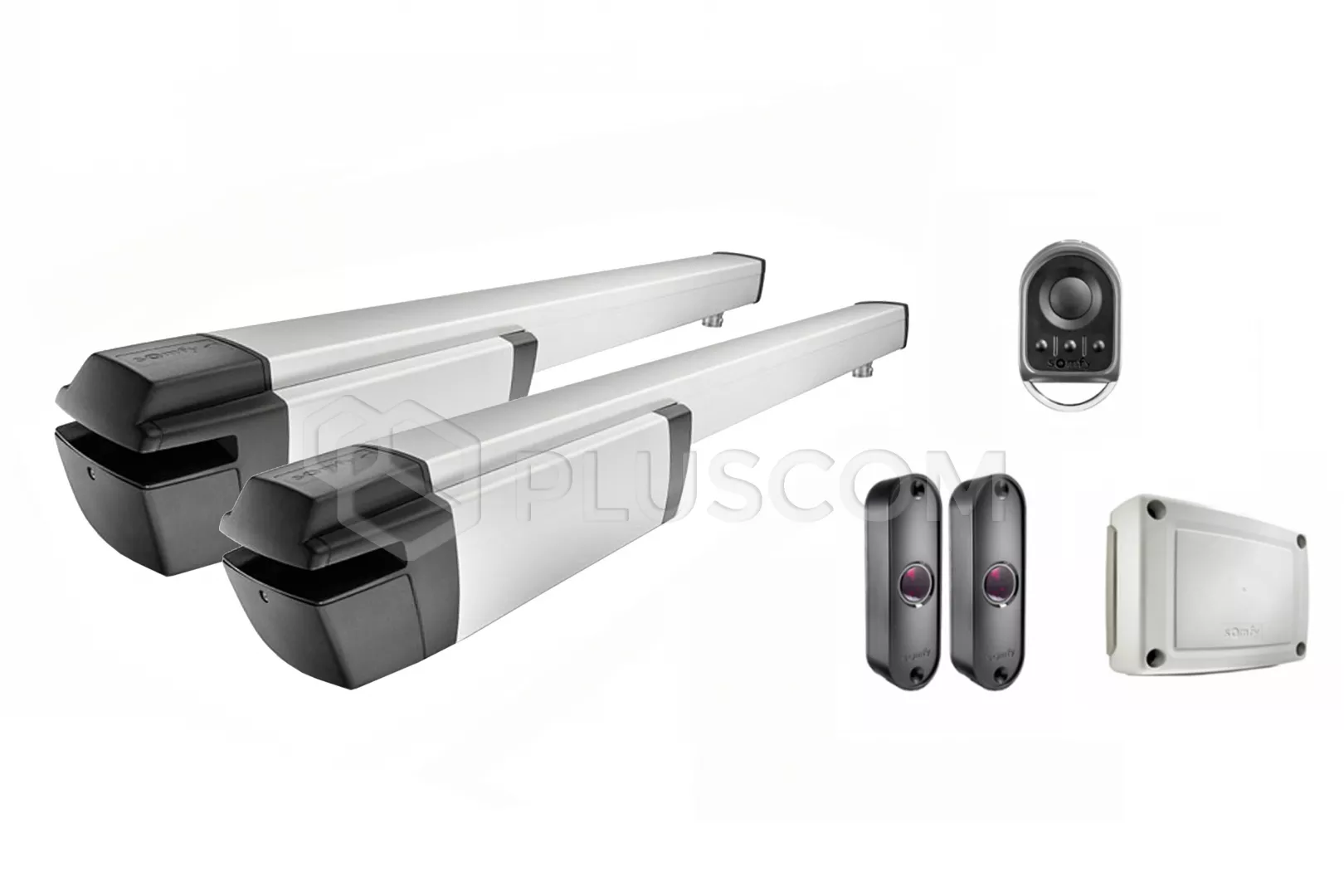

Somfy Ixengo L 24V EE Pack io, set for weight swing gates 400kg per gate
leaf (1216557)
PACKAGE CONTAINS
|
Somfy Ixengo L 24V EE Pack io
|
The Ixengo L 24V Comfort Pack io is a complete set for automation large
metal gate with a leaf weight of up to 400 kg or a length of 4 m. Users they
praise it for durability, efficiency and safety.
The installation of the actuators is quick and requires no welding or
specialized tools. The drive is designed for use with narrow posts (o at least
80 mm wide). In addition, a non-retractable mechanism provides very high
resistance to strong wind pressure and force-opening tests.
The most important features of the drive include:
- quick install
- possibility to set operating parameters
- intuitive operation
- adjustable handle brackets
- non-retractable mechanism ensures very high resistance to heavy pressure
wind and attempted forcible opening
- easy and safe disengagement with individual key
- soft closing of the gate
- adjustable torque value
- limit switch system with access from the top of the drive and signaling
the correct position is reached by means of the flashing LED
- adapted to the small space behind the wing
- electronic limit switches
The drive can be controlled remotely via the Internet using the control
panel TaHoma or Connexoon smart home with geolocation function.
With the Connexoon Access app, you can remotely verify that the gate the
entrance gate is properly closed. A feature is helpful on the way home
geolocation to automatically open the gate and turn on the driveway lights.
You can create your own scenarios in the application.
Master Pro - Bitech photocells are discrete devices for obstacle
detection when closing / opening the gate. They have as standard narrow
housing, which can be additionally equipped with a metal cover for additional
protection against impacts and vandalism.
The distance between the transmitting and receiving photocells should be 2 to
10 meters.
Specification:
- range: 10 m
- self-test input: no
- power supply: 24 V AC / DC
- contact load: 1 A
- electrical insulation class: Class III
- dimensions: 120 x 38 x 26 mm
- working temperature: -20 ° C to +60 ° C
- protection class: IP 54
|
Set of Master Pro photocells - Bitech
|
The kit includes
one 4-channel Keygo 4 io . He is resistant for
moisture and damage and we can control up to 4 devices. Big central button easy
to press without having to look at the remote control.
Remote specification
- number of channels: 4
- frequency: 868.95MHz unidirectional
- radio range: 30 m
- power supply: 3 V - CR2430 battery
- battery life: 2 years
- dimensions: 59 x 35 x 14 mm
- working conditions: -20 ° C to + 70 ° C
|
Keygo 4 io 4-channel remote control
|
The drive is controlled by the 3S Ixengo control unit, which can
control it both with one and two actuators. The control panel is ready for
operation in 2 minutes and all settings are pre-programmed.
It has the ability to select parameters for non-standard work. It has a wide
variety connection to the control panel of safety accessories and the
possibility of connection zone illumination (e.g. Halogen 500W).
The control panel menu is intuitive. Multi-colored marking of the connection
bones wires, eliminating errors in connection and the programming system,
prevents making mistakes.
The drive operating status, error codes and drive malfunctions are displayed in
real time. It also displays the number of work cycles, reports, etc.
The control panel is compatible with all Somfy io devices. With TaHoma®
Premium, the device is remotely controlled and information is sent to two-way
remote controls feedback.
PANEL SPECIFICATION
- Mains power: 220-230 V - 50-60 Hz
- Power: 800 W (with 500 W lighting)
- 7-button programming interface: 3-character LCD
- Radio frequency io: 868 - 870 MHz
- Number of storable remote control devices:
-
- One-way (Keygo 4 io, ...):
-
- Gate control: max 30 channels
- Lighting control: max. 4 channels
- Auxiliary device control: max. 4 channels
- Bidirectional: Unlimited
- Degree of protection: IP 44
- Working conditions: -20 ° C to + 60 ° C
Dimensions:
TECHNICAL DATA OF THE ACTUATOR
- main power: 220-230 V - 50 Hz
- electric motor supply: 24 VDC
- accessory power supply: 24 V DC / 1200 mA
- maximum power consumption: 40 W
- minimum distance behind the sash: 160 mm
- maximum hinge offset: 183mm
- power supply for external lighting: 500 W max. halogen
- drive force: 2000 N
- working range: 465 mm
- open time to 90 °: 10 to 34 seconds (depending on installation)
- Number of storable remote control devices: max. 40 channels
- working temperature: -20 ° C to +60 ° C
- security class: IP 44
