Somfy 1216560 Ixengo L 24V io drive for swing gates up to 400 kg

388,22 EUR including 22.00% VAT
On stock. Ships in one business day
Delivery time: 3 - 5 days
Product code: #24418
Manufacturer: Somfy
  • Gate weight: 400kg, length: to 4m
  • 24V motor
  • For intensive use
  • Non-retractable mechanism
  • Io technology
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Somfy 9001001 backup battery Somfy 9019511 Post mount welded

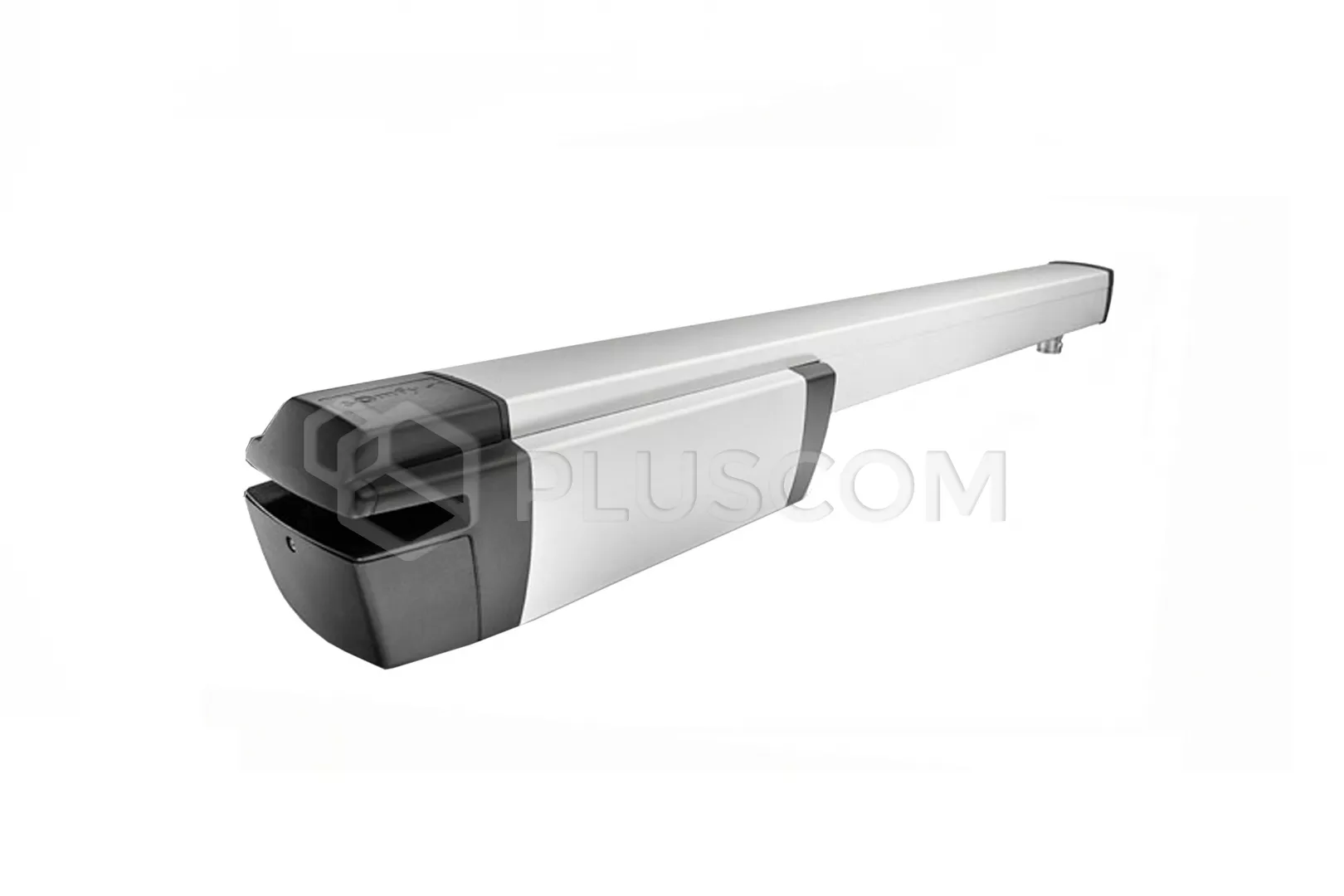

Somfy Ixengo L 24V io drive for swing gates up to 400kg or 4m (1216560)


Ixengo L 24V is a drive for a large metal gate with a leaf weight of up to 400 kg or 4m long. Users praise it for its durability, efficiency as well security.

The actuator assembly is quick and requires no welding or specialist welding tools. The drive is designed for use with narrow posts (o at least 80 mm wide). In addition, a non-retractable mechanism provides very high resistance to strong wind pressure and force-opening tests.

The most important features of the drive include:
  • quick install
  • possibility to set operating parameters
  • intuitive operation
  • adjustable handle brackets
  • non-retractable mechanism ensures very high resistance to heavy pressure wind and attempted forcible opening
  • easy and safe disengagement with individual key
  • soft closing of the gate
  • adjustable torque value
  • limit switch system with access from the top of the drive and signaling the correct position is reached by means of the flashing LED
  • adapted to the small space behind the wing
  • electronic limit switches
The drive can be controlled remotely via the Internet using the control panel TaHoma or Connexoon smart home with geolocation function.
With the Connexoon Access app, you can remotely verify that the gate the entrance gate is properly closed. A feature is helpful on the way home geolocation to automatically open the gate and turn on the driveway lights. You can create your own scenarios in the application.

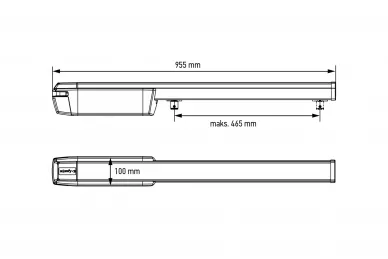

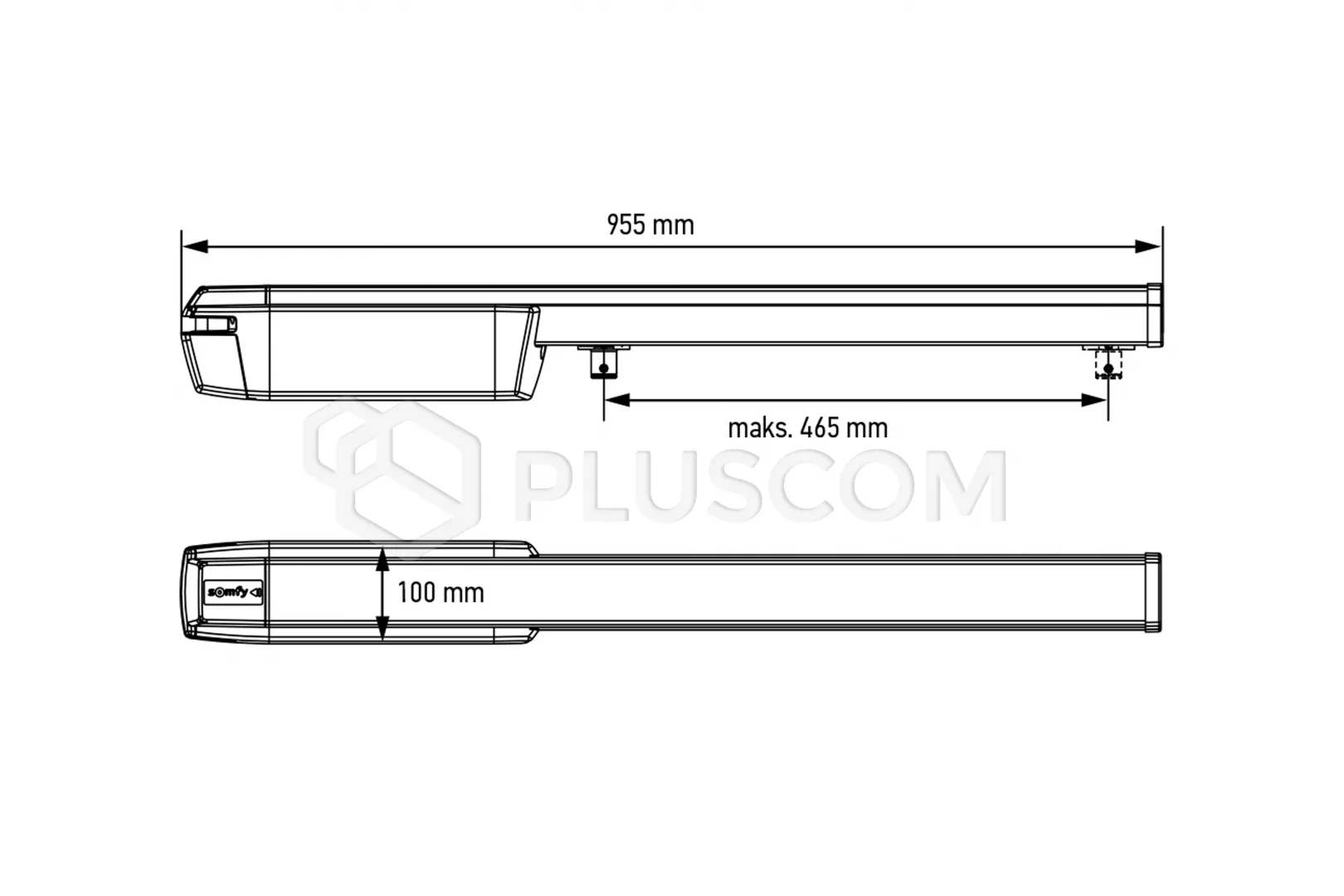

Dimenions:

Dimenions:


TECHNICAL DATA
  • main power: 220-230 V - 50 Hz
  • electric motor supply: 24 VDC
  • accessory power supply: 24 V DC / 1200 mA
  • maximum power consumption: 40 W
  • minimum distance behind the sash: 160 mm
  • maximum hinge offset: 183mm
  • power supply for external lighting: 500 W max. halogen
  • drive force: 2000 N
  • working range: 465 mm
  • open time to 90 °: 10 to 34 seconds (depending on installation)
  • Number of storable remote control devices: max. 40 channels
  • working temperature: -20 ° C to +60 ° C
  • security class: IP 44
