Somfy Elixo Smart io Pack EE, set for sliding gates o weight 300kg
(1216531)

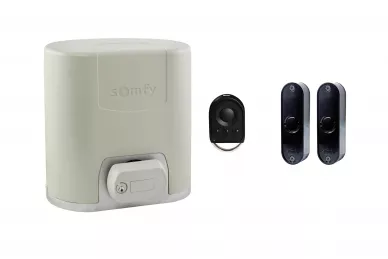

PACK INCLUDES

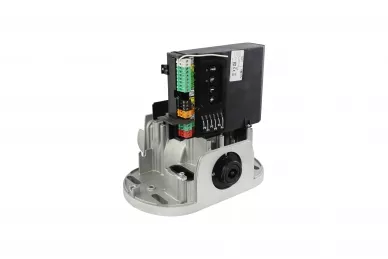

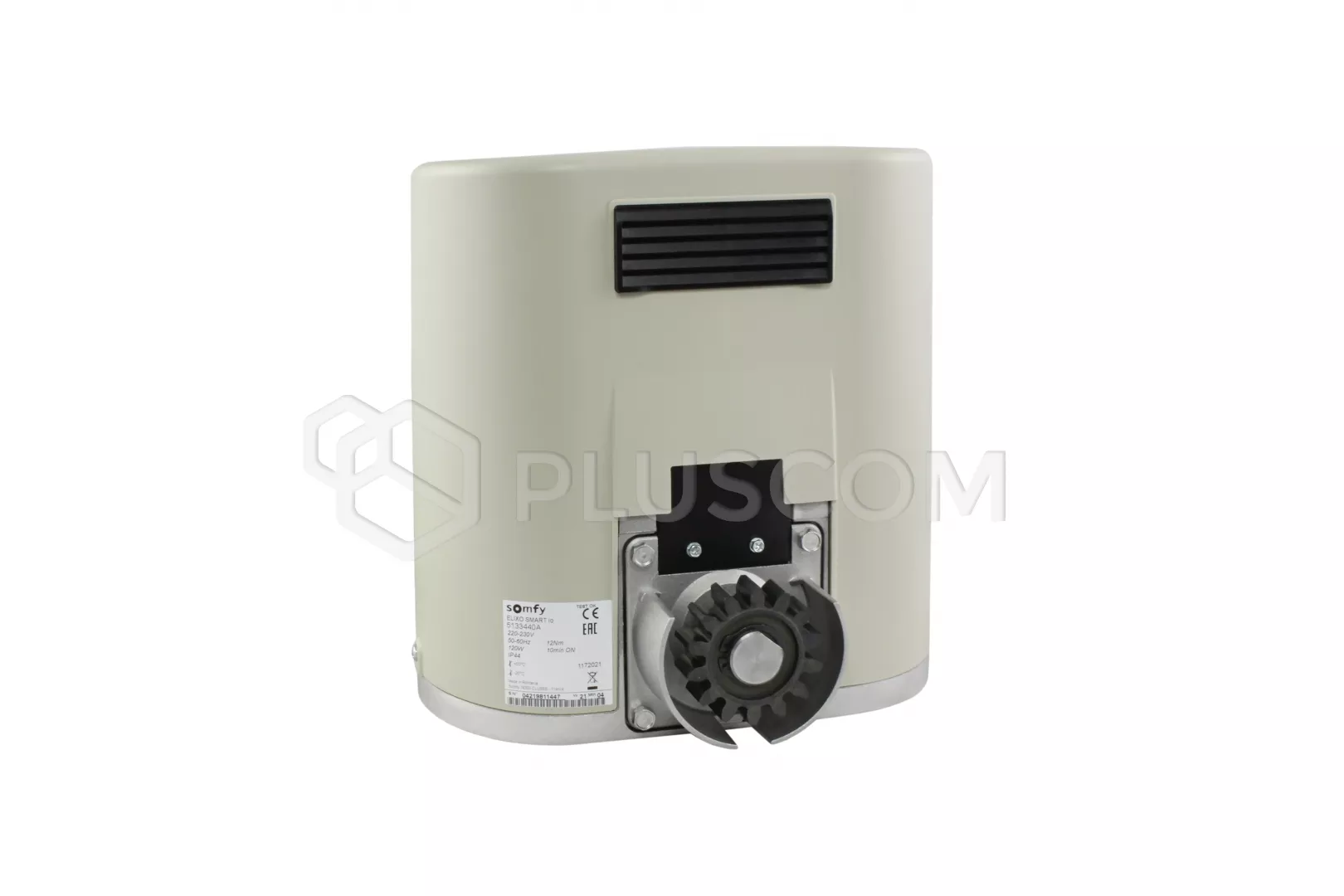

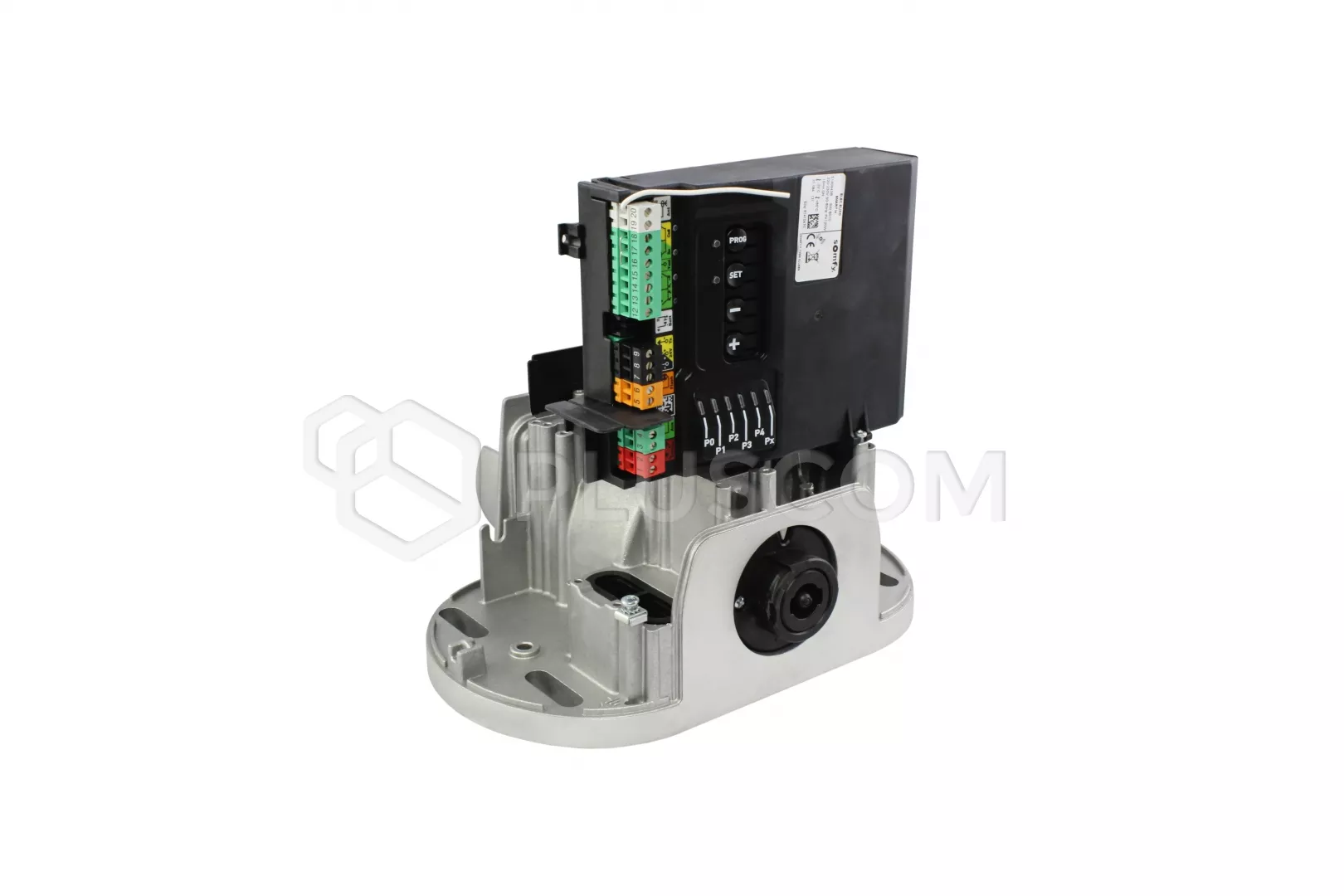

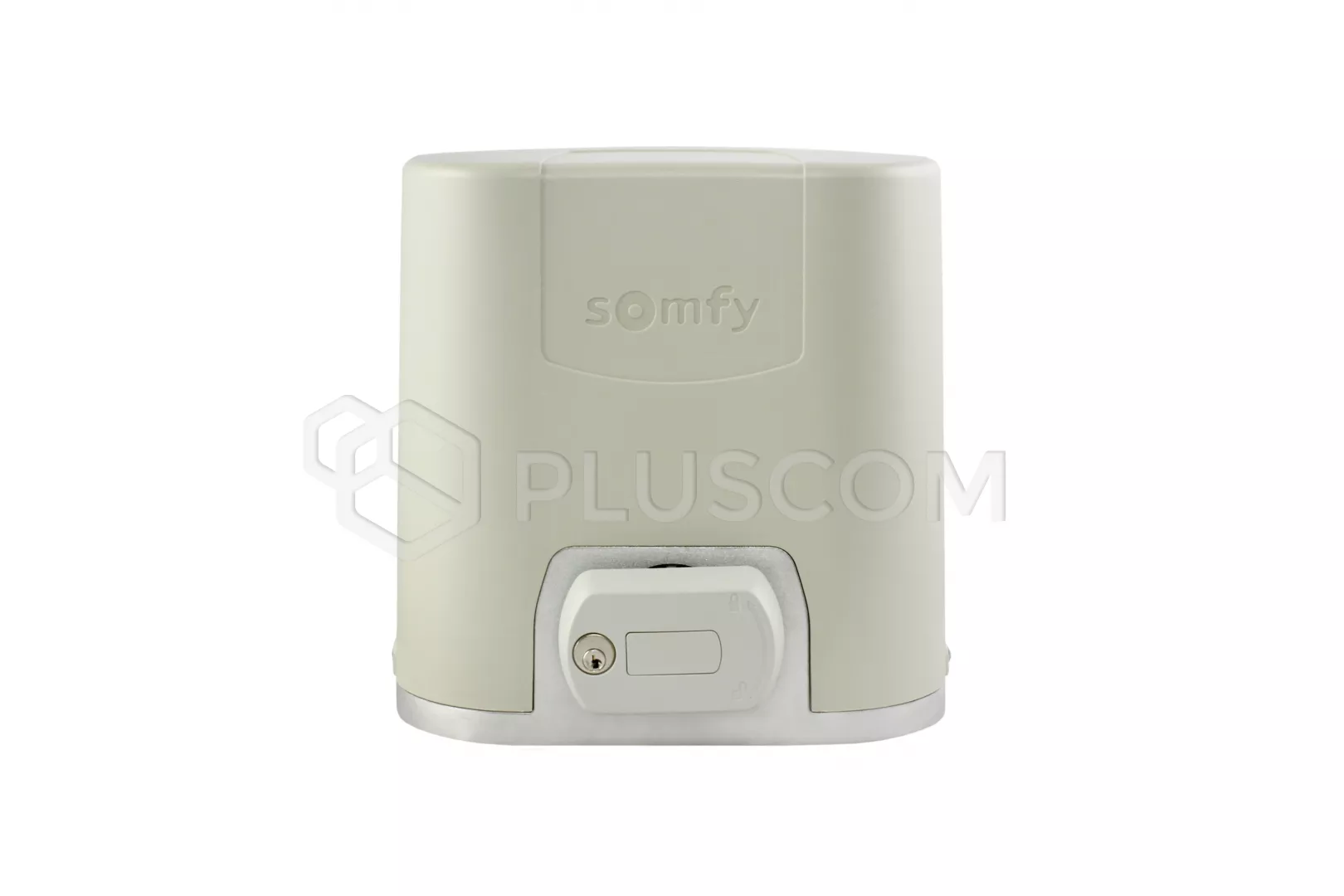

- Elixo Smart io actuator with built-in control panel
- Keygo 4 io 4-channel remote - one-way
- photocells Master Pro - Bitech

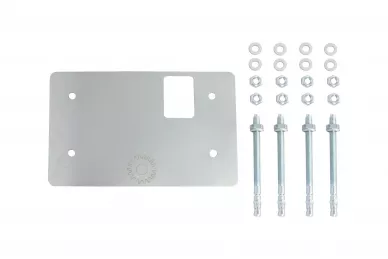

- mounting template
|
Somfy Elixo Smart io Pack EE
|

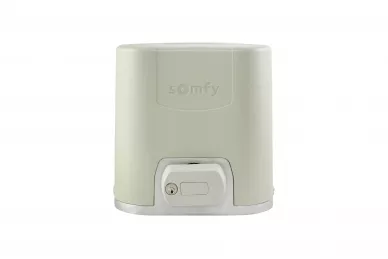

The Somfy Elixo Smart io drive can be used for self-supporting gates
parameters of 4m / 200 kg or for rail gates 6m / 300 kg. It's ready to go
after less than 90 seconds.
Elixo Smart io can be freely extended with accessories from Somfy's offer
by adding lamps or photocells, thus increasing the safety of the gate.
Thanks to TaHoma or Connexoon Access io, you can remotely control your gate.
Open up the gate in the most convenient way for you - using a smartphone
(obligatory required safety accessories), code keypad, video intercom or the
pilot.
Io-homecontrol technology ensures that all Somfy products are compatible made
in io technology.
The most important features of the drive include:
- fast opening and automatic closing
- partial opening function allows safe passage on foot
- integrated control of external lighting (the drive has a built-in
lighting receiver)
- automatic obstacle detection
- no endstops are required on the gate
- Reverse rotation direction, no rewiring
- backup battery in case of power failure

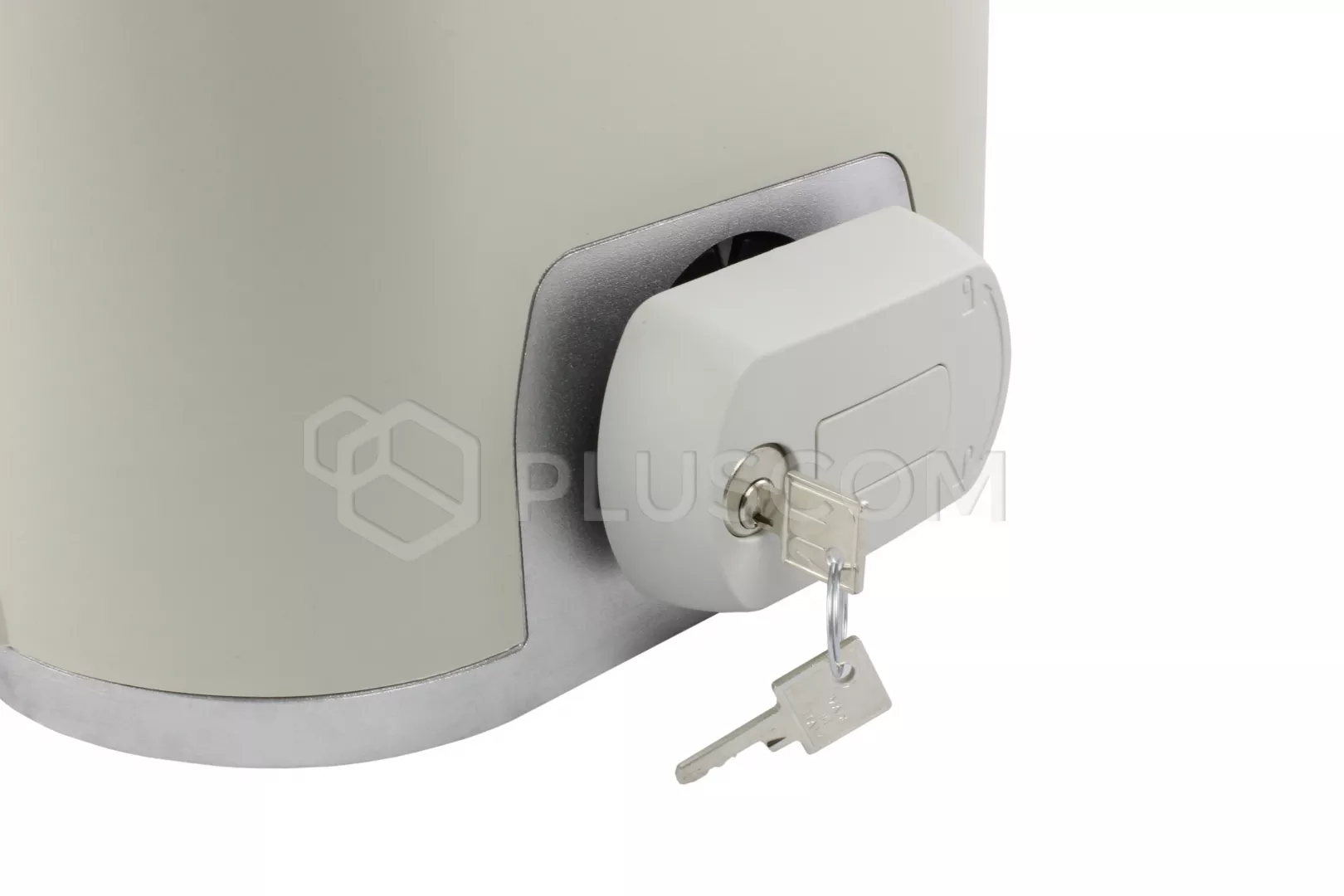

- safe unlocking by manual opening with an individual key
- dedicated button "Prog" for programming the transmitter
- dedicated button & quot; Set & quot; to settings

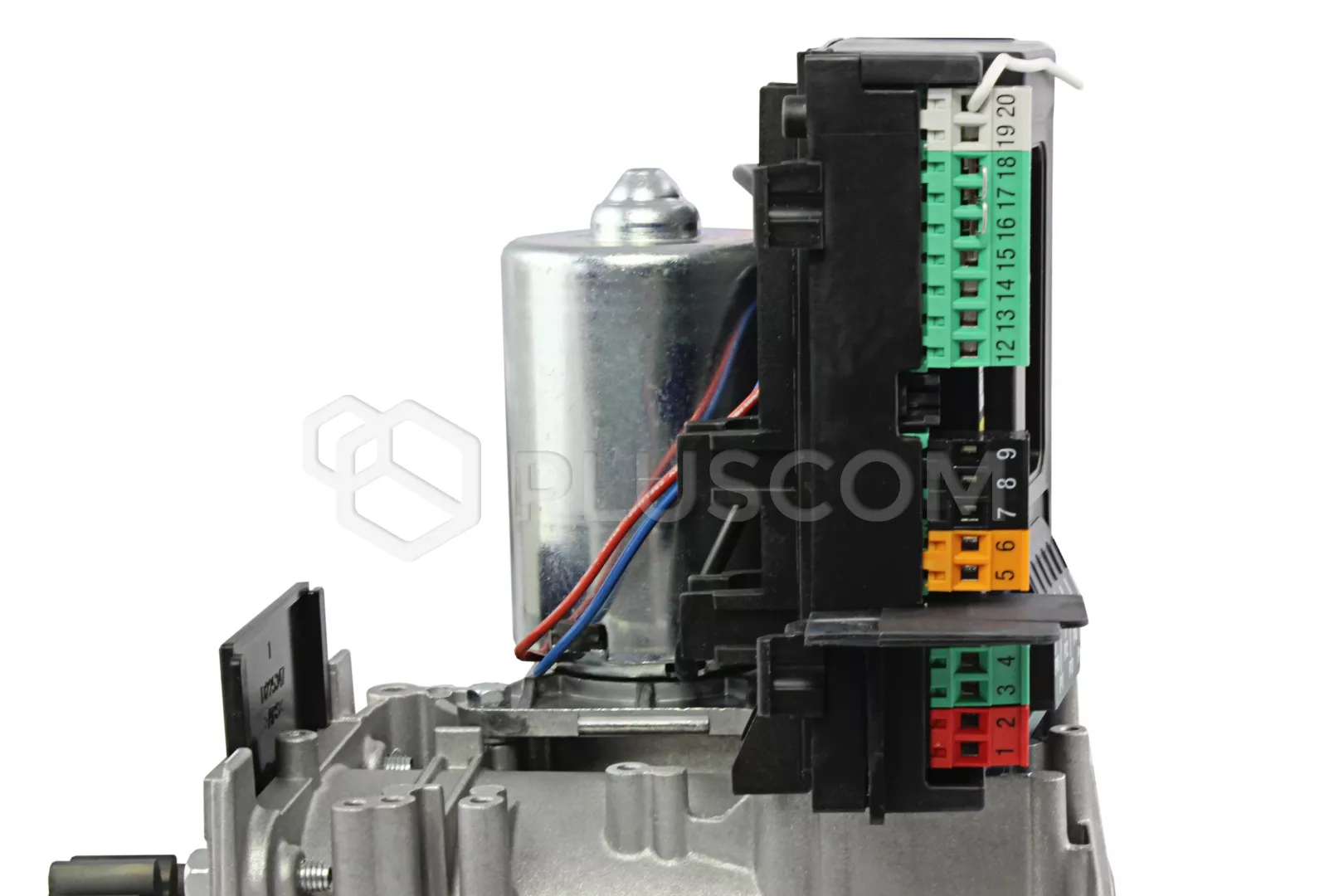

- retractable colored terminal blocks
- easy installation and quick development
- simple diagnostics
- encoder technology
- quiet running

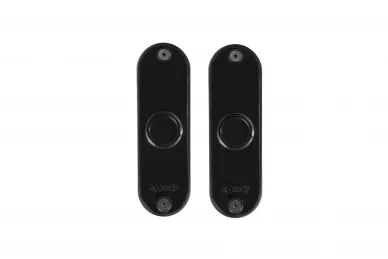

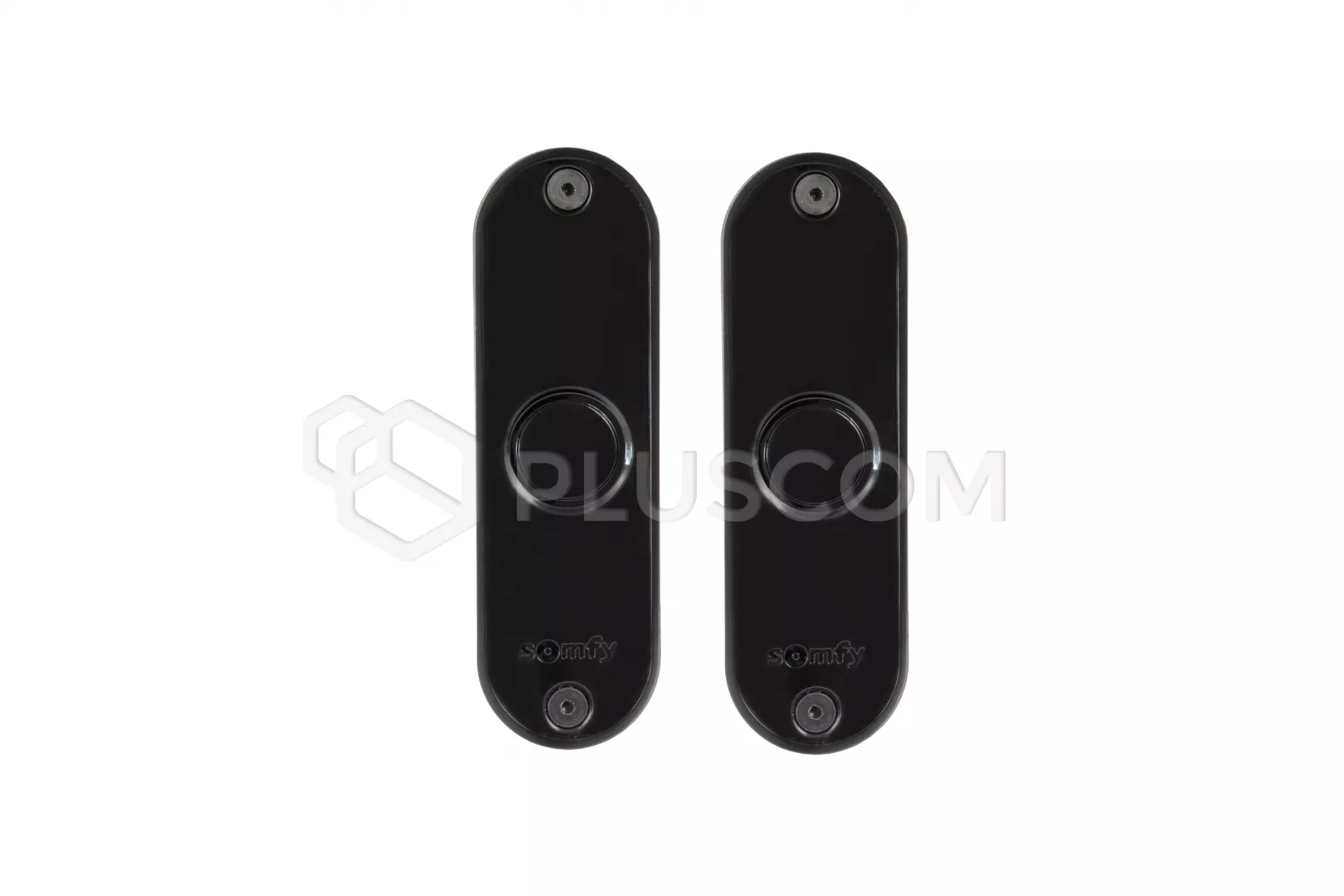

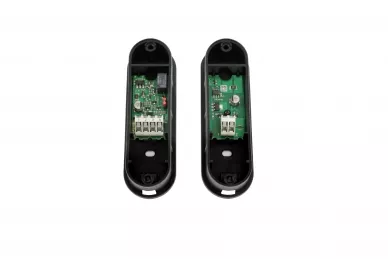

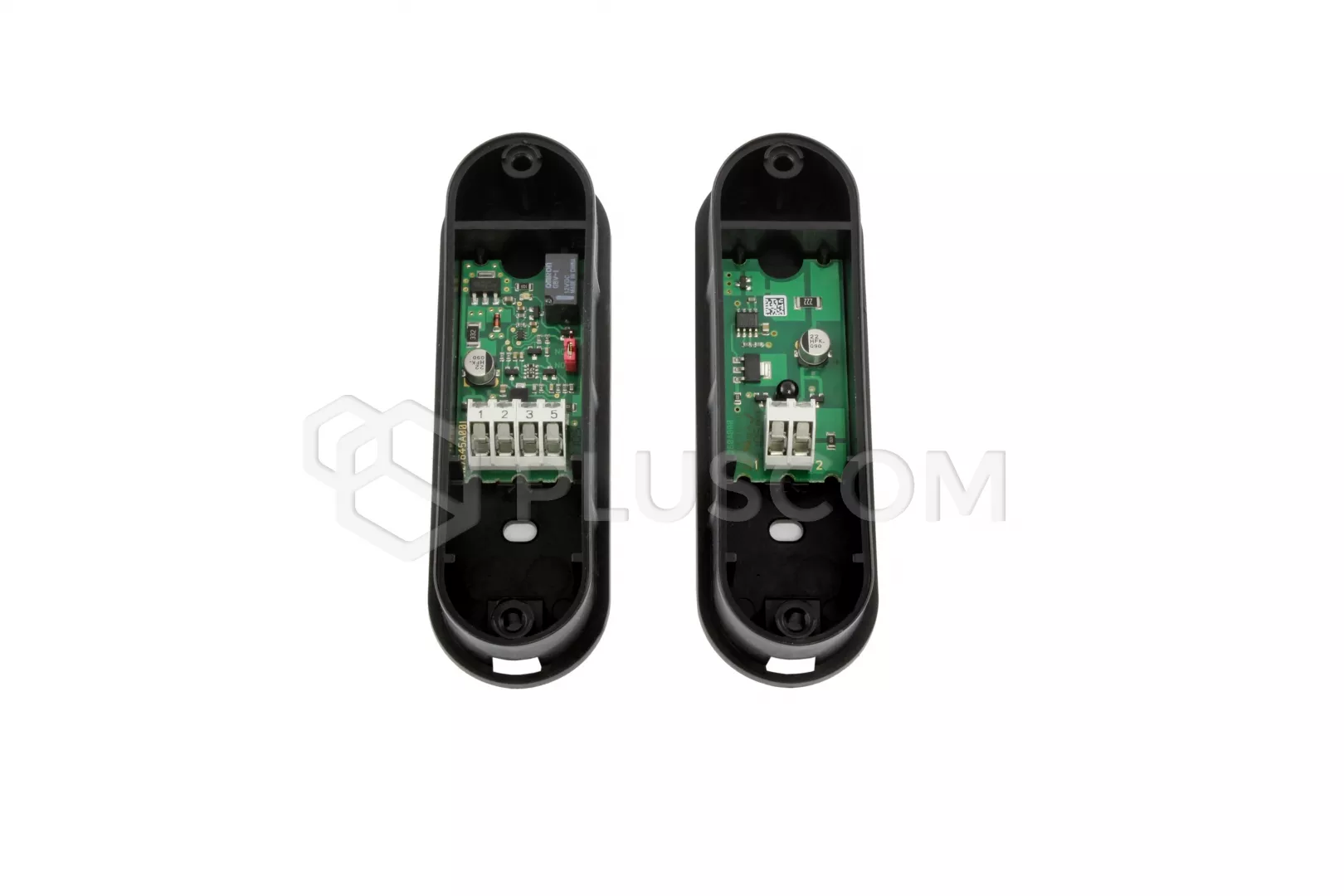

Master Pro - Bitech photocells are discrete devices for
obstacle detection when closing / opening the gate. They have as standard
narrow housing, which can be additionally equipped with a metal cover for
additional protection against impacts and vandalism.
The distance between the transmitting and receiving photocells should be 2 to
10 meters.
Specification:
- range: 10m
- self-test input: no
- power supply: 24 V AC / DC
- contact load: 1 A
- electrical insulation class: Class III
- dimensions: 120 x 38 x 26 mm
- working temperature: -20 ° C to +60 ° C
- protection class: IP 54
|
Somfy Elixo Smart io Pack EE
|

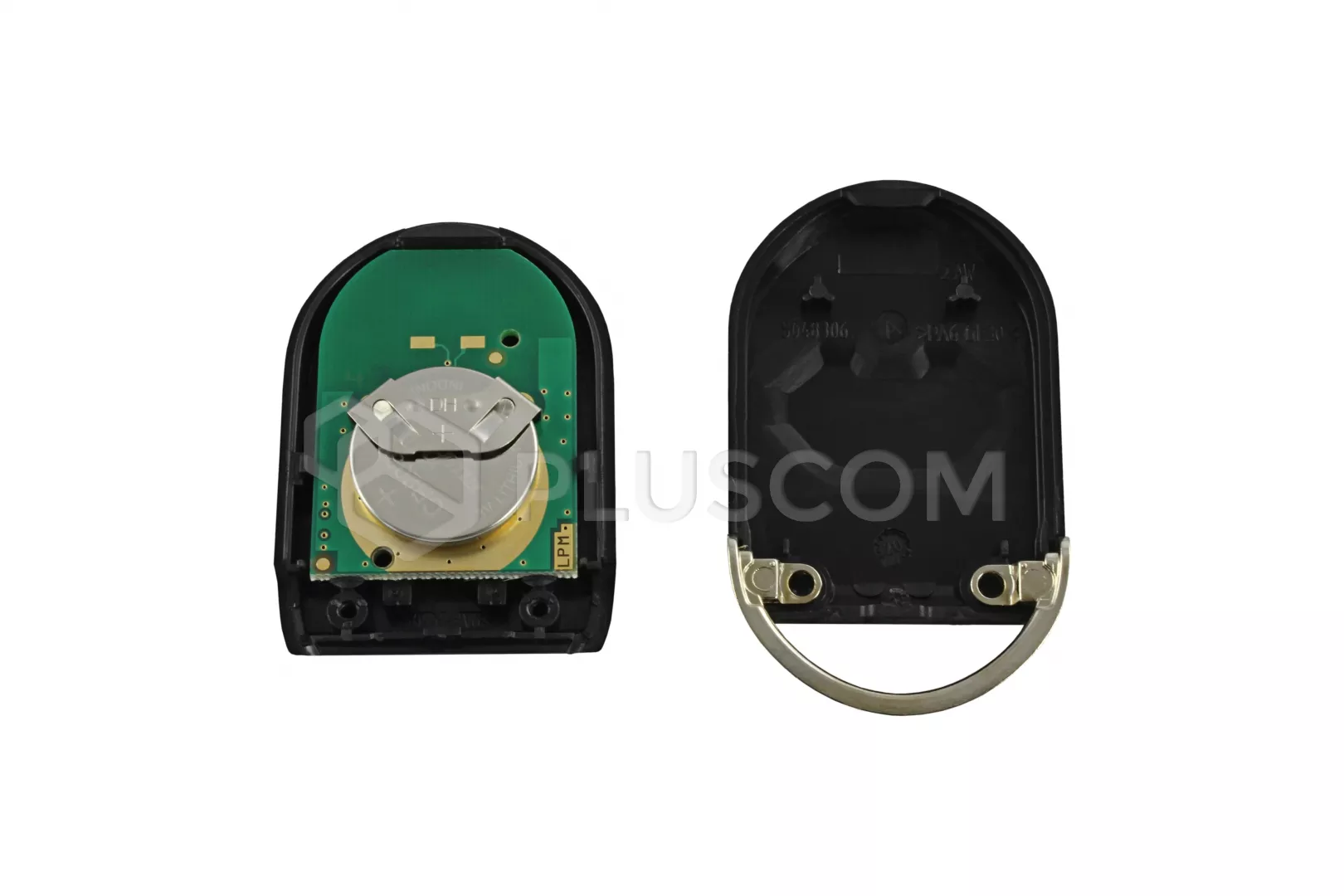

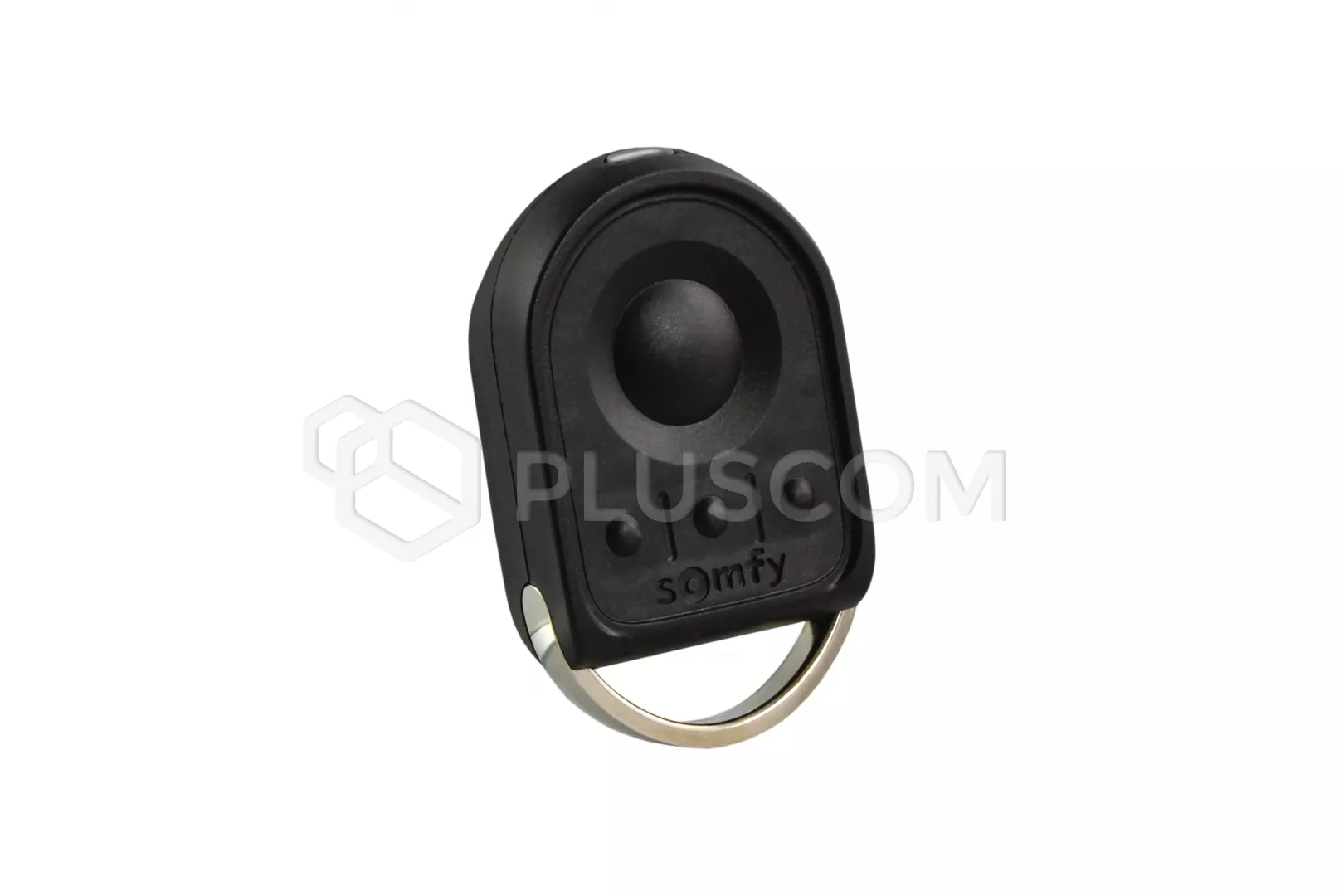

The kit includes the Keygo 4 io (1-way) remote control. It is used to
control from 1 to 4 devices. It is resistant to impact and moisture and has a
large central button that makes it easy to use the remote control without
having to look at it.
Remote specification
- number of channels: 4
- frequency: io - 868.95 MHz - unidirectional
- radio range: 30 m
- power supply: 3 V - CR2430 battery
- battery life: 2 years
- dimensions: 59 x 35 x 14 mm
- working conditions: -20 ° C to + 70 ° C
|
Somfy Elixo Smart io Pack EE
|
TECHNICAL DATA OF THE DRIVE
- mains supply: 220-230 V - 50-60 Hz
- output power: 24 V 24 V DC / 400 mA max.
- standby power consumption (max): ≤ 5W
- tractive effort - peak value: 380 N
- opening time: up to 3m 15s
- radio frequency: io 868-870 MHz
- number of storable remote control devices:
-
- unidirectional: max. 38 channels
- bidirectional: unlimited
- lighting output: Dry contact (230V compatible)
- drive direction: Reverse drive direction with simple push buttons & quot;
+ & quot; and & quot; - & quot;
- wicket function: 1.20 m (Only adjustable with the device Set & Go)
- wired diagnostic input
- real-time status indicator of wired accessory input
- security class: IP 44
- working conditions: -20 ° C to +60 ° C

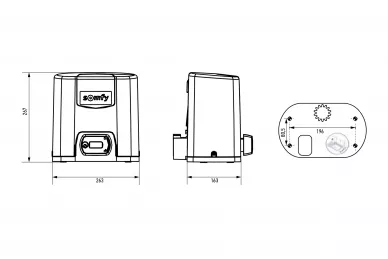

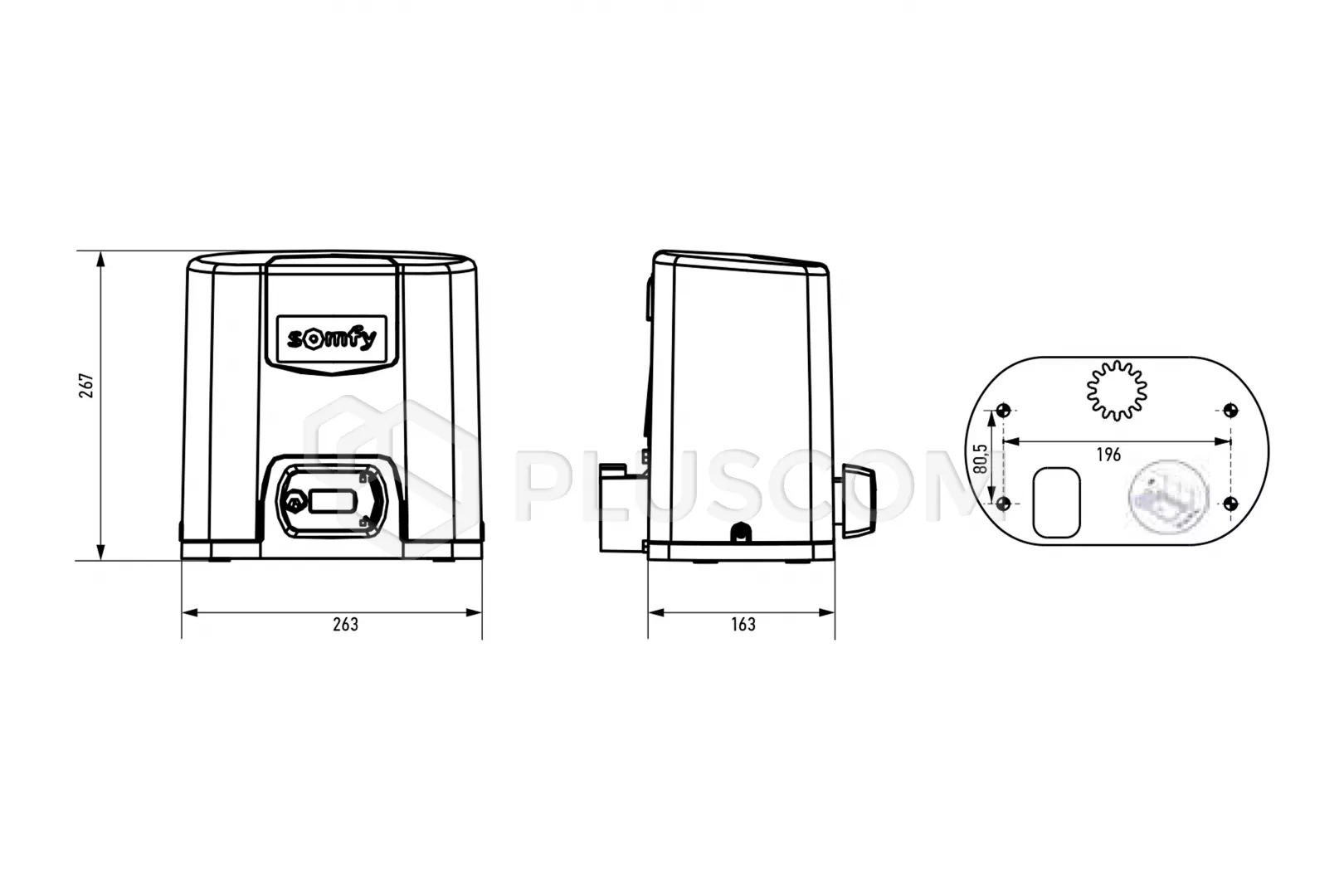

- dimensions: 267x263x163mm
