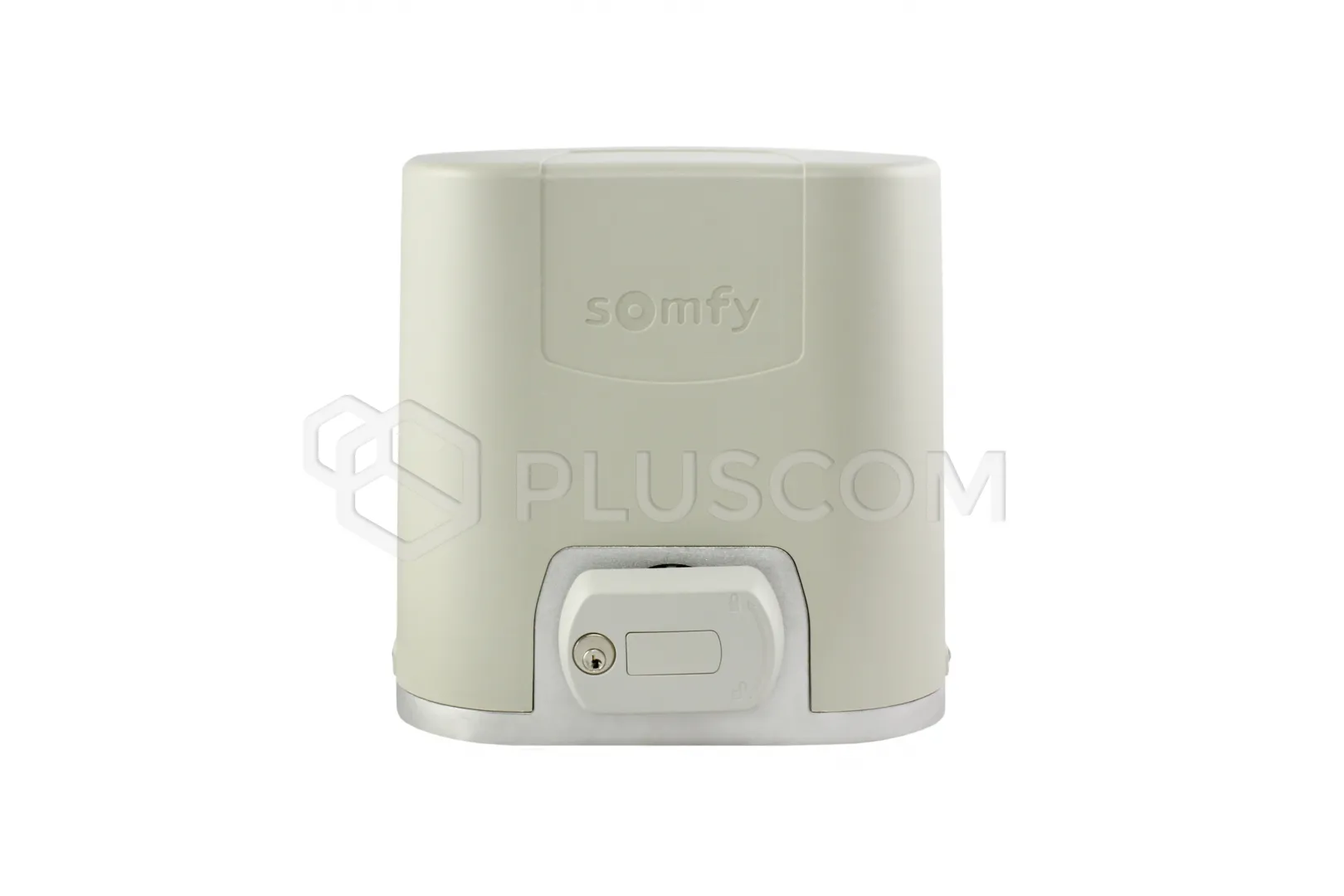

Somfy Elixo Smart io Sliding Gate Actuator

Somfy Elixo Smart io Sliding Gate Actuator

The Somfy Elixo Smart io drive can be used with cantilever gates up to 4m/200kg or rail-mounted gates up to 6m/300kg. It's ready to operate in less than 90 seconds.

The Elixo Smart io can be freely expanded with accessories from the Somfy range, adding lights or photocells, thus increasing the gate's safety.

With TaHoma or Connexoon Access io, you can remotely control your gate. Open the gate in the way that's most convenient for you - using your smartphone (safety accessories mandatory), a keypad, a video intercom, or a remote control.
io-homecontrol technology ensures compatibility with all Somfy products made with io technology.

The most important features of the drive include:

• Quick opening and automatic closing
• Partial opening function allows safe pedestrian passage
• Integrated external lighting control (the drive has a built-in lighting receiver)
• Automatic obstacle detection
• No end stops required on the gate
• Reversing the direction of rotation without changing the wiring
• Battery backup in the event of a power failure
• Safe unlocking by manual opening with a personalized key
• Dedicated "Prog" button for programming the transmitter
• Dedicated "Set" button for settings
• Retractable color terminal strips
• Easy installation and quick programming
• Simple diagnostics
• Encoder-based technology
• Quiet operation

• Specifications:

  • Range: 10 m
  • Self-testing input: no
  • Power supply: 24 V AC/DC
  • Contact current: 1 A
  • Electrical insulation class: Class III
  • Dimensions: 120 x 38 x 26 mm
  • Operating temperature: -20 °C to +60 °C
  • Protection rating: IP 54
