Somfy 1216455 Elixo 800 230V RTS Eco Comfort Pack Set

Somfy Elixo 800 230V RTS Eco Comfort Pack, set for sliding gates o weight 800kg (1216455)

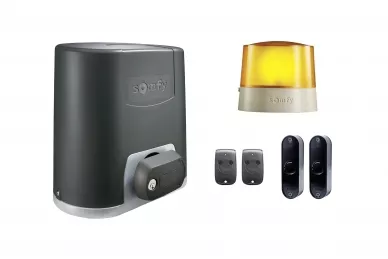

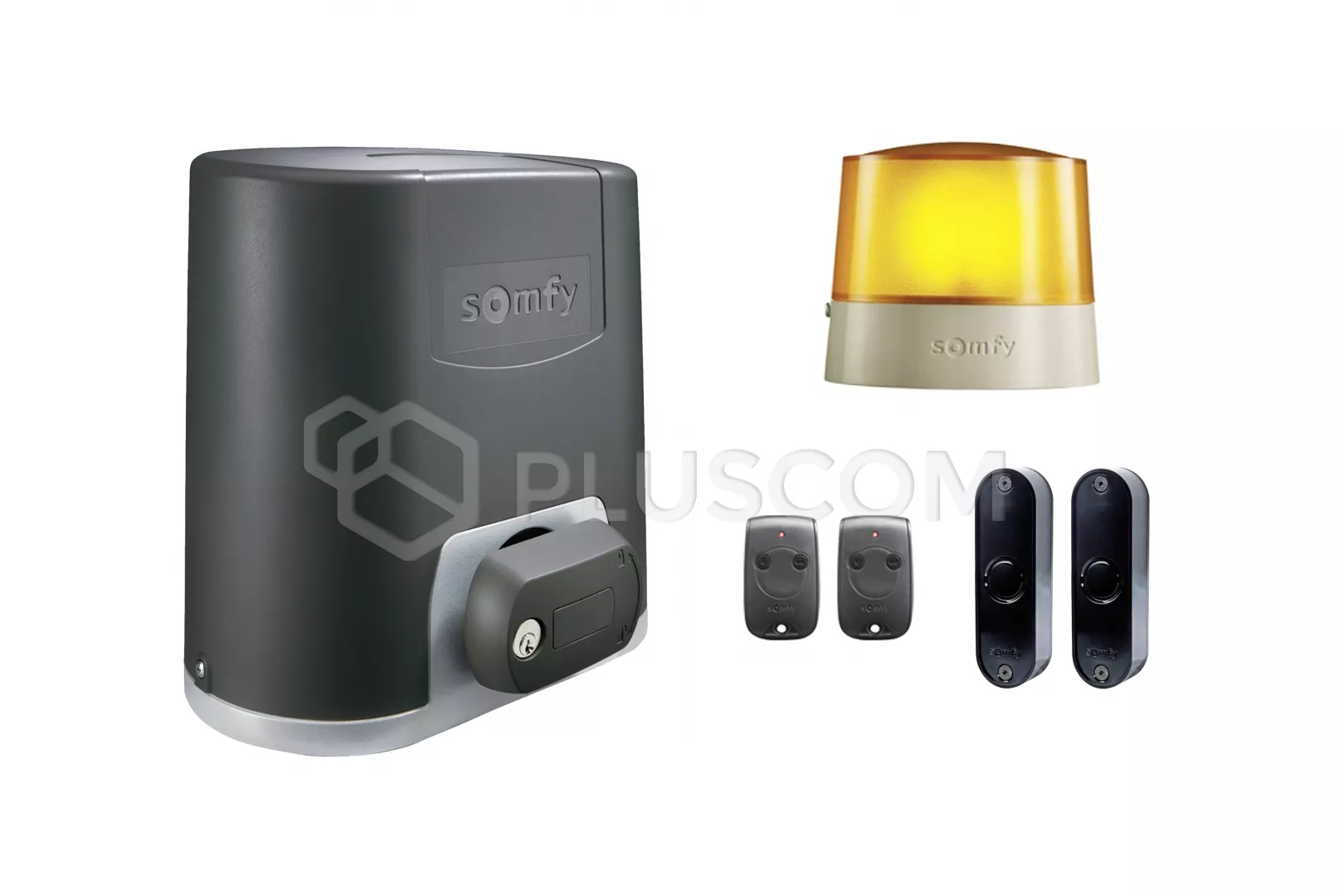

PACK INCLUDES Elixo 800 230V actuator with built-in CB 230 control panel Keytis RTS 2-channel remote - 2pcs Eco Pro warning light Somfy 1841233 Master Pro Bitech photocell set (NC, NO) mounting template

Somfy Elixo 800 230V RTS Eco Comfort Pack

ELIXO 800 230V RTS Standard Pack is a ready set for automation Gates. Users praise it for its durability, functionality and ease installation.

The actuator is optimized for most installations. We can set it freely expand it with accessories from Somfy's offer, adding lamps or photocells, thus increasing the safety of the gate's use.

The most important features of the drive include:

• up to 50 cycles a day for a gate weighing 800 kg and a length of 10 meters
• speed: up to 3m 21s
• soft closing of the gate
• the torque of the drive is adjustable to match the weight of the gate and ensure its efficiency and durability
• automatic closing - the gate always closes after the set time
• with the key, easy to unlock and open the gate from outside
• wicket function
• quiet running

Orange Eco Pro lamp , signals the movement of the entrance gate. It has a bright orange light, class II insulation.

Specification: power: 25 W power supply: 230V flashing management: by orange lamp electrical insulation class: class II dimensions: 92 x 107 mm working conditions: -20 ° C to + 60 ° C protection class: IP 54

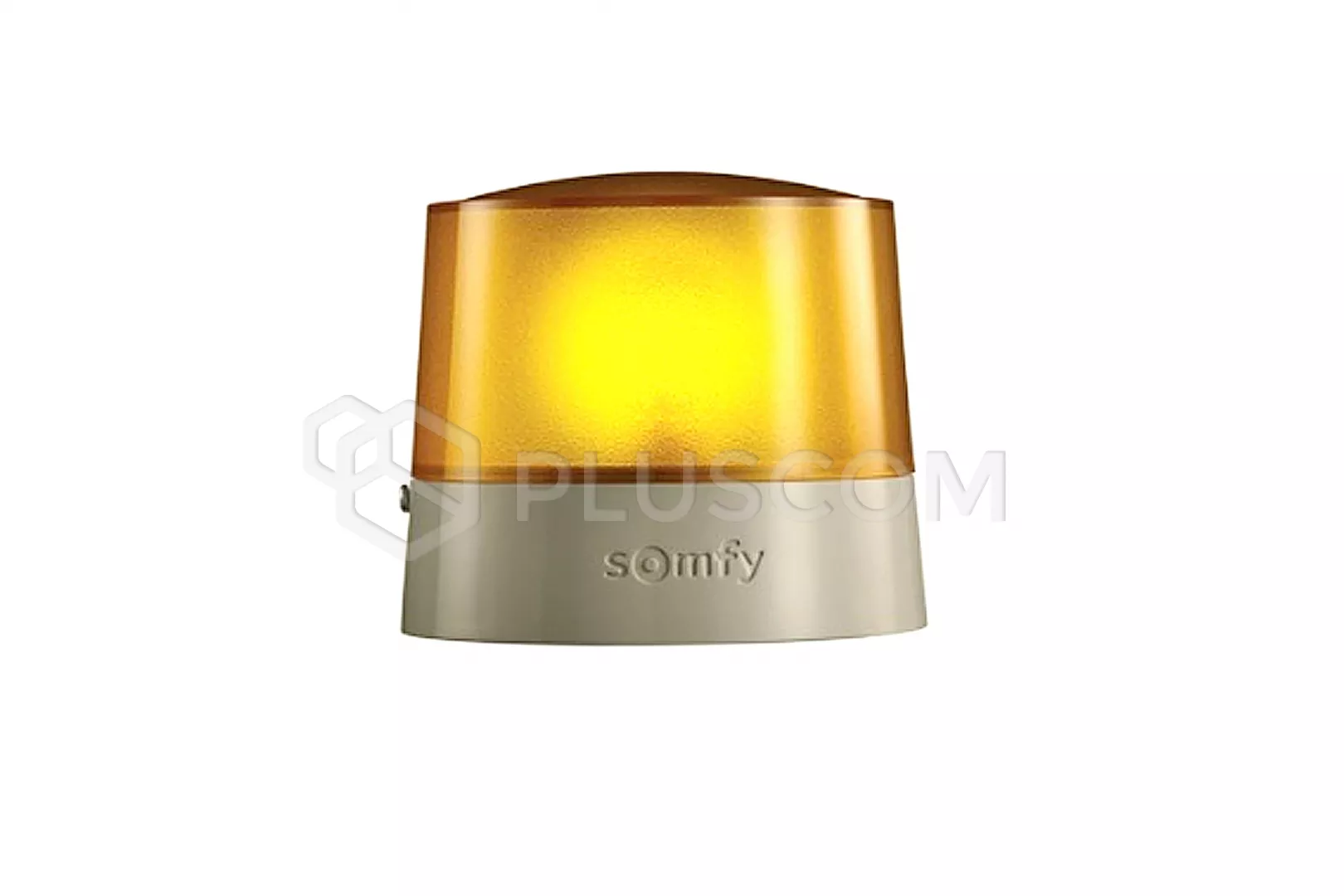

Eco Pro 230V signaling lamp

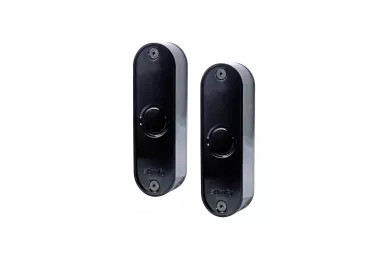

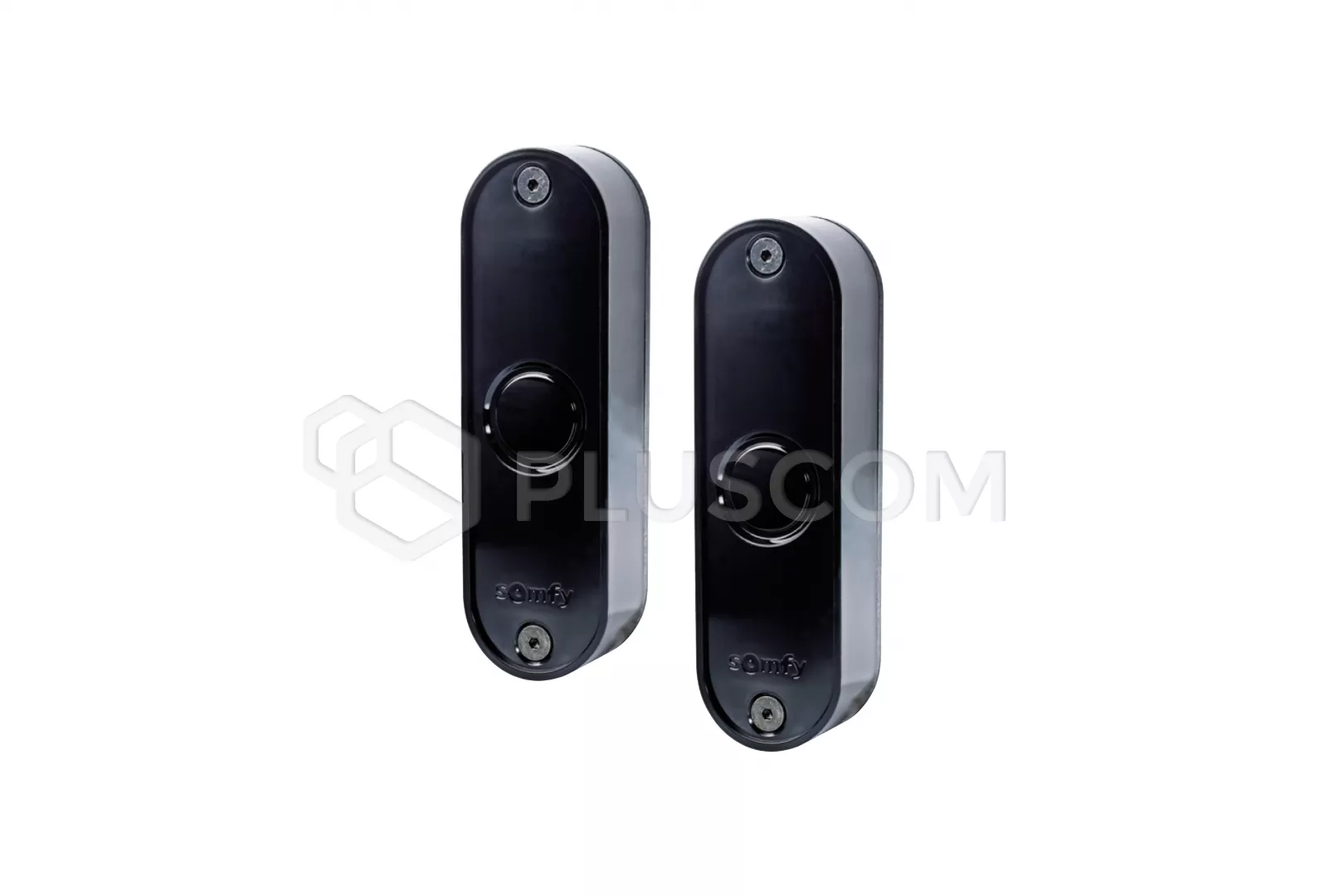

Master Pro - Bitech photocells are discrete devices for obstacle detection when closing / opening the gate. They have as standard narrow housing, which can be additionally equipped with a metal cover for additional protection against impacts and vandalism.
The distance between the transmitting and receiving photocells should be 2 to 10 meters.

Specification: range: 10m self-test input: no power supply: 24 V AC / DC contact load: 1 A electrical insulation class: Class III dimensions: 120 x 38 x 26 mm working temperature: -20 ° C to +60 ° C protection class: IP 54

Somfy Elixo 800 230V RTS Eco Comfort Pack

The kit includes two Keytis RTS 2-channel remote controls. Each pan is used for control from 1 to 2 devices in the RTS system.

Remote specification number of channels: 2 frequency: 433.4MHz radio range: 30 m power supply: 3 V - CR2430 battery battery life: 2 years dimensions: 70 x 41 x 15 mm working conditions: -20 ° C to + 70 ° C protection class: IP31

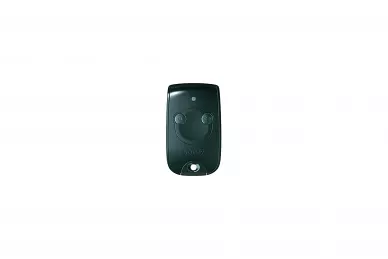

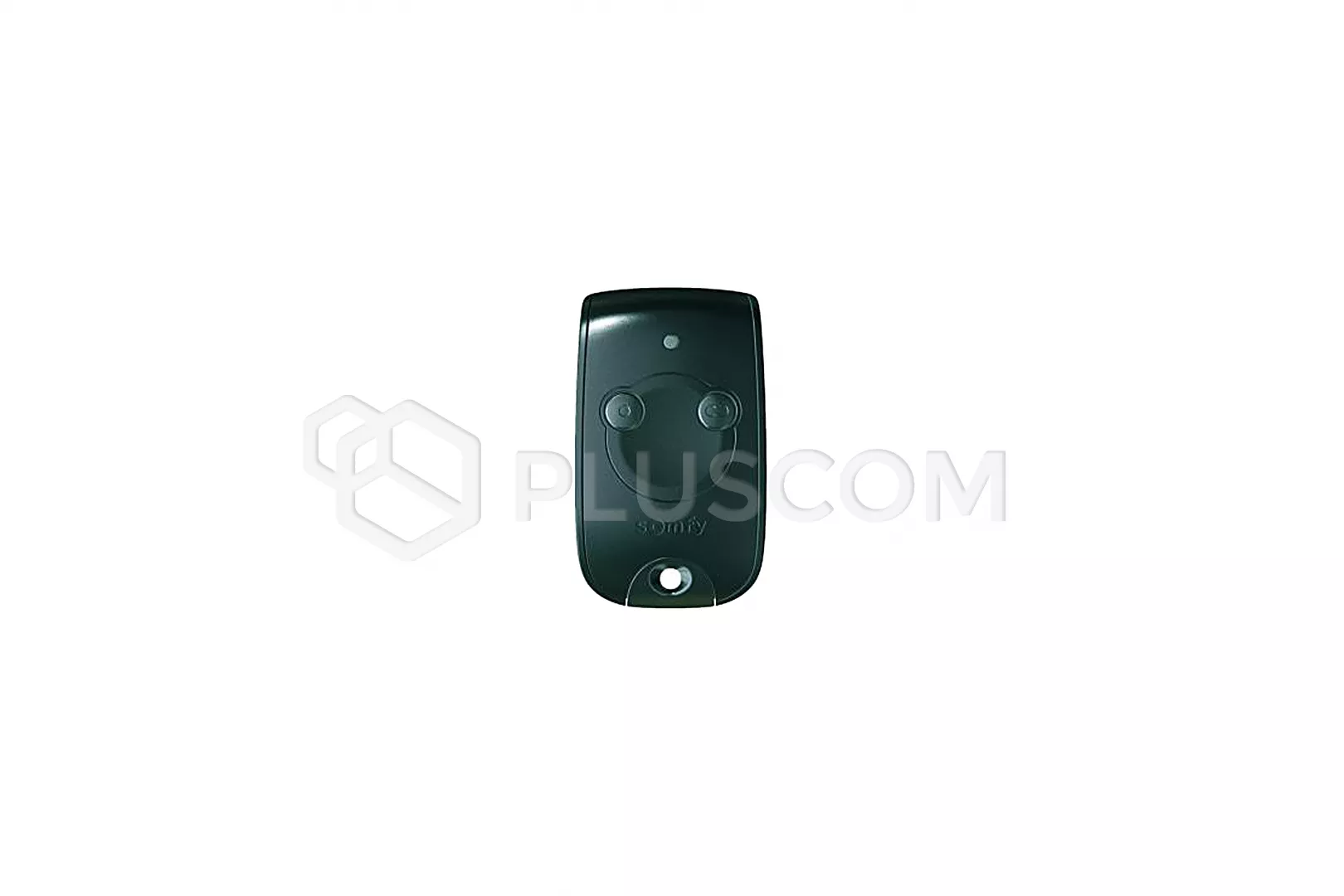

Keytis 2 RTS remote control

TECHNICAL DATA OF THE ACTUATOR

• main power: 230 V - 50 Hz
• electric motor power supply: 230 VDC
• accessory power supply: 24 V DC / 360 mA
• maximum power consumption: 300 W
• gate speed: up to 3m 21s
• RTS control radio frequency: 433.42Mhz
• drive power: 2000N
• number of programmable channels: max. 128
• working temperature: -20 ° C to +60 ° C
• security class: IP 44
• dimensions: 267x263x163mm
