Somfy Elixo 500 3S RTS 24V Comfort Pack, set for sliding gates o weight
500kg (1216364)

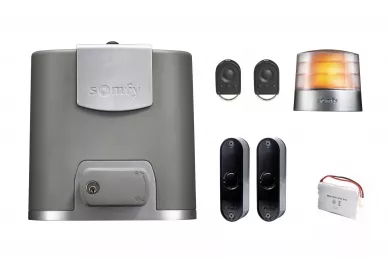

PACK INCLUDES
|
Somfy Elixo 500 3S RTS 24V Comfort Pack
|
ELIXO 500 3S RTS 24V Standard Pack is a ready kit for gate automation.
Users praise it for its durability, functionality and ease of installation.
The actuators are optimized for most installations. Set we can freely expand
with accessories from Somfy's offer, adding lamps or photocells, thus
increasing the safety of using the gate.
It works with solar energy systems, which gives us a lot of freedom
installation of the drive in places that are difficult to access for cables
power.
The most important features of the drive include:
- up to 30 cycles a day for a gate weighing 500 kg and 8 meters long
- speed: move the gate by 3 meters in 15 sec.
- smooth closing of the gate
- with the key, easy to unlock and open the gate from outside
- quiet running
- possibility of connecting an emergency battery in case of lack power
- thanks to the 3S control panel we have a quick installation, the
possibility of setting operating parameters, intuitive operation

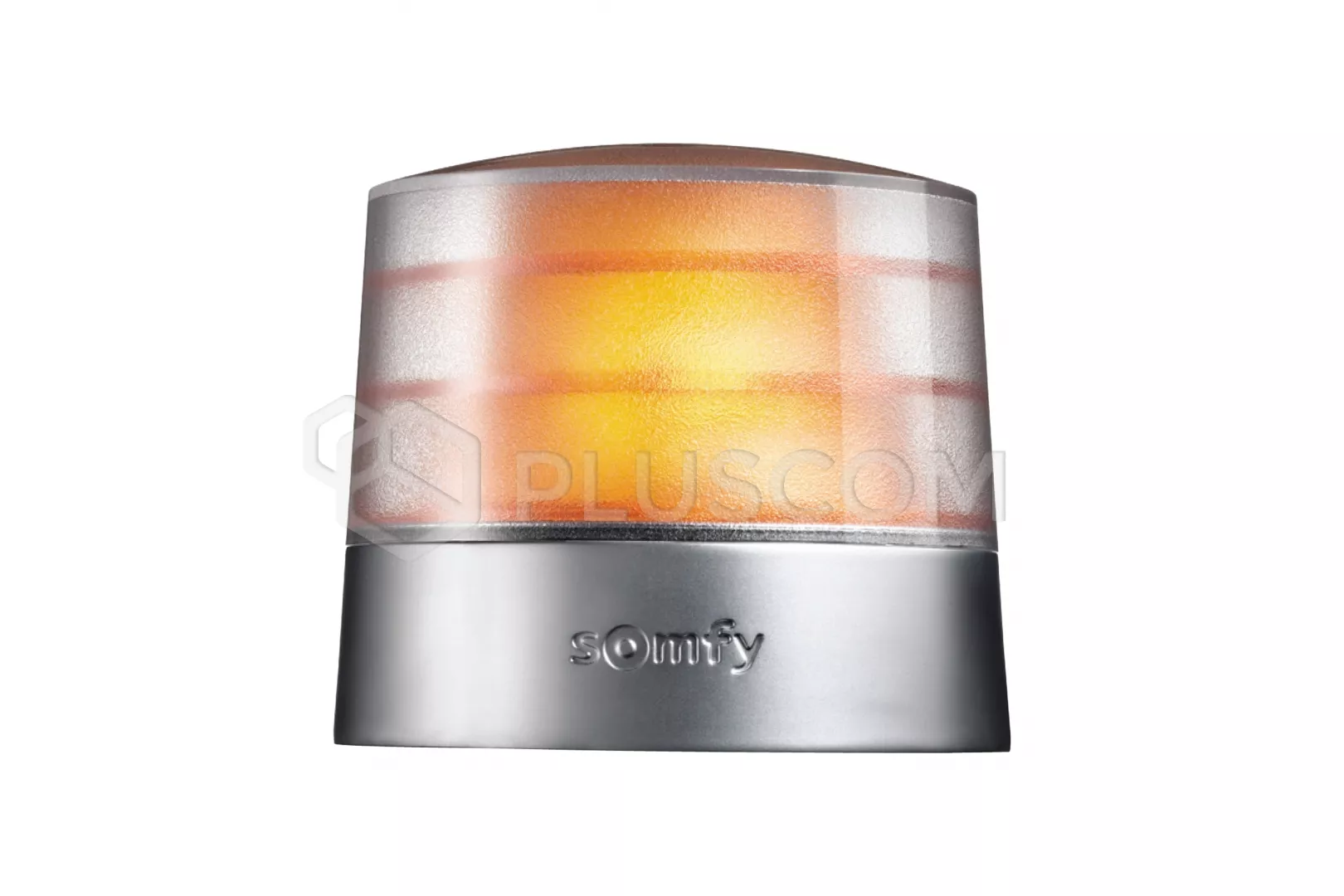

Orange 24 V Master Pro lamp with RTS antenna included
set, will signal the movement of the entrance gate. It has a built-in antenna
for improving the range of radio communication and a metal base that strength
and durability.
Specification:
- power: 15 W
- power supply: 24 V AC / DC
- flashing management: controlled from the drive control panel
- integrated antenna: RTS 433.42 MHz
- electrical insulation class: class III - very low, safe
voltage
- dimensions (height x diameter): 92 x 107 mm
- working conditions: -20 ° C to + 60 ° C
- protection class: IP 54
|
Somfy Elixo 500 3S RTS 24V Comfort Pack
|

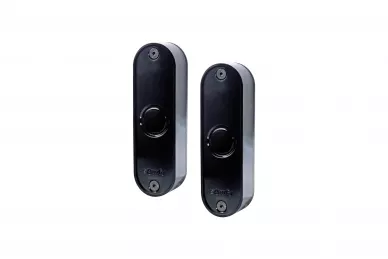

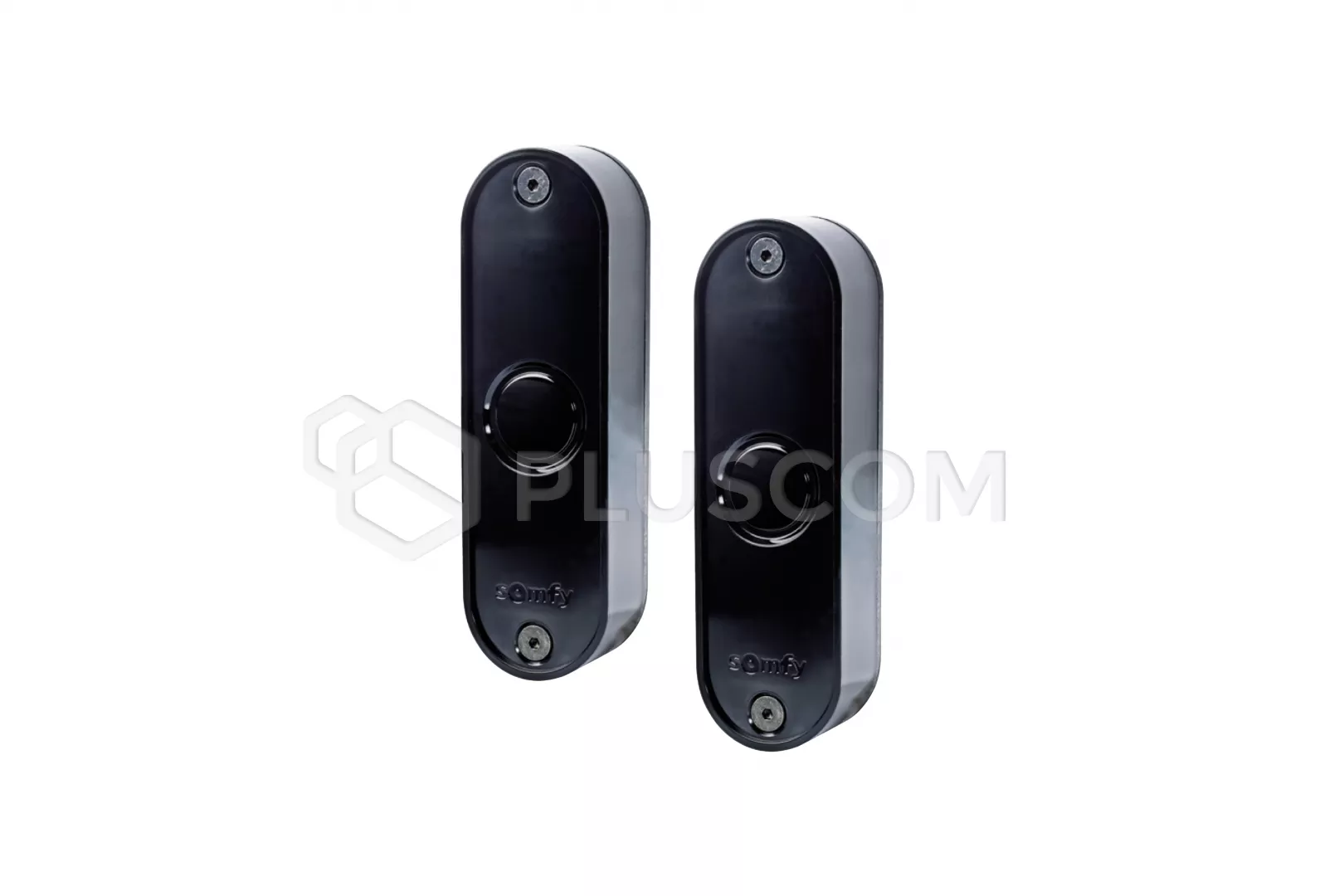

Master Pro - Bitech photocells are discrete devices
for obstacle detection when closing / opening the gate. They have as standard
narrow housing, which can be additionally equipped with a metal cover for
additional protection against impacts and vandalism.
The distance between the transmitting and receiving photocells should be 2 to
10 meters.
Specification:
- range: 10m
- self-test input: no
- power supply: 24 V AC / DC
- contact load: 1 A
- electrical insulation class: Class III
- dimensions: 120 x 38 x 26 mm
- working temperature: -20 ° C to +60 ° C
- protection class: IP 54
|
Somfy Elixo 500 3S RTS 24V Comfort Pack
|

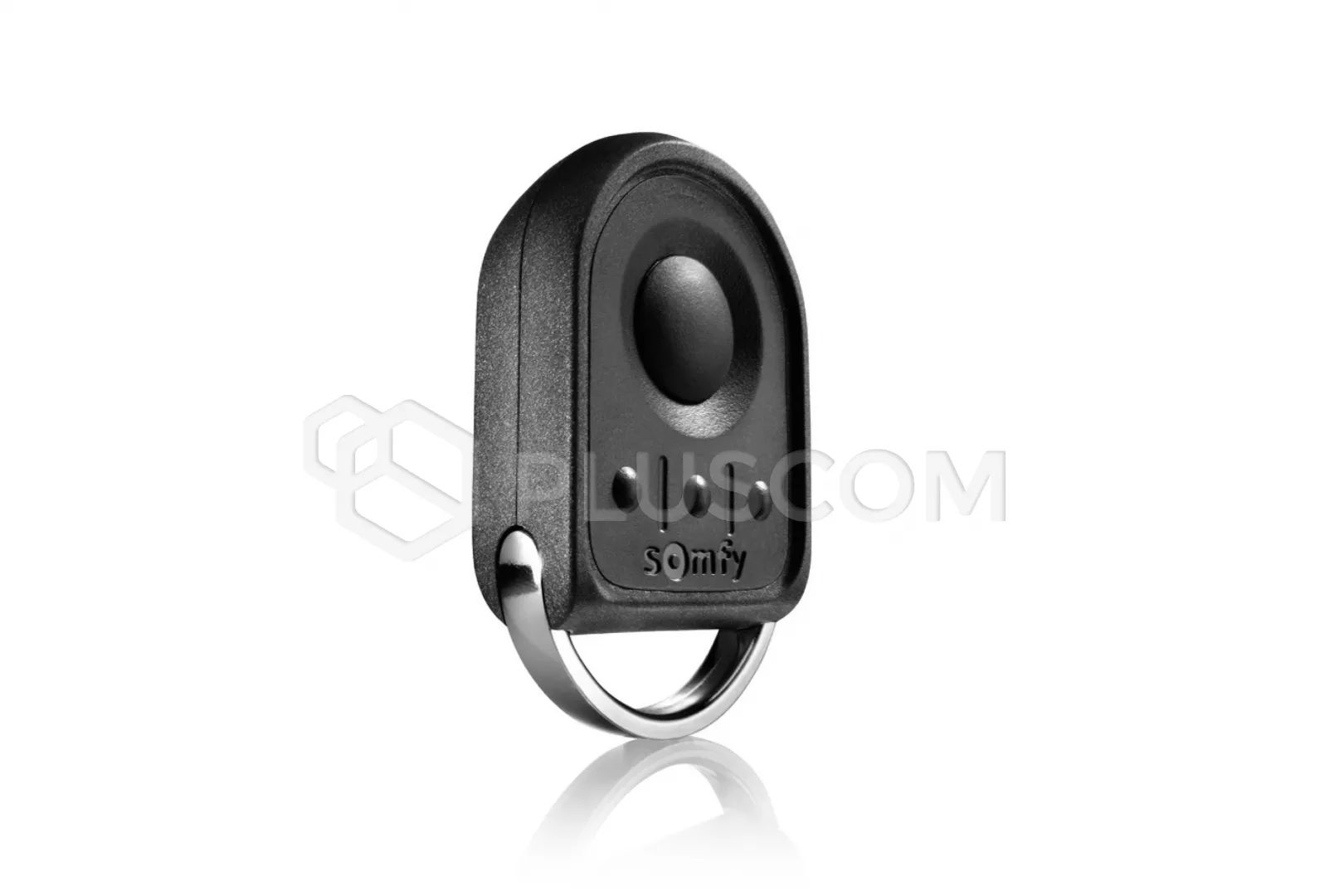

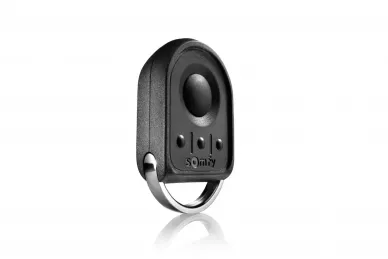

The kit includes two 4-channel Keygo RTS remotes. It is a moisture and
damage resistant device that we can use control up to 4 devices. Large central
button easy to press without having to looking at the pilot.
Remote specification
- number of channels: 4
- frequency: 433.42MHz
- radio range: 30 m
- power supply: 3 V - CR2430 battery
- battery life: 2 years
- dimensions: 59 x 35 x 14 mm
- working conditions: -20 ° C to + 70 ° C
- protection class: IP30
The kit comes with a
backup battery that allows you to
drive operation during power failure. Autonomy: 5 to 10 work cycles in within
24 hours, depending on the characteristics of the door.

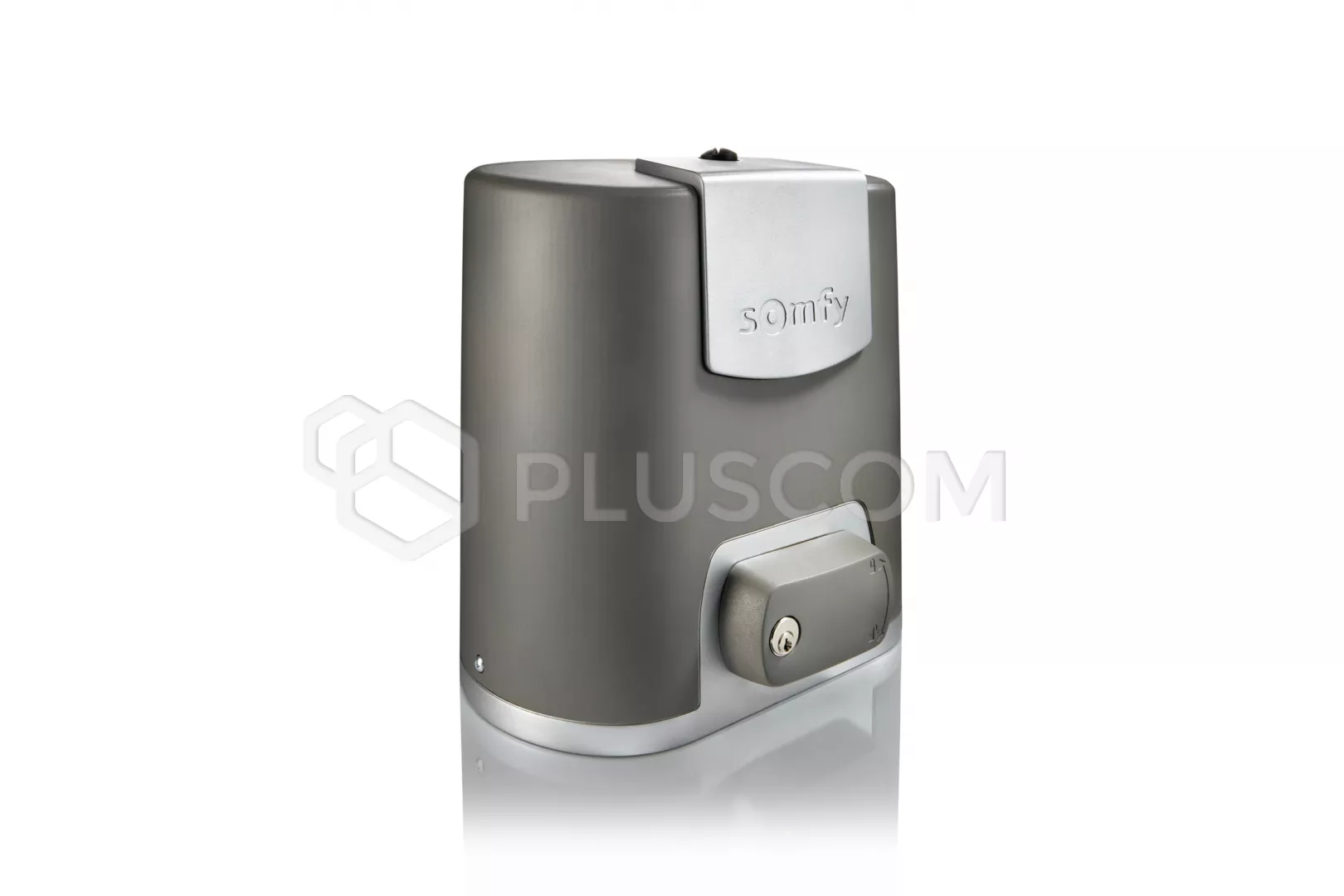

TECHNICAL DATA OF THE ACTUATOR
- main power: 230 V - 50 Hz
- electric motor supply: 24 VDC
- accessory power supply: 24 V DC / 1.2 A
- maximum power consumption: 600 W (with 500 W lighting)
- gate speed: up to 3 m 15 seconds
- obstacle detection: electronic torque limiter
- max. number of operations per day: 30
- elektronika sterowania: zintegrowana z wyświetlaczem LCD
- RTS control radio frequency: 433.42Mhz
- number of memorable remote control devices: 40
- tested for 55 000 cycles
- working temperature: -20 ° C to +60 ° C
- security class: IP 44
- dimensions: 267x263x163mm
