SCOT EL-600SL2 Electromagnetic lock (280kg)

SCOT EL-600SL2 Electromagnetic Lock

Electromagnetic lock with capacity: 280 kg
Power supply: DC 12V / 24V
Current: 480mA / 240mA
Relay NO / NC
Jumper status LED
Installation: indoor

Electromagnetic jumpers are used in access control systems can be used interchangeably with electric lock reversible. They can be used in systems where evacuation is required to act in the event of a power failure followed the opening (unlocked) door.

Their decisive advantage over electric lock reversible is the lack of mechanical moving parts which would require lubrication, maintenance or technical inspections. Even when frequent opening of the door practically no no mechanical wear.

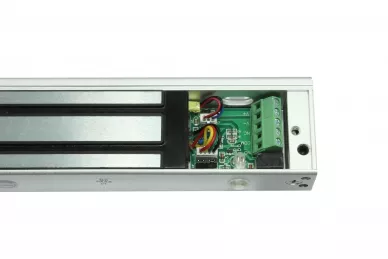

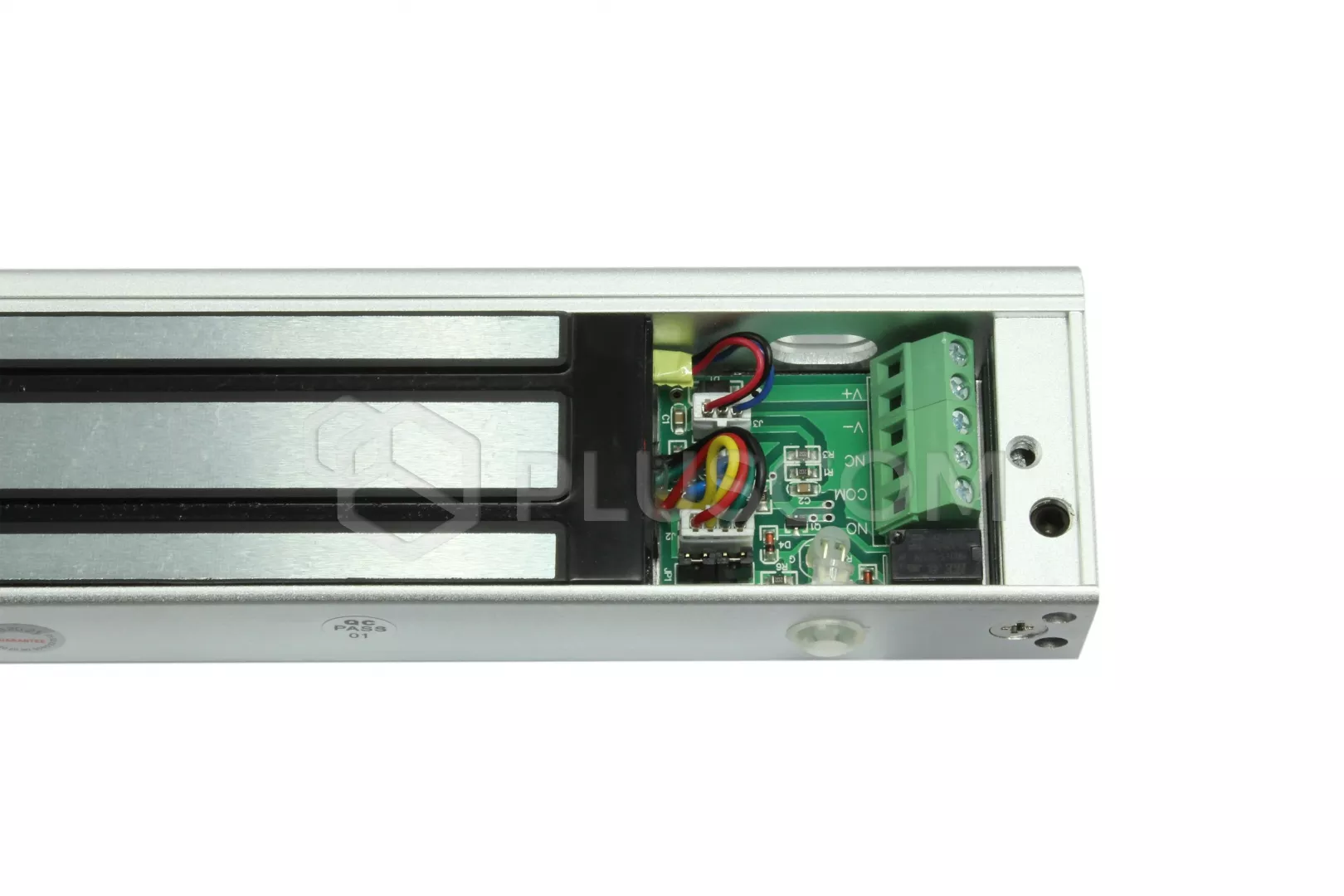

Jumper is provided with arelay NO/NC, which can be used in the access control system to indicate the lock status. This allows us to communicate information, type open/closed to the alarm system to indicate the status of the door. Two-color LED on the housing jumper indicates the status of the input.

• if the door is closed, the LED lights up green
• when the door is open or not entirely closed
• the LED will glow red. If the coil is not powered-LED is off

PRINCIPLE OF OPERATION:

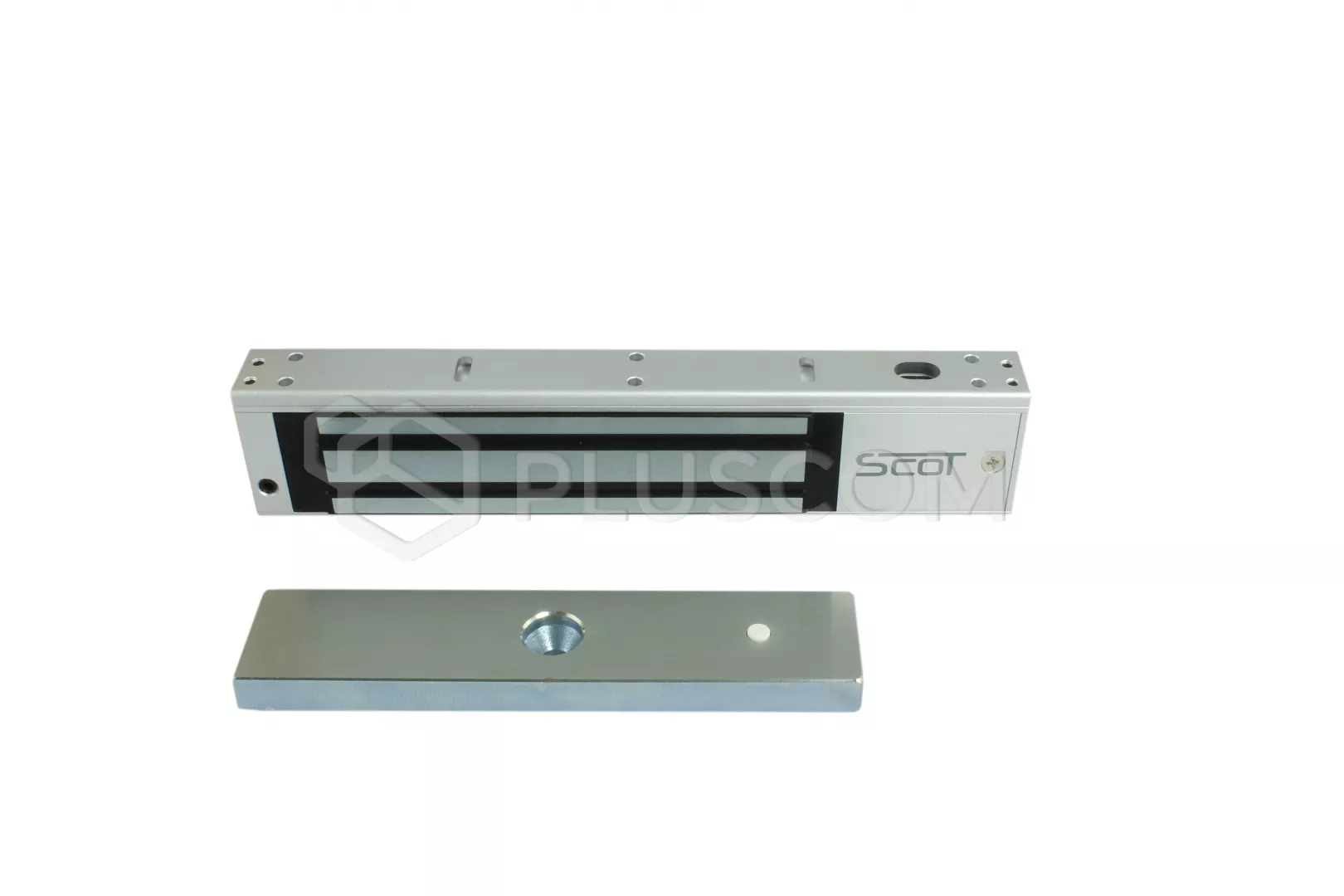

It consists in attracting the magnet mounted on the door frame metal plate placed on the door leaf.
The electromagnet can withstand pressure up to 280kg
To the doors were locked voltage must be present on the terminals.The device is designed for surface mounting.

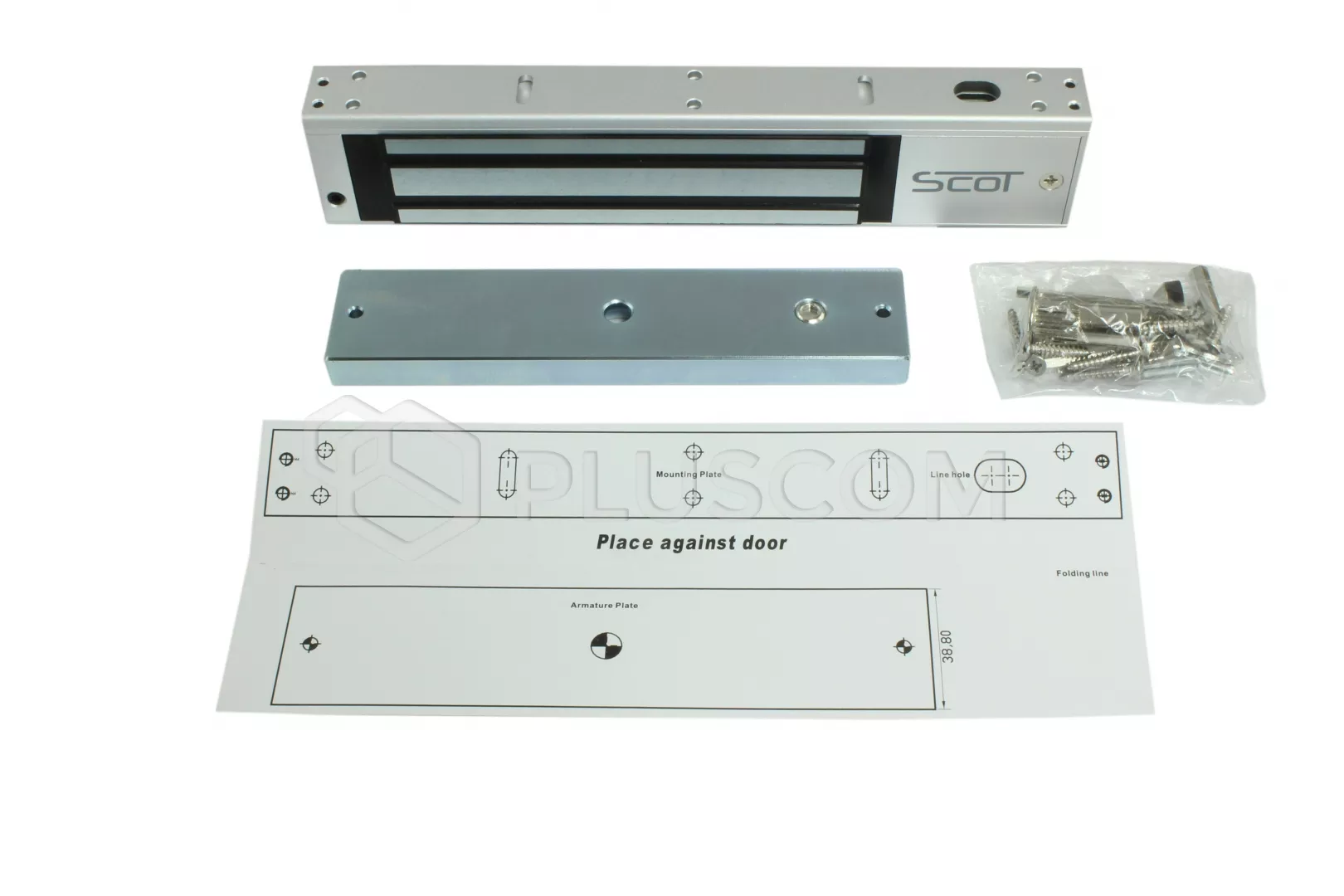

Normally an electromagnet fastened to the door jamb. Metal plate screwed to the door leaf.
