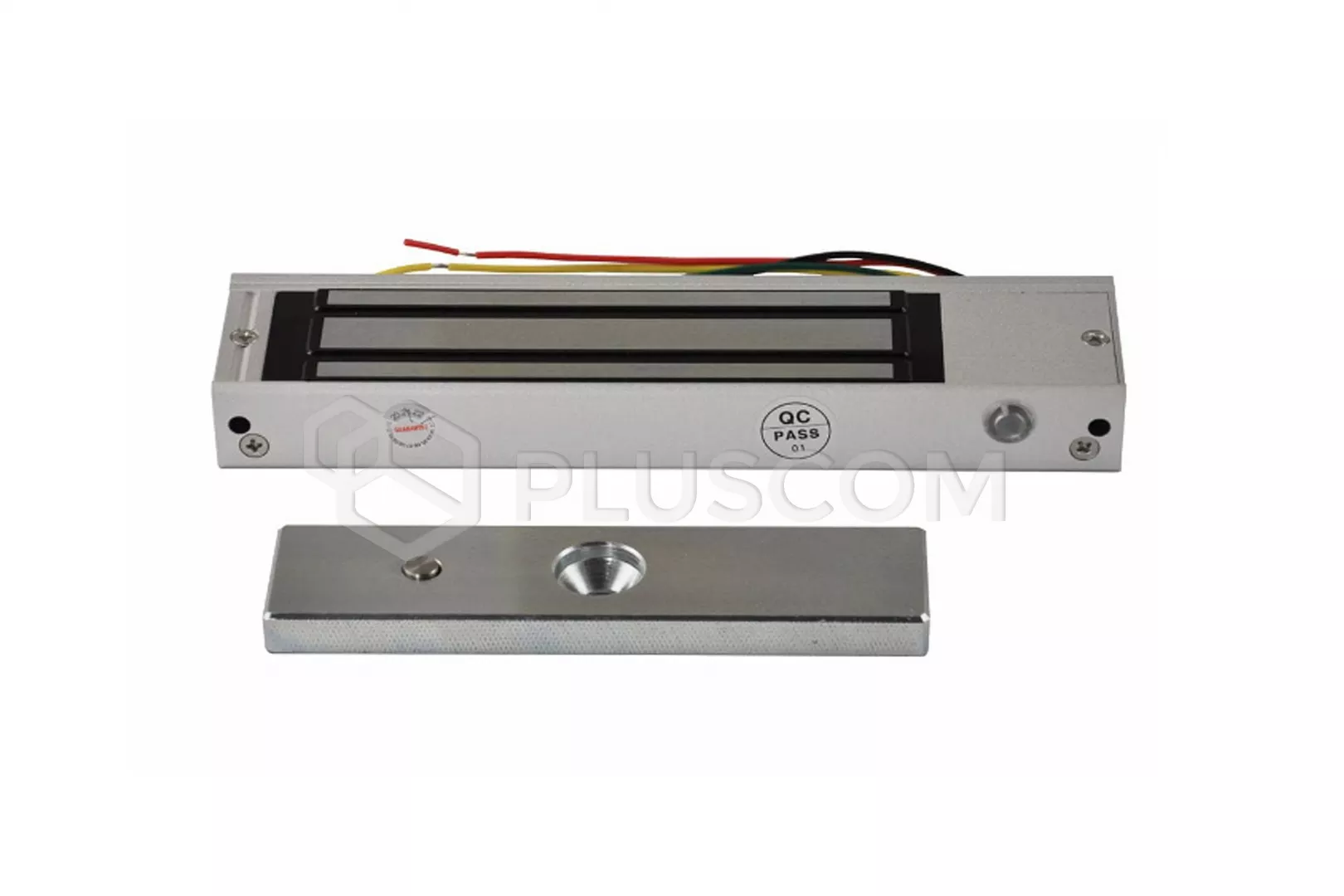

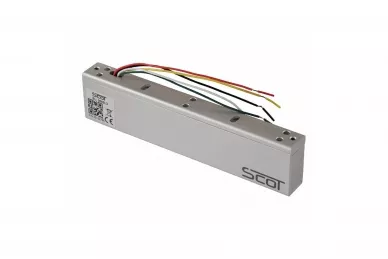

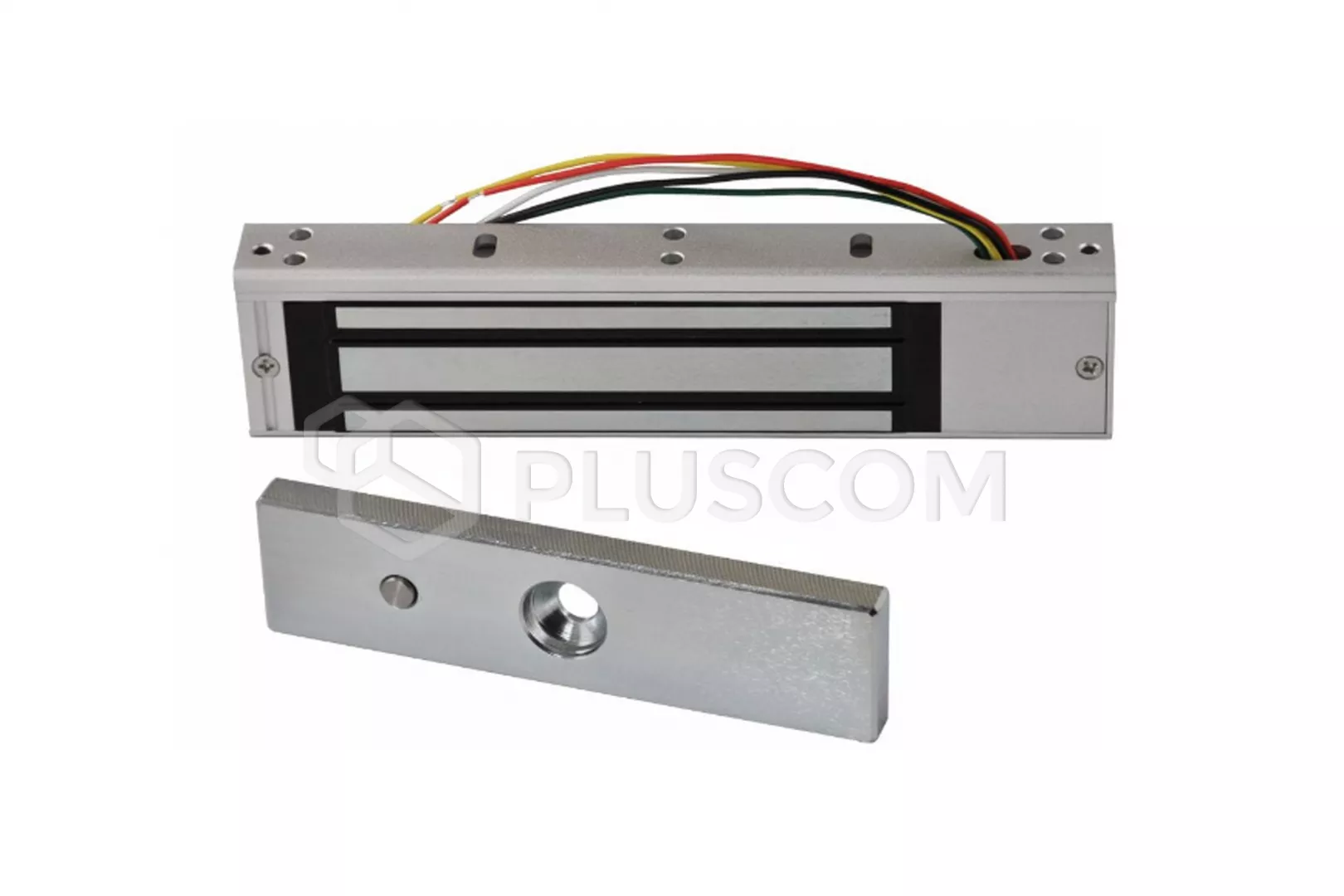

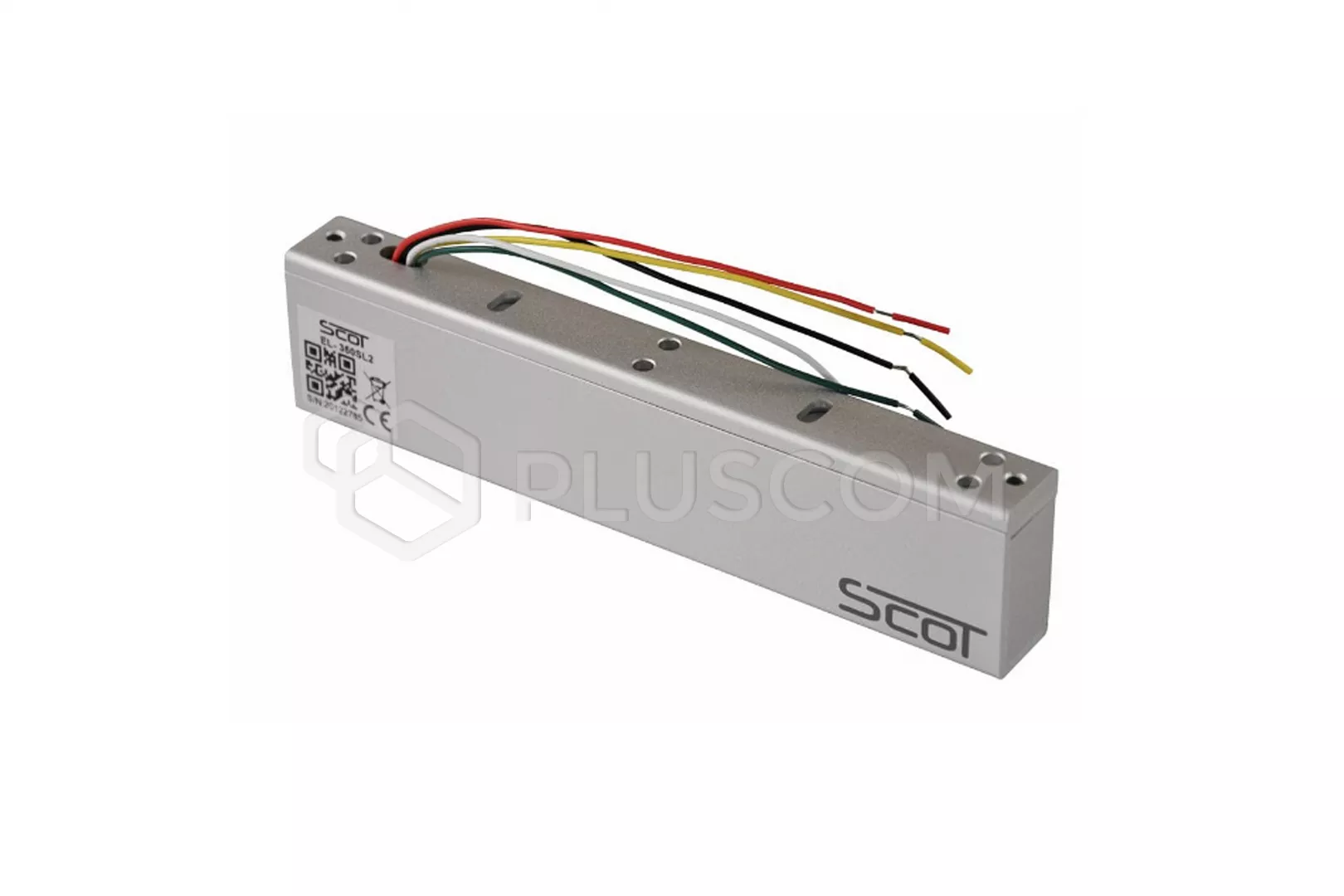

SCOT EL-350SL2 Electromagnetic lock (180kg)

SCOT EL-350SL2 Electromagnetic Lock

Electromagnetic lock with capacity: 180 kg
Power supply: DC 12V / 24V
Current: 300mA / 150mA
Signaling: Yes, contact NC

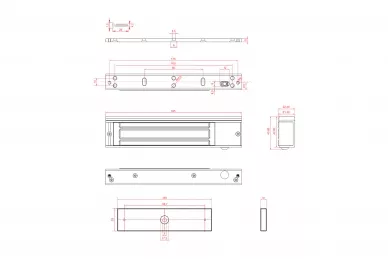

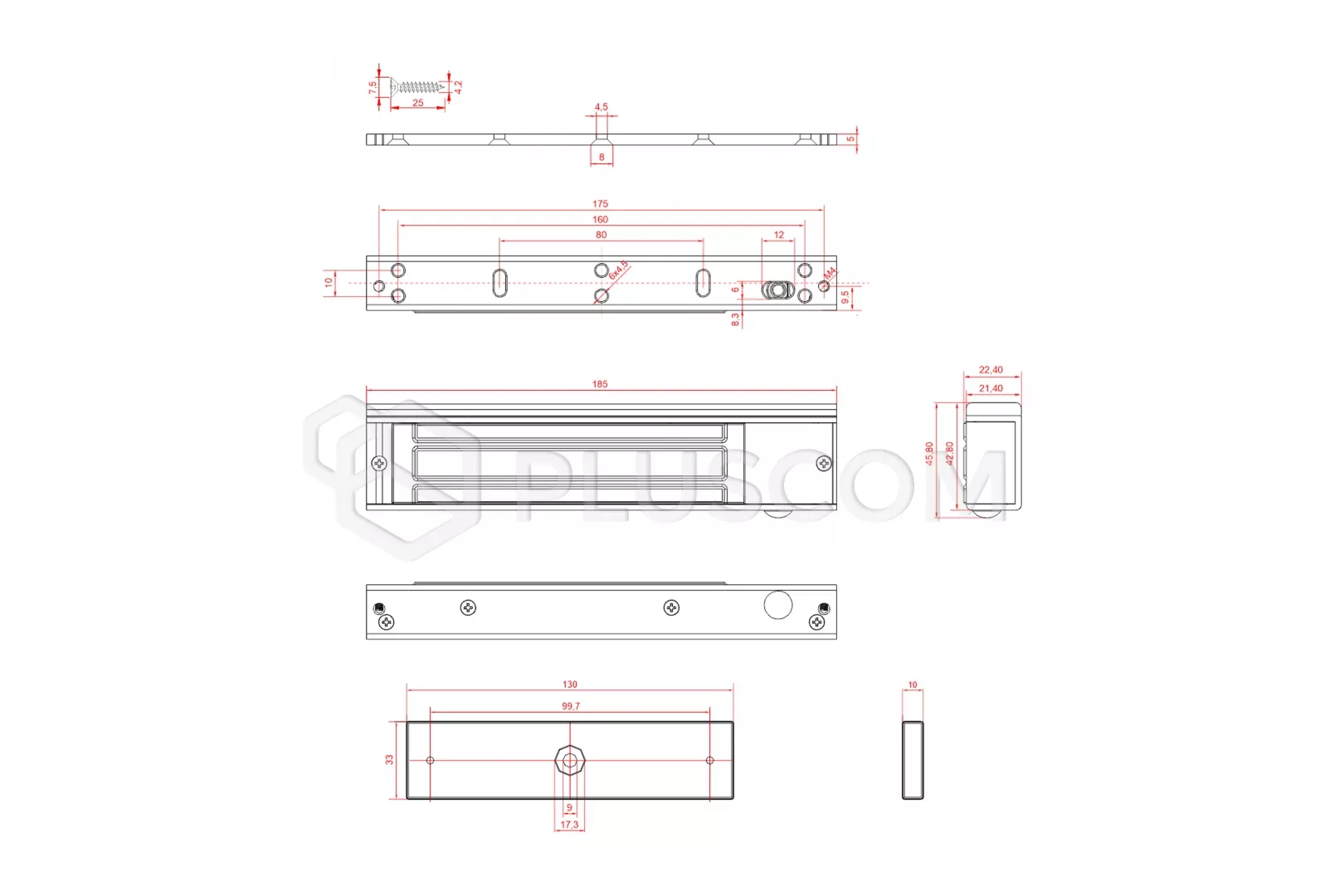

Electromagnetic dimensions: 185 x 46 x 22.4mm
Plate dimensions: 130 x 33 x 10mm
Information LED: yes
Installation site: indoor

Electromagnetic jumpers are used in access control systems can be used interchangeably with electric lock reversible. They can be used in systems where evacuation is required to act in the event of a power failure followed the opening (unlocked) door.

Their decisive advantage over electric lock reversible is the lack of mechanical moving parts which would require lubrication, maintenance or technical inspections. Even when frequent opening of the door practically no no mechanical wear.


The elektromagnetic lock is equipped with NC relay. This output can be connected to the system access control or alarm system to indicate the status-controlled door.

PRINCIPLE OF OPERATION:
It consists in attracting the magnet mounted on the door frame metal plate placed on the door leaf.
The electromagnet can withstand pressure up to 180kg
To the doors were locked voltage must be present on the terminals.


Normally an electromagnet fastened to the door jamb. Metal plate screwed to the door leaf. If necessary, use the optional mounting brackets.
