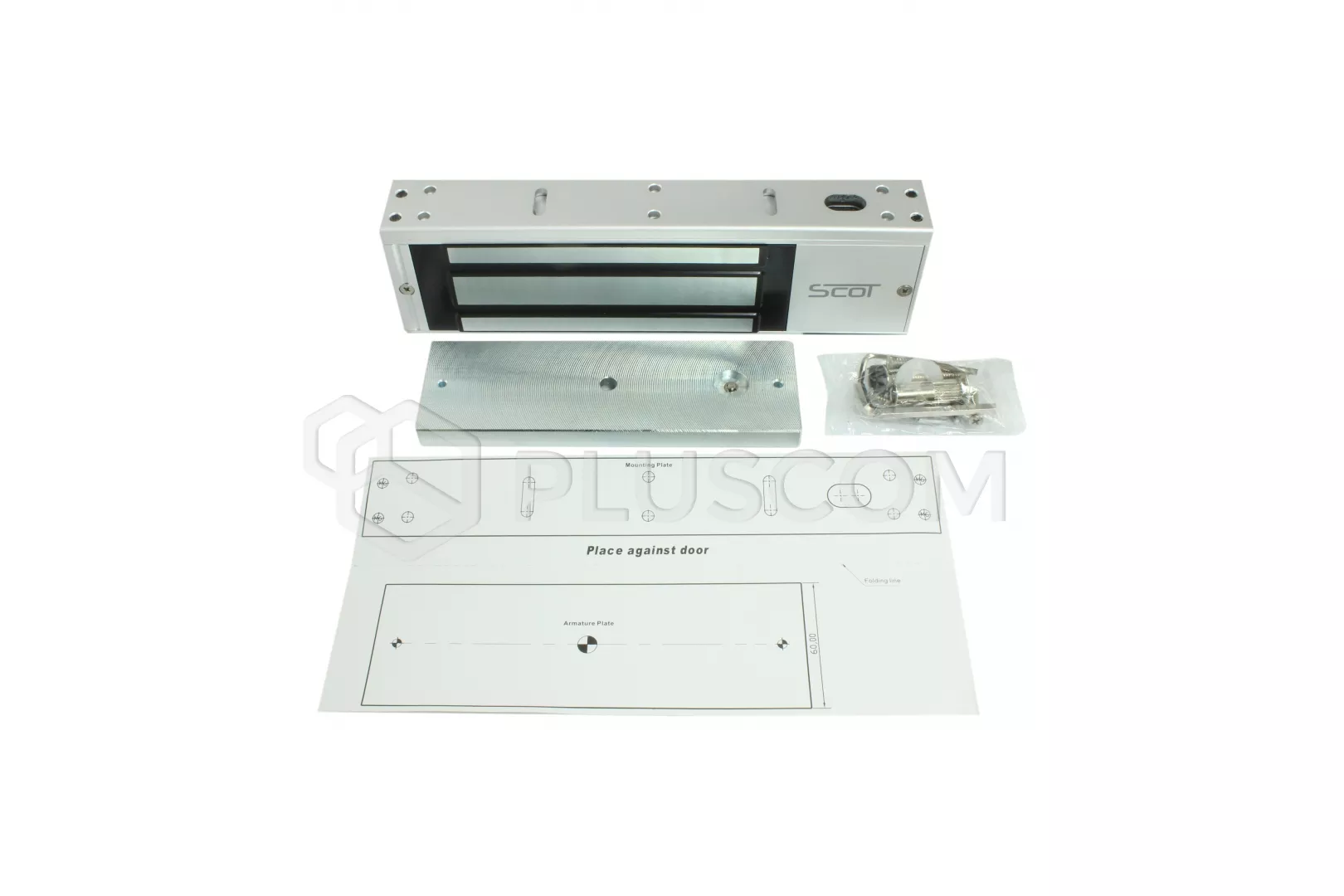

SCOT EL-1200SL2 Electromagnetic Lock
Electromagnetic lock with capacity: 540 kg
Power supply: DC 12V / 24V
Current: 600mA / 300mA
Relay NO / NC
Jumper status LED
Installation: indoor

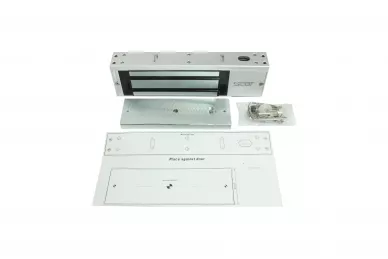

SCOT EL-1200SL2 Electromagnetic lock (540kg)
Electromagnetic jumpers are used in access control systems can be used
interchangeably with electric lock reversible. They can be used in systems
where evacuation is required to act in the event of a power failure followed
the opening (unlocked) door.
Their decisive advantage over electric lock reversible is the lack of
mechanical moving parts which would require lubrication, maintenance or
technical inspections. Even when frequent opening of the door practically no no
mechanical wear.
Jumper is provided with a relay NO / NC, which can be used in the access
control system to indicate the lock status. This allows us to communicate
information, type "open / closed" to the alarm system to indicate the

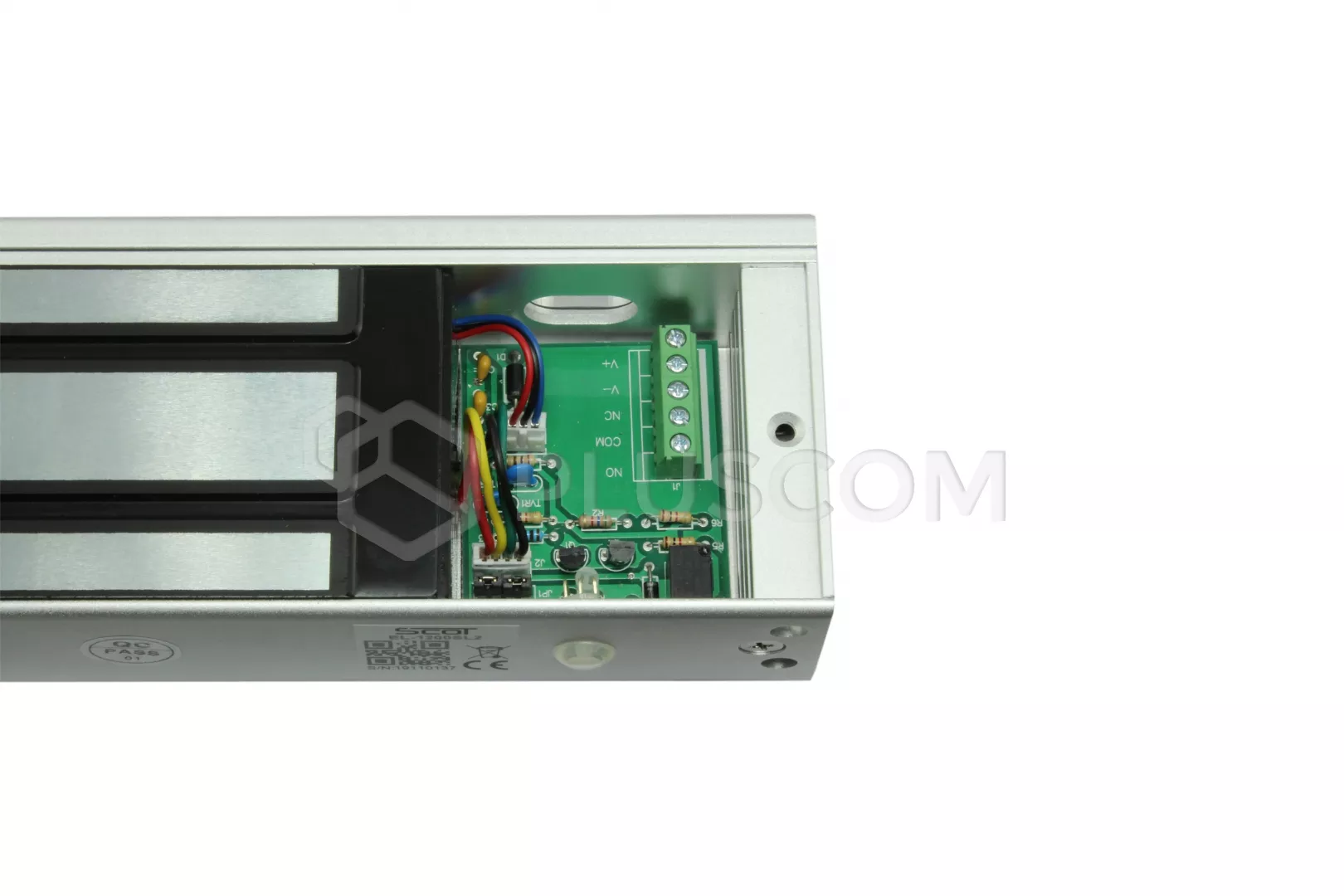

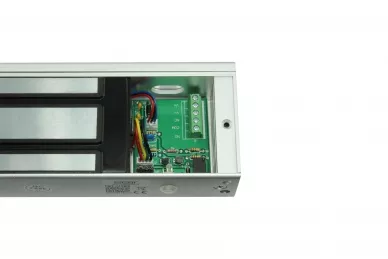

status of the door. Two-color LED on the housing jumper indicates the status of
the input.
- if the door is closed, the LED lights up green
- when the door is open, or not entirely closed
- the LED will glow red. - If the coil is not powered - LED is off
PRINCIPLE OF OPERATION:

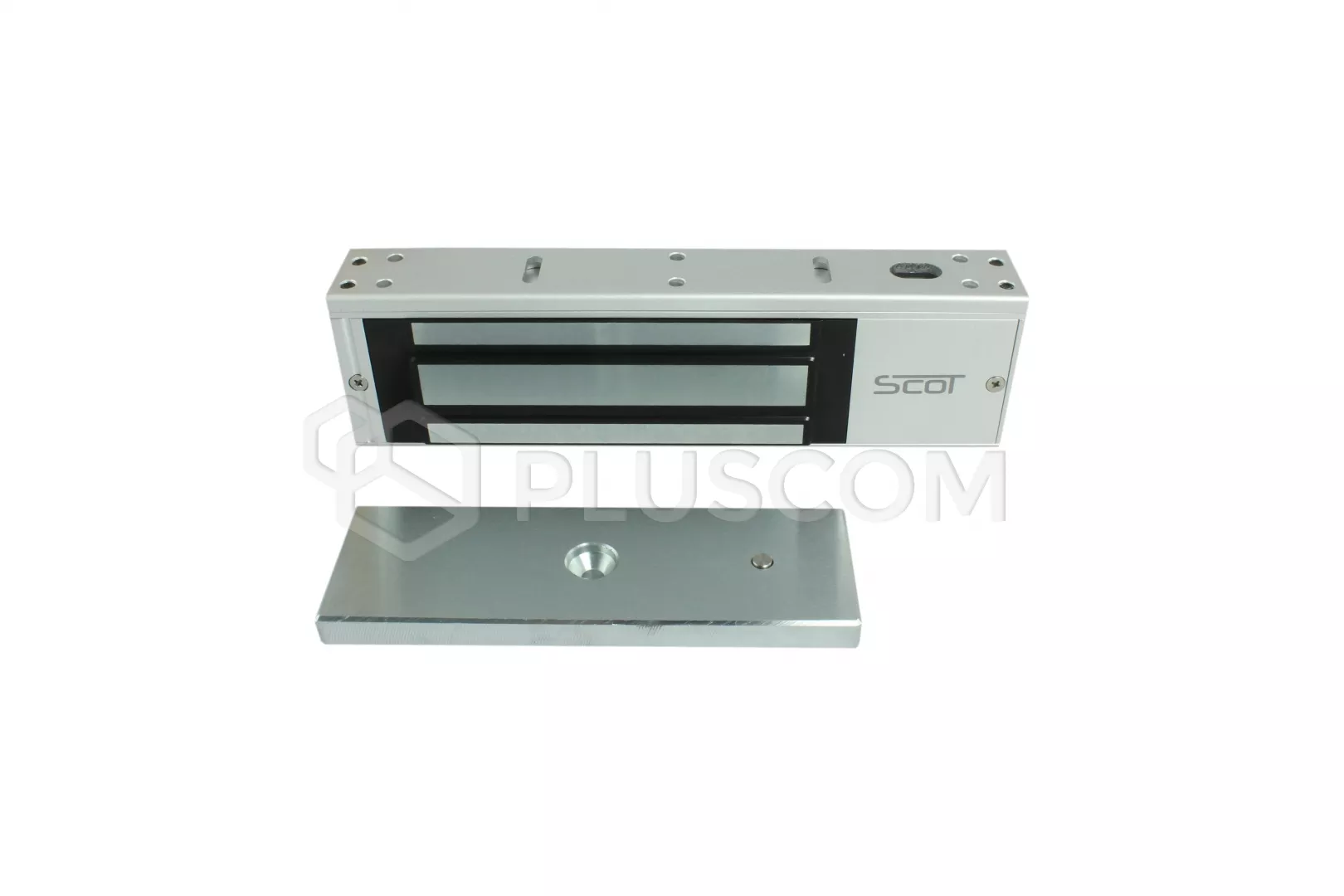

It consists in attracting the magnet mounted on the door frame metal plate
placed on the door leaf.
The electromagnet can withstand pressure up to 540kg
To the doors were locked voltage must be present on the terminals.The device
is designed for surface mounting.
Normally an electromagnet fastened to the door jamb. Metal plate screwed to the
door leaf.
