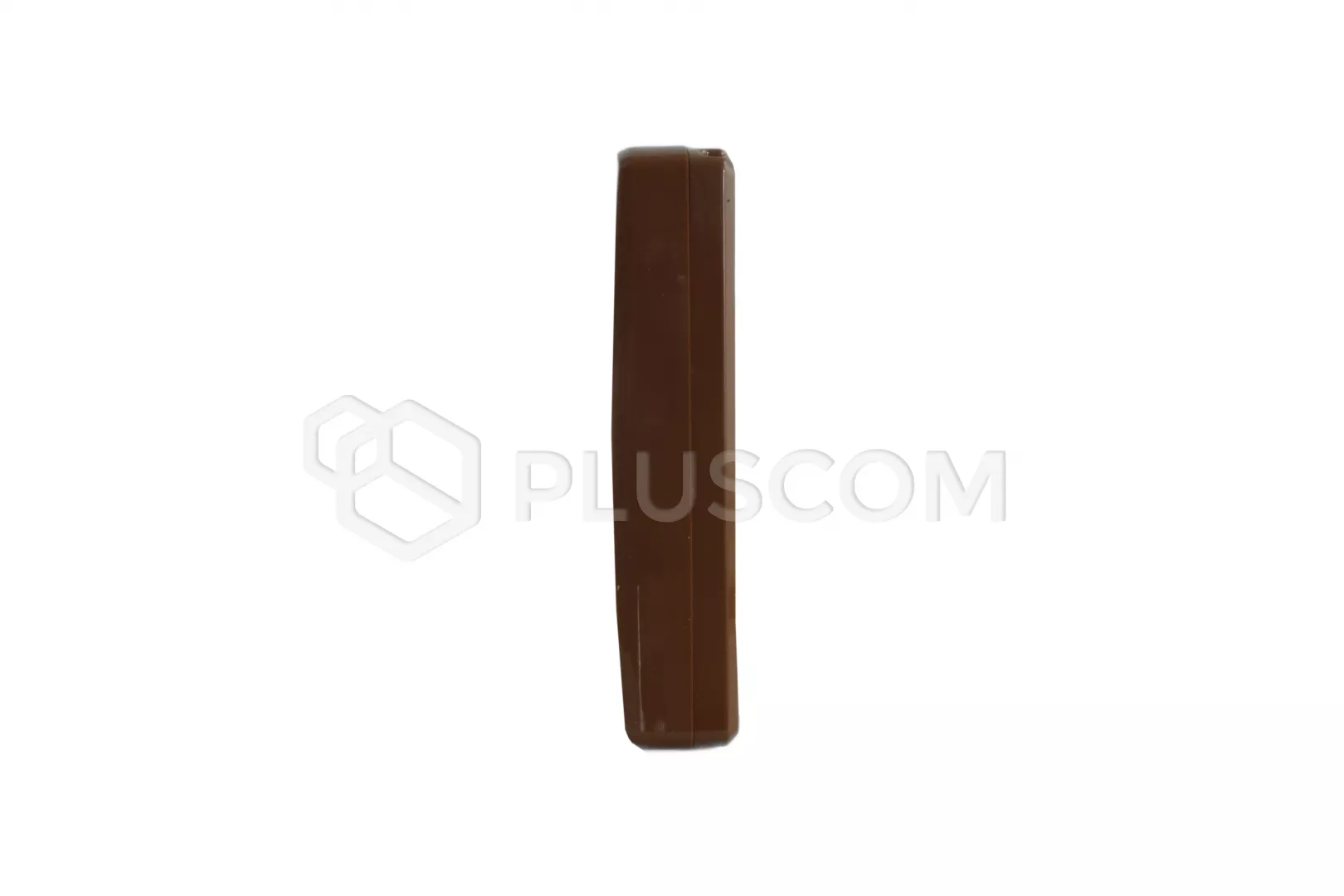

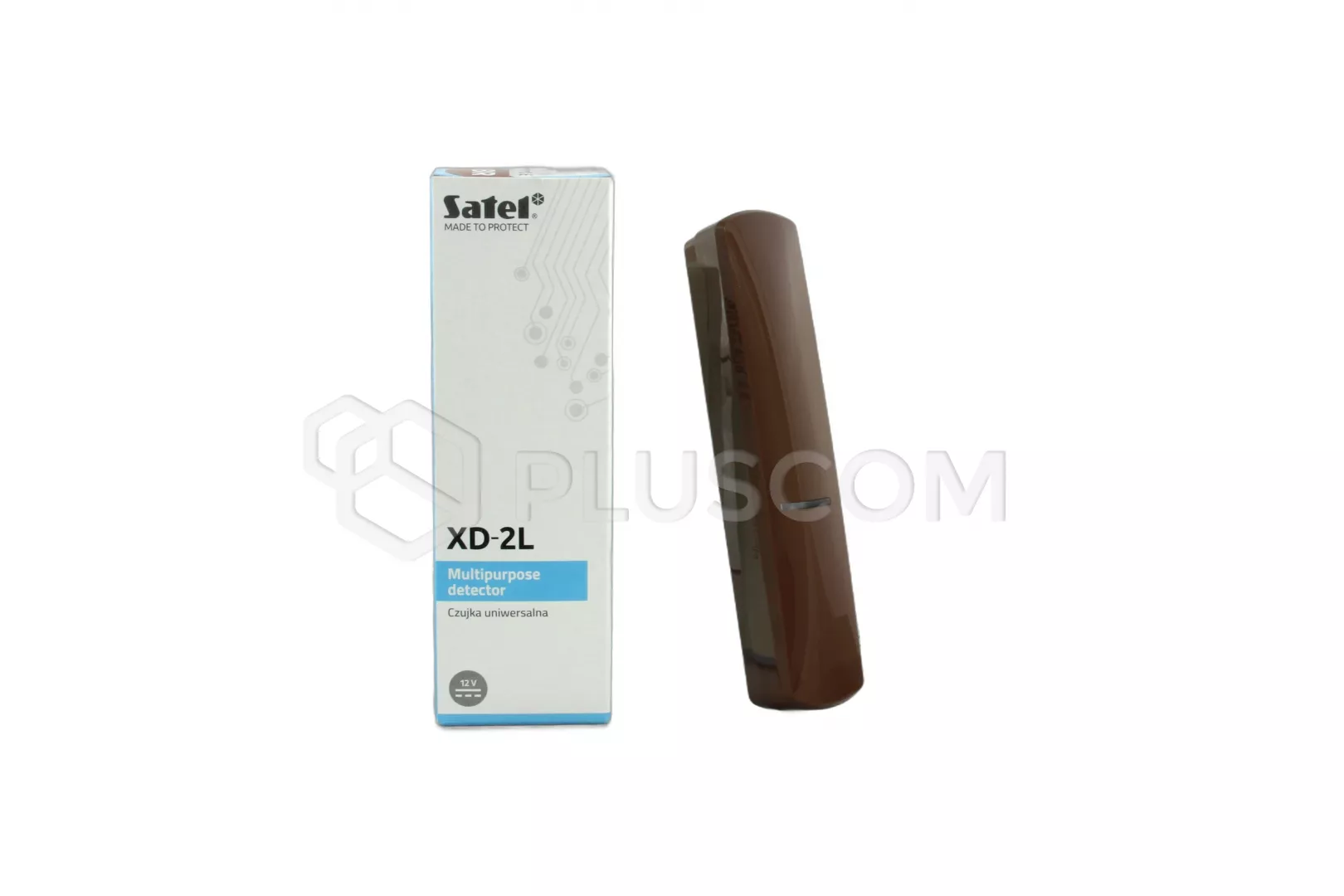

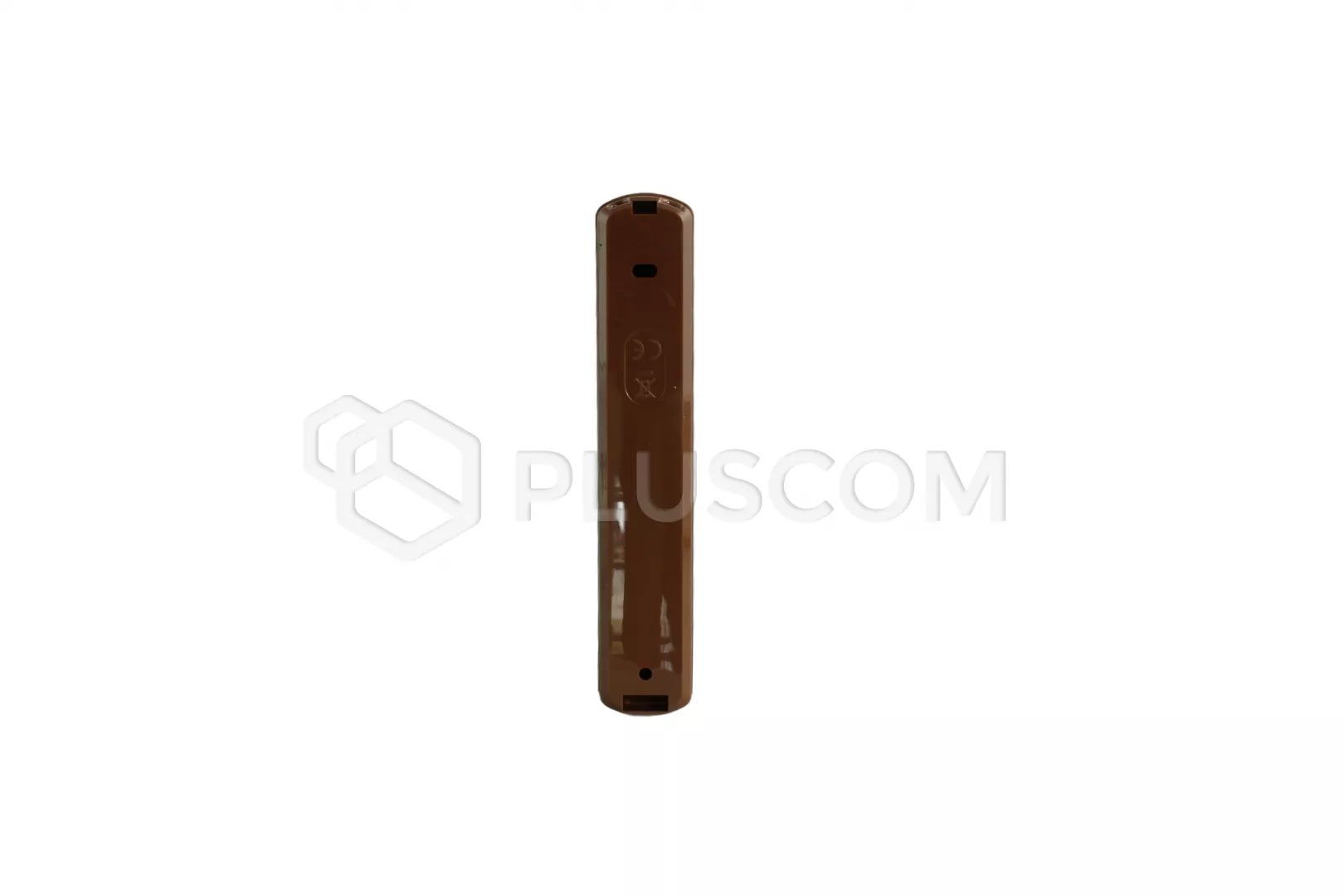

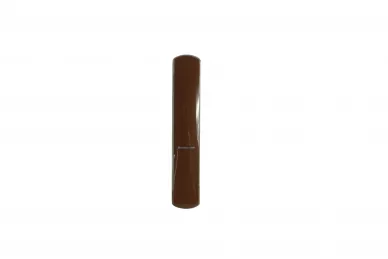

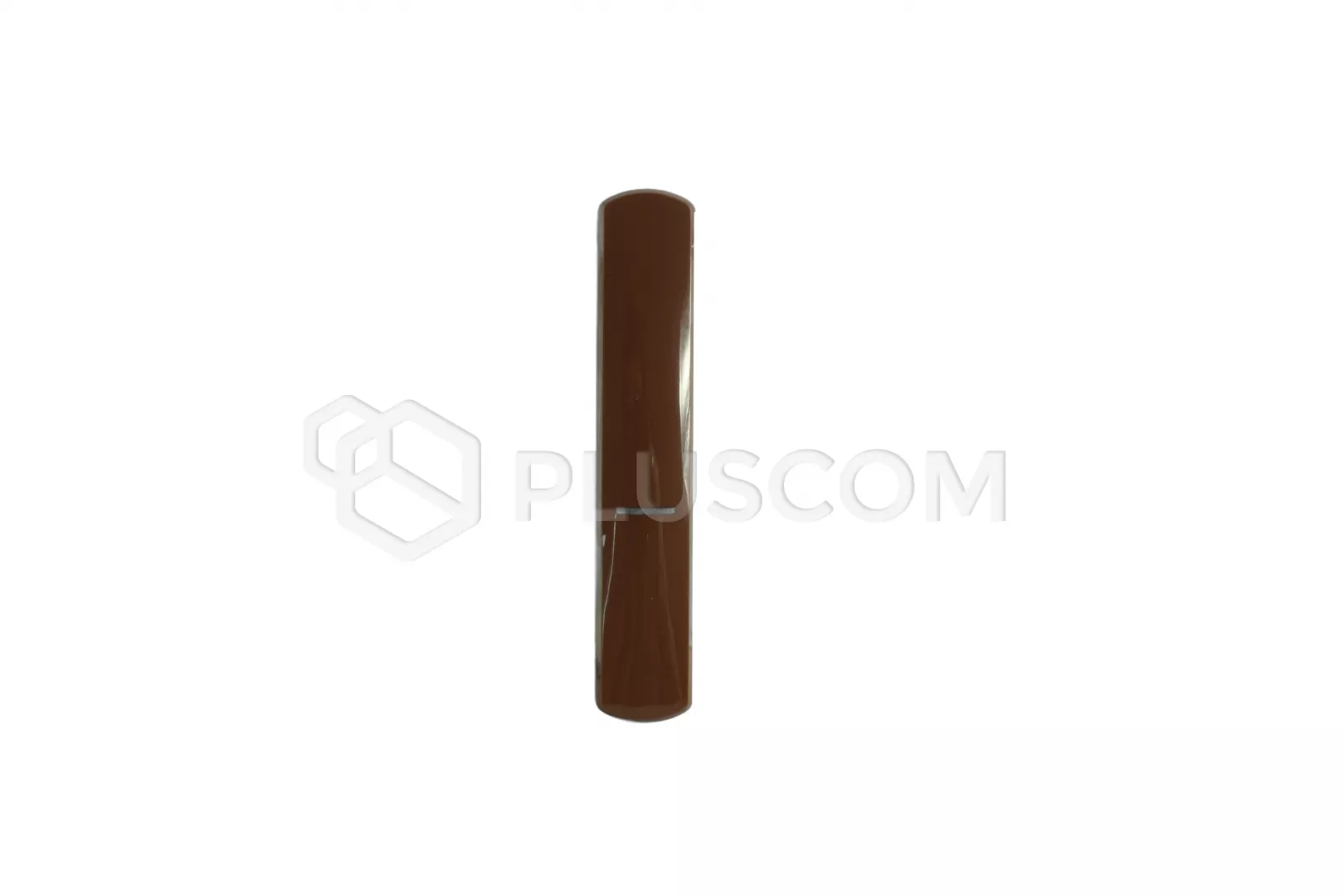

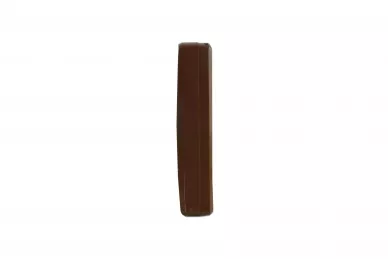

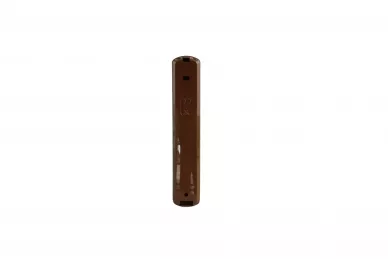

Satel XD-2L BR Multipurpose detector, brown

Satel XD-2L BR Wired universal detector, brown

The XD-2L BR multifunctional detector can work with any alarm control panel. IN Several detectors have been integrated into a small housing. Together with the detector two magnets are supplied for surface and flush mounting.

Properties:

• detector type selection by means of DIP-switches
• selection of alarm output type:
• • 2EOL/NC
  • NC
• Selection of parametric resistors for 2EOL configuration:
• • alarm: 1.1kΩ / 2.2kΩ / 4.7kΩ / 5.6kΩ / 6.8kΩ
  • tamper: 1.1kΩ / 2.2kΩ / 4.7kΩ / 5.6kΩ
• LED for signaling
• remote on/off LED indicator light
• supply voltage supervision
• tamper protection against opening the housing

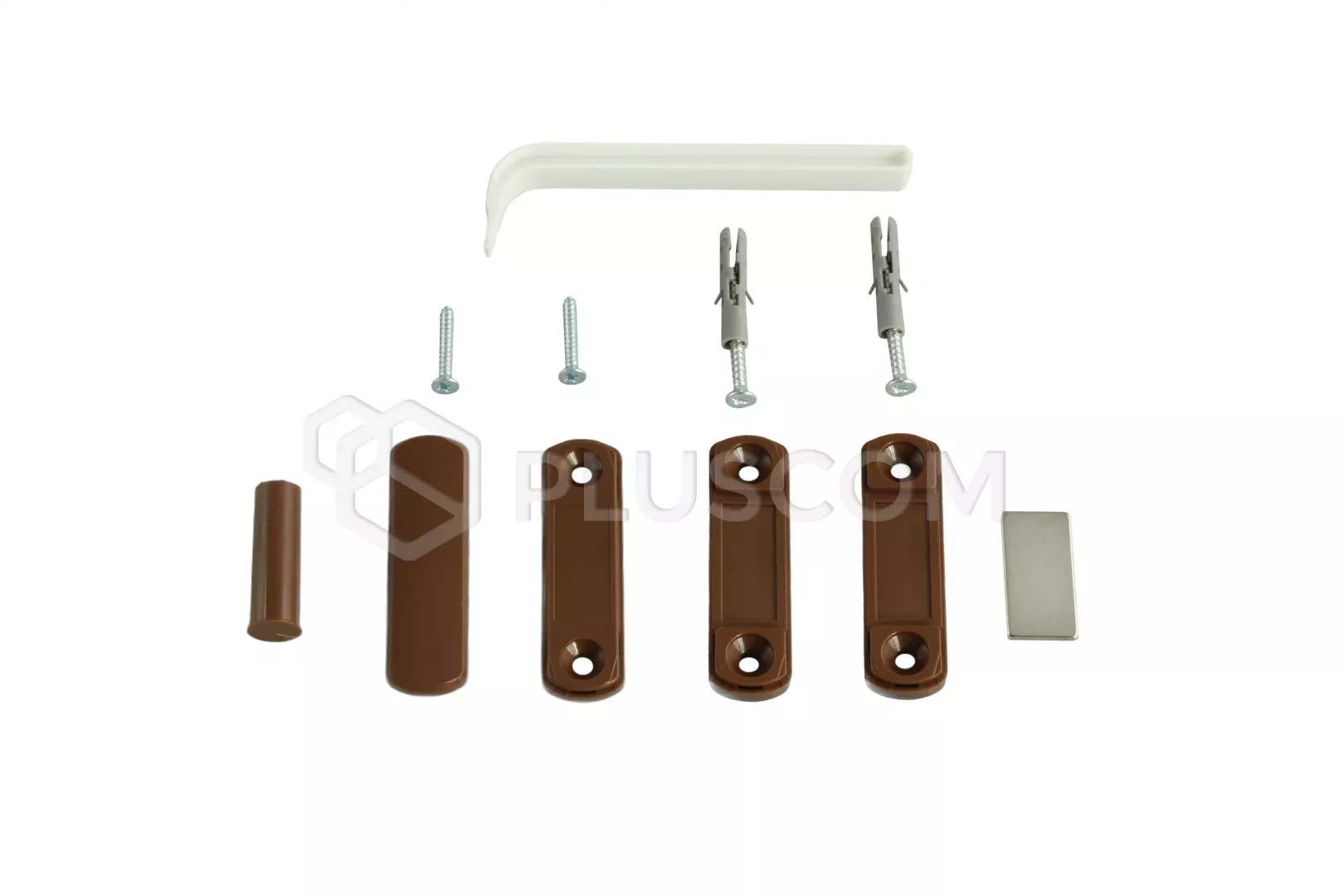

• 2 magnets included (surface mount and mount recessed)

The detector can operate in one of 4 modes. What type of detector will be left identified in the system is set by the installer using the switches DIP switch.

Magnetic detector

• detection of opening doors, windows, etc
• input enabling connection of an NC type wired detector (e.g. another magnetic detector)
• 1 alarm output

Shock detector

• detection of shocks and vibrations that accompany strength tests forcing a door or window
• input enabling connection of an NC type wired detector (e.g. another magnetic detector)
• 1 alarm output

Shock and magnetic detector

• detection of shocks and vibrations that accompany strength tests forcing a door or window
• detection of opening doors, windows, etc
• input enabling connection of an NC type wired detector (e.g. another magnetic detector)
• 1 or 2 alarm outputs

Water flood detector

• flood detection in rooms with water installation
• 1 alarm output

In the event of a voltage drop below 9 V (±5%) for more than 2 seconds, the detector will report a failure. Failure results in switching on the LED and is signaled as an alarm via the EOL output or the EOL and S outputs (two alarm outputs mode). Failure indication lasts throughout its occurrence.

Technical data

• supply voltage: 12VDC ±25%
• standby power consumption: 11.5mA
• maximum current consumption: 15mA
• outputs:
• • EOL alarm (NC relay, resistive load): 40 mA / 24 V DC
  • alarm S (NC relay, resistive load): 40 mA / 24 V DC
• relay contact resistance
• • EOL alarm output: 16Ω
  • alarm output S: 26 Ω
• sensitivity of Z1 input:
• • NC type detector: 150 ms
  • flood probe: 1 sec
• standards met: EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-2-6
• degree of protection according to EN 50131-2-6: Grade 2
• environmental class according to EN 50130-5: II
• operating temperature range: -10°C...+55°C
• maximum humidity: 93±3%
• detector housing dimensions: 25 x 136 x 29 mm
• Surface mount magnet housing dimensions: 15 x 52 x 6 mm
• dimensions of surface mount magnet pad: 15 x 52 x 6 mm
• recessed mount magnet housing dimensions: ø10 x 28 mm
• weight: 65g
