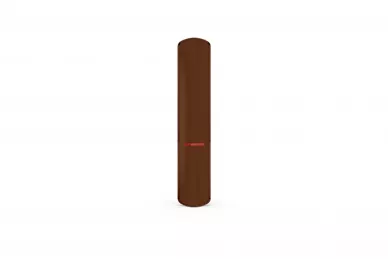

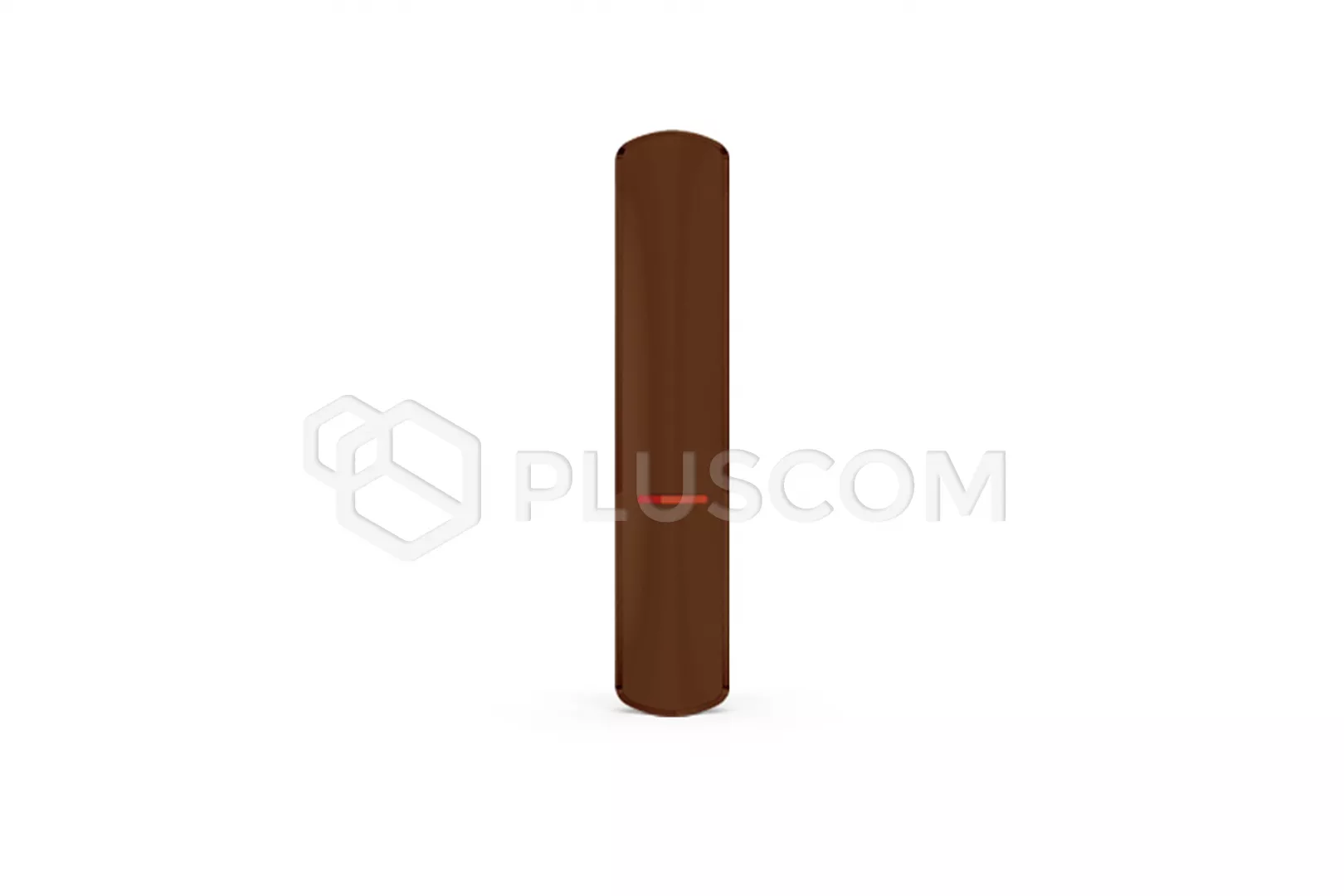

Satel XD-2 BR Multipurpose detector, brown

Satel XD-2 BR Wired universal detector, brown

The multifunctional XD-2 BR detector can interface with any alarm control panel. IN Several detectors have been integrated into the small housing. The detector can work with one of the 4 modes. What type of detector will be identified in The system is set by the installer using the DIP-switches. Together with the detector is supplied with two magnets for surface and recessed mounting.

WORKING MODES OF THE DETECTOR:

Magnetic contact

• Detects open door, window, etc.
• Input for connecting an NC type wired detector (e.g. other magnetic contact)
• 1 alarm output

Shock detector

• Detects shocks and vibrations accompanying attempts to force open a door or window
• Input for connecting an NC type wired detector (e.g. other magnetic contact).
• 1 alarm output

Shock detector and magnetic contact

• Detects shocks and vibrations accompanying attempts to force open a door or window
• Detects open door, window, etc.
• Input for connecting an NC type wired detector (e.g. other magnetic contact)
• 1 or 2 alarm outputs

Water flood detector

• Detects flooding in spaces provided with plumbing systems
• Input for connecting external flood probe FPX-1 BR (brown) - the probe available separately
• 1 alarm output

Features:

• option to select detector type with DIP switches
• LED indicator
• remote enabling/disabling of LED indicator
• supply voltage control
• tamper protection against enclosure opening and removal from mounting surface
• 2 magnets included (for surface and flush mounting)

Specifications

• Supply voltage: 12V DC
• Standby current consumption: 12.5 mA
• Maximum current consumption: 14 mA
• Outputs:
• • NC alarm (NC relay, resistive load): 40 mA / 24 VDC
  • S alarm (NC relay, resistive load): 40 mA / 24 VDC
  • tamper (NC): 40 mA / 24 VDC
• Relay contact resistance
• • NC alarm output: 26 Ω
  • S alarm output: 26 Ω
• SNS input sensitivity:
• • NC type detector: 150 ms
  • flood probe: 1 s
• Complied with standards: EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-2-6
• Security grade according to EN 50131-2-6 : Grade 2
• Environmental class according to EN 50130-5: II
• Operating temperature range: -10°C...+55°C
• Enclosure dimension: 20 x 102 x 23 mm
• Surface mounted magnet enclosure dimensions: 15 x 52 x 6 mm
• Surface mounted magnet spacer dimensions: 15 x 52 x 6 mm
• Flush mounted magnet enclosure dimensions: ø10 x 28 mm
• Weight: 46 g
