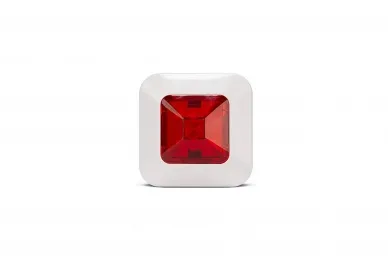

Satel WZ-400 Addressable Status Indicator

40,81 EUR including 23.00% VAT
Product code: #43186
Manufacturer: Satel
  • Optical signalling with LEDs
  • Power supply from the surveillance line
  • Signaling controlled by the control panel
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,51 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel ACSP-402 Fire Alarm Control Panel

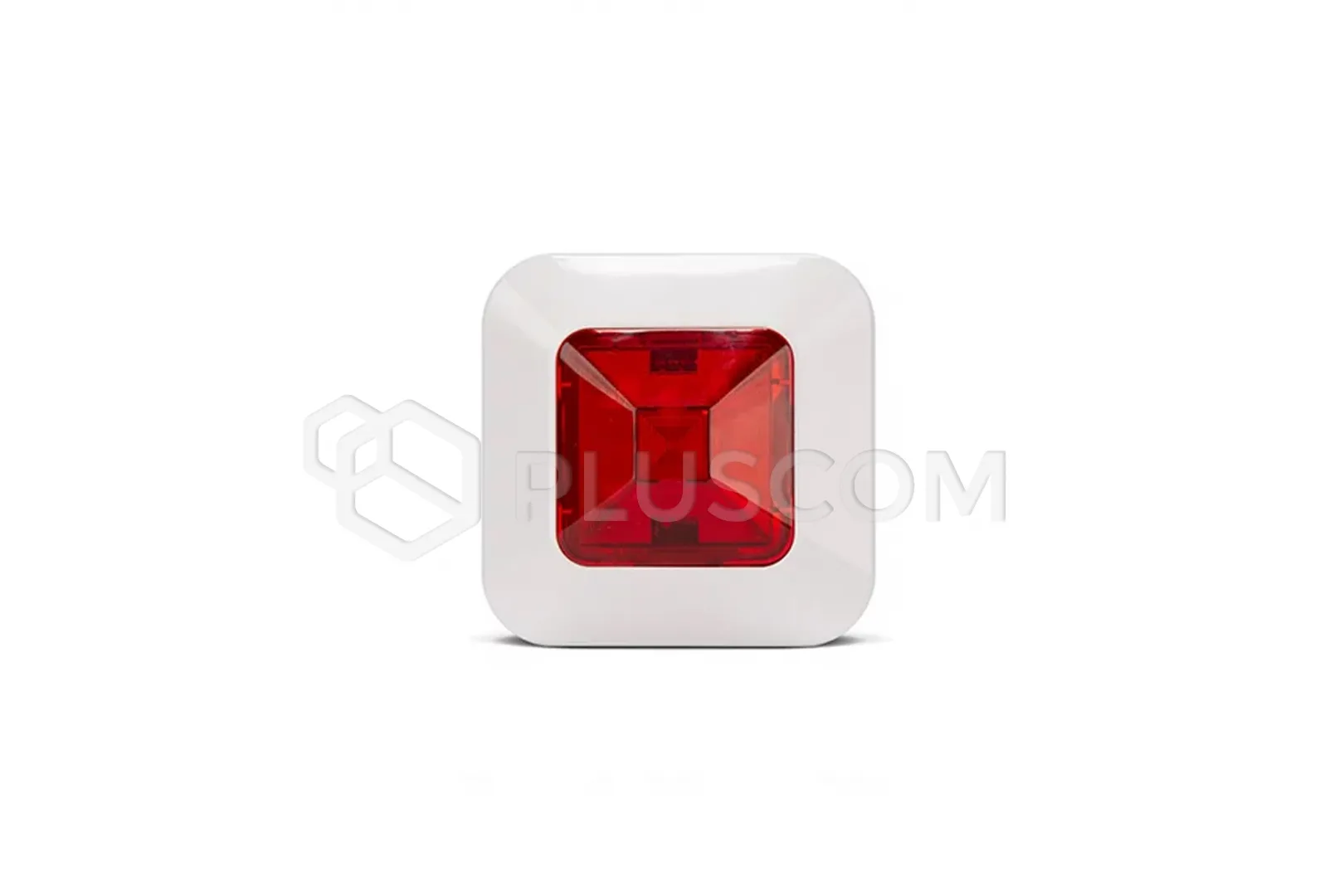

Satel WZ-400 Addressable Activation Indicator


The WZ-400 indicator informs about selected events in the fire alarm system by illuminating LEDs.
These events may concern:
  • single detector/single branch line module:
    • alarm reported by detector/module
    • detector/module fault
    • detector/module blocking
  • zones:
    • alarm in zone
    • device fault in zone
    • device blocking in zone
  • groups:
    • activation of group alarms
    • device fault in group
    • device blocking in group
The indicator is designed to operate in the detection line of the ACSP-402 addressable fire alarm control panel. Alarm activation is signaled via an LED and is controlled by the control panel. The device is intended for installation in enclosed spaces with normal air humidity.

TECHNICAL DATA:

  • Power supply voltage: 18 ~ 26 V DC
  • Current consumption in quiescent mode: 0.20 mA
  • Current consumption in alarm mode: 1.4 mA
  • Event indication:
  • Fire alarm - continuous light
  • Block - slow flashing (0.91 Hz)
  • Fault - fast flashing (3.65 Hz)
  • Operating temperature range: -10°C...+55°C
  • Maximum humidity: 93±3%
  • Housing dimensions: 84 x 84 x 30 mm
  • Weight: 56 g
