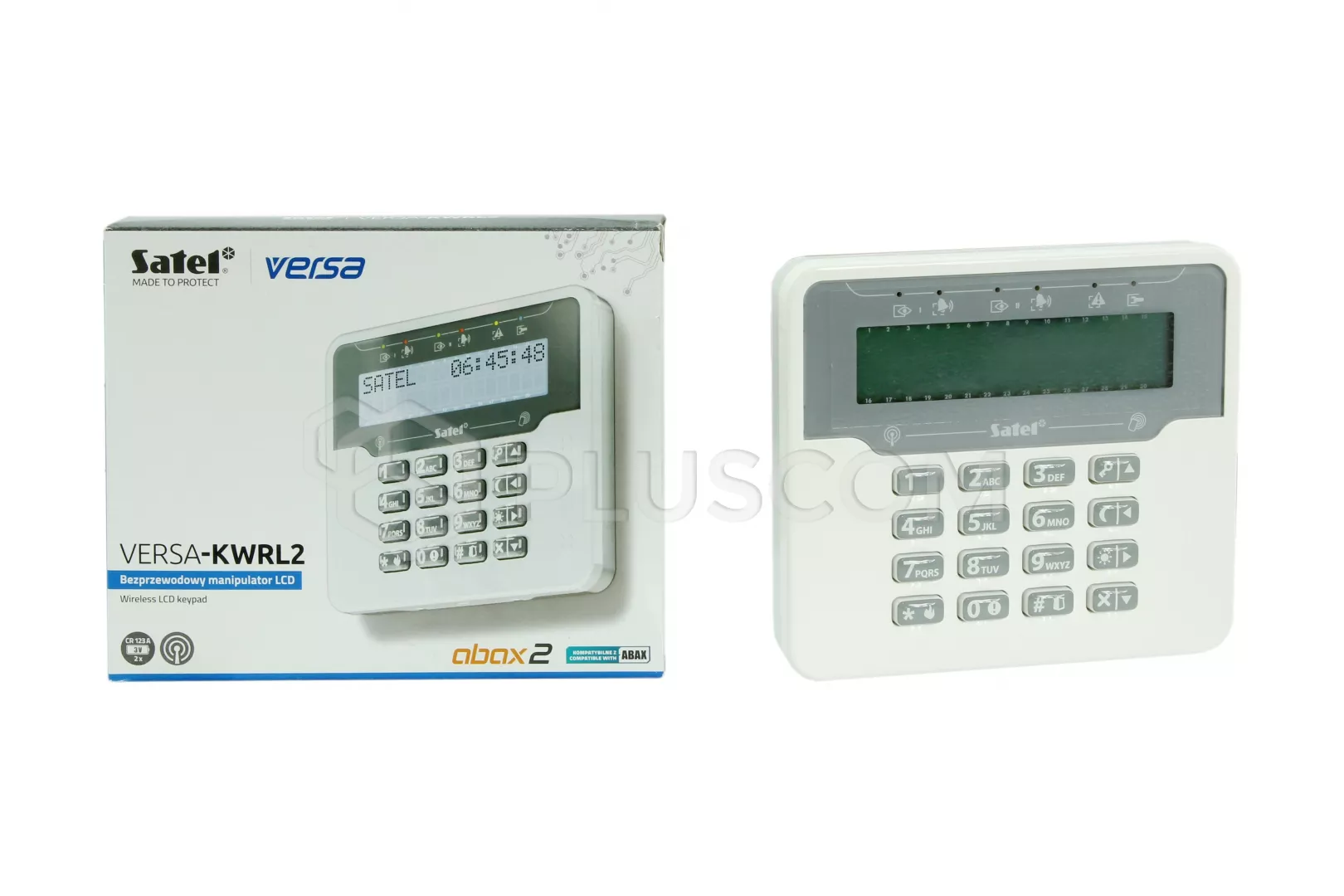

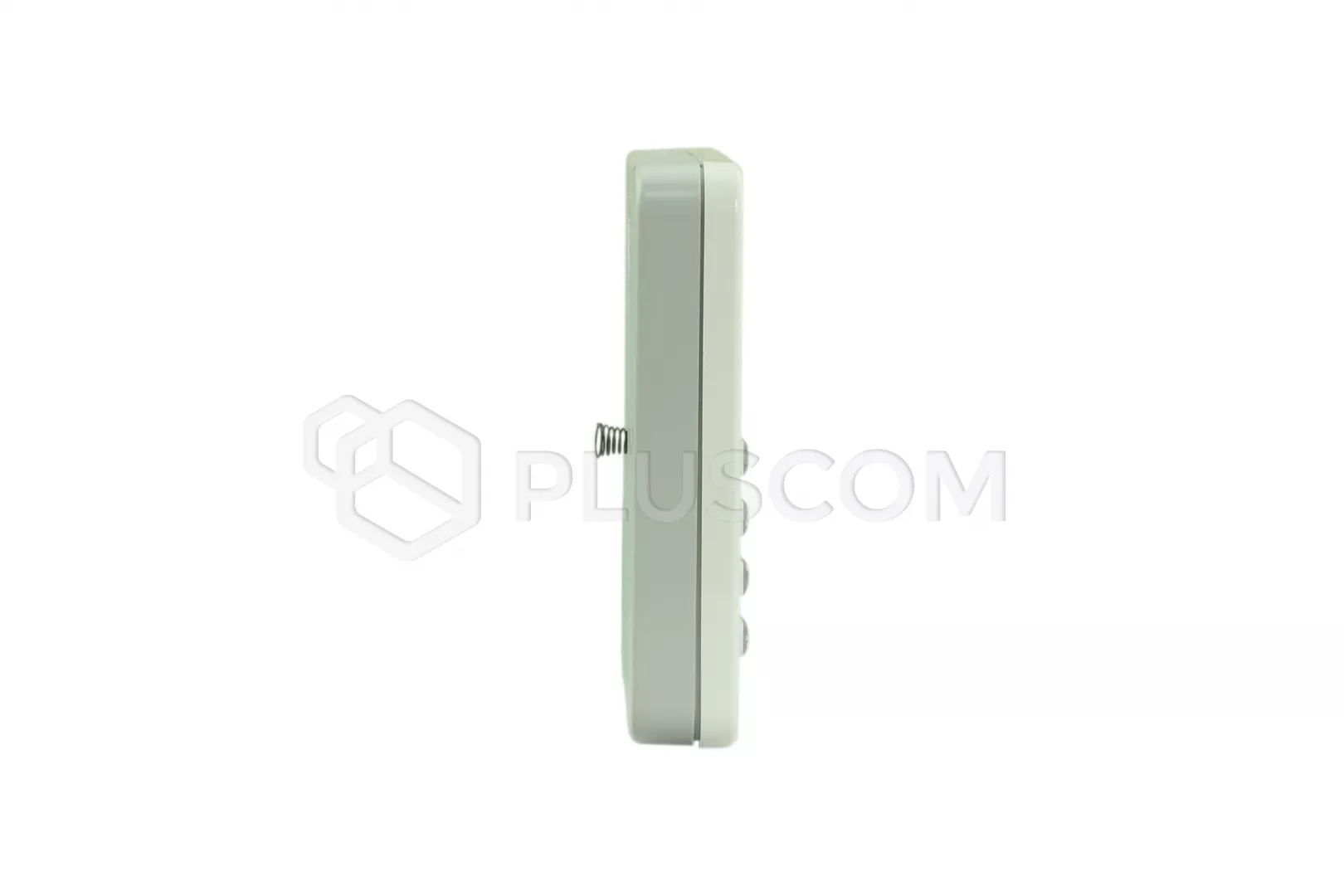

Satel VERSA-KWRL2 Wireless LCD keypad

156,59 EUR including 22.00% VAT
On stock. Ships in one business day
Delivery time: 3 - 5 days
Product code: #19478
Manufacturer: Satel
  • works with VERSA
  • required ACU-220 / ACU-280 / ACU-120 / ACU/270 controller
  • integrated proximity card reader
  • audible indication of selected events in the system
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel APS-055 Recessed power supply 5 V DC / 0.5 A Satel VERSA Plus LTE alarm control panel from 4 up to 30 zones

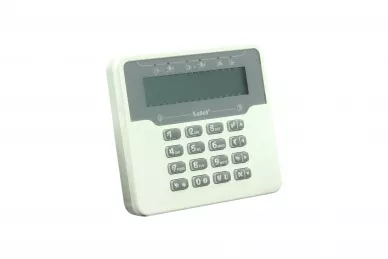

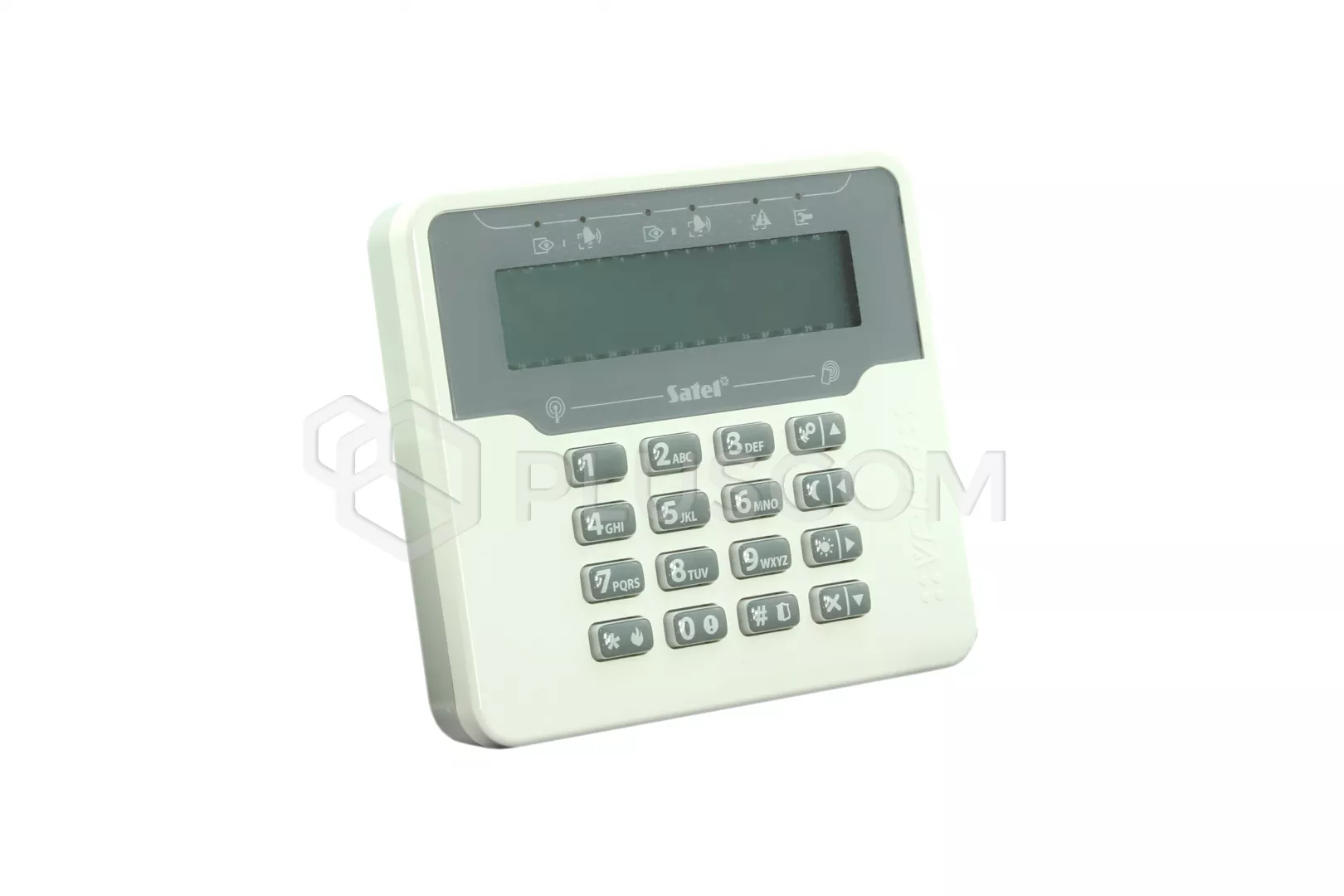

Satel VERSA-KWRL2 Wireless LCD keypad with card reader cin a housing type M


Wireless keypad for operating and programming the VERSA control panels. It is intended for operation as part of the ABAX 2/ABAX two-way wireless system. To connect the keypad to the control panel, a controller is required. In the ABAX 2 system, all transmissions are encrypted in the AES standard.

The device is equipped with a display (2x16 characters) and 12 keys (compliance with the telephone standard). Four of them are used to navigate through the menu, as well as to arm and disarm the system. The keypad can also be used to trigger alarms: FIRE, AUX, PANIC.

The available LEDs indicate the state of partitions and system, while the piezoelectric transducer is responsible for audible indication (of selected events in the system).

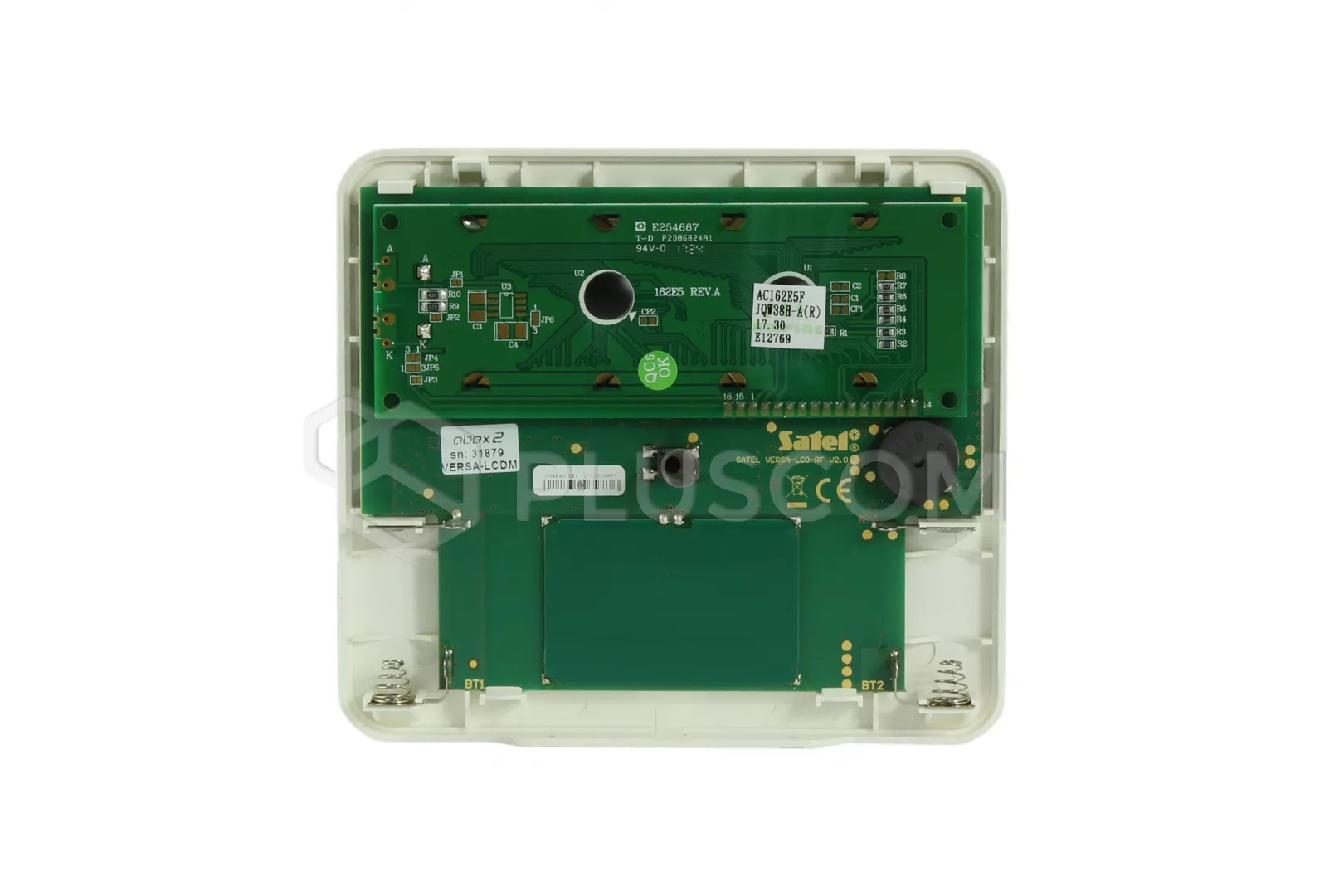

The keypad power source consists of two CR123A 3 V batteries, whose condition is being constantly monitored. The device works in the wake-up or sleep mode (saving energy after 20 seconds of inactivity). For additional reduction of energy consumption, you can disable the proximity card reader (e.g. when it will not be used for operating the alarm system).

FEATURES AND FUNCTIONS:
  • ertificate of compliance with the EN 50131 Grade 2 requirements
  • works together with the INTEGRA and INTEGRA Plus control panels (version 1.19 or higher)
  • when working as part of the wireless system, a controller is required to connect to the control panel:
    • ABAX 2: ACU-220 or ACU-280
    • ABAX: ACU-120 or ACU-270
  • two-way encrypted radio communication in the 868 MHz frequency band
  • range of radio communication in the open area:
    • in ABAX 2: up to 800 m
    • in ABAX: up to 800 m (with ACU-120) / up to 400 m (with ACU-270)
  • LED indicators of the state of partitions and system
  • white backlight of the display and keys
  • reader of proximity cards/tags
  • audible indication of selected events in the system
  • FIRE, AUX and PANIC alarms triggered from keypad
  • remote configuration and updating of firmware
  • tamper protection against opening of the enclosure and/or removal from the mount

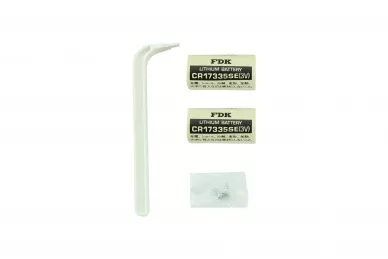

  • power supply: 2 CR123A 3 V batteries
