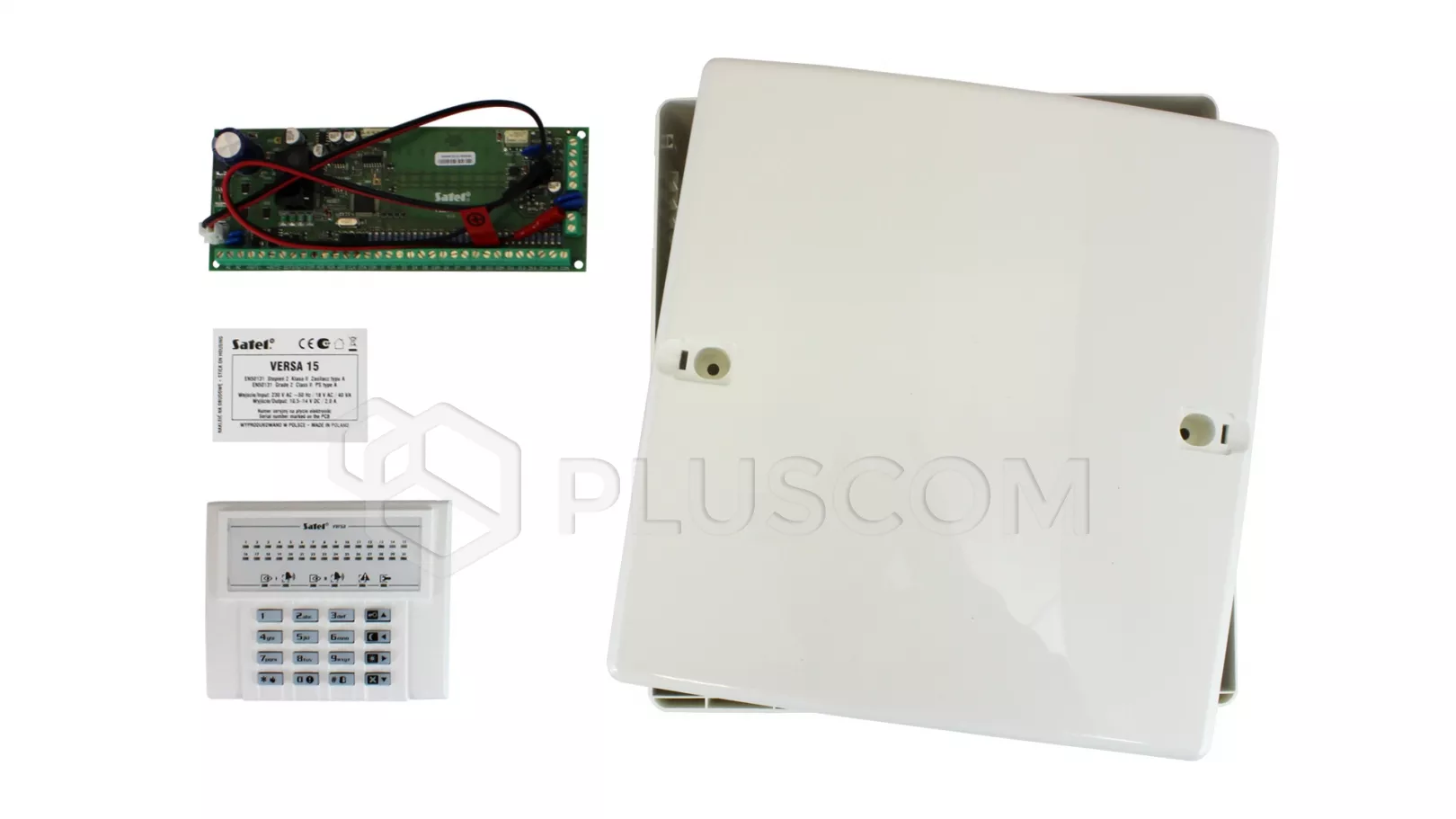

Satel VERSA 15 KLED set: control panel, LED keypad, enclosure

Satel VERSA 15 LLED Set

• EN50131 Grade 2 compliance
• 15 zones expandable up to 30:
  • NO, NC, EOL, 2EOL/NO, 2EOL/NC zone configurations
  • support for vibration and roller shutter detectors
  • detectors supervision
• additional tamper input
• 4 up to 12 programmable outputs
• 2 supply outputs
• 2 partitions:
  • 3 arming modes for each partition
  • arming/disarming by users or timer controlled
• communication bus for keypads, readers and expansionmodules
• RS-232 port (RJ type socket) for panel programmingbuilt-in telephone dialer for:
  • reporting (SIA, ContactID, other)
  • personal messaging (8 telephone numbers,64 text/16 voice messages)
  • remote programming (built-in 300 bps modem)
• support for GSM/GPRS communicator:
  • SMS/GPRS reporting
  • voice/SMS messaging
• support for TCP/IP communicator:
  • e-mail messaging
  • TCP/IP reporting
• system operation via:
  • LCD or LED keypads (up to 6)
  • proximity tags/cards (up to 6 readers)
  • remote control key fobs
• easy update of firmware for enhancing the panel with new features
• support for 31 user codes:
  • 30 standard users
  • 1 installer
• individual naming for easy system operation and management
• timers:
  • 4 timers with holidays support
• event log with 2047 entries
• automatic diagnostics of basic system components
• built-in 2 A switching mode power supply:
  • overload protection
  • deep discharge protection
  • battery charging supervision
