Satel STAM-IRS-BE Standalone monitoring station system

Satel STAM-IRS-BE Standalone Monitoring Station System

SET INCLUDES STAM-1 PE basic telephone card STAM-2 BS software 1 day of training at SATEL

Satel STAM-IRS-BE Standalone monitoring station system

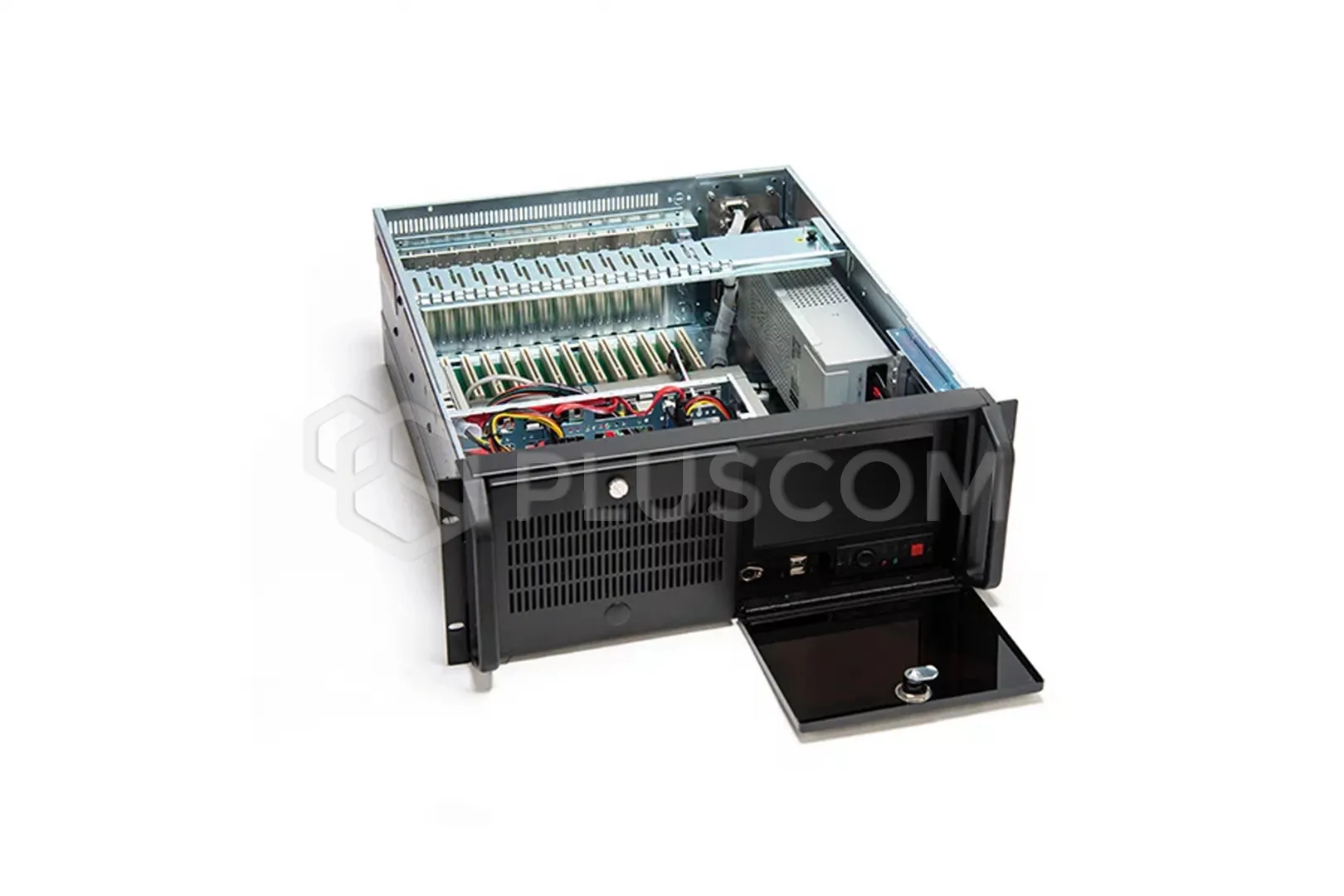

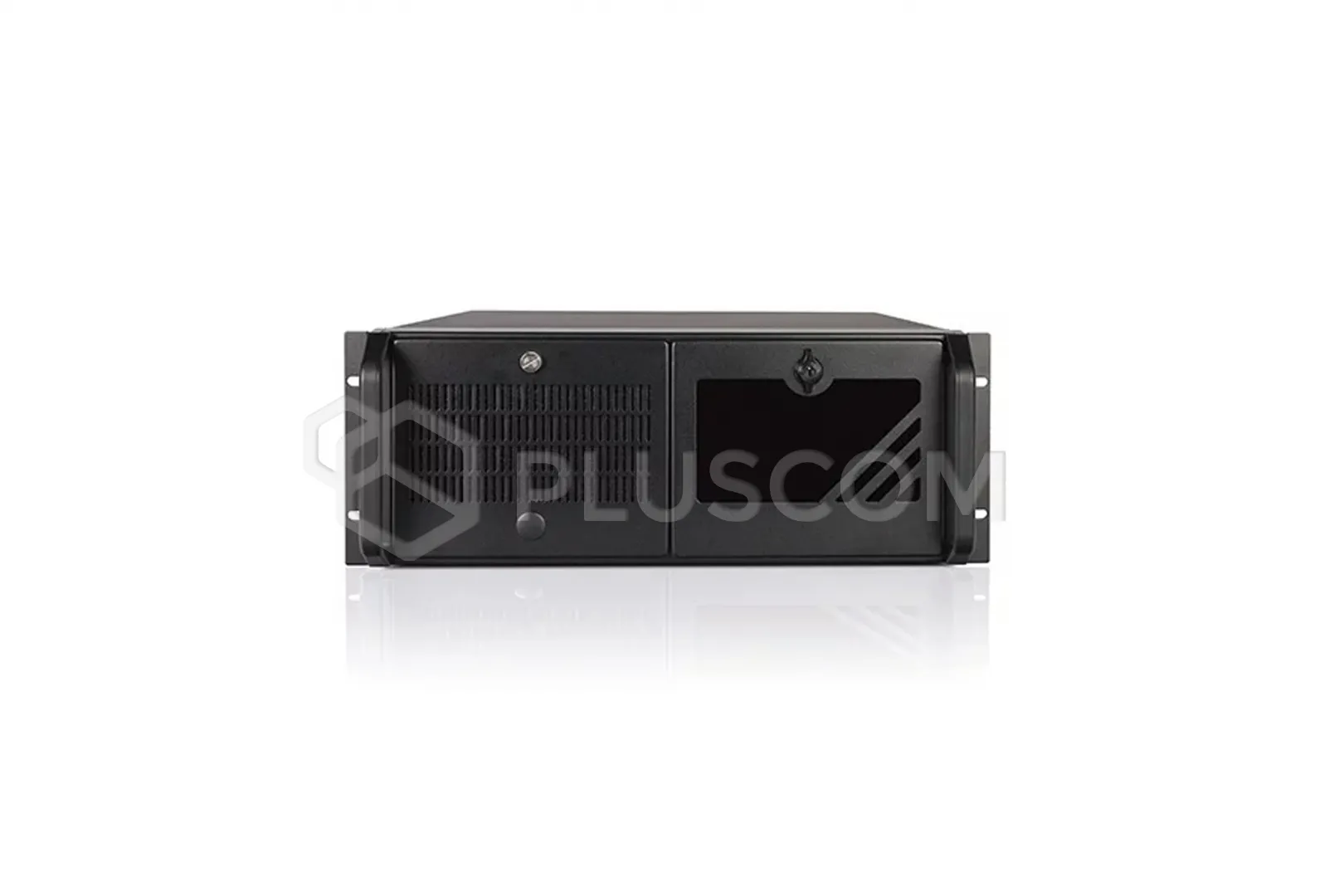

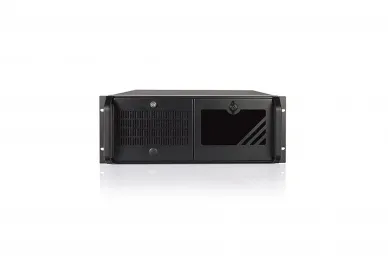

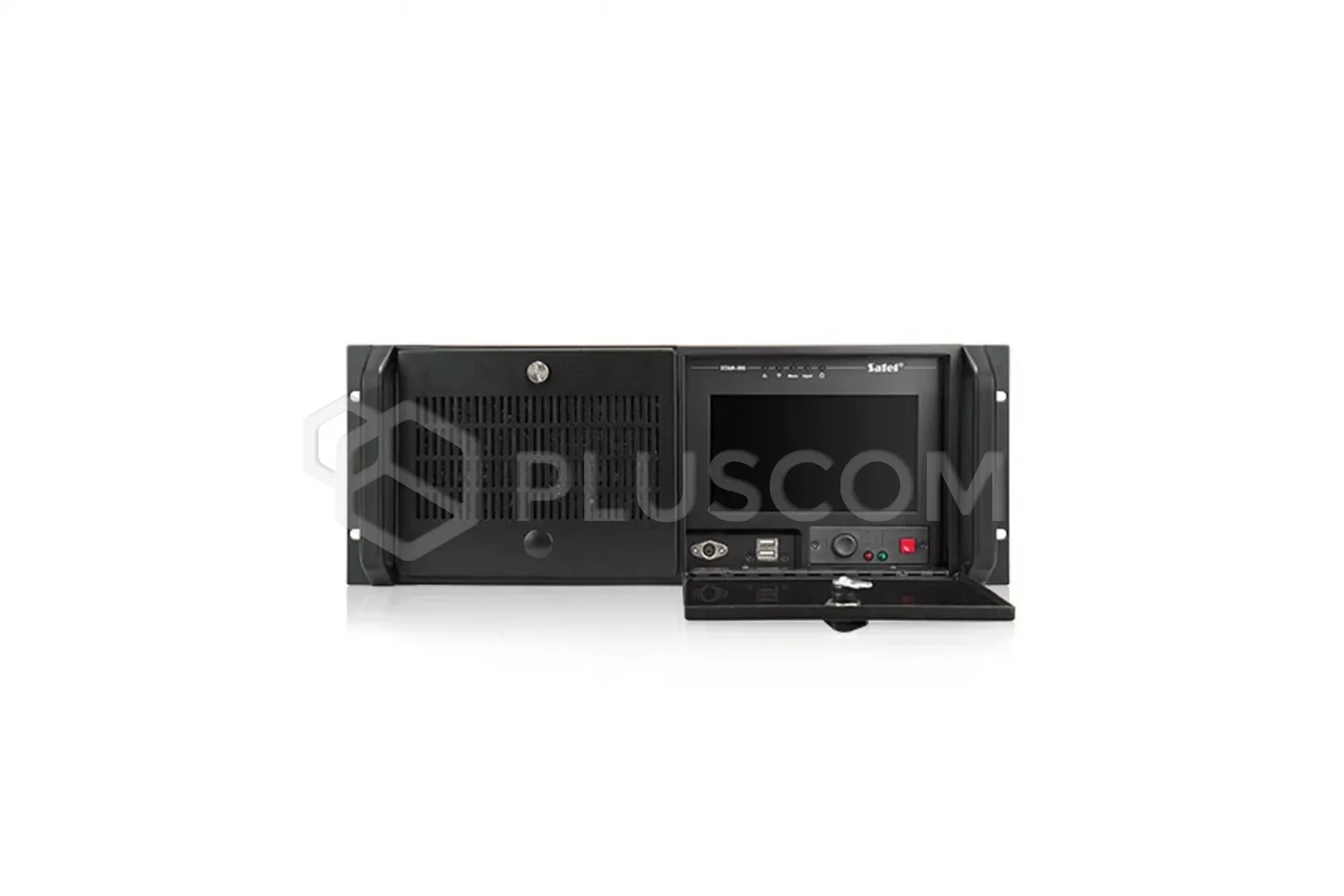

STAM-IRS is a STAM-2 monitoring station system designed to work as its server. It supports up to 17 event receivers: 14 telephone or Ethernet cards mounted in PCI slots and 3 GSM modules connected to COM/USB ports. STAM-IRS has a built-in PC microserver based on the energy-saving ASUS PRIME N100 platform, and is also equipped with two fast and durable NVMe and SSD drives. The device has a small, 5-inch LCD display for local server management. Depending on your needs, it is also possible to connect any monitor equipped with a DisplayPort standard connector.

The STAM-IRS system has a built-in 400 W ATX power supply. The power supply device is protected against overload and short circuit. The 19” rack standard housing allows for installation in server and telecommunications cabinets.

STAM-IRS is supplied with the Windows 11 Pro operating system installed, the STAM-2 Server and STAM-2 Client programs installed and properly configured, and the STAM-1 PE telephone card. The STAM-IRS system package includes a one-day training in the operation and maintenance of the STAM-2 monitoring station conducted at SATEL.

FEATURES:

• support for up to 14+3 monitoring receivers: telephone cards, TCP/IP cards and GSM modules
• built-in micro PC server based on the ASUS PRIME N100 platform and NVMe and SSD drives
• Windows 11 Pro operating system installed
• 5” LCD display facilitating local server management
• built-in 400 W ATX power supply
• 19” Server housing enabling installation in telecommunications cabinets
