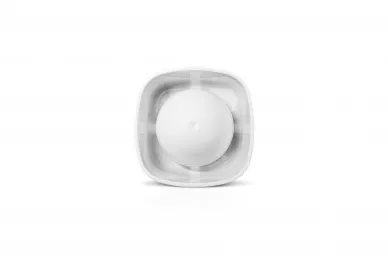

Satel SPP-400-W Addressable Fire Alarm Sounder inside

85,02 EUR including 23.00% VAT
Product code: #43183
Manufacturer: Satel
  • Acoustic signaling
  • Choose from 32 sound types
  • Power supply from the monitoring loop
  • Cooperation with the ACSP-402 control panel
  • For indoor use

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,51 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel ACSP-402 Fire Alarm Control Panel

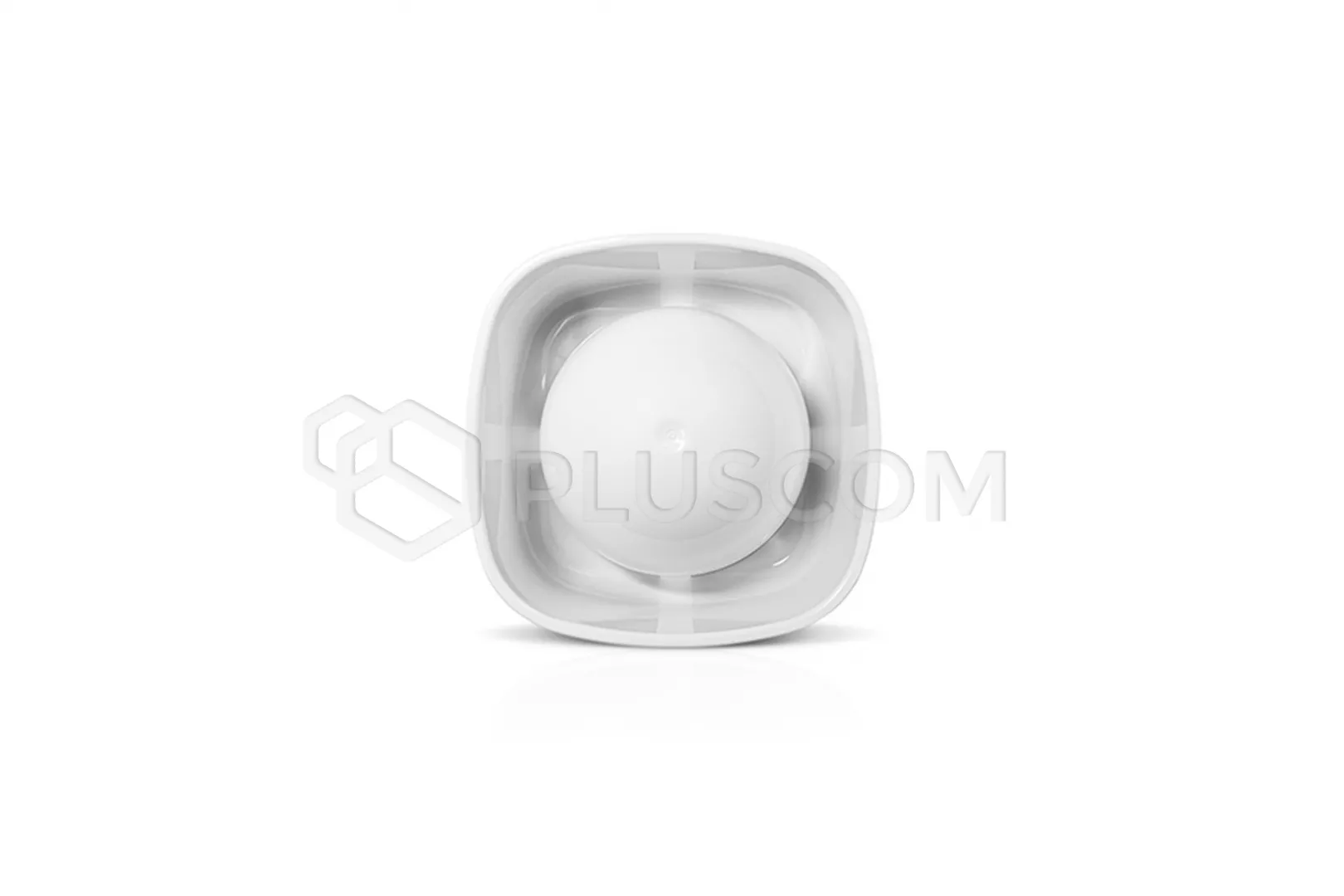

Satel SPP-400-W Addressable Fire Alarm Sounder, white (inside)


The SPP-400-W indoor sounder provides audible alarm notification. It is designed to operate in the detection line of the ACSP-402 addressable fire alarm control panel.

FEATURES:
  • Acoustic signaling generated by a piezoelectric transducer
  • Controlled signaling by the control panel:
    • Various signaling types for different alarm situations
    • Choice of 32 sound signaling types
  • Double-sided short circuit isolator
  • Power supplied from the detection loop

TECHNICAL DATA:

  • Power supply voltage: 18 ~ 26 V DC
  • Current consumption in quiescent mode: 250 µA
  • Current consumption in alarm mode: 4 mA
  • Protection rating: IP21C
  • Operating environment type: A
  • Maximum humidity: 95%
  • Operating temperature range: -10°C ~ +55°C
  • Dimensions: 108 x 108 x 87 mm
  • Weight: 224 g

Download
User manual 0.62 MB
CE Declaration 0.11 MB
Datasheet 0.09 MB
