Satel SO-MF5-B Keyboard with MIFARE proximity card reader

154,13 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #36375
Manufacturer: Satel
  • MIFARE proximity card reader (13.56 MHz)
  • Partition keypad
  • Support for up to 128 codes and proximity cards
  • Controlling access to a single doorway
  • Can be installed indoors or outdoors
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

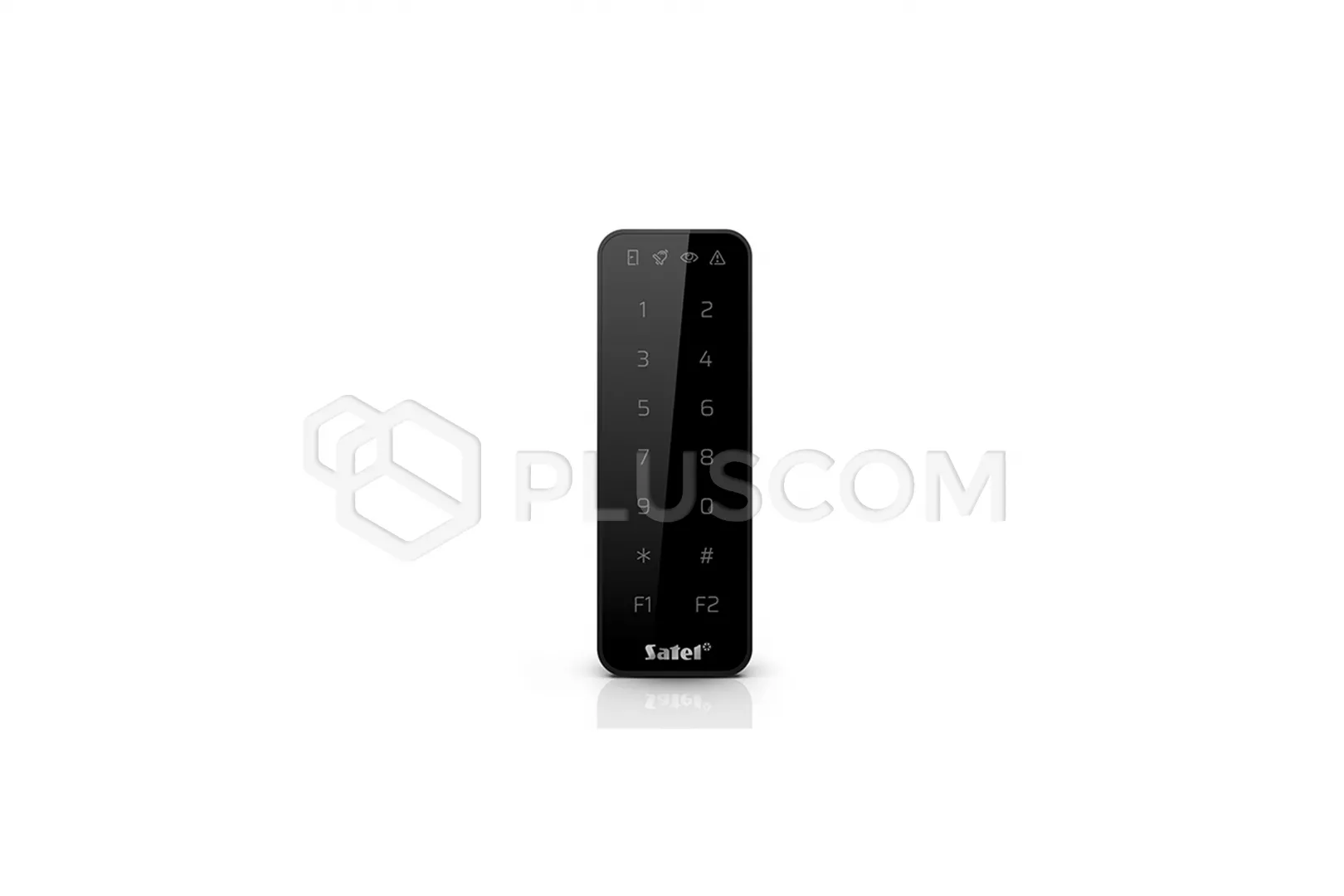

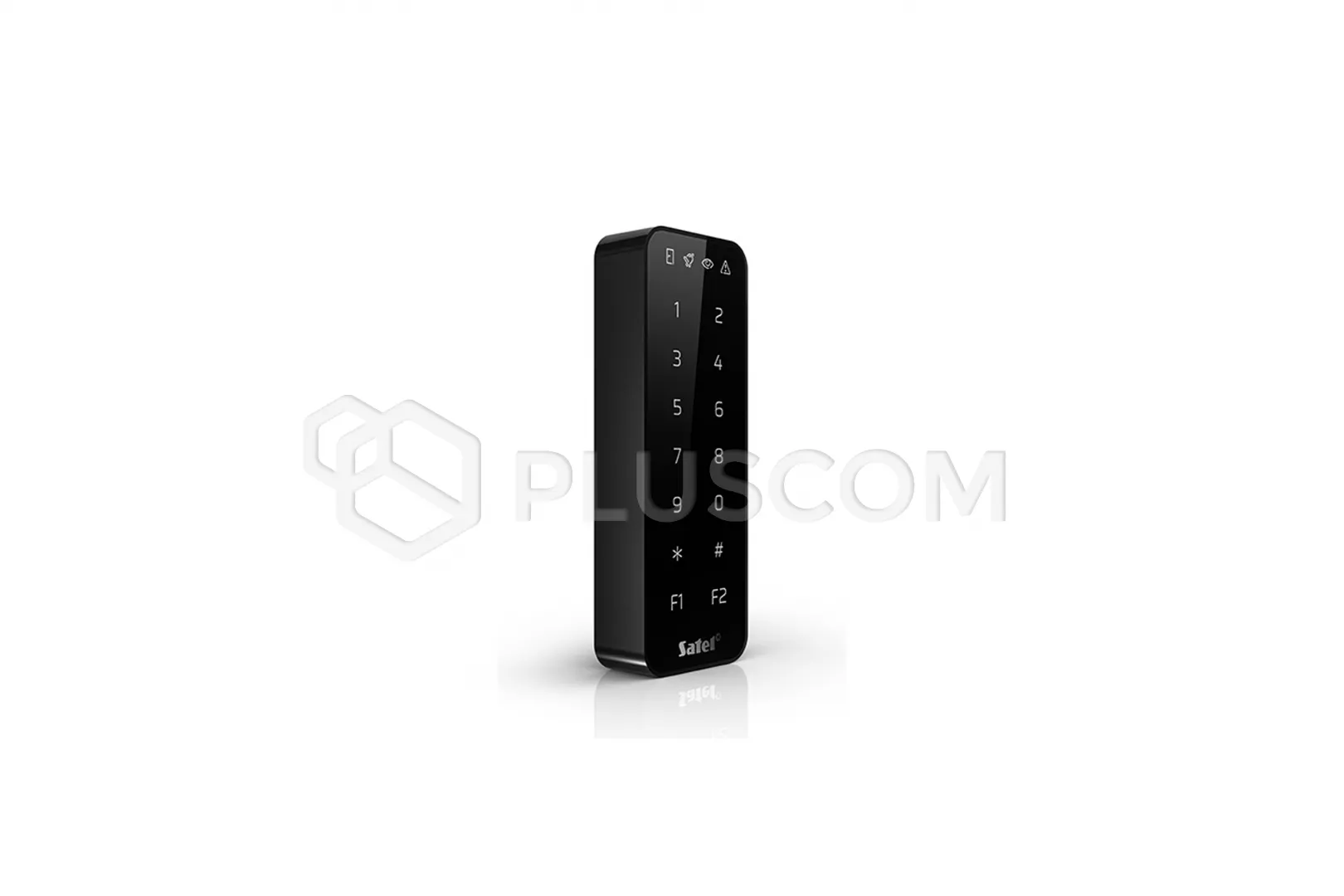

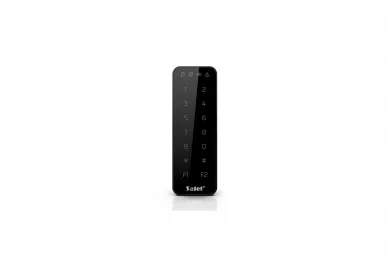

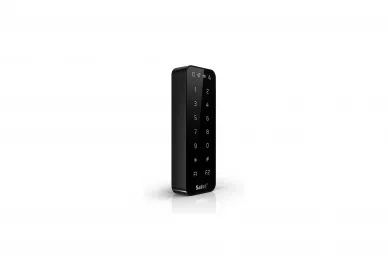

Satel SO-MF5-B Keyboard with proximity card reader MIFARE, black

The keyboard design allows for internal and external installation. The device is equipped with F1 and F2 function keys for activating additional functions function F1 directly controls the BELL output of the keyboard. BELL output is OC type low-current output.
Built-in proximity card readers - performs the code reading function MIFARE proximity cards (13.56 MHz):
  • Ultralight CSN/SSN
  • Classic CSN/SSN/MSN
  • DESFire (EV1 / EV2 / EV3) CSN/MSN
The SO-MF5 keyboard can work as:
  • INT-SCR partition keyboard in the INTEGRA alarm system
  • keyboard with ACCO-SCR proximity card reader in the ACCO NET or ACCO access control system
  • keyboard with a proximity card reader in systems from other manufacturers (OSDP, Wiegand)
  • autonomous passage control module

PROPERTIES:
  • user identification based on the code and/or MIFARE® proximity card
  • touch keyboard with white backlight:
    • 12 keys to enter the code
    • 2 function keys F1 and F2
  • built-in MIFARE® proximity card reader (13.56 MHz)
  • OSDP protocol support (OSDP protocol version 2.2; RS-485 bus)
  • additional communication interface:
    • INT-SCR (work in the INTEGRA system)
    • ACCO-SCR (work in the ACCO NET or ACCO system)
    • Wiegand (work in another manufacturer's system)
  • programming using CR Soft
  • LED indicators (4 pcs)
  • OC type output (BELL) controlled by the F1 function key
  • built-in sound indicator (adjustable volume)
  • optical tamper protection against opening the housing and against detaching from the wall
  • possibility of installation indoors or outdoors
  • available in white (SO-MF5-W) and black (SO-MF5-B)

TECHNICAL DATA:
  • Supply voltage: 12 V DC ±15% V DC
  • Standby current consumption: 65 mA
  • Maximum current consumption: 120 mA
  • Relay output (resistive load): 1 A / 30 V DC
  • BELL output, OC type: 30 mA / 12 V DC
  • Reader operating frequency: 13.553...13.567 MHz
  • Reading range of MC-DF3-2 encrypted card: up to 55 mm
  • Operating temperature range: -25°C...+55°C
  • Maximum humidity: 93±3%
  • Dimensions: 45 x 128 x 21 mm
  • Weight: 93 g
