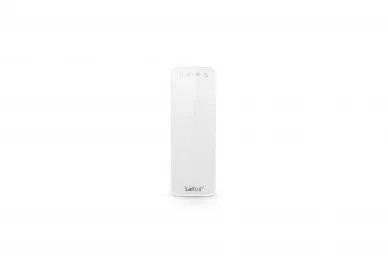

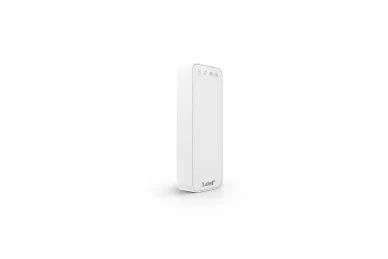

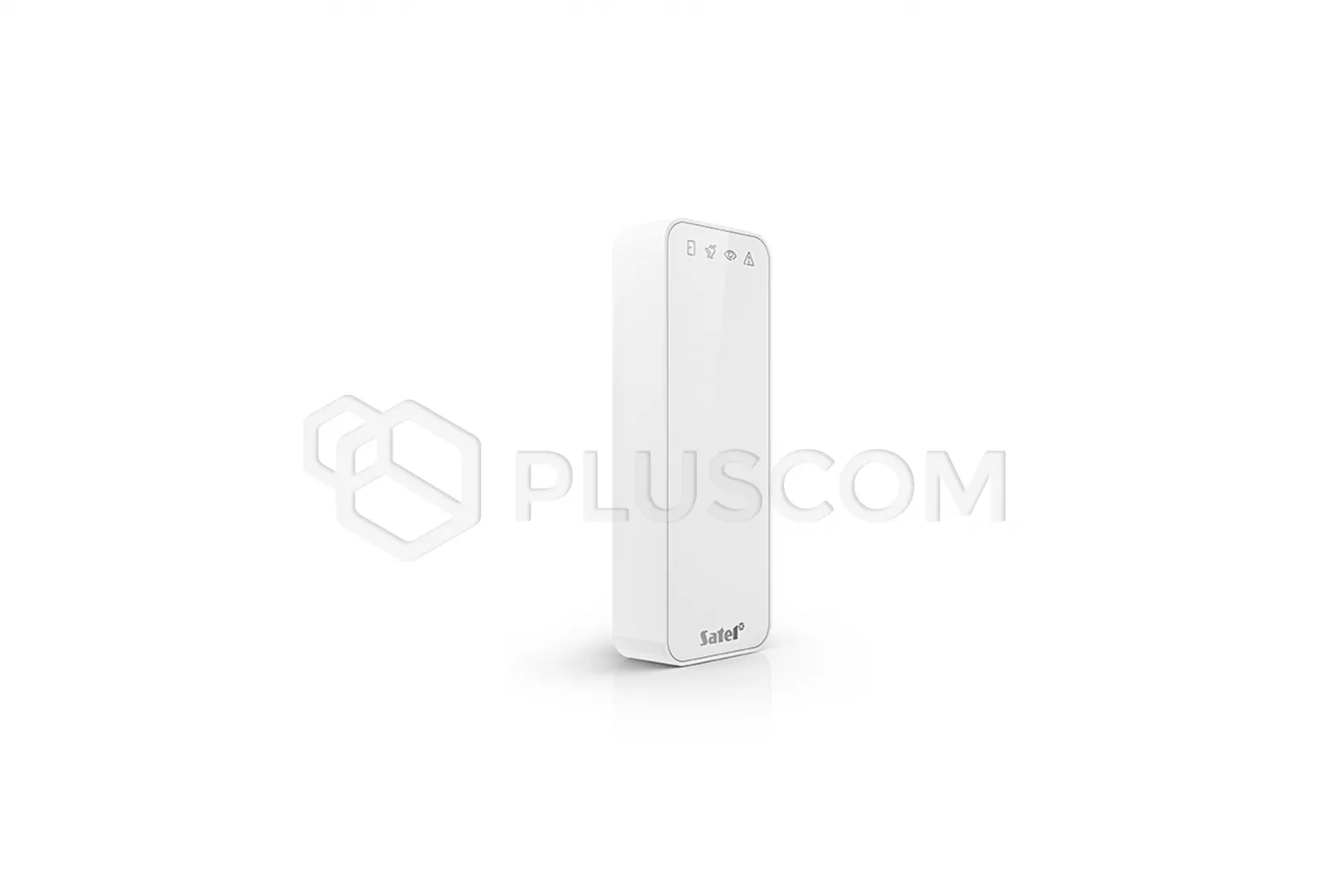

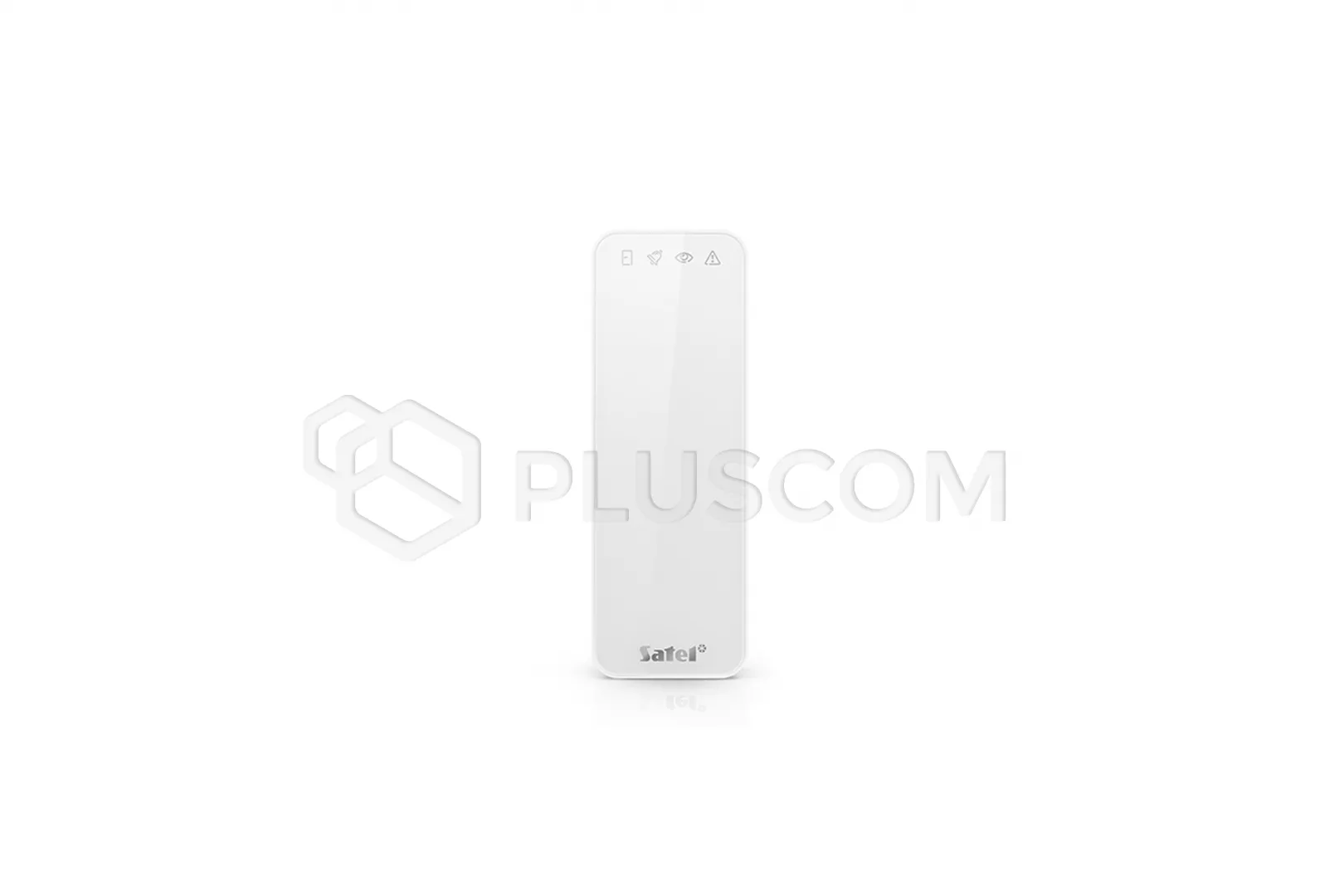

Satel SO-MF3-W Proximity card reader

138,56 EUR including 23.00% VAT
Product code: #36374
Manufacturer: Satel
  • MIFARE proximity card reader (13.56 MHz)
  • OSDP protocol support
  • Support for up to 128 proximity cards
  • Relay output
  • Can be installed indoors or outdoors
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel ACCO-KP2 Door controller

Satel SO-MF3-W Proximity card reader, white

SO-MF3-W proximity card readers that perform the function of reading proximity card codes in access control systems. Can work as:
  • proximity card reader in the INTEGRA alarm system
  • proximity card reader in the ACCO NET or ACCO access control system
  • proximity card reader in systems from other manufacturers (OSDP, Wiegand)
  • autonomous passage control module
PROPERTIES:
  • user identification based on the MIFARE® proximity card
  • built-in MIFARE® proximity card reader (13.56 MHz):
    • Ultralight CSN/SSN
    • Classic CSN/SSN/MSN
    • DESFire (EV1 / EV2 / EV3) CSN/MSN
  • OSDP protocol support (OSDP protocol version 2.2; RS-485 bus)
  • additional communication interface:
    • EM-Marin (work in the INTEGRA, ACCO NET or ACCO system)
    • Wiegand
  • programming using CR Soft
  • LED indicators (4 pcs)
  • built-in sound indicator (adjustable volume)
  • optical tamper protection against opening the housing and against detaching from the wall
  • possibility of installation indoors or outdoors
  • available in white (SO-MF3-W) and black (SO-MF3-B)
  • support up to 128 proximity cards
  • functions activated using a proximity card:
    • opening the passage
    • blocking/unblocking the passage
  • possibility to specify the number of times the card is used
  • relay output for controlling an electric strike, magnetic lock or other door activation device
  • door status monitoring input
  • entrance to the opening button

TECHNICAL DATA:
  • Supply voltage: 12 V DC±15%
  • Standby current consumption: 63 mA
  • Maximum current consumption: 112 mA
  • Reader operating frequency; 13.553...13.567MHz
  • Reading range of MC-DF3-2 encrypted card: up to 55 mm
  • Relay output (resistive load): 1 A / 30 V DC
  • Operating temperature range: -25°C...+55°C
  • Maximum humidity: 93±3%
  • Dimensions: 45 x 128 x 21 mm
  • Weight: 87 g
