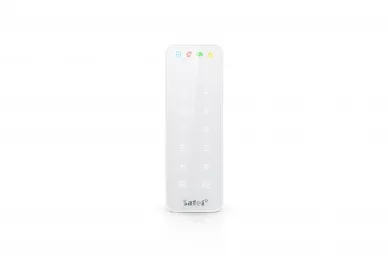

Satel Smart Keypad W AKP-200-W Wireless touch keyboard

Satel Smart Keypad W AKP-200-W Wireless touch keyboard, white

Smart Keypad is a device for convenient local control, providing comfort in managing smart home functions and protection.
Touch technology gives the device a modern touch.
In addition to the numeric keypad, the device is equipped with two function buttons that can perform four tasks together.

The keypad is equipped with four colored signaling diodes. Each of them informs about a specific system status:

• Red: signals the alarm status, informing that the system has detected a threat
• Green: indicates that the system is armed, which means that the protection is active
• Yellow: informs about a failure or fault in the system that requires attention
• Blue: informs about active diagnostic mode

The basic power source for the Smart Keypad are two AA 1.5 V batteries. Information about the low charge level will be displayed in the application, and BE WAVE will inform you in advance about the need to replace them with new ones. The keyboard can also be connected to an external power source, e.g. the APS-055 power supply placed in a nearby installation box. The batteries in the device will only provide emergency power in the event of a power outage in the mains.

TECHNICAL DATA:

• Operating frequency band: 868.0 MHz ÷ 868.6 MHz
• Radio communication range (in open area): up to 1100 m
• Battery: 2x LR6 AA 1.5 V
• Battery standby current consumption: 155 μA
• Battery standby current consumption (in ECO mode): 102 μA
• Nominal external power supply voltage: 5-12 V DC
• APS-055 power supply standby current consumption: 27 mA
• APS-055 power supply maximum current consumption: 50 mA
• Reporting voltage low battery: 2.3 V
• Operating temperature range: -10°C...+55°C
• Maximum humidity: 93±3%
• Dimensions: 45 x 128 x 21 mm
• Weight: 75 g
