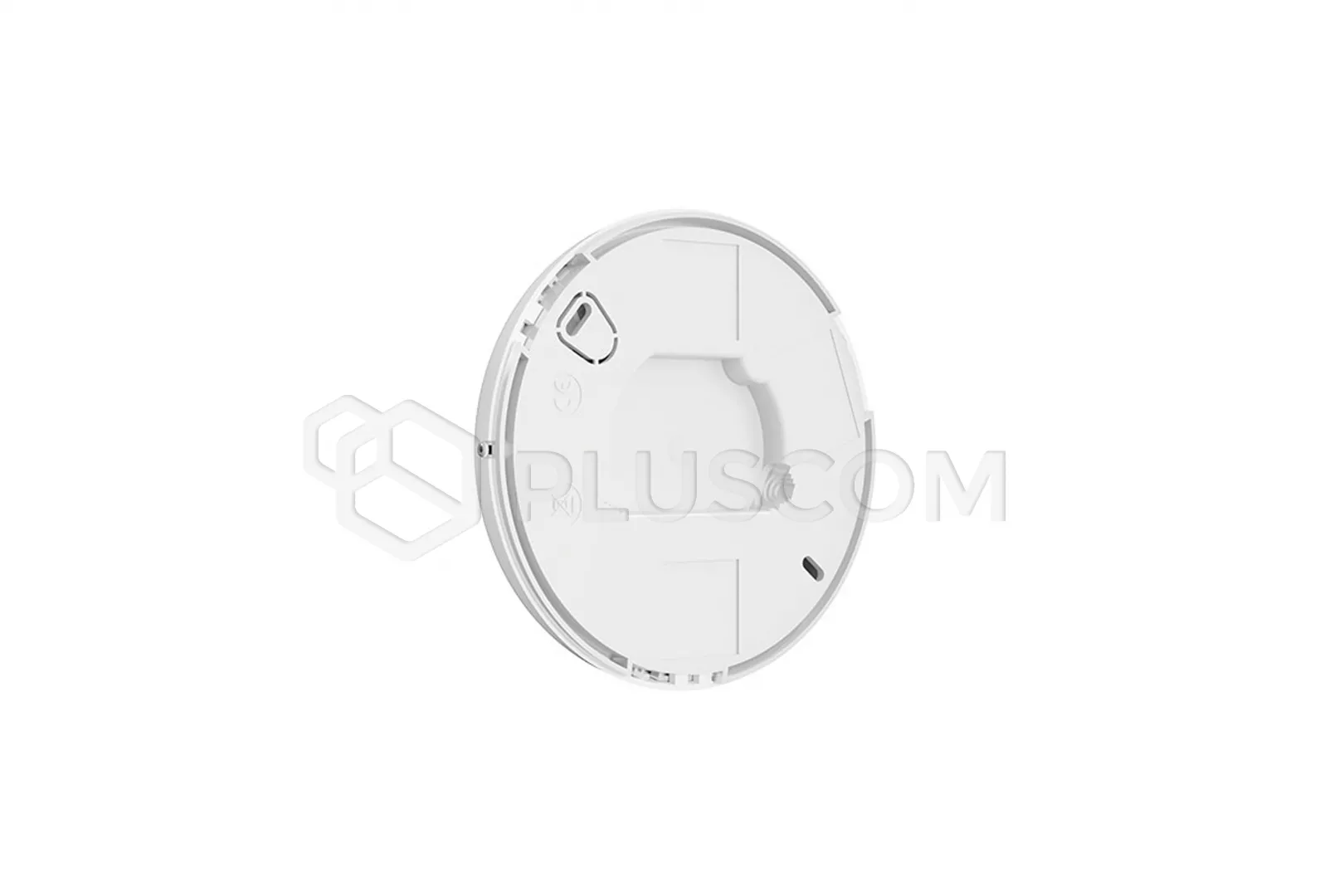

Satel SLIM-S-PIR-PRO Ceiling-mounted PIR motion detector with anti-masking, surface-mounted

Satel SLIM-S-PIR-PRO Ceiling-Mounted PIR Motion Detector with Anti-Masking, for Surface Mounting

SLIM-S-PIR-PRO is an indoor motion detector from the SLIM LINE series, designed for surface mounting on ceilings. It is ideal for rooms with suspended ceilings. Thanks to its 360° detection field, it can be used for monitoring stores, warehouses, and other places where the detection field of a ceiling-mounted, downward-facing detector will cover the room more effectively than a wall-mounted detector.

FEATURES:

• Meets the requirements for EN 50131 Grade 3 security level
• Active IR anti-masking compliant with EN 50131-2-2 for Grade 3 (with delay: 1 s/60 s)
• Motion detection using a passive infrared (PIR) sensor
• Maximum detection area:
• • ø 6 m / 28 m2 – mounting height 2.4 m
  • ø 10 m / 79 m2 – mounting height 3.5 m
• Configuring detector operating parameters:
• • Buttons on the electronics module
  • OPT-1 remote control
• Digital motion detection algorithm
• Digital temperature compensation
• Adjustable detection sensitivity
• Built-in EOL resistors: 1.1 kΩ, 4.7 kΩ, 5.6 kΩ
• LED indicator:
• • Light color selection (7 colors available)
  • Remote indicator on/off
• Remote configuration mode on/off
• Motion detection system supervision
• 12 V DC power supply (15%)
• Supply voltage monitoring
• Sabotage protection against opening the housing and removal from the mounting surface
• Ceiling surface mounting

TECHNICAL DATA:

• Power supply voltage: 12 V DC ±15%
• Standby current consumption: 17 mA
• Maximum current consumption: 45 mA
• EOL resistors: 2 x 1.1 kΩ / 2 x 4.7 kΩ / 2 x 5.6 kΩ
• Outputs:
• • Alarm (NC relay, resistive load): 40 mA / 24 V DC
  • Anti-masking (NC relay, resistive load): 40 mA / 24 V DC
  • Tamper (NC relay, resistive load): 40 mA / 24 V DC
• Relay contact resistance:
• • Alarm output: 26 Ω
  • Anti-masking output: 26 Ω
  • Tamper output: 26 Ω
• Detectable motion speed: 0.2...3 m/s
• Alarm signaling time: 2 s
• Warm-up time: 30 s
• Recommended mounting height: 2.4...3.5 m
• Maximum detection area:
• • Mounting at a height of 2.4 m: ø 6 m [28 m2]
  • Mounting at a height of 3.5 m: ø 10 m [79 m2]
• Protection level according to EN 50131-2-2: Grade 3
• Standards complied with: EN 50131-1, EN 50131-2-2, EN 50130-4, EN 50130-5
• Environmental class according to EN 50130-5: II
• Operating temperature range: -10°C...+55°C
• Maximum humidity: 93±3%
• Dimensions: ø 120 x 37 mm
• Weight: 116 g
