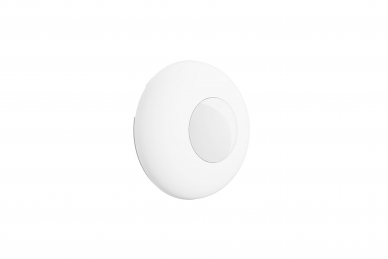

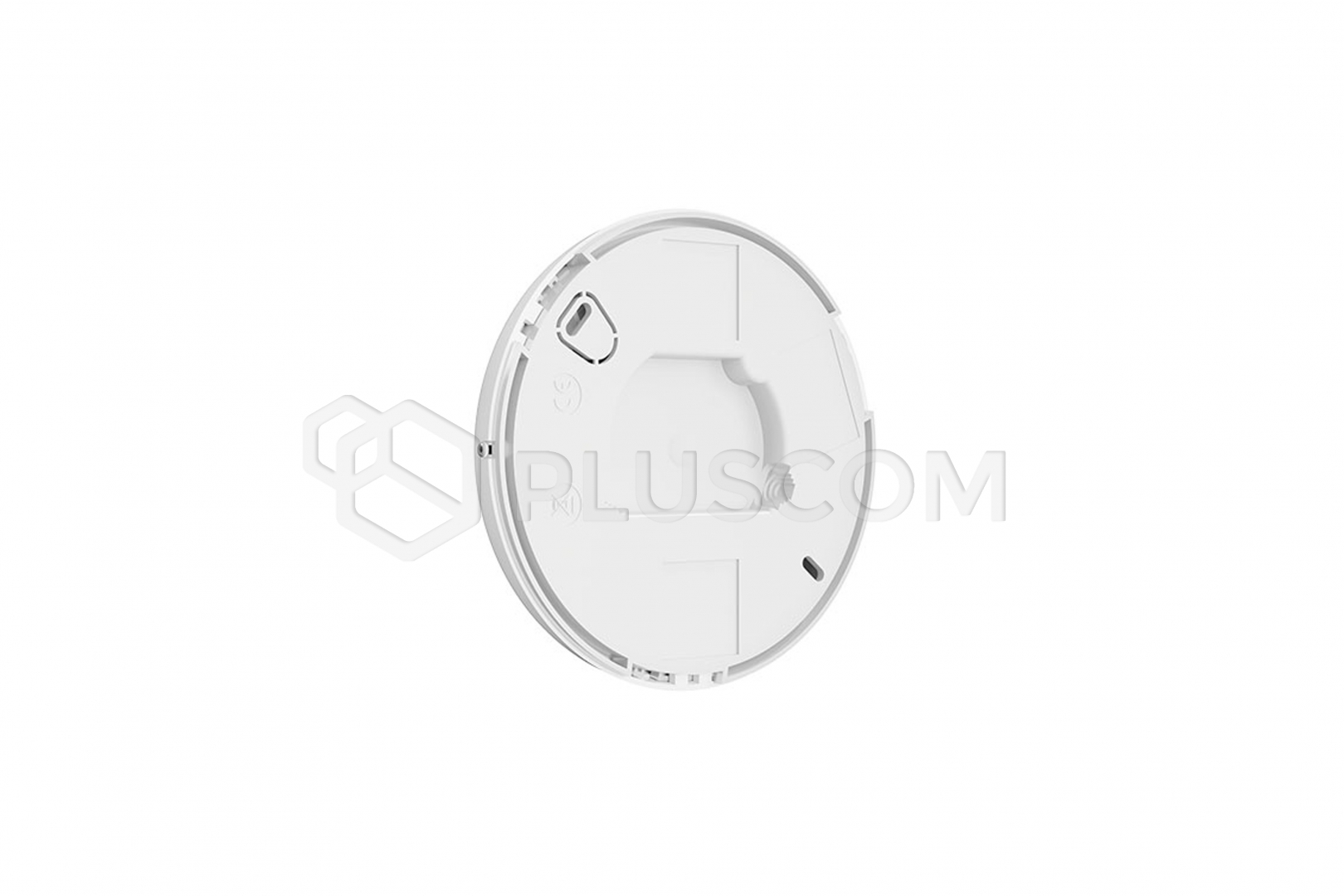

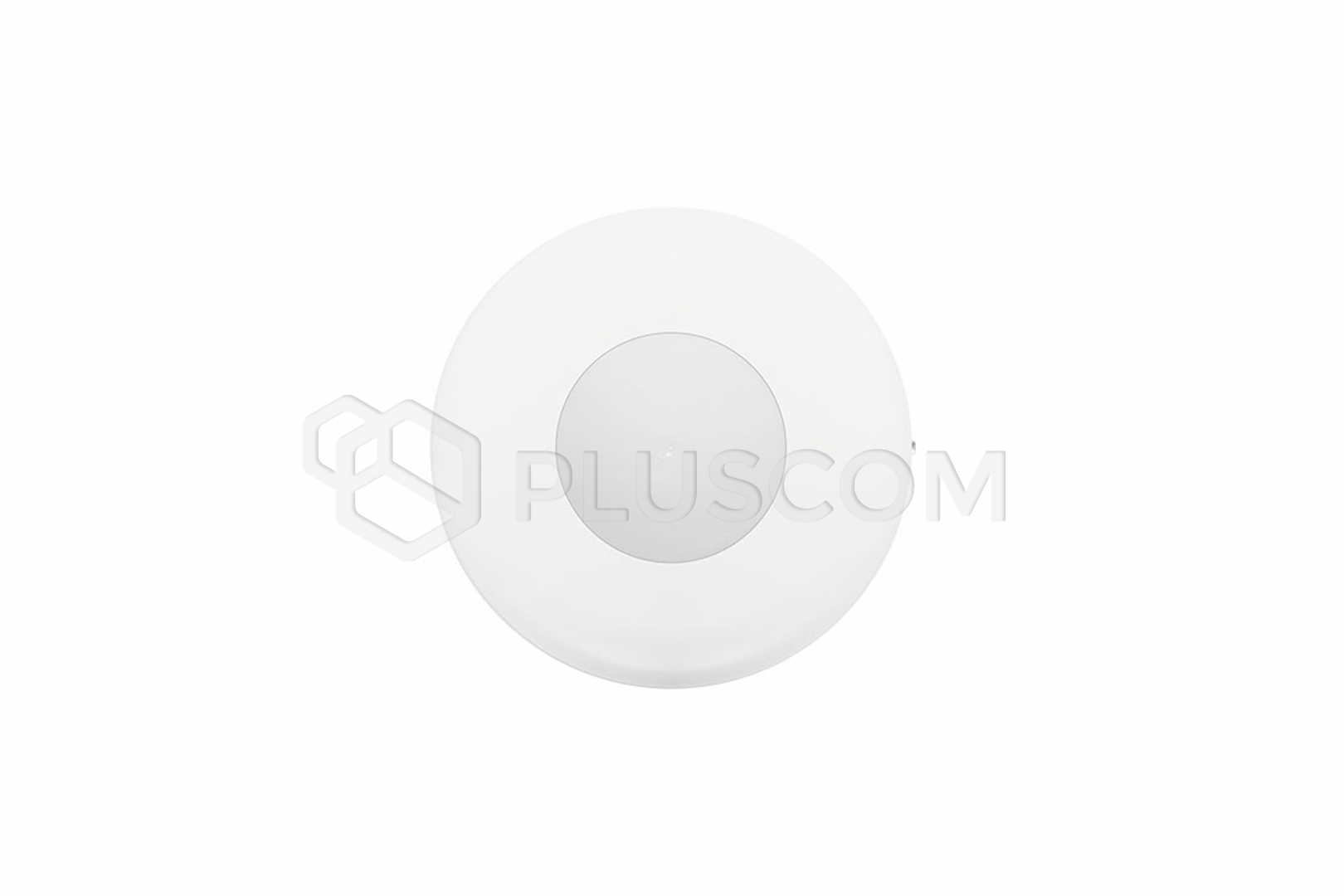

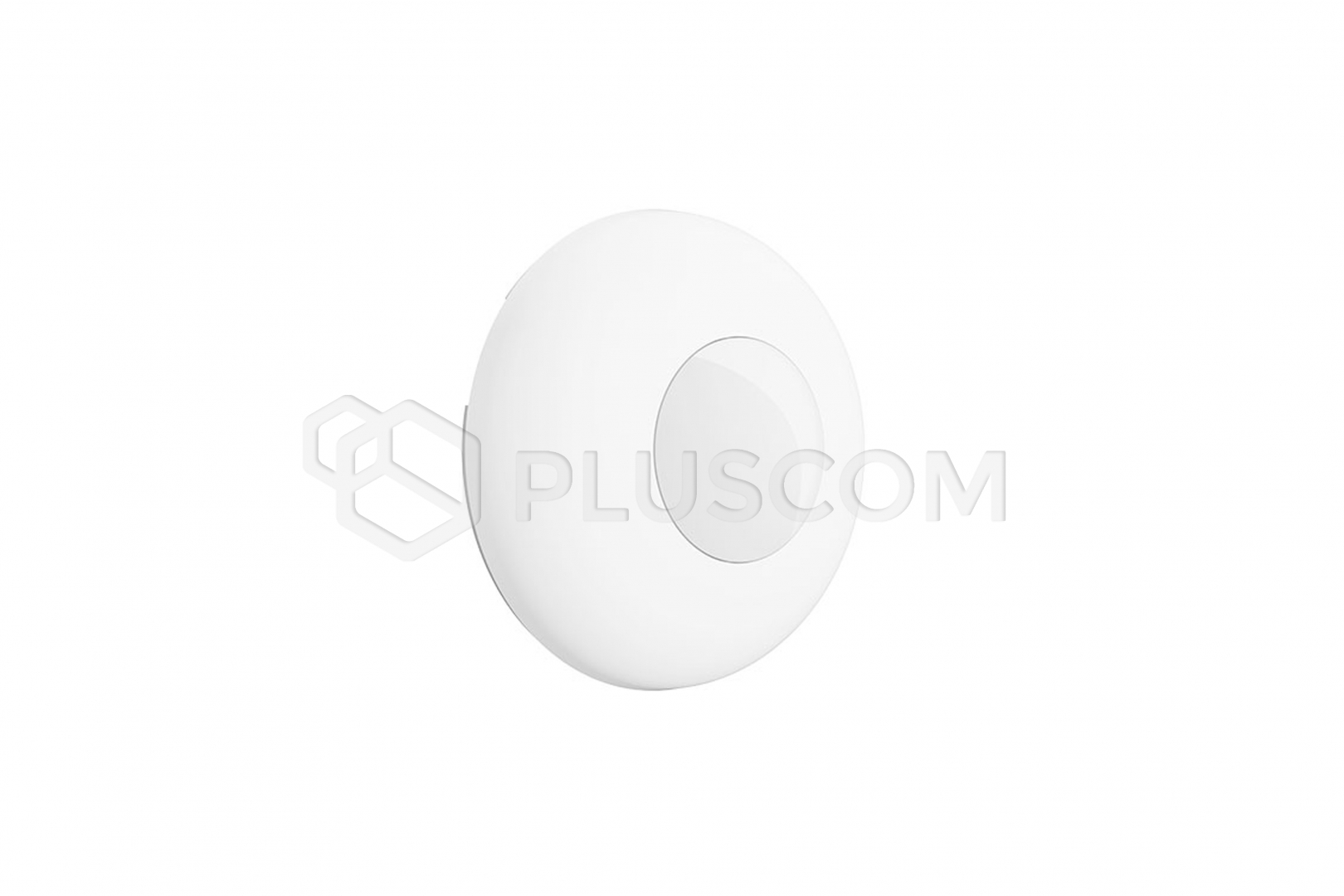

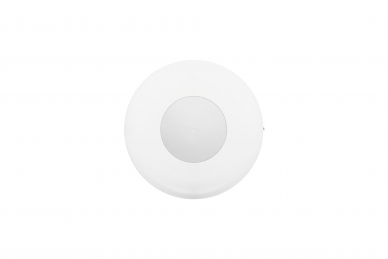

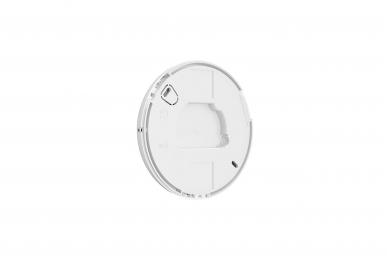

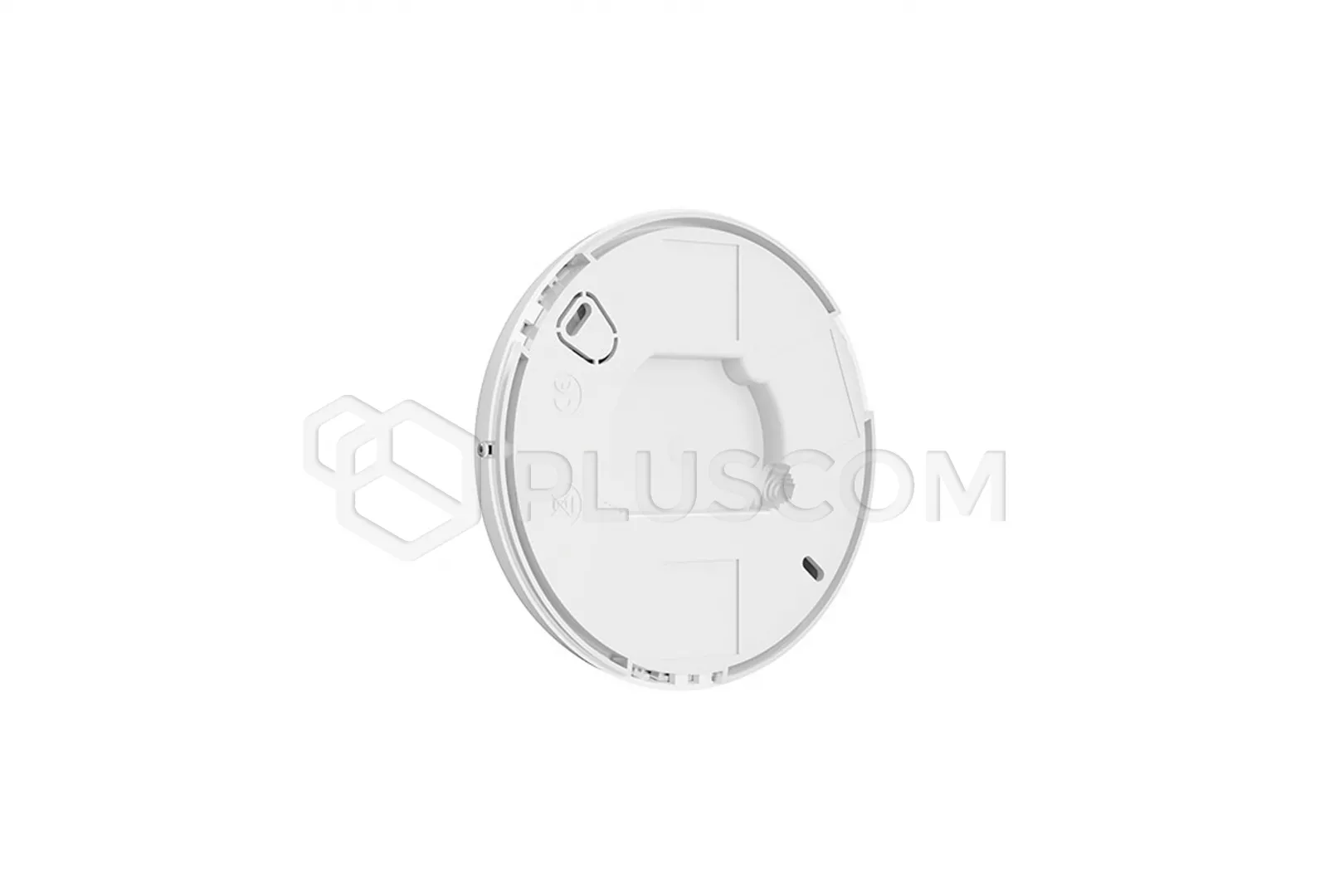

Satel SLIM-S-PIR-PRO BUS Bus ceiling PIR motion detector with anti-masking, surface-mounted

Satel SLIM-S-PIR-PRO BUS Ceiling-Mounted PIR Motion Detector with Anti-Masking for Surface Mounting

The SLIM-S-PIR-PRO BUS is an indoor ceiling-mounted motion detector from the SLIM LINE series, designed for surface-mounted ceiling mounting. The detector can be connected to the RS communication bus of a SATEL alarm control panel supporting bus devices.

The detector will report an alarm when the infrared (PIR) sensor detects motion, as well as tampering when the enclosure is opened or removed from the mounting surface.

The light source is 4 white LEDs, which indicate:

• Start-up – flashes alternately in different colors for approximately 30 seconds
• Alarm – lights blue for 2 seconds
• Masking – flashes blue when the detector is masked
• Fault – lights blue for the duration of the fault

FEATURES:

• Meets the requirements for EN 50131 Grade 3 security level
• Active IR anti-masking compliant with EN 50131-2-2 for Grade 3
• Motion detection using a passive infrared (PIR) sensor
• Maximum detection area:
• • ø 6 m / 28 m2 – mounting height 2.4 m
  • ø 10 m / 79 m2 – mounting height 3.5 m
• Adjustable detection sensitivity
• Digital motion detection algorithm
• Digital temperature compensation
• RS communication bus
• Settings programmable via bus RS
• Software update via RS bus
• Built-in temperature sensor (measuring range: -10°C...+55°C)
• LED lighting function
• Remote lighting control option
• LED indicator
• Motion detection system supervision
• 12 V DC power supply (15%)
• Power supply voltage monitoring
• Sabotage protection against opening the housing and removal from the surface
• Ceiling surface mounting

TECHNICAL DATA:

• Power supply voltage: 12 V DC ±15%
• Standby current consumption: 14 mA
• Maximum current consumption: 45 mA
• Detectable movement speed: 0.2...3 m/s
• Alarm signaling time: 2 s
• Warm-up time: 30 s
• Recommended mounting height: 2.4...3.5 m
• Maximum detection area:
• Mounting at a height of 2.4 m: ø 6 m [28 m²]
• Mounting at a height of 3.5 m: ø 10 m [79 m²]
• Degree EN 50131-2-2 protection: Grade 3
• Standards met: EN 50131-1, EN 50131-2-2, EN 50130-4, EN 50130-5
• Environmental class according to EN 50130-5: II
• Operating temperature range: -10°C...+55°C
• Maximum humidity: 93±3%
• Dimensions: ø 120 x 37 mm
• Weight: 115 g
