Satel SLIM-S-PIR-LUNA Ceiling-mounted PIR motion detector with lighting function, surface-mounted

Satel SLIM-S-PIR-LUNA Ceiling-Mounted PIR Motion Detector with Illumination for Surface Mounting

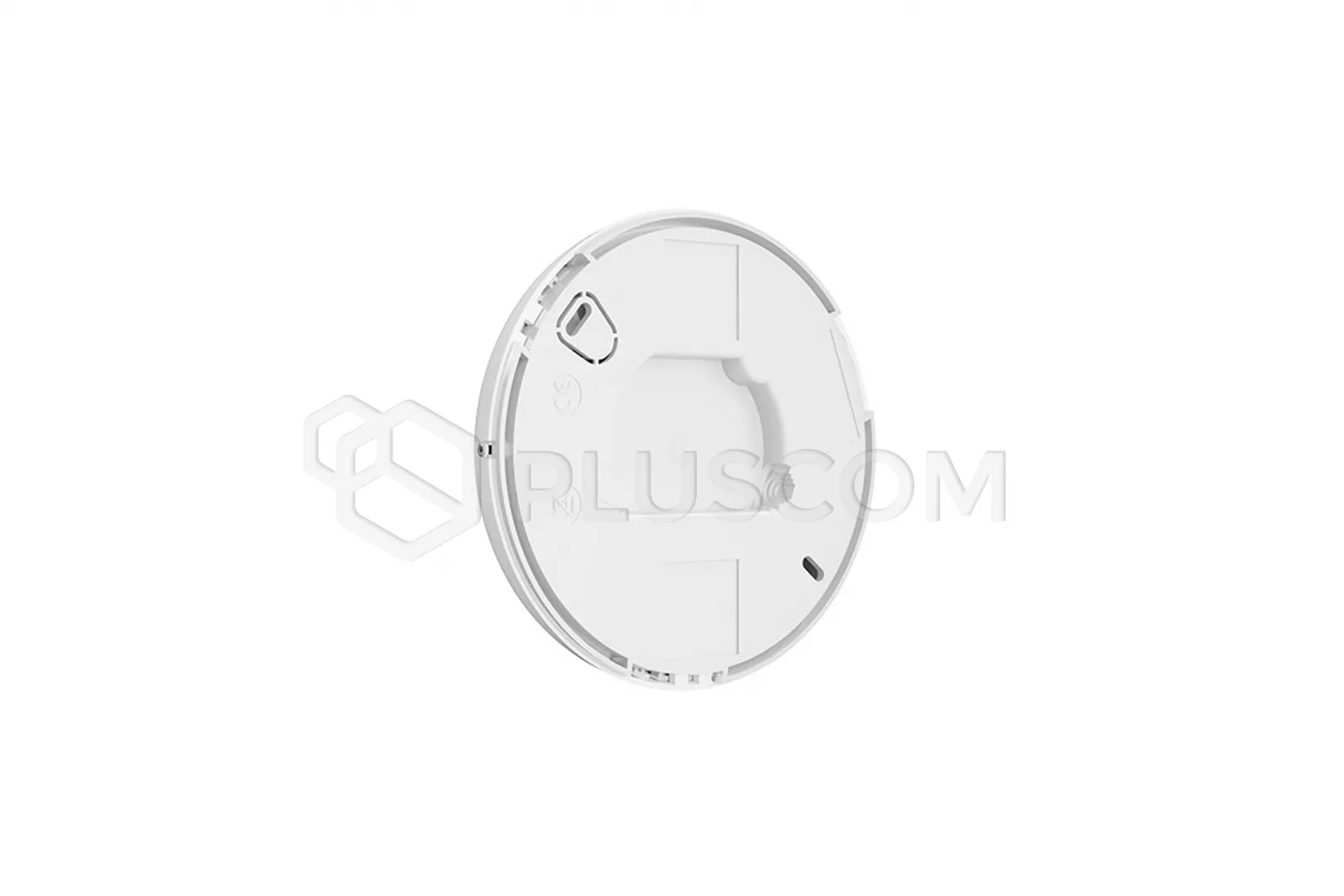

SLIM-S-PIR-LUNA is an indoor motion detector from the SLIM LINE series, designed for surface mounting on ceilings.
It is ideal for locations where wall-mounted detectors are impossible or undesirable. Its 360° detection field allows it to be used to monitor stores, warehouses, and other locations where the detection field of a ceiling-mounted detector facing downward will cover the room more effectively than a wall-mounted detector.

FEATURES:

• Meets the requirements for EN 50131 Grade 2 security level
• Lighting function implemented using LEDs:
• • Remote lighting control option
  • Lighting activated by motion
• Motion detection using a passive infrared sensor (PIR)
• Remote switching between two programmed sensitivity levels (SENS terminal)
• Maximum detection area:
• • ø 6 m / 28 m2 – mounting height 2.4 m
  • ø 10 m / 79 m2 – mounting height 3.5 m
• Configuration of detector operating parameters:
• • Buttons on the electronics module
  • OPT-1 remote control
• Digital motion detection algorithm
• Digital temperature compensation
• Adjustable detection sensitivity
• Built-in EOL resistors: 1.1 kΩ, 4.7 kΩ, 5.6 kΩ
• LED indicator:
• • Light color selection (7 colors available)
  • Remote indicator on/off
• Remote configuration mode on/off
• Motion detection system supervision
• 12 V DC power supply (15%)
• Supply voltage monitoring
• Sabotage protection against opening and tearing off the housing from the ground
• installation on the ceiling surface

The light source is white LEDs.
The following lighting modes are available:

• Remote control only – the lighting is on when ground is connected to the LUNA terminal (if the LUNA terminal is disconnected from ground, the lighting is off)
• Remote control and motion activation – the lighting is on when ground is connected to the LUNA terminal or when motion is detected by the detector
• Motion activation if the LUNA input is shorted to ground – the lighting is on when ground is connected to the LUNA terminal and the detector detects motion (if the LUNA terminal is disconnected from ground, motion detection does not activate the lighting)

When activated by motion, the lighting remains on for the time programmed into the detector. If the lighting is on and motion is detected, the time restarts.

TECHNICAL DATA:

• Power supply voltage (±15%): 12 V DC
• Maximum current consumption: 65 mA
• Standby current consumption: 11 mA
• Recommended mounting height: 2.4 - 3.5 m
• Detectable movement speed: 0.3...3 m/s
• Alarm signaling time: 2 s
• Warm-up time: 30 s
• Maximum detection area (mounted at a height of 3.5 m): ø 10 m [79 m²]
• Maximum detection area (mounted at a height of 2.4 m): ø 6 m [28 m²] m2]
• EOL resistors: 2 x 1.1 / 2 x 4.7 / 2 x 5.6 kΩ
• Relay contact resistance (tamper output): 26 Ω
• Relay contact resistance (alarm output): 26 Ω
• Tamper outputs (NC relay, resistive load): 40 mA / 24 V DC
• Alarm outputs (NC relay, resistive load): 40 mA / 24 V DC
• Security rating according to EN50131-2-2: Grade 2
• Compliant standards: EN 50131-1, EN 50131-2-2, EN 50130-4, EN 50130-5
• Environmental class according to EN50130-5: II
• Maximum humidity: 93±3
• Operating temperature range: -10°C - +55°C
• Dimensions: ø 120 x 37 mm
• Weight: 115 g
