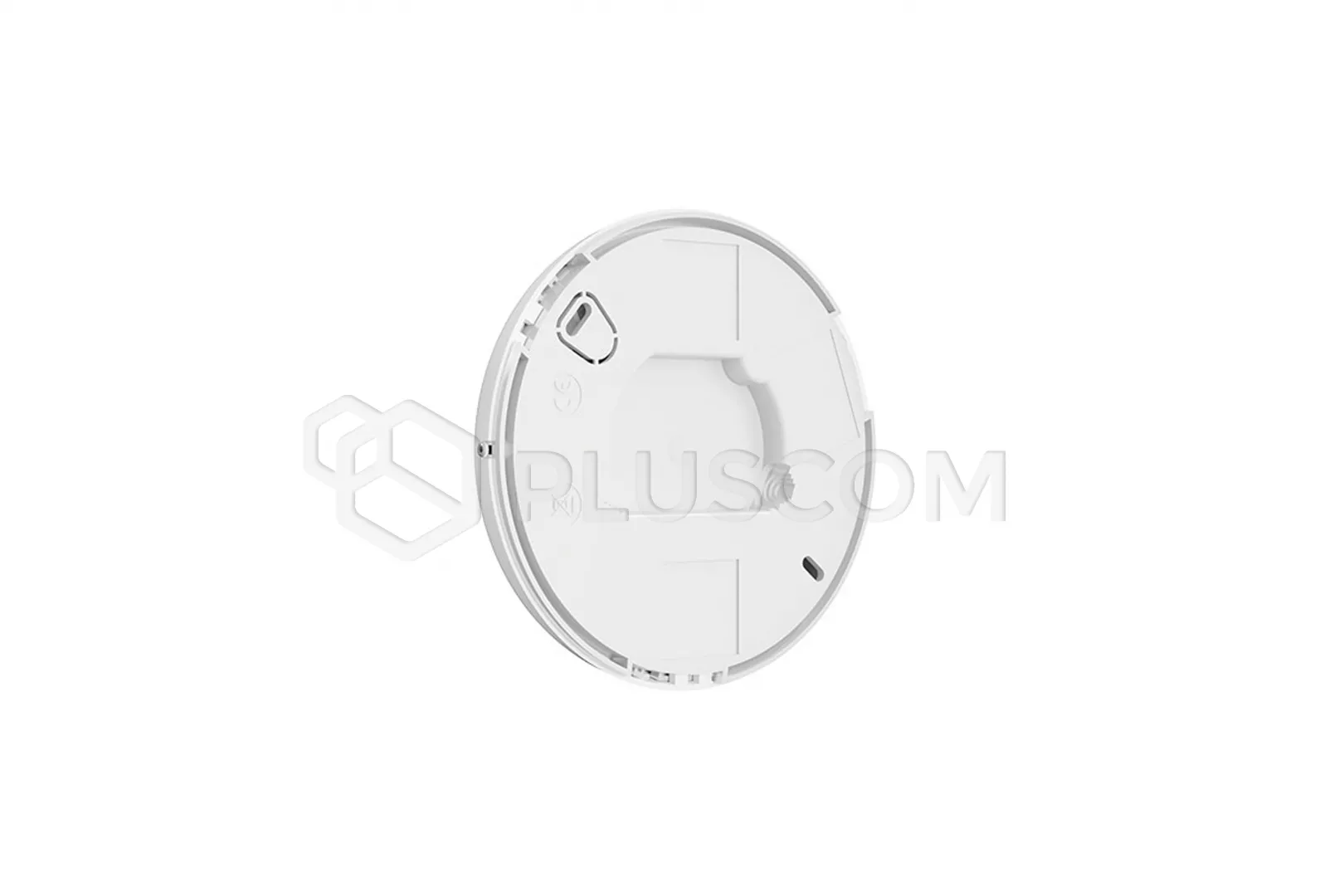

Satel SLIM-S-PIR-LUNA BUS Ceiling PIR motion detector with lighting function, surface-mounted

Satel SLIM-S-PIR-LUNA BUS Bus Ceiling PIR Motion Detector with Lighting Function, for Surface Mounting

The SLIM-S-PIR-LUNA BUS is an indoor ceiling motion detector from the SLIM LINE series, designed for surface mounting on ceilings. It detects motion using infrared light and also features a lighting function. It is ideal for locations where mounting a wall detector is impossible or undesirable.
The detector can be connected to the RS communication bus of a SATEL alarm control panel supporting bus devices.
The detector will trigger an alarm when the infrared (PIR) sensor detects motion, as well as tampering with an attempt to open the enclosure or remove it from the mounting surface.

The light source is 4 white LEDs, which indicate:

• Start-up – flashes alternately in different colors for approximately 30 seconds
• Alarm – glows blue for 2 seconds
• Fault – glows blue for the duration of the fault

FEATURES:

• Meets EN 50131 Grade 2 security requirements
• Motion detection using a passive infrared sensor (PIR)
• Maximum detection area:
• ø 6 m / 28 m2 – mounting height 2.4 m
• ø 10 m / 79 m2 – mounting height 3.5 m
• Adjustable detection sensitivity
• Digital motion detection algorithm
• Digital temperature compensation
• RS communication bus
• Settings programming via RS bus
• Software update via RS bus
• Built-in temperature sensor (measuring range: -10°C...+55°C)
• Lighting function implemented using LEDs
• Remote lighting control option
• LED indicator
• Motion detection system supervision
• 12 V DC power supply (15%)
• Power supply voltage monitoring
• Sabotage protection against opening the housing and removal from the surface
• Ceiling surface mounting

TECHNICAL DATA

• Power supply voltage: 12 V DC ±15%
• Standby current consumption: 11 mA
• Maximum current consumption: 65 mA
• Detectable motion speed: 0.3...3 m/s
• Alarm signaling time: 2 s
• Warm-up time: 30 s
• Recommended mounting height: 2.4 - 3.5 m
• Maximum detection area
• • Mounting at a height of 2.4 m: ø 6 m [28 m²]
  • Mounting at a height of 3.5 m: ø 10 m [79 m²]
• Protection level according to EN 50131-2-2: Grade 2
• Standards complied with: EN 50131-1, EN 50131-2-2, EN 50130-4, EN 50130-5
• Environmental class according to EN 50130-5: II
• Operating temperature range: -10°C...+55°C
• Maximum humidity: 93±3%
• Dimensions: ø 120 x 37 mm
• Weight: 114 g
