Satel SLIM-S-PIR Ceiling-mounted PIR motion detector

Satel SLIM-S-PIR Ceiling-Mounted PIR Motion Detector, Surface Mounted

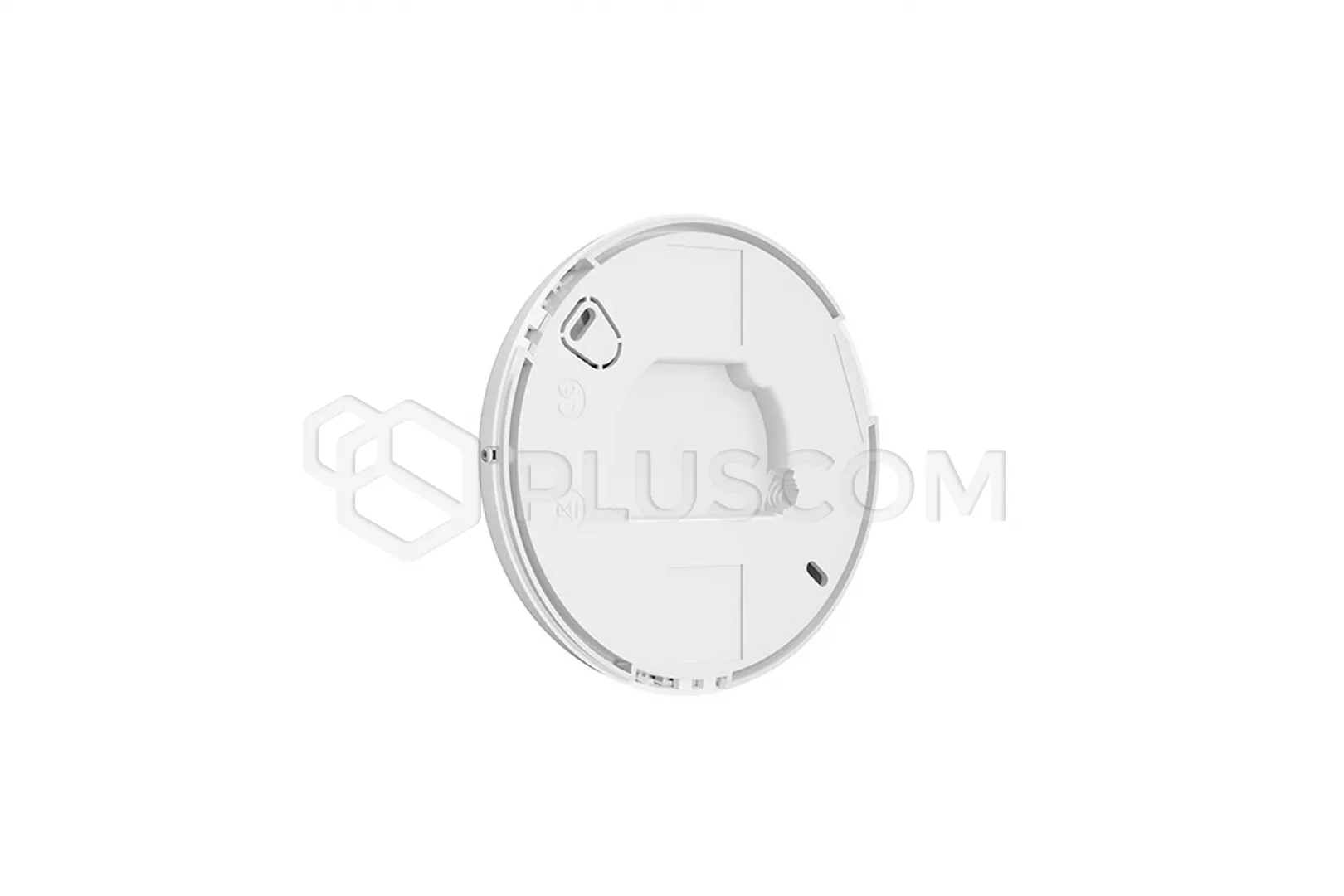

The SLIM-S-PIR is an indoor motion detector from the SLIM LINE series, designed for surface-mounted ceilings. It detects motion using infrared light. It is designed for ceiling surface mounting.
It is ideal for locations where wall-mounted detectors are impossible or undesirable. Its 360° detection range allows it to be used to monitor stores, warehouses, and other locations where a ceiling-mounted, downward-facing detector's detection range will cover the room more effectively than a wall-mounted detector.

The detector will trigger an alarm when the infrared (PIR) sensor detects motion. Opening the housing/removing the detector from the mounting surface activates the tamper output.
If the motion detection system is damaged or the voltage drops below 9 V (±5%) for longer than 2 seconds, the detector will report a fault. The fault is signaled by activating the alarm output and illuminating the LED indicator. The fault indication continues for the duration of the fault.

The LED indicator indicates:

• Start-up – flashes red for approximately 30 seconds
• Alarm – lights for 2 seconds (factory color: blue)
• Fault – lights for the duration of the fault (same color as the alarm)

You can change the color used to indicate an alarm/fault.

FEATURES:

• Motion detection using a passive infrared sensor (PIR)
• Maximum detection area:
• • ø 6 m / 28 m2 – mounting height 2.4 m
  • ø 10 m / 79 m2 – mounting height 3.5 m
• Configure detector operating parameters: buttons on the electronics module
• Digital motion detection algorithm
• Digital temperature compensation
• Adjustable detection sensitivity
• Built-in EOL resistors: 1.1 kΩ
• LED indicator:
• • Selectable alarm signal color (7 available) colors)
  • remote indicator on/off
• motion detection system supervision
• power supply voltage control
• meets EN 50131 Grade 2 security requirements

TECHNICAL DATA:

• Alarm signaling time: 2 s
• Maximum detection area (mounted at a height of 3.5 m): ø 10 m [79 m2]
• Maximum detection area (mounted at a height of 2.4 m): ø 6 m [28 m2]
• EOL resistors: 2 x 1.1 kΩ
• Relay contact resistance (alarm output): 26 Ω
• Sabotage outputs (NC): 100 mA / 30 V DC
• Alarm outputs (NC relay, resistive load): 40 mA / 24 V DC
• Security grade according to EN50131-2-2: Grade 2
• Warning time: 30 s
• Standards complied with: EN 50131-1, EN 50131-2-2, EN 50130-4, EN 50130-5
• Supply voltage (±15%): 12 V DC
• Environmental class according to EN50130-5: II
• Maximum humidity: 93±3%
• Maximum current consumption: 38 mA
• Standby current consumption: 11 mA
• Recommended mounting height: 2.4...3.5 m
• Operating temperature range: -10°C...+55°C
• Dimensions: ø 120 x 37 mm
• Weight: 115 g
