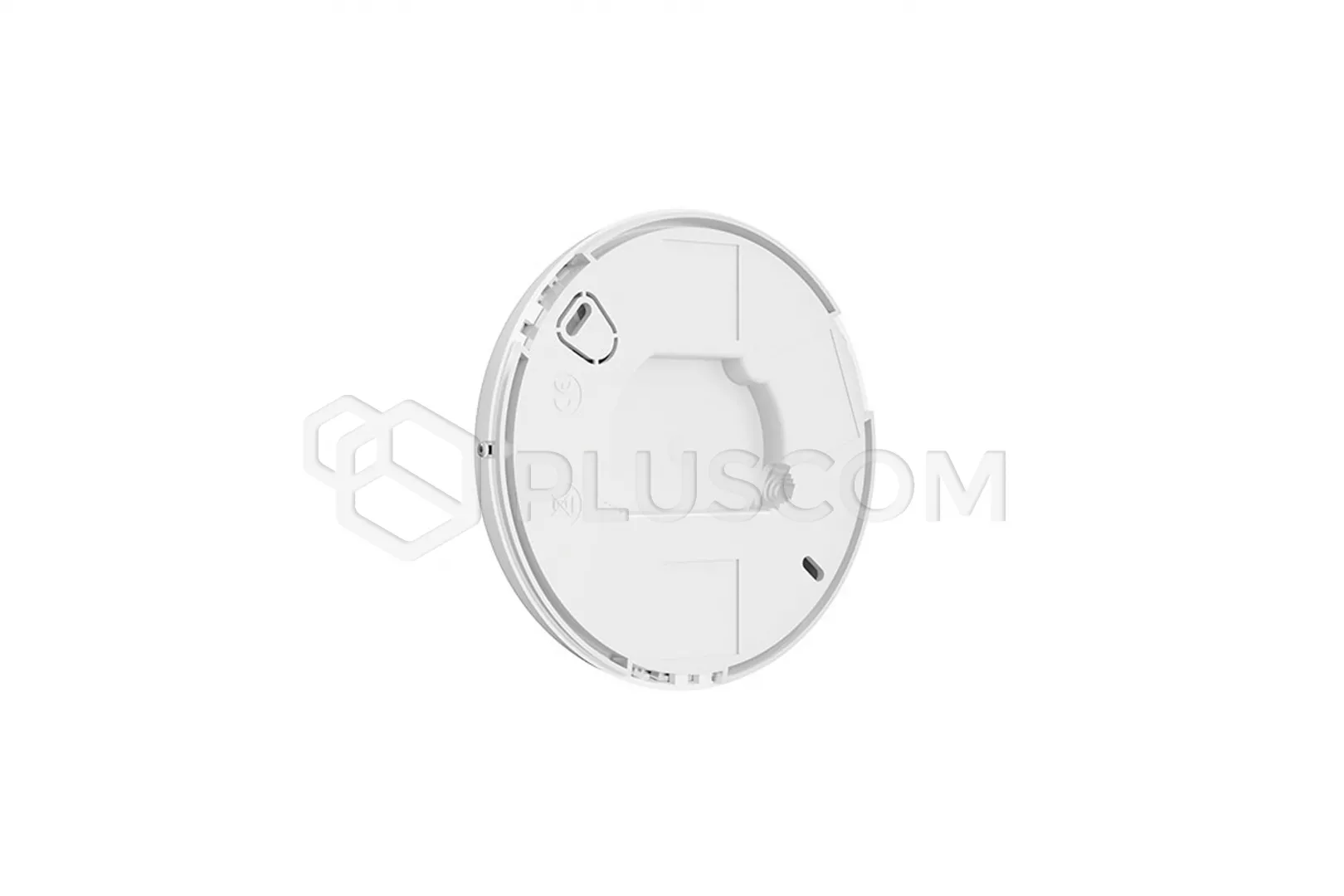

Satel SLIM-S-DUAL-PRO BUS Ceiling dual bus motion detector with anti-masking, surface mounting

Satel SLIM-S-DUAL-PRO BUS Ceiling Dual-Network Motion Detector with Anti-Masking for Surface Mounting

The SLIM-S-DUAL-PRO BUS is an indoor ceiling-mounted motion detector from the SLIM LINE series, designed for surface-mount ceiling mounting. The detector can be connected to the RS communication bus of a SATEL alarm control panel supporting bus devices.

FEATURES:

• Meets the requirements for EN 50131 Grade 3 security level
• Active IR anti-masking compliant with EN 50131-2-4 Grade 3
• Motion detection using a passive infrared (PIR) sensor and a microwave (MW) sensor
• Maximum detection area:
• • ø 6 m / 28 m2 – mounting height 2.4 m
  • ø 10 m / 79 m2 – mounting height 3.5 m
• Adjustable detection sensitivity of both sensors
• Digital motion detection algorithm for both sensors
• Digital temperature compensation
• Bus RS communication
• Programming settings via the RS bus
• Software updates via the RS bus
• Built-in temperature sensor (measuring range: -10°C...+55°C)
• LED indicator
• Motion detection system supervision
• 12 V DC power supply (15%)
• Power supply voltage monitoring
• Sabotage protection against opening the housing and removal from the mounting surface
• Ceiling surface mounting

TECHNICAL DATA:

• Power supply voltage (±15%): 12 V DC
• Standby current consumption: 16 mA
• Maximum current consumption: 45 mA
• Warm-up time: 30 s
• Alarm signaling time: 2 s
• Detectable motion speed: 0.2...3 m/s
• Maximum detection area (mounted at a height of 2.4 m): ø 6 m [28 m²]
• Maximum detection area (mounted at a height of 3.5 m): ø 10 m [79 m²]
• Operating temperature range: -10°C...+55°C
• Recommended mounting height: 2.4…3.5 m
• Standards complied with: EN 50131-1, EN 50131-2-4, EN 50130-4, EN 50130-5
• Security class according to EN50131-2-4: Grade 3
• Environmental class according to EN50130-5: II
• Maximum humidity: 93±3%
• Dimensions: ø 120 x 37 mm
• Weight: 117 g
