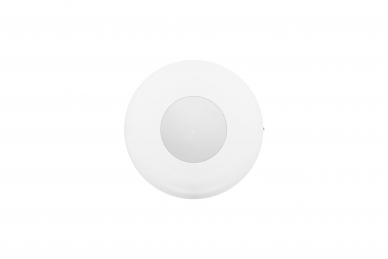

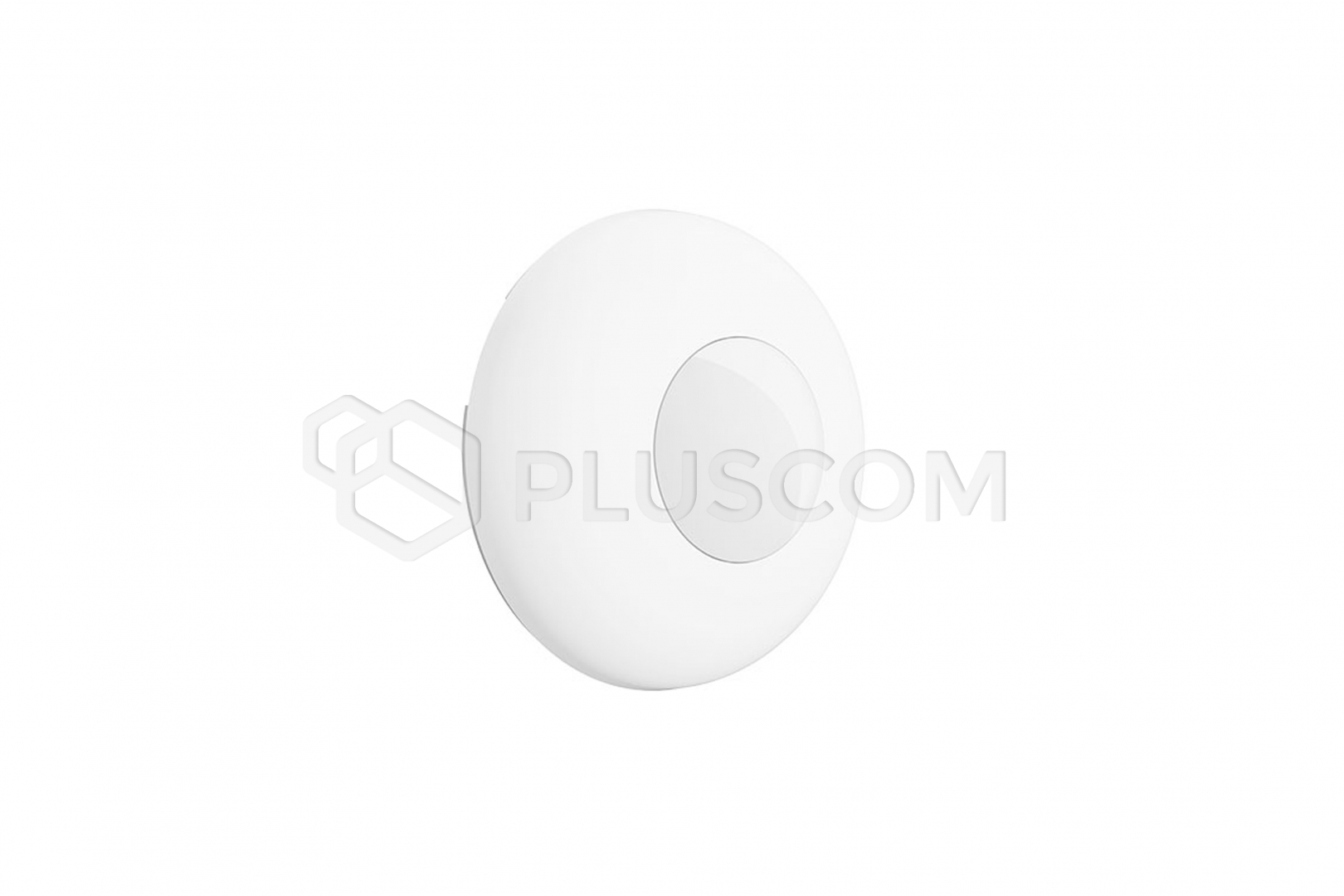

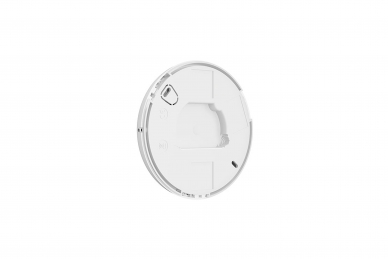

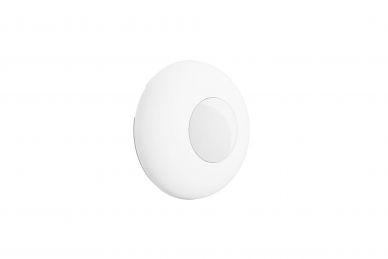

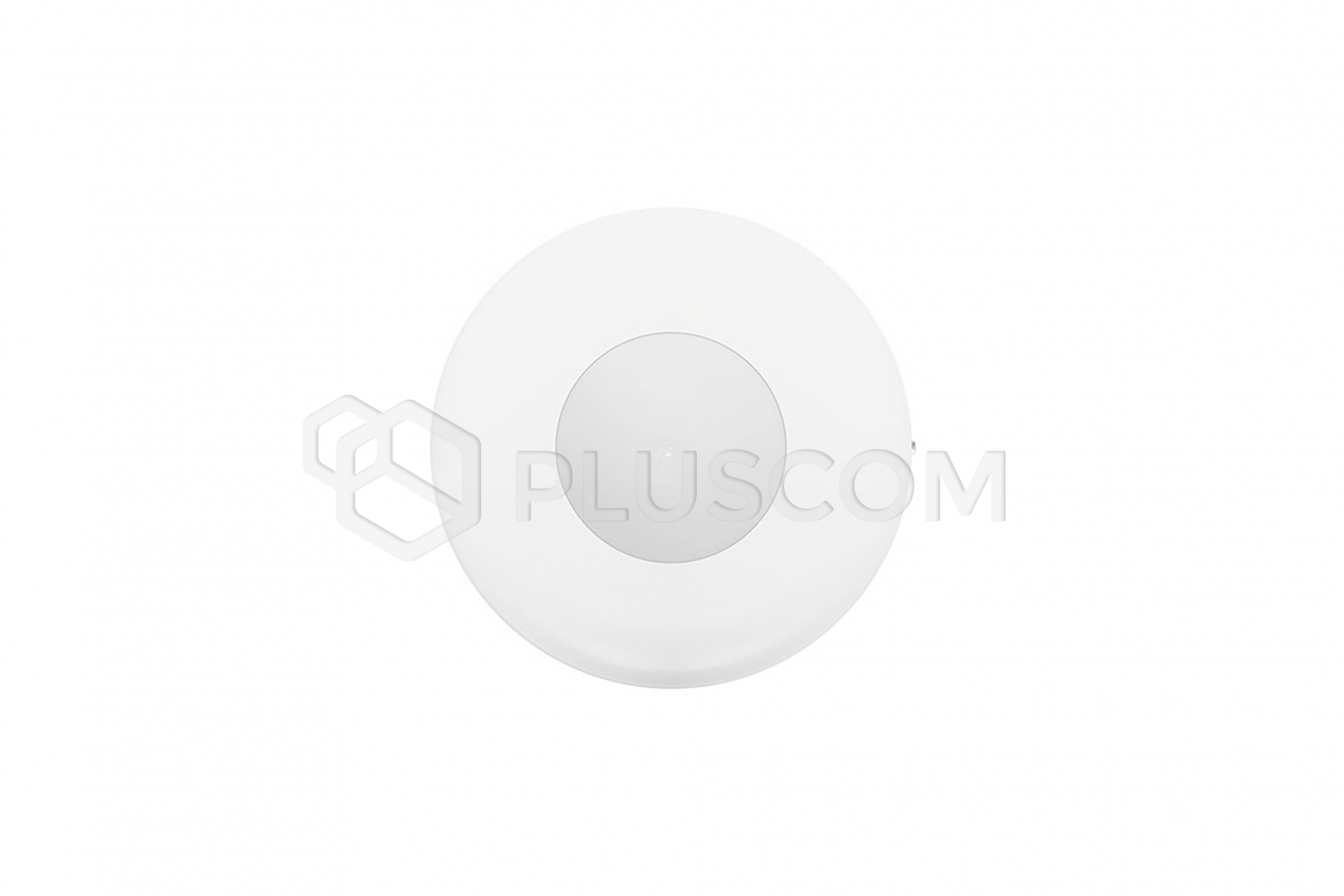

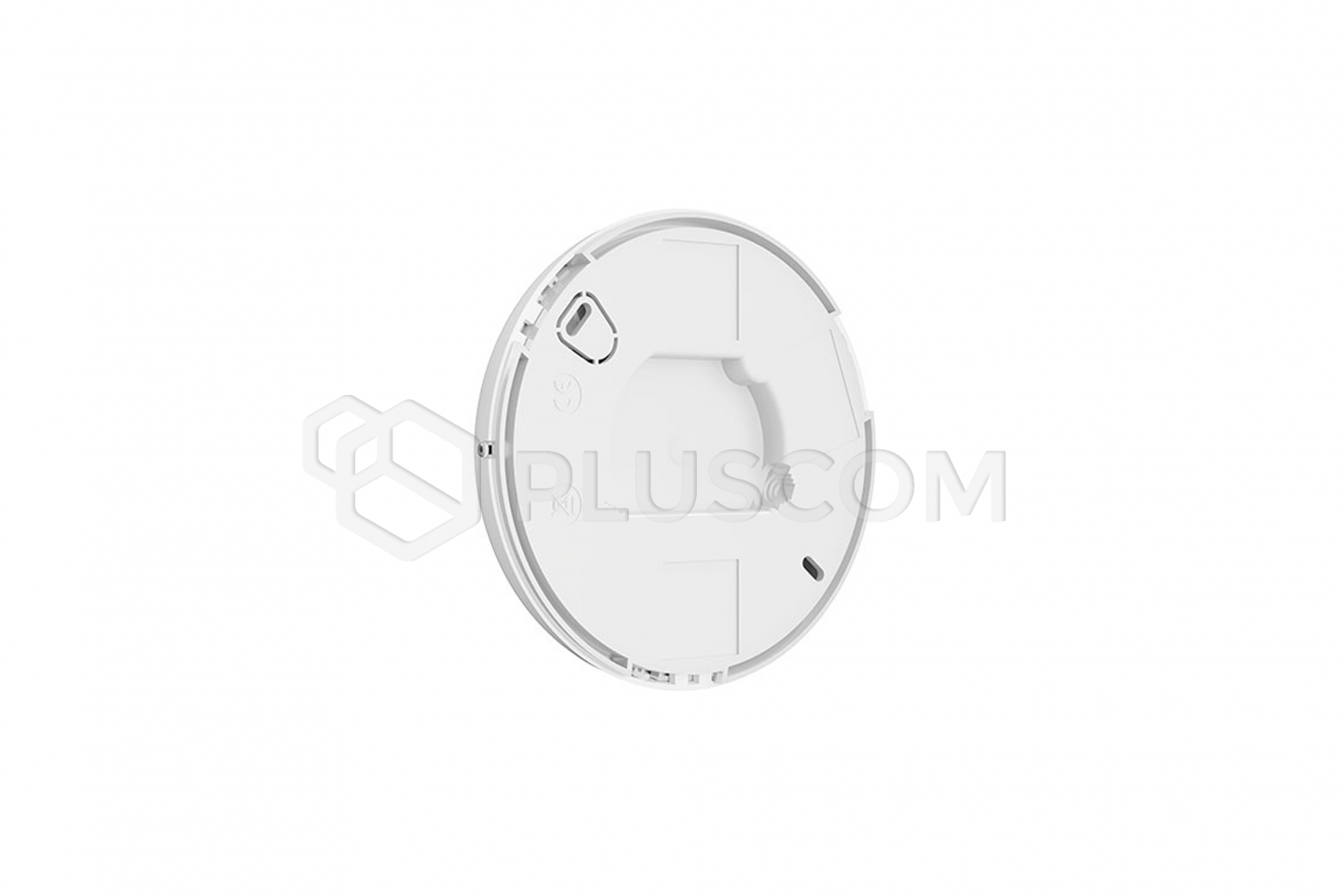

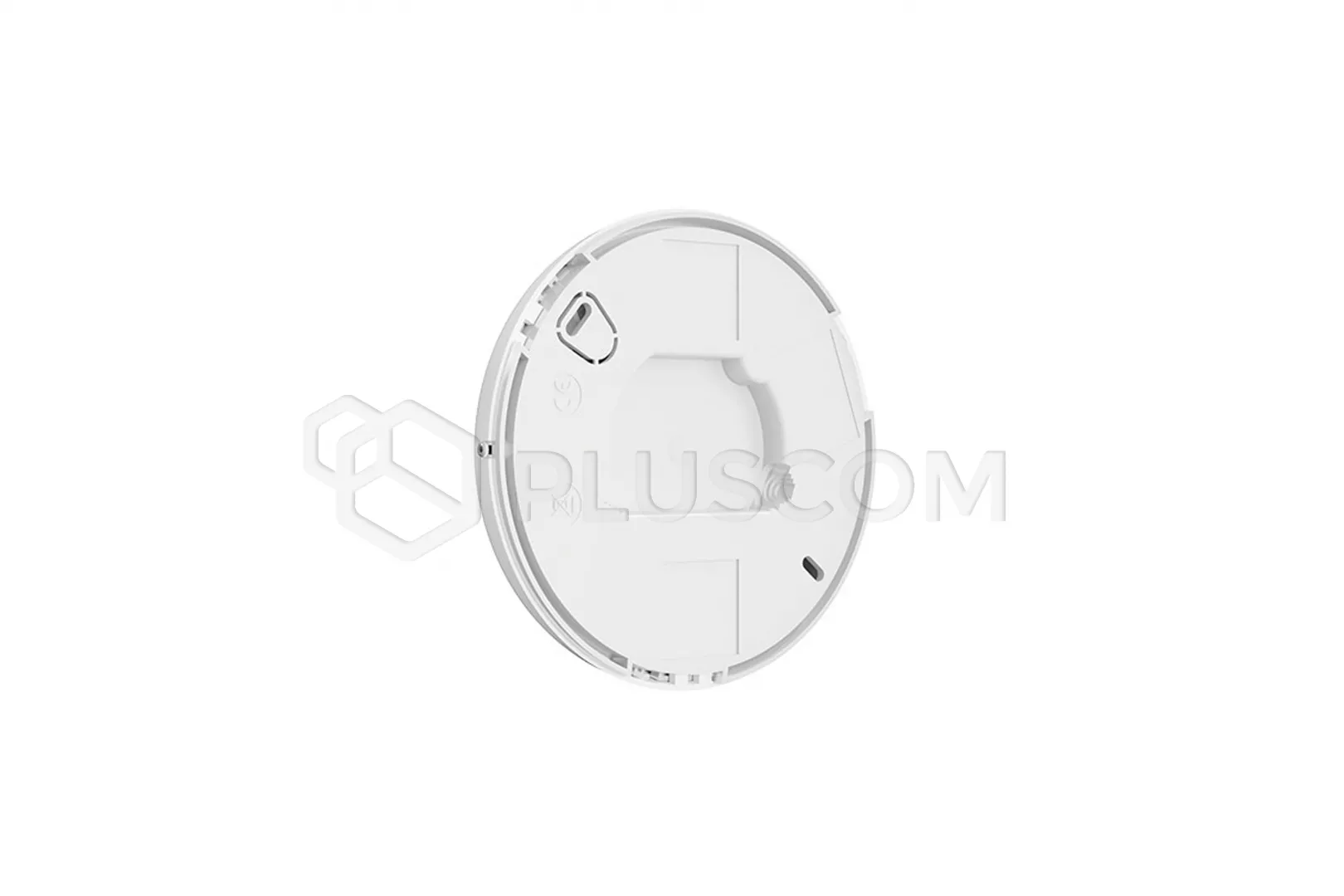

Satel SLIM-S-DUAL-LUNA BUS Ceiling dual bus motion detector with lighting function, surface-mounted

Satel SLIM-S-DUAL-LUNA BUS Ceiling Dual-Network Motion Detector with Lighting Function for Surface Mounting

The SLIM-S-DUAL-LUNA BUS is an indoor ceiling-mounted motion detector from the SLIM LINE series, designed for ceiling or surface mounting. The detector can be connected to the RS communication bus of a SATEL alarm control panel supporting bus devices.

The device detects motion using infrared and microwave radiation.
The detector will trigger an alarm when both sensors detect motion within a time interval of less than 3 seconds, as well as when tampering occurs when the enclosure is opened or removed from the mounting surface.

The light source is 4 white LEDs, which indicate:

• Start-up – flashes alternately in different colors for approximately 30 seconds
• Motion detected by the microwave sensor – lights green for 3 seconds
• Motion detected by the PIR sensor – lights purple for 3 seconds
• Alarm – lights blue for 2 seconds
• Fault – lights blue for the duration of the fault

FEATURES:

• Meets EN 50131 Grade 2 security requirements
• Motion detection using a passive infrared (PIR) sensor and a microwave (MW) sensor
• Maximum detection area:
• • ø 6 m / 28 m2 – mounting height 2.4 m
  • ø 10 m / 79 m2 – mounting height 3.5 m
• Adjustable detection sensitivity of both sensors
• Digital motion detection algorithm for both sensors
• Digital temperature compensation
• RS communication bus
• Settings programming via RS bus
• Software update via RS bus
• Built-in temperature sensor (measuring range: -10°C...+55°C)
• LED lighting function
• Remote lighting control option
• LED indicator
• Motion detection system supervision
• 12 V DC power supply (15%)
• Power supply voltage monitoring
• Sabotage protection against opening the housing and removal from the surface
• Ceiling surface mounting

TECHNICAL DATA:

• Power supply voltage: 12 V DC ±15%
• Standby current consumption: 12 mA
• Maximum current consumption: 65 mA
• Microwave frequency: 24.125 GHz
• Detectable motion speed: 0.3...3 m/s
• Alarm signaling time: 2 s
• Warm-up time: 30 s
• Recommended mounting height: 2.4...3.5 m
• Maximum detection area:
• • Mounting at a height of 2.4 m: ø 6 m [28 m2]
  • Mounting at a height of 3.5 m: ø 10 m [79 m2]
• Protection level according to EN 50131-2-4: Grade 2
• Standards complied with: EN 50131-1, EN 50131-2-4, EN 50130-4, EN 50130-5
• Environmental class according to EN 50130-5: II
• Operating temperature range: -10°C...+55°C
• Maximum humidity: 93±3%
• Dimensions: ø 120 x 37 mm
• Weight: 116 g
