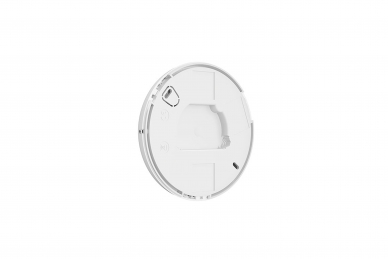

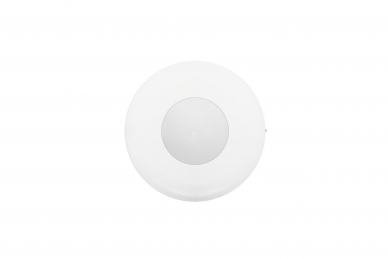

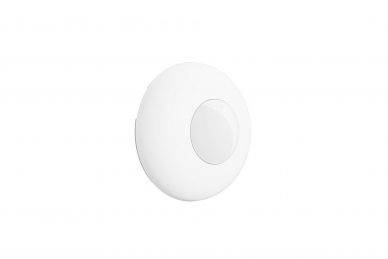

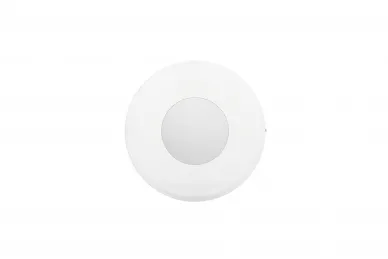

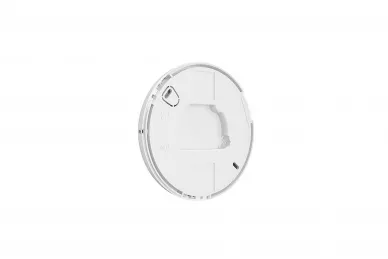

Satel SLIM-S-DUAL-AC Ceiling dual motion sensor for lighting control, surface mounting

49,43 EUR including 23.00% VAT
Product code: #44036
Manufacturer: Satel
  • PIR infrared sensor + MW microwave sensor
  • Built-in twilight sensor
  • Maximum detection area: 80 m2
  • Built-in potentiometers for adjustment
  • Control output NO
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Satel SLIM-S-DUAL-AC Ceiling Dual Motion Sensor for Lighting Control, for Surface Mounting


The SLIM-S-DUAL-AC is a standalone indoor ceiling motion sensor designed to control 230 V AC lighting. The device detects motion in the protected area and activates the connected lighting, fully automating its operation. The sensor is powered directly by 230 V AC, eliminating the need for additional power supplies and simplifying installation. Thanks to the built-in dusk sensor, the light is only activated when the ambient light level is low.

SLIM-S-DUAL-AC uses two detection paths – infrared (PIR) and microwave (MW) – which provides greater resistance to interference resulting from difficult environmental conditions, such as drafts, airflow, or sudden temperature changes.

FEATURES:
  • motion-activated lighting
  • two detection paths: PIR and MW
  • NO control output
  • digital motion detection algorithm for both sensors
  • digital temperature compensation
  • built-in twilight sensor
  • maximum detection area:
    • 12 m x 5 m (56 m²) – mounting height 2.4 m
    • 14 m x 6 m (80 m²) – mounting height 3 m
  • built-in potentiometers for adjustment:
    • SENS - motion detection sensitivity
    • TIME - lighting activation time (2-180 s)
    • LUX - light intensity detection threshold (2-200 lx)
  • 230 V AC power supply
  • Ceiling surface mounting
SLIM-S-PIR-AC is a detector designed for home automation and should not be used as a motion detector in an alarm system

TECHNICAL DATA:

  • Power supply voltage: 230 V AC, 50 Hz
  • Standby power consumption: 0.2 W
  • Maximum power consumption: 0.5 W
  • Control output (NO relay): 8 A / 250 V AC
  • Contact resistance: ≤ 100 mΩ
  • Microwave frequency: 24.125 GHz
  • Detectable motion speed: 0.3...3 m/s
  • Lighting on time: 2...180 s
  • Recommended mounting height: 2.4...3.5 m
  • Maximum detection area:
    • Mounting at a height of 2.4 m: 12 m x 5 m [56 m2]
    • Mounting at a height of 3 m: 14 m x 6 m [80 m2]
  • Environmental class according to EN 50130-5: II
  • Operating temperature range: -10°C...+55°C
  • Maximum humidity: 93±3%
  • Dimensions: ø 120 x 37 mm
  • Weight: 121 g
