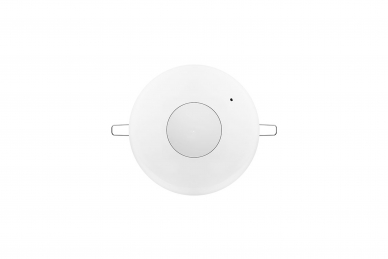

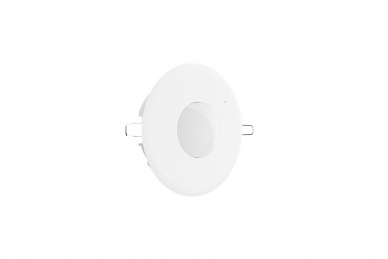

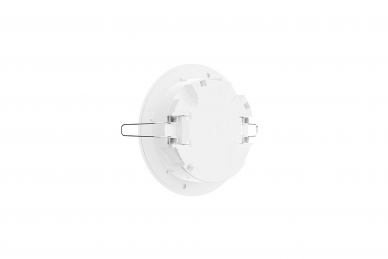

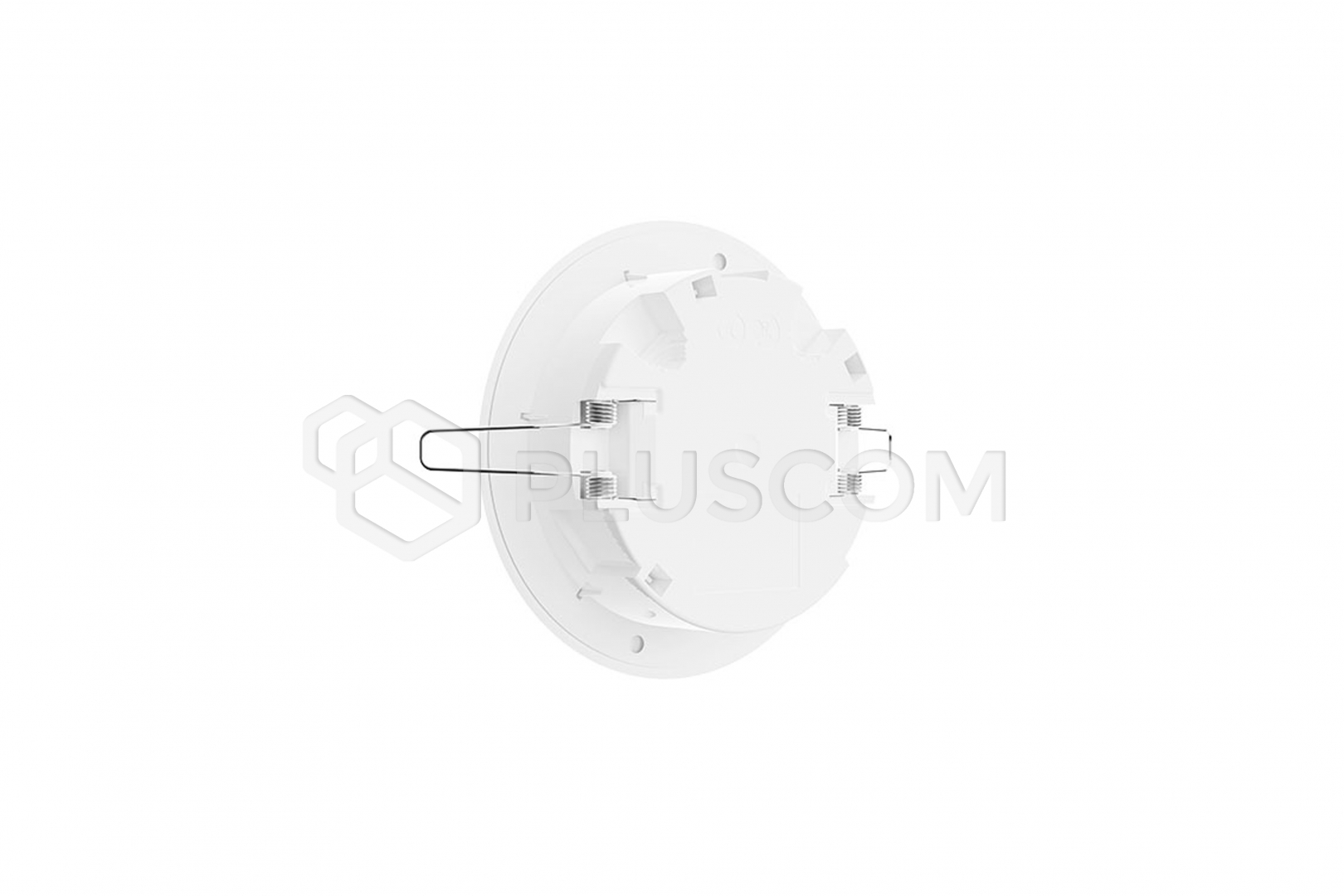

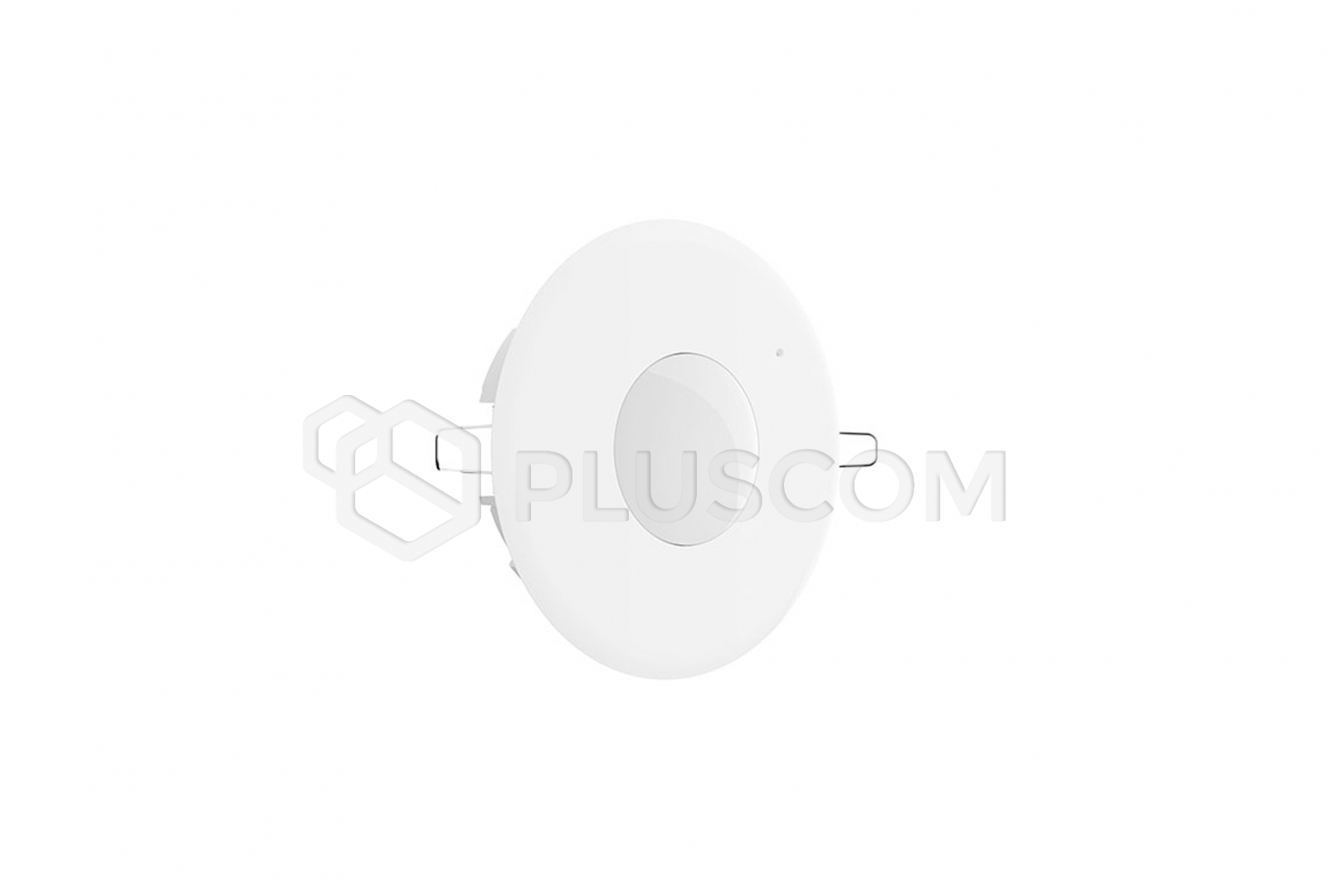

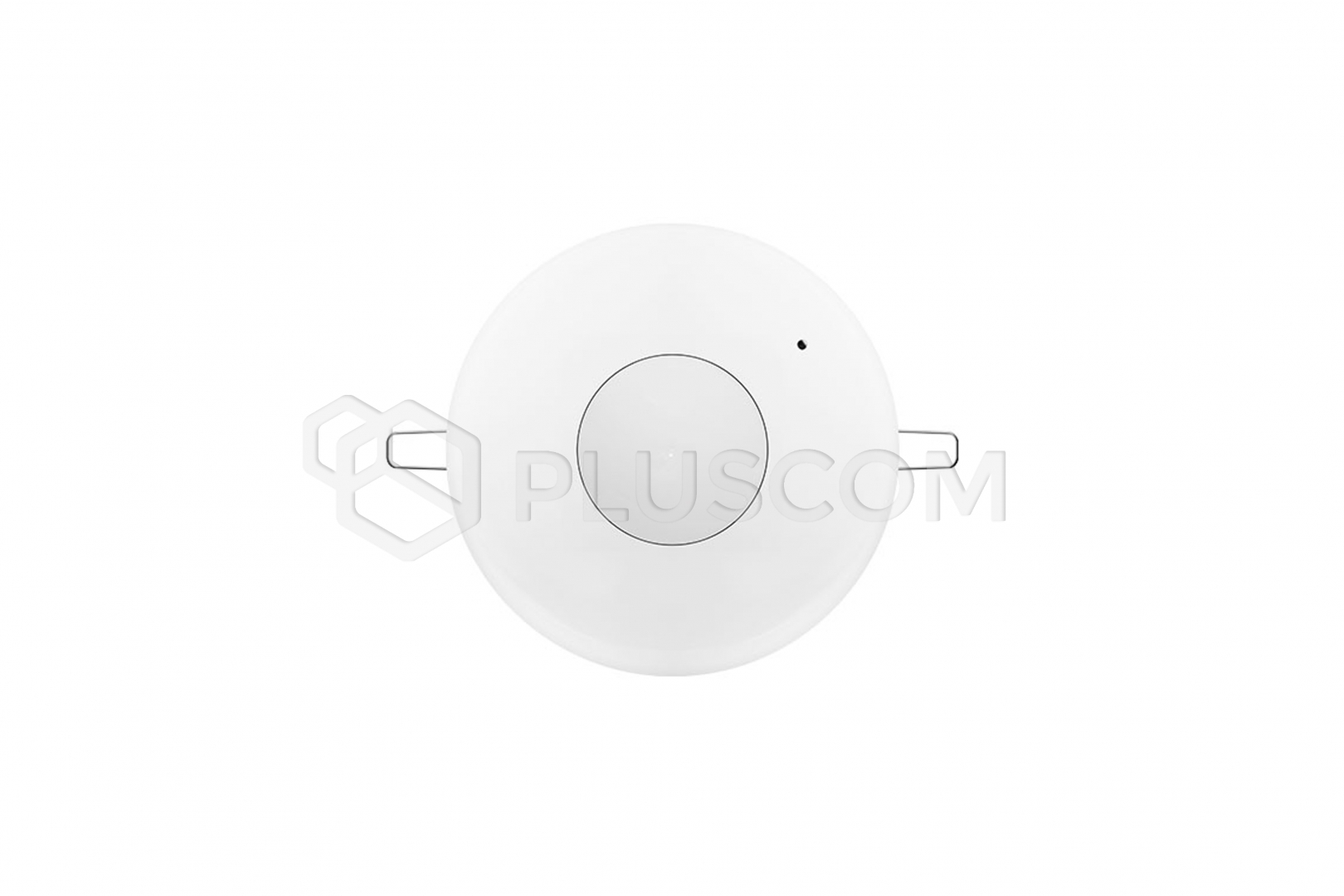

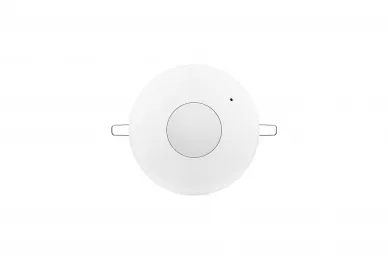

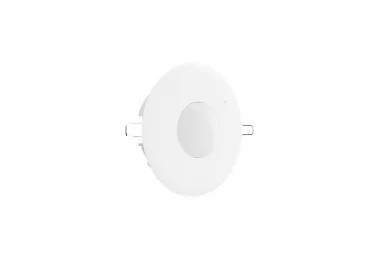

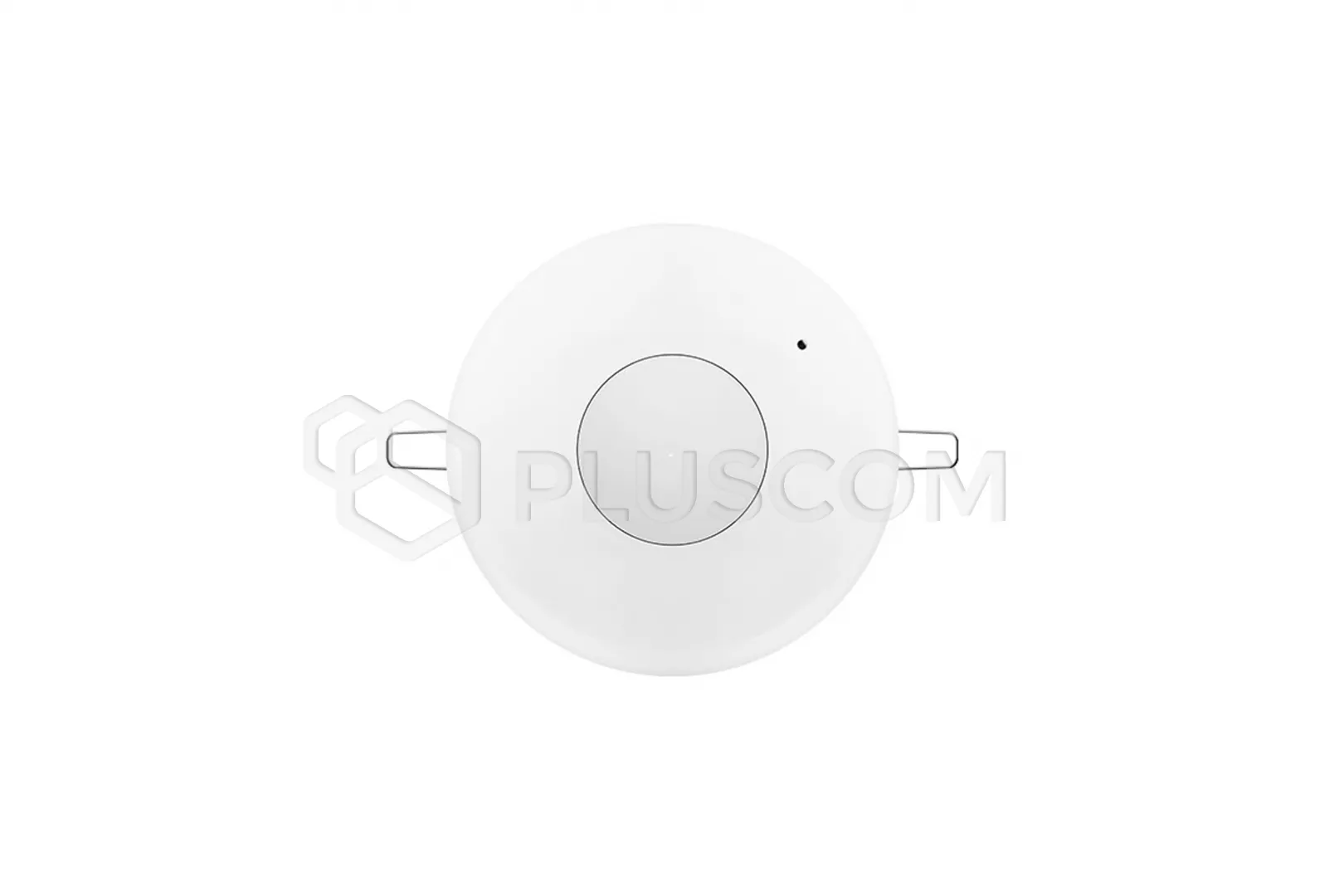

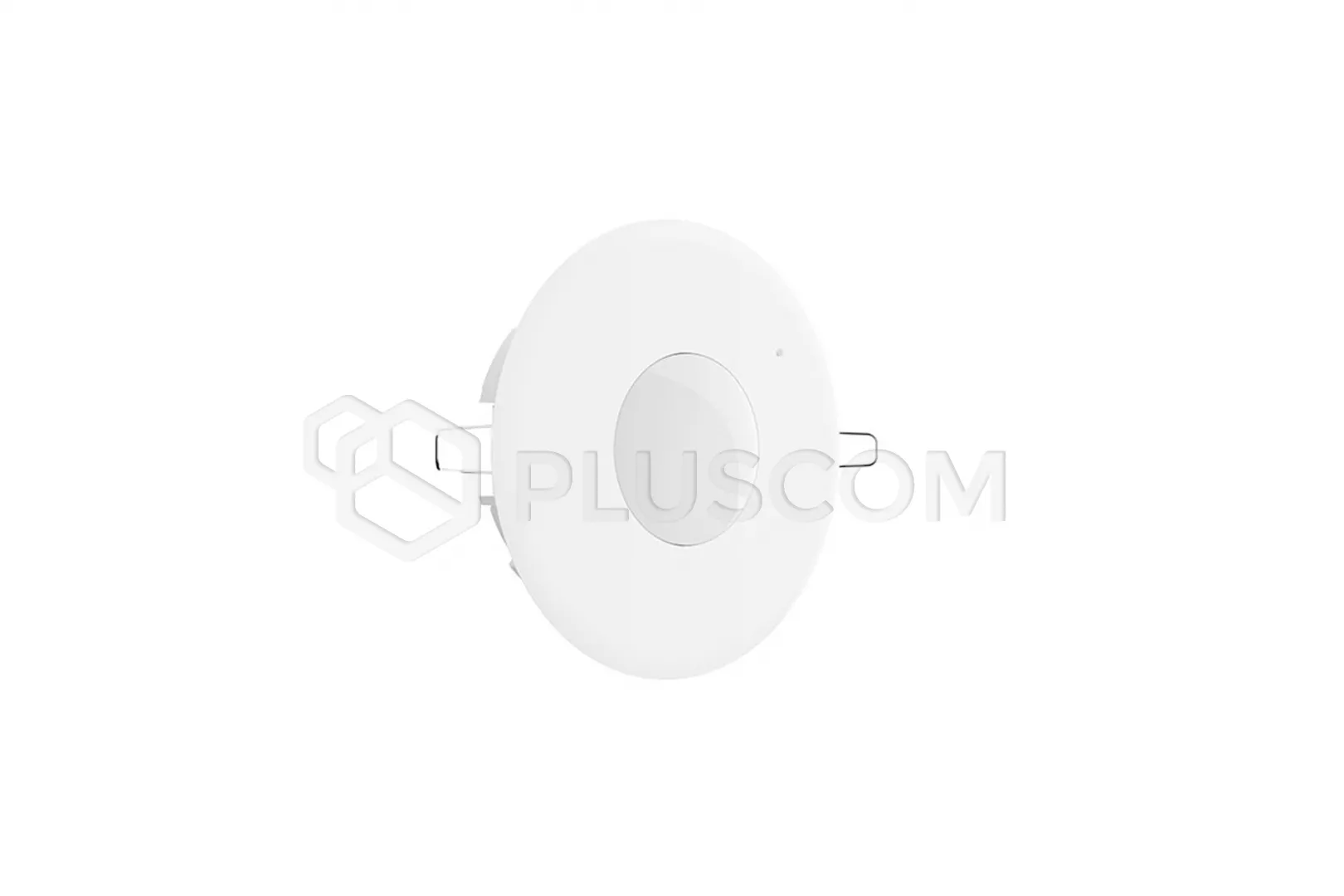

Satel SLIM-R-PIR-AC Ceiling PIR motion sensor for lighting control, recessed

Satel SLIM-R-PIR-AC Ceiling-mounted PIR motion sensor for lighting control, recessed mounting

SLIM-R-PIR-AC is a standalone indoor ceiling-mounted motion detector designed to control 230 V AC lighting.
The device detects motion using infrared in the protected area and activates the connected lighting, fully automating its operation. The detector is powered directly by 230 V AC, eliminating the need for additional power supplies and simplifying installation.

Thanks to the built-in dusk sensor, the light is only turned on when the ambient light level is low.
The time for which the lights are turned on can be set from 2 to 180 seconds. If the lights are turned on and motion is detected again, the time starts again.

FEATURES:

• motion-activated lighting
• standalone device
• NO control output
• digital motion detection algorithm
• digital temperature compensation
• built-in twilight sensor
• maximum detection area:
• • 12 m x 5 m (56 m²) – mounting height 2.4 m
  • 14 m x 6 m (80 m²) – mounting height 3 m
• built-in potentiometers for adjustment:
• • SENS - motion detection sensitivity
  • TIME – lighting activation time (2-180 s)
  • LUX – Light intensity detection threshold (2-200 lx)
• 230 V AC power supply
• flush mounting

SLIM-R-PIR-AC is a detector designed for home automation and should not be used as a motion detector in an alarm system

TECHNICAL DATA:

• Power supply voltage: 230 V AC, 50 Hz
• Standby power consumption: 0.2 W
• Maximum power consumption: 0.5 W
• Control output (NO relay): 8 A / 250 V AC
• Contact resistance: ≤ 100 mΩ
• Detectable motion speed: 0.3...3 m/s
• Lighting on time: 2...180 s
• Recommended mounting height: 2.4...3.5 m
• Maximum detection area:
• Mounting at 2.4 m height: 12 m x 5 m [56 m2]
• Installation at 3 m height: 14 m x 6 m [80 m2]
• Environmental class according to EN 50130-5: II
• Operating temperature range: -10°C...+55°C
• Maximum humidity: 93±3%
• Dimensions: ø 120 x 37 mm
• Weight: 119 g
