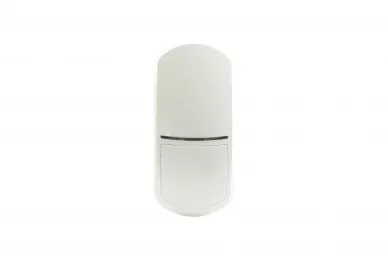

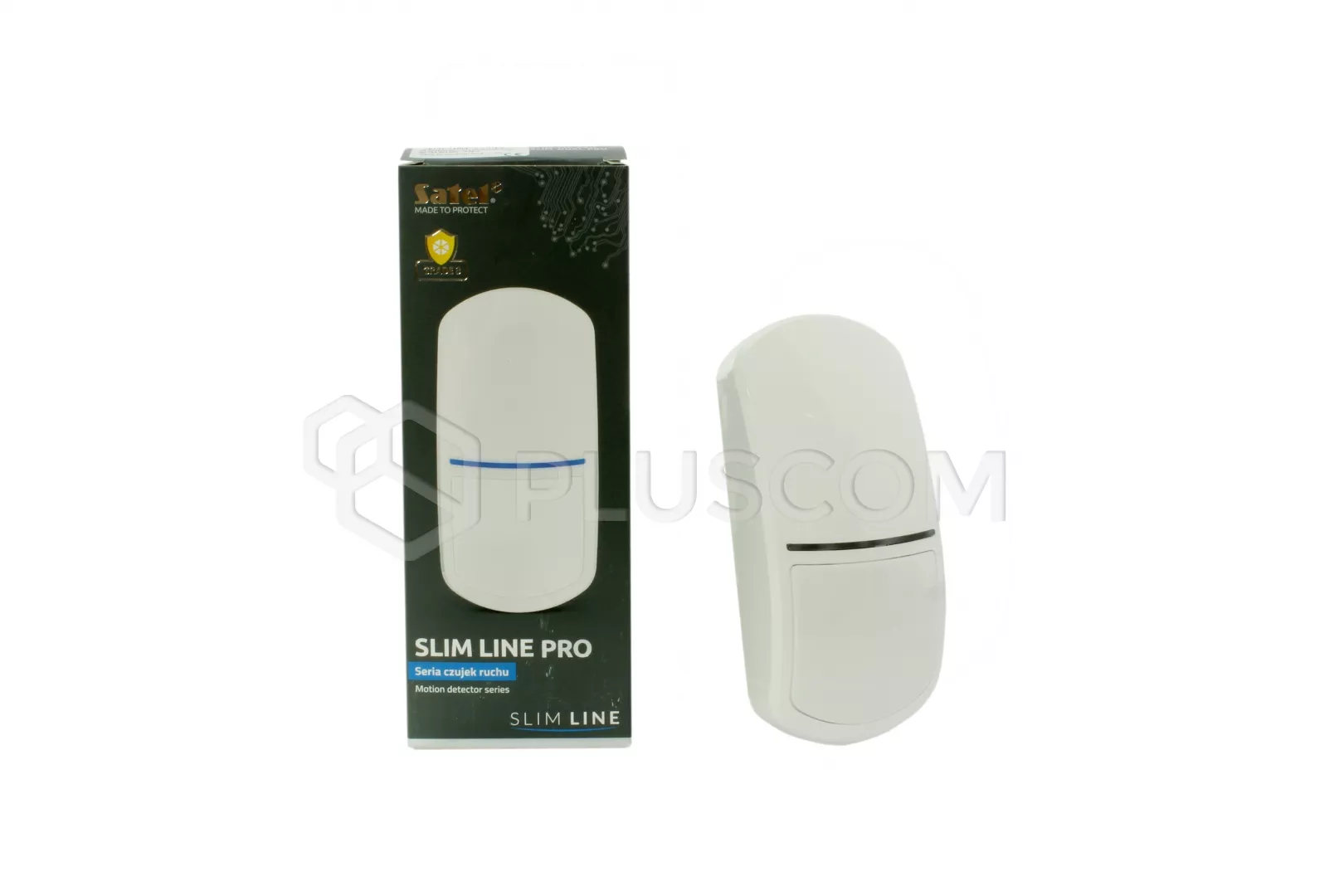

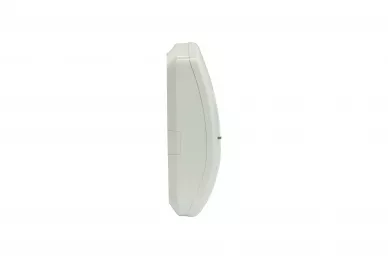

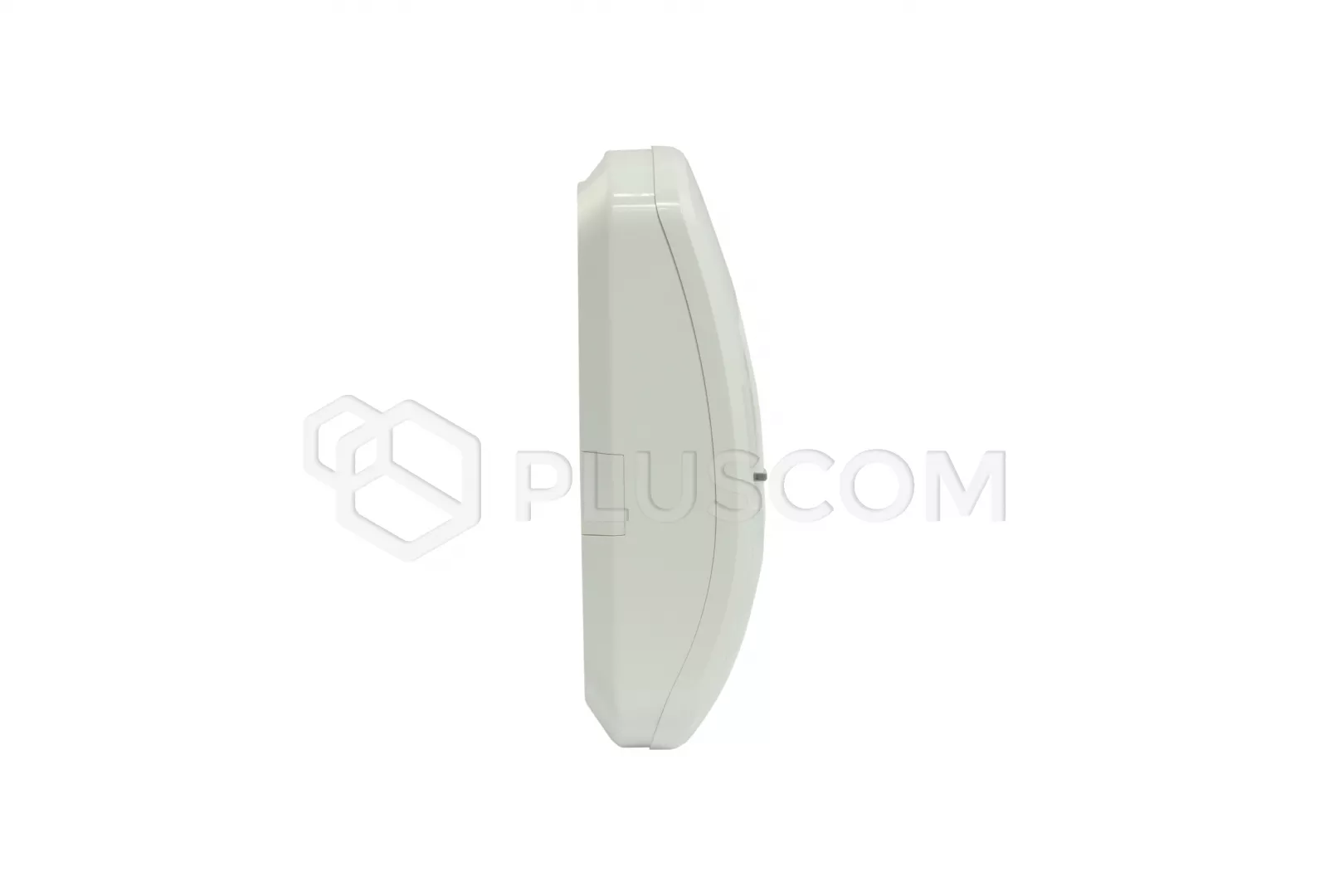

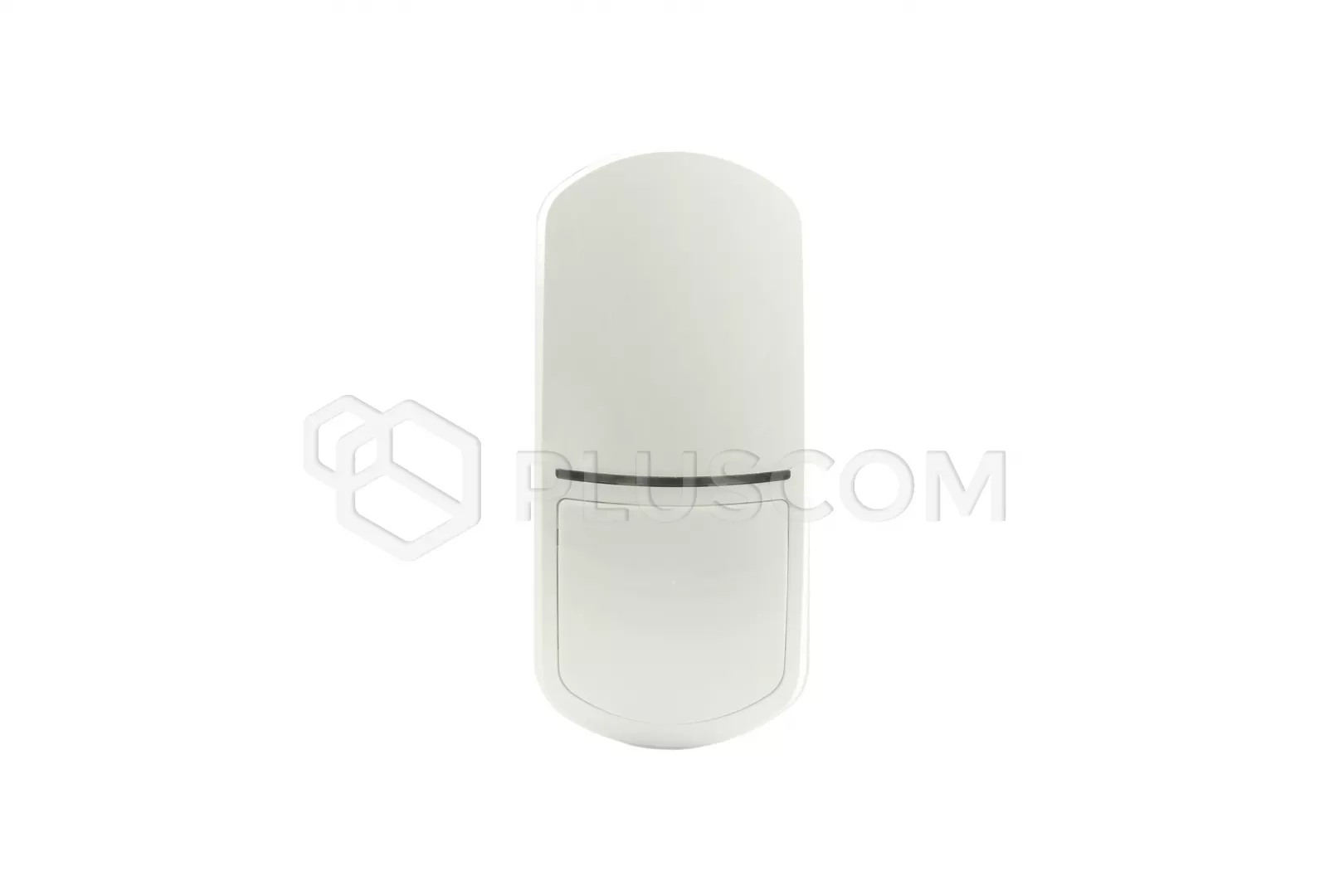

Satel SLIM-DUAL-PRO Dual–tech PIR+MW motion detector with IR anti–masking function

88,74 EUR including 23.00% VAT
Product code: #20709
Manufacturer: Satel
  • compliance with EN 50131 requirements for Grade 3
  • two detection paths: PIR and MW
  • coverage area 20x24m, 90°
  • option to replace the wide-angle lens with a curtain or long-range one
  • 7 LED signaling colors available
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel CT-CL2 Housing cover with a curtain lens Satel LR-CL2 Enclosure cover with LR Fresnel lens

Satel SLIM-DUAL-PRO DUAL–TECH PIR+MW MOTION DETECTOR WITH IR ANTI–MASKING FUNCTION


SLIM-DUAL-PRO detects motion in the protected area.

  • compliance with EN 50131 requirements for Grade 3
  • motion detection using two sensors: a passive infrared (PIR) sensor and a microwave (MW) sensor
  • adjustable detection sensitivity of both sensors
  • option to test the sensors separately
  • digital motion detection algorithm
  • digital temperature compensation
  • digital filter of signals received by the microwave sensor to ensure immunity to false alarms caused by the power network and discharge lamps
  • operating mode selection: basic or advanced
  • option to enable/disable the creep zone protection
  • wide-angle lens, designed specifically for SLIM LINE detectors
  • option to replace the wide-angle lens with a curtain (CT-CL) or long-range (LR-CL) one
  • active IR anti-masking, compliant with EN 50131-2-4 for Grade 3
  • ability to configure detector operating parameters using the OPT-1 keyfob
  • built-in end-of-line resistors (2EOL: 2 x 1,1 kΩ / 2 x 4,7 kΩ / 2 x 5,6 kΩ)
  • LED indicator
  • selectable color of LED indicator (7 colors available)
  • LED indicator remote enable/disable
  • configuration mode remote enable/disable
  • supervision of motion detection and supply voltage circuit
  • tamper protection against opening of enclosure and removal from mounting

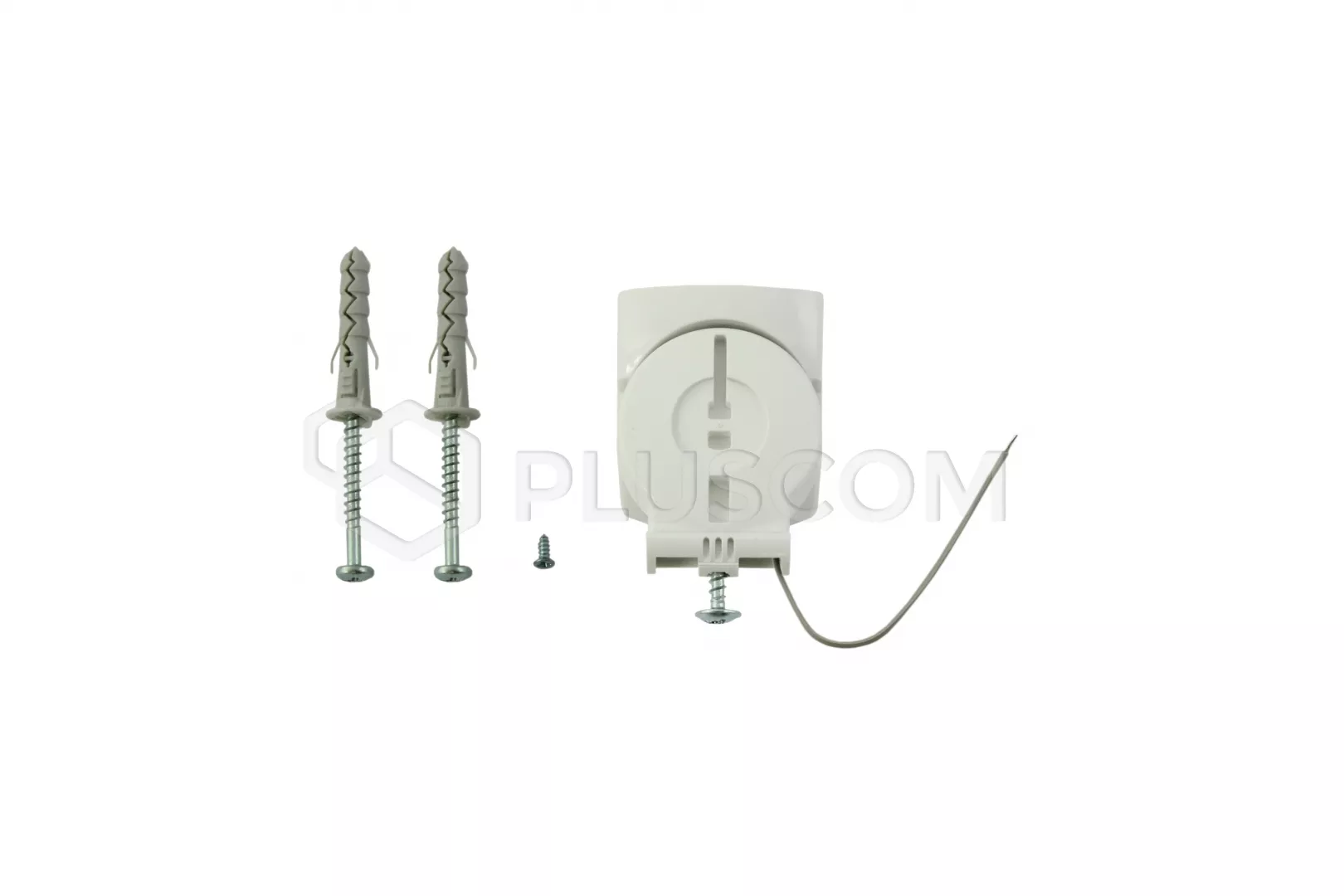

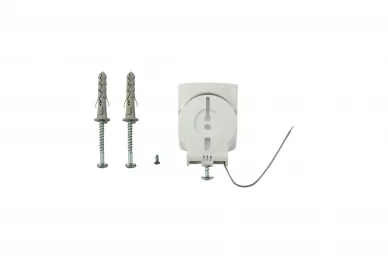

  • adjustable mounting holder (BRACKET D) included, provided with tamper switch
Remote configuration of the detector operating parameters can be made using the OPT-1 keyfob.
Satel OPT-1 Infrared remote control
Satel OPT-1 Infrared remote control
25.53 EUR
 Add to cart
Download
Datasheet 0.11 MB
User Manual 0.46 MB
