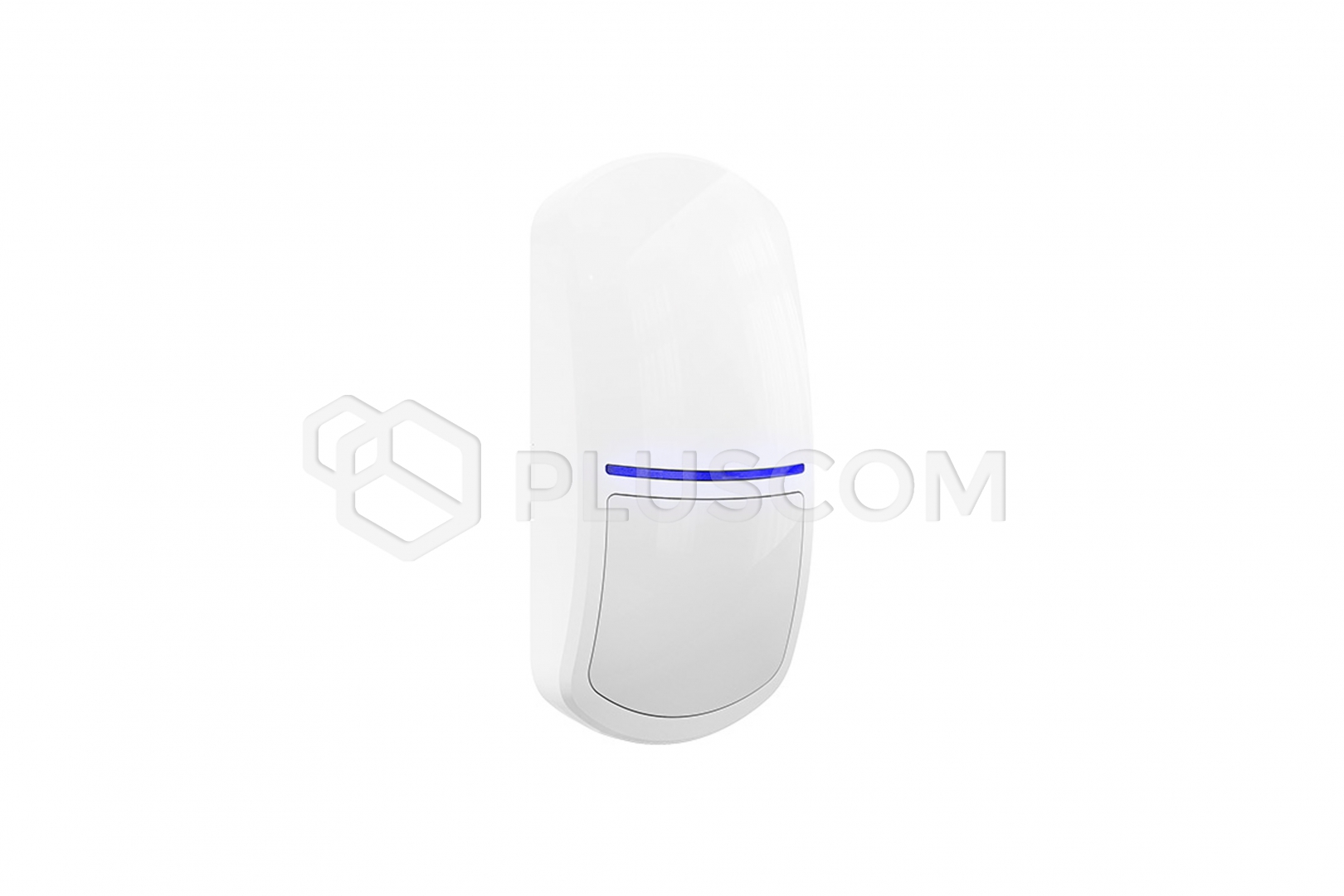

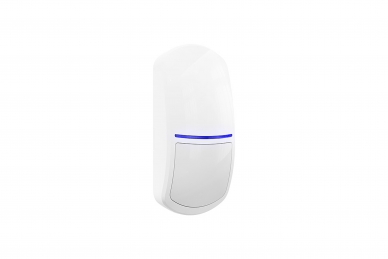

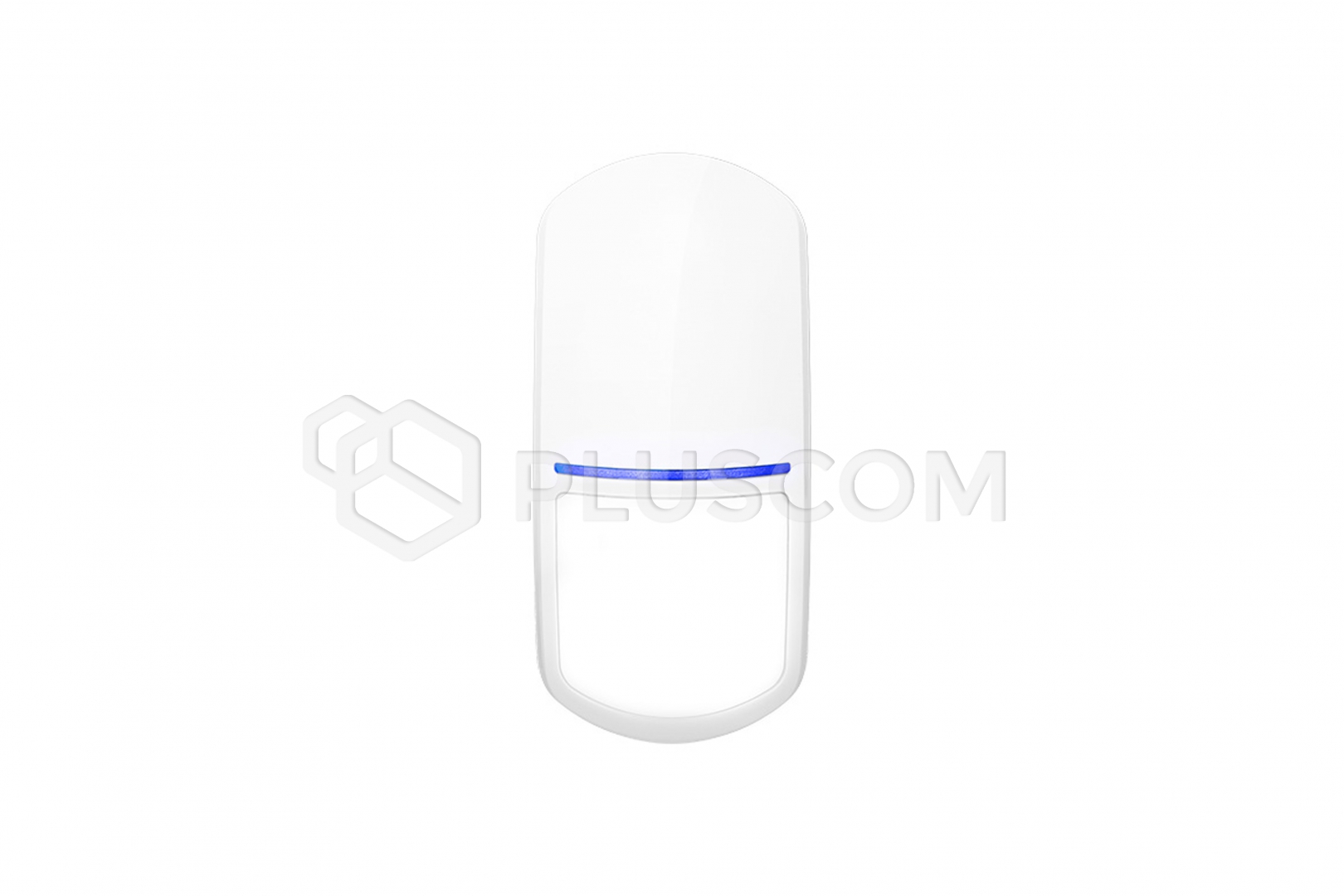

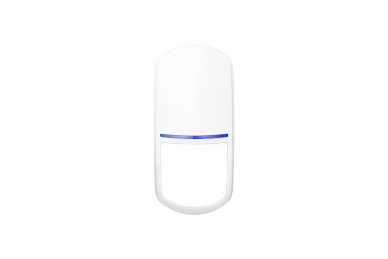

Satel SLIM-DUAL-PRO BUS Dual bus motion detector with anti-masking

Satel SLIM-DUAL-PRO BUS Dual Bus Motion Detector with Anti-Masking and Bracket Included

The SLIM-DUAL-PRO BUS detector detects motion in the protected area using infrared and microwaves. The detector can be connected to the RS communication bus of a SATEL alarm control panel that supports bus devices.

The detector will report an alarm when the infrared (PIR) sensor and microwave sensor detect motion within a time interval of less than 3 seconds, as well as tampering when the enclosure is opened or removed from the mounting surface.

The light source is 4 white LEDs, which indicate:

• Start-up – flashes alternately in different colors for approximately 30 seconds
• Motion detected by the microwave sensor – glows green for 3 seconds
• Motion detected by the PIR sensor – glows purple for 3 seconds
• Alarm – glows blue for 2 seconds
• Fault – glows blue for the duration of the fault

FEATURES:

• Meets the requirements of EN 50131-2-4 for Grade 3
• Motion detection using a passive infrared (PIR) sensor and a microwave (MW) sensor
• Maximum detection area: 20 m x 24 m, 90°
• Adjustable detection sensitivity of both sensors
• Separate sensor testing possible
• Digital motion detection algorithm
• Digital temperature compensation
• Digital filter for signals received by the microwave sensor ensures immunity to interference from the power grid and discharge lamps
• Creep zone control can be enabled/disabled
• Wide-angle lens designed specifically for SLIM series detectors
• Option to replace the lens with a curtain lens (CT-CL) or long-range lens (LR-CL)
• Active IR anti-masking compliant with EN 50131-2-4 for Grade 3
• RS communication bus
• Settings programming via RS bus
• Software updates via RS bus
• Built-in temperature sensor (measuring range: -10°C...+55°C)
• LED indicators
• Motion detection system supervision
• 12 V DC (15%) power supply
• Power supply voltage monitoring
• Sabotage protection against opening the housing and removal from the mounting surface
• Adjustable mounting bracket (BRACKET D) included

The detector has an active anti-masking function that detects attempts to cover the detector or paint the lens. The device emits infrared radiation and measures the amount of radiation received. If the detector detects a change in the level of received infrared radiation, it will report masking. The detector reports/indicates masking as long as it receives an inappropriate amount of infrared radiation.

TECHNICAL DATA

• Power supply voltage: 12 V DC ±15%
• Standby current consumption: 16 mA
• Maximum current consumption: 69 mA
• Microwave frequency: 24.125 GHz
• Detectable motion speed: 0.2...3 m/s
• Alarm signaling time: 2 s
• Warm-up time: 30 s
• Recommended mounting height: 2.4 m
• Permissible mounting height: up to 4 m
• Maximum detection area (mounted at 2.4 m): 20 m x 24 m, 90°
• Security rating according to EN 50131-2-4: Grade 3
• Standards met: EN 50131-1, EN 50131-2-4, EN 50130-4, EN 50130-5
• Environmental class according to EN 50130-5: II
• Operating temperature range: -10°C...+55°C
• Maximum humidity: 93±3%
• Dimensions: 62 x 137 x 42 mm
• Weight: 143 g
