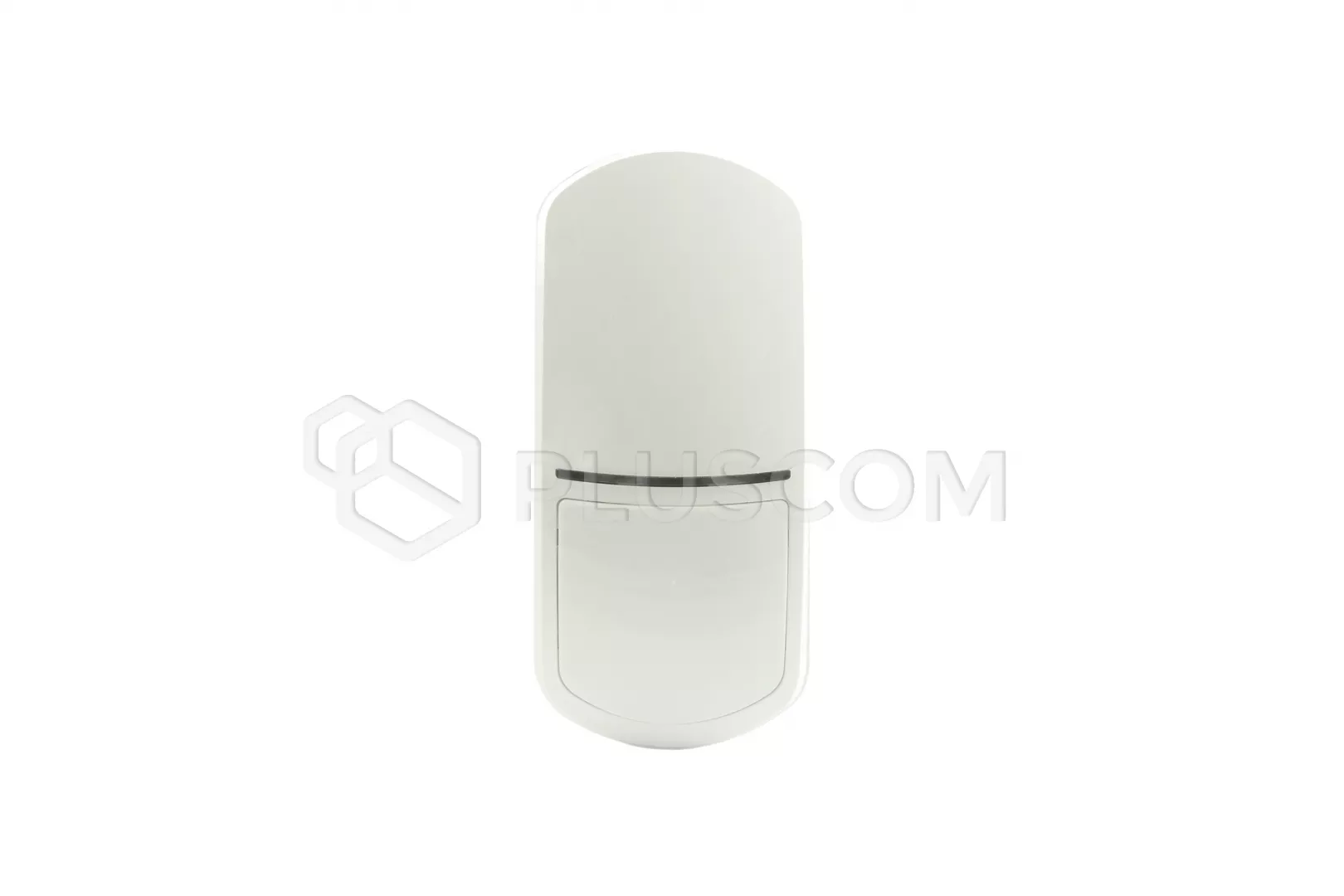

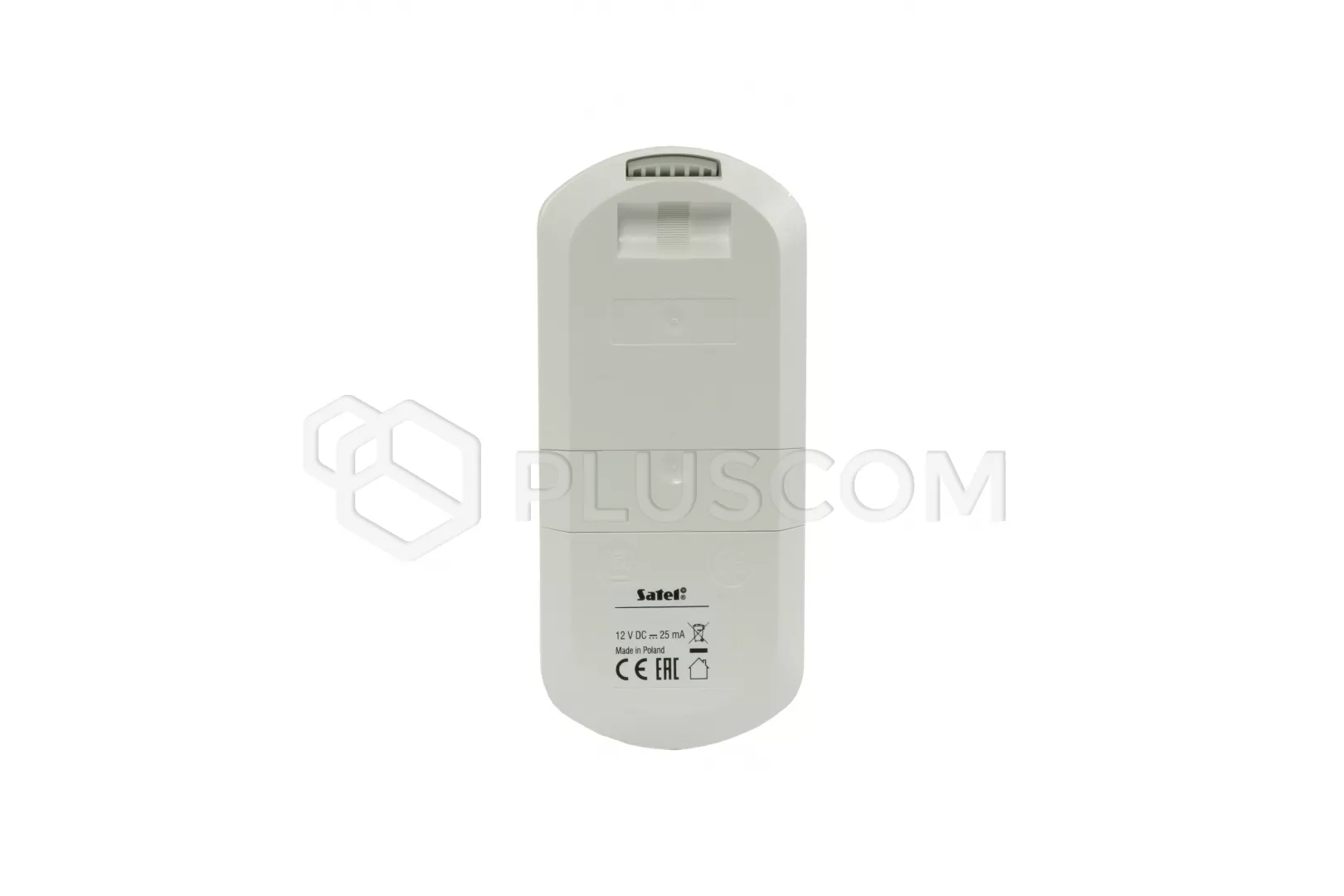

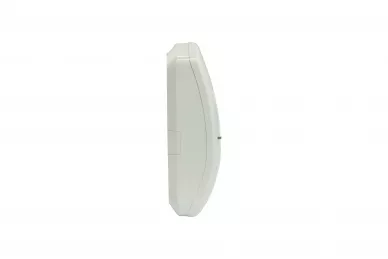

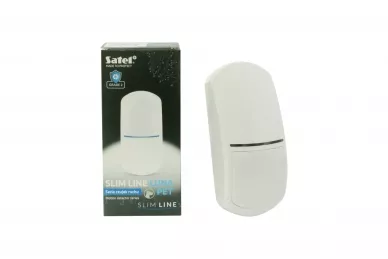

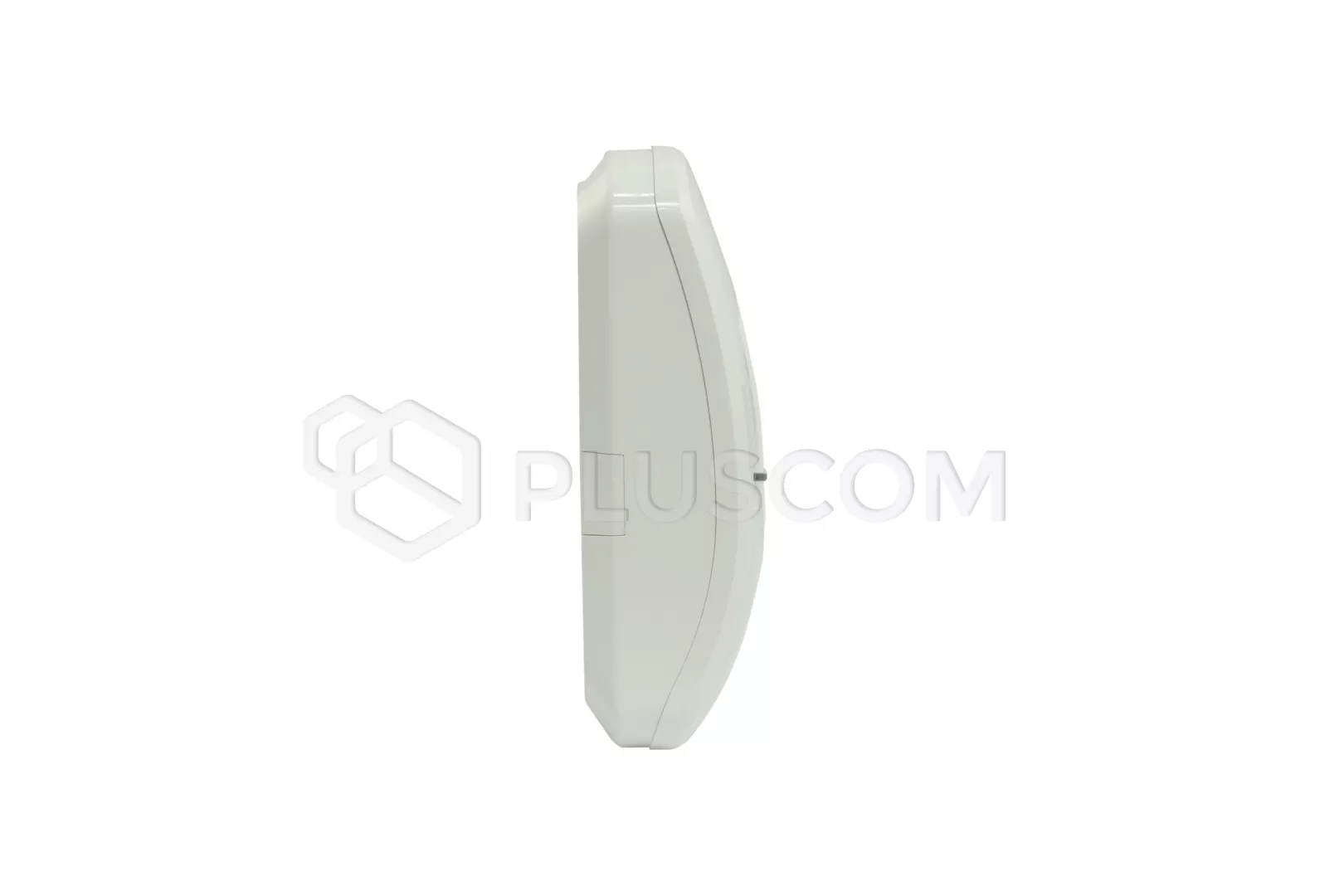

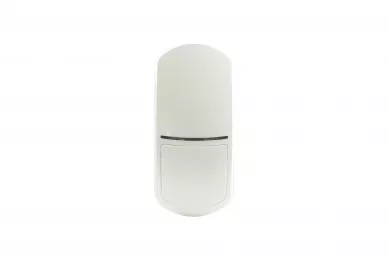

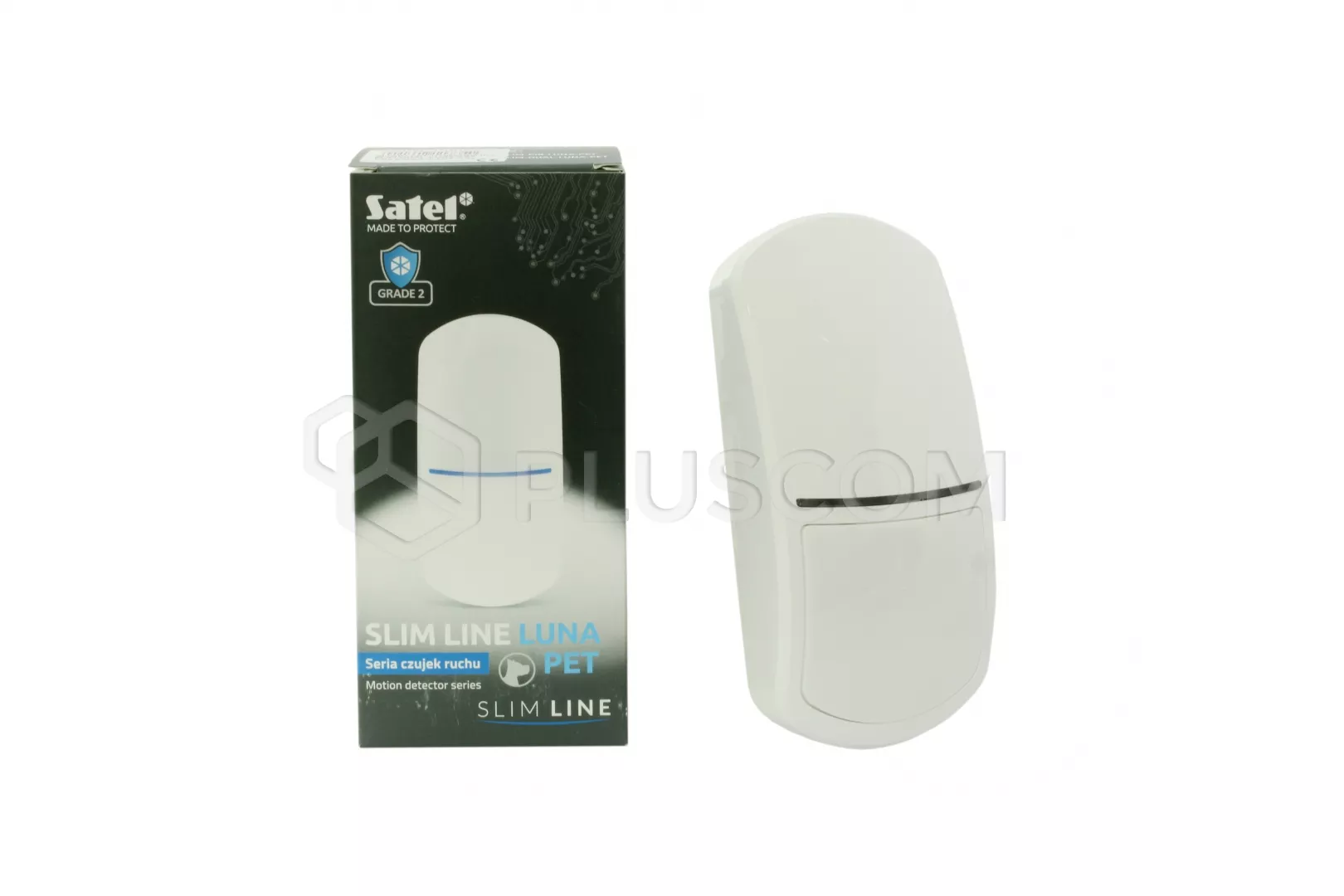

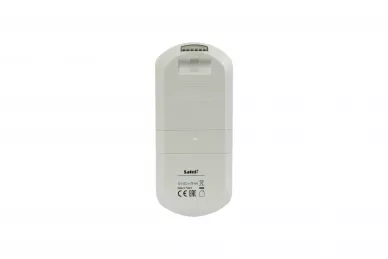

Satel SLIM-DUAL-LUNA PET DUAL–TECH PIR+MW Mottion Detector

59,29 EUR including 22.00% VAT
On stock. Ships in one business day
Delivery time: 3 - 5 days
Product code: #20708
Manufacturer: Satel
  • two detection paths: PIR and MW
  • coverage area 12x13m, 90°
  • pet immunity up to 20 kg
  • additional light source
  • 7 LED signaling colors available
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel BRACKET D Adjustable holder for motion detectors

Satel SLIM-DUAL-LUNA PET DUAL–TECH PIR+MW Mottion Detector with lighting feature and pet immunity up to 20 kg



SLIM-DUAL-LUNA detects motion in the protected area. Additionally, the detector has a set of LEDs to implement the lighting feature.

CHARACTERISTICS:
  • compliance with EN 50131 requirements for Grade 2

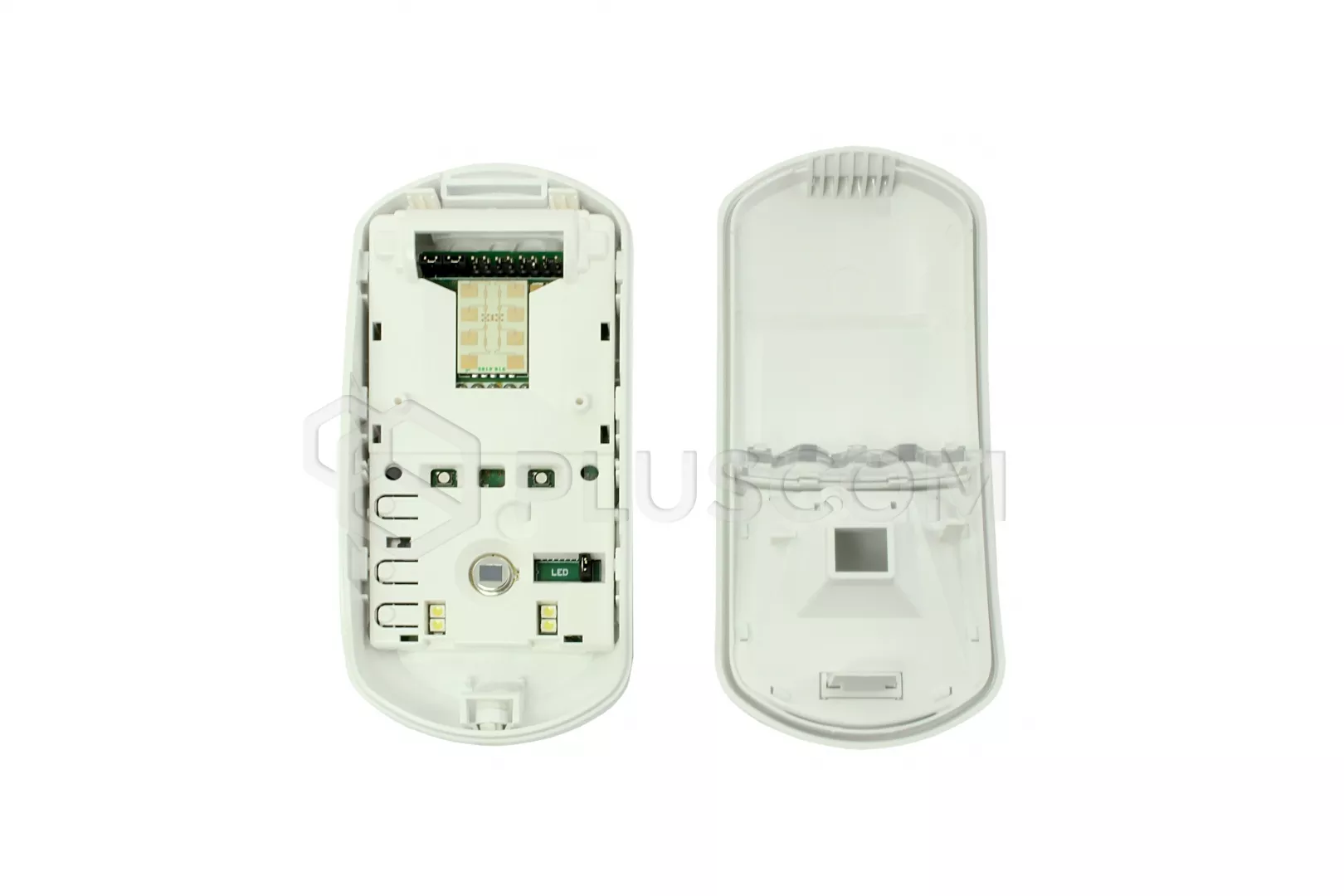

  • motion detection using two sensors: a passive infrared (PIR) sensor and a microwave (MW) sensor
  • adjustable detection sensitivity of both sensors
  • digital motion detection algorithm
  • digital temperature compensation
  • digital filter of signals received by the microwave sensor to ensure immunity to false alarms caused by the power network and discharge lamps
  • operating mode selection: basic, advanced, PIR or MW
  • wide-angle lens, designed specifically for SLIM LINE detectors
  • ability to configure detector operating parameters using the OPT-1 keyfob
  • built-in end-of-line resistors (2EOL: 2 x 1,1 kΩ / 2 x 4,7 kΩ / 2 x 5,6 kΩ)
  • lighting feature implemented with white LEDs
  • remote lighting control or motion activated lighting capability
  • LED indicator
  • selectable color of LED indicator (7 colors available)
  • LED indicator remote enable/disable
  • remote switching between two sets of detector operating parameters
  • configuration mode remote enable/disable
  • supervision of motion detection and supply voltage circuit
  • tamper protection against opening of enclosure and removal from mounting
Remote configuration of the detector operating parameters can be made using the OPT-1 keyfob.
Satel OPT-1 Infrared remote control
Satel OPT-1 Infrared remote control
25.33 EUR
 Add to cart
Download
Datasheet 0.11 MB
User manual 0.36 MB
