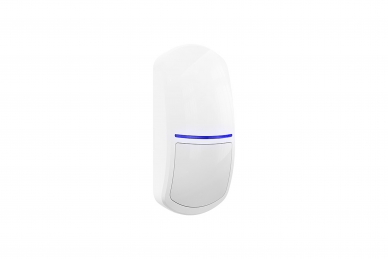

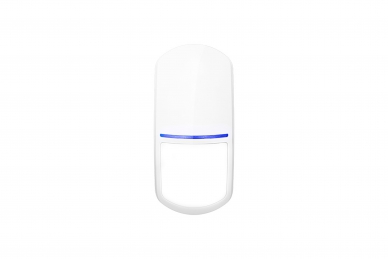

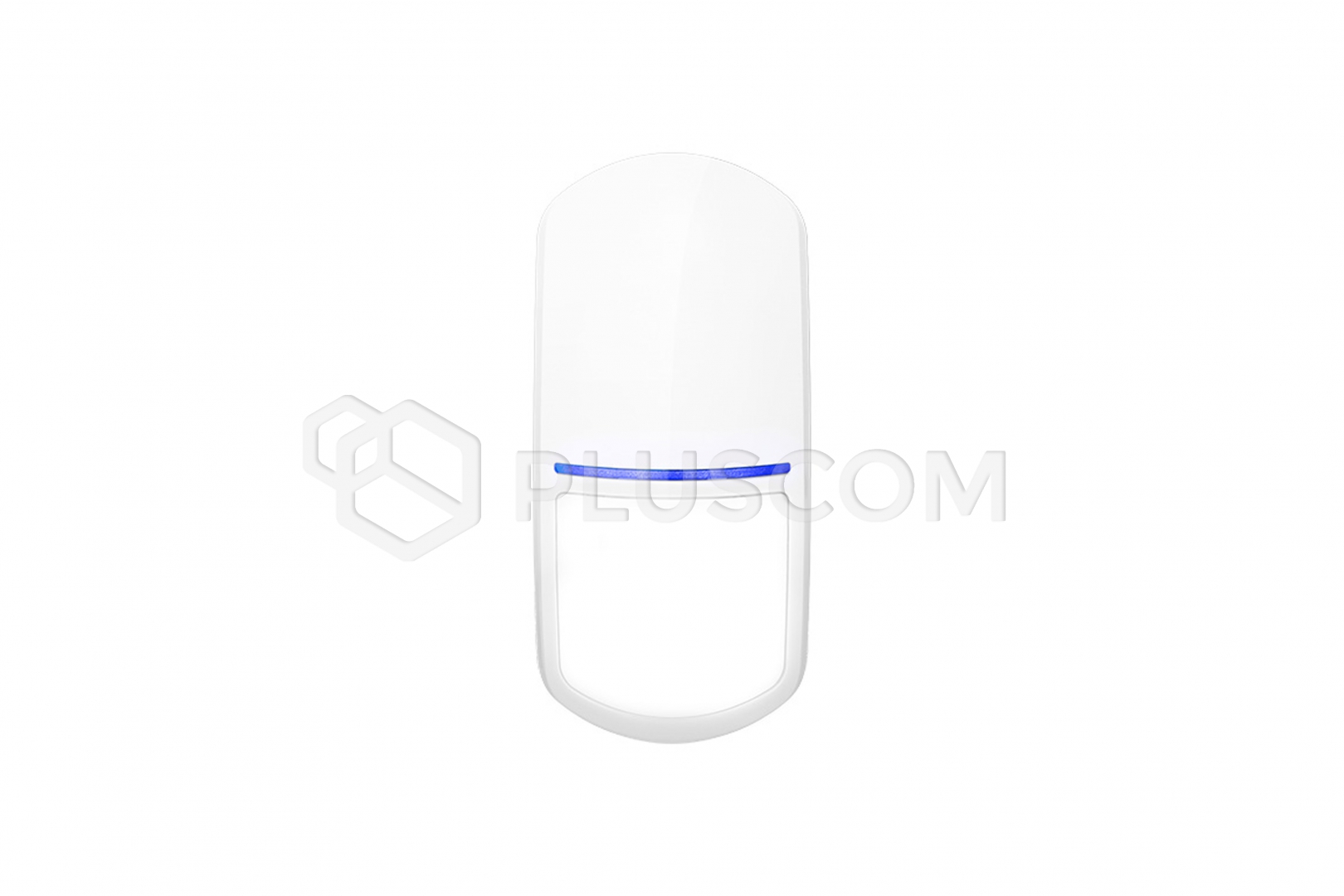

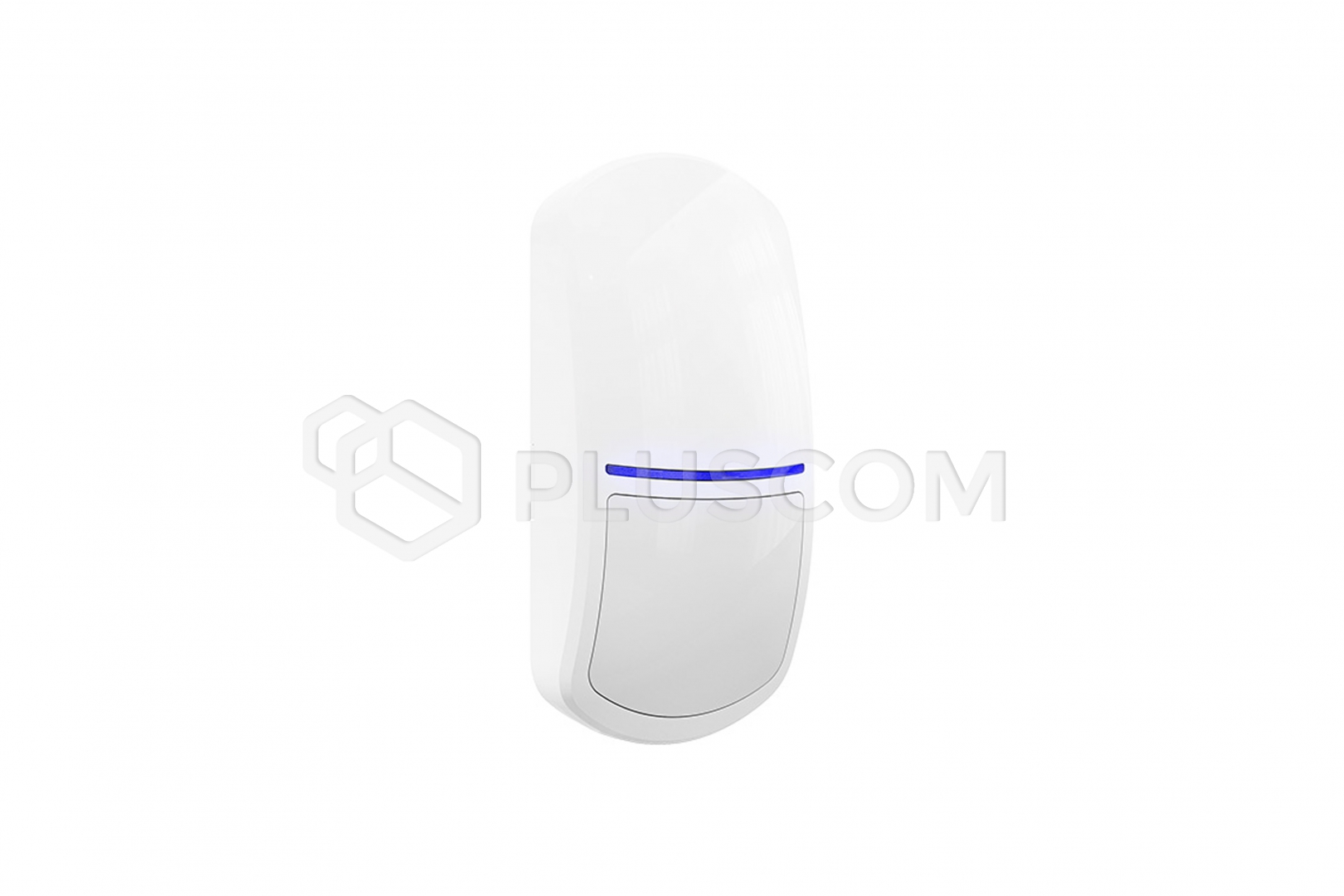

Satel SLIM-DUAL-LUNA-PET BUS Dual bus motion detector with lighting function

Satel SLIM-DUAL-LUNA-PET BUS Dual Bus Motion Detector with Lighting Function and Bracket Included

The SLIM-DUAL-LUNA-PET BUS detector detects motion in the protected area using infrared and microwaves. The device ignores the movement of animals weighing up to 20 kg up to a height of 1 meter from the floor. Additionally, the detector has a set of LEDs that provide lighting. The detector can be connected to the RS communication bus of a SATEL alarm control panel supporting bus devices.

The detector will trigger an alarm when the infrared (PIR) sensor and microwave sensor detect motion within a time interval of less than 3 seconds, as well as when tampering occurs during an attempt to open the enclosure or remove it from the mounting surface.

The light source is 4 white LEDs, which indicate:

• Start-up – flashes alternately in different colors for approximately 30 seconds
• Motion detected by the microwave sensor – glows green for 3 seconds
• Motion detected by the PIR sensor – glows purple for 3 seconds
• Alarm – lights blue for 2 seconds
• Fault – lights blue for the duration of the fault

FEATURES:

• Meets the requirements for EN 50131 Grade 2 security.
• Motion detection using a passive infrared (PIR) sensor and a microwave (MW) sensor.
• Maximum detection area: 12 m x 13 m, 90°.
• Adjustable detection sensitivity of both sensors.
• Separate sensor testing possible.
• Digital motion detection algorithm.
• Digital temperature compensation.
• Digital filter for signals received by the microwave sensor ensures immunity to interference from the power grid and discharge lamps.
• Wide-angle lens designed specifically for SLIM series detectors.
• RS communication bus.
• Settings programming via the RS bus.
• Updates Software via RS bus
• Built-in temperature sensor (measuring range: -10°C...+55°C)
• Lighting function implemented using LEDs
• Remote lighting control option
• LED indicators
• Motion detection system supervision
• 12 V DC power supply (15%)
• Supply voltage monitoring
• Sabotage protection against opening the housing and removal from the mounting surface

TECHNICAL DATA:

• Power supply voltage: 12 V DC ±15%
• Standby current consumption: 11 mA
• Maximum current consumption: 88 mA
• Microwave frequency: 24.125 GHz
• Detectable motion speed: 0.3...3 m/s
• Alarm signaling time: 2 s
• Warm-up time: 30 s
• Recommended mounting height: 2...2.4 m
• Maximum detection area: 12 m x 13 m, 90°
• Security rating according to EN 50131-2-4: Grade 2
• Standards met: EN 50131-1, EN 50131-2-4, EN 50130-4, EN 50130-5
• Environmental class according to EN 50130-5: II
• Operating temperature range: -10°C...+55°C
• Maximum humidity: 93±3%
• Dimensions: 62 x 137 x 42 mm
• Weight: 143 g
