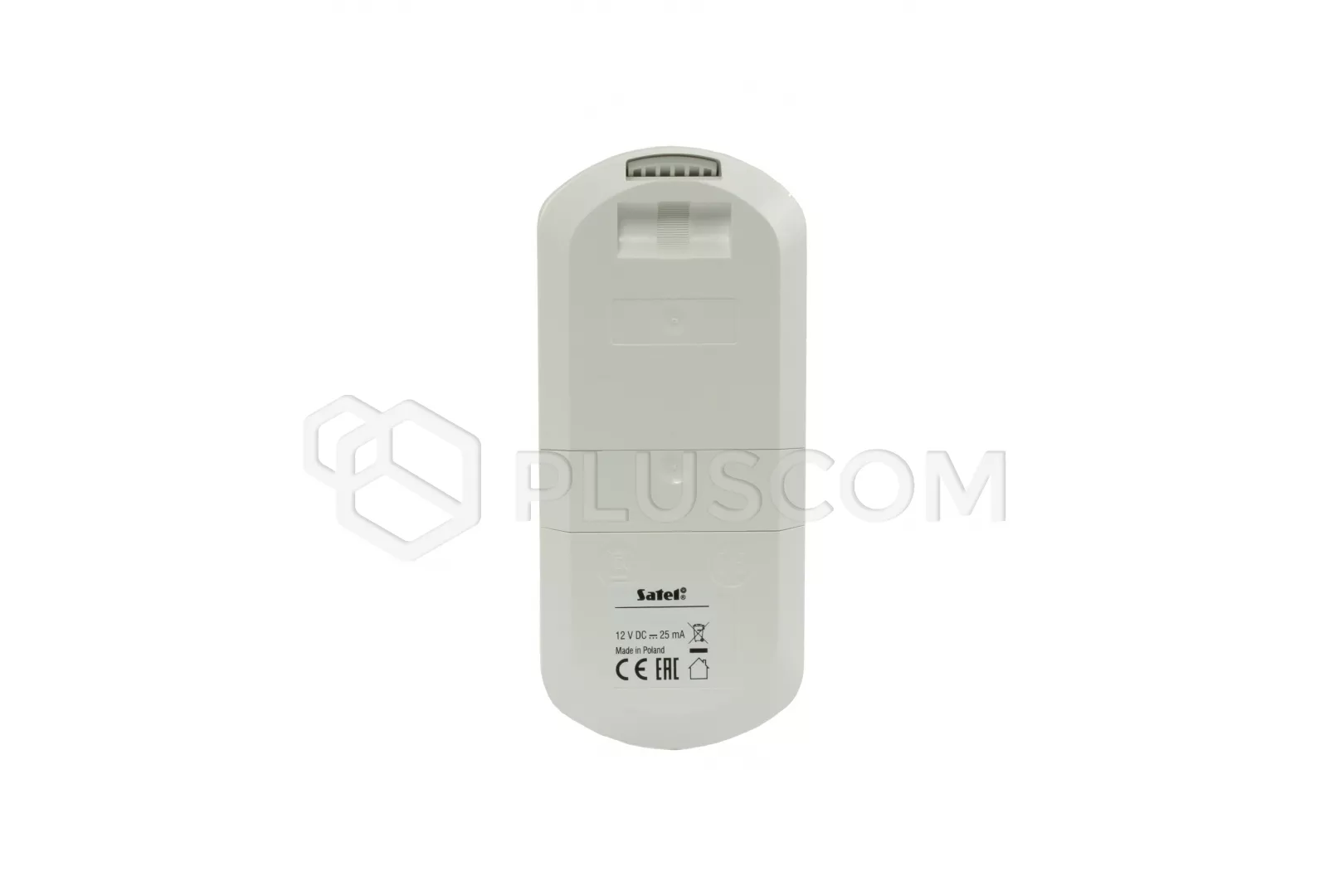

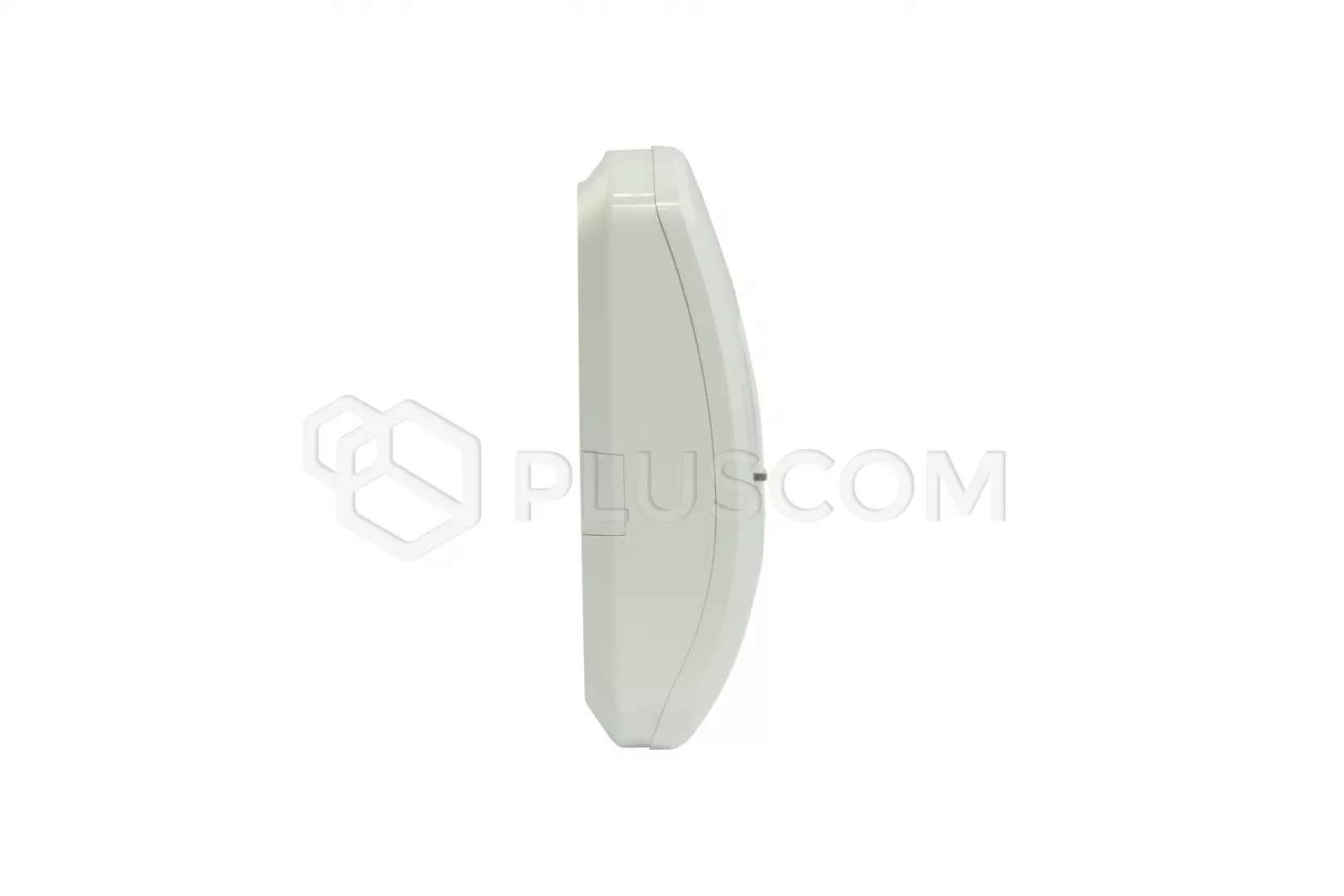

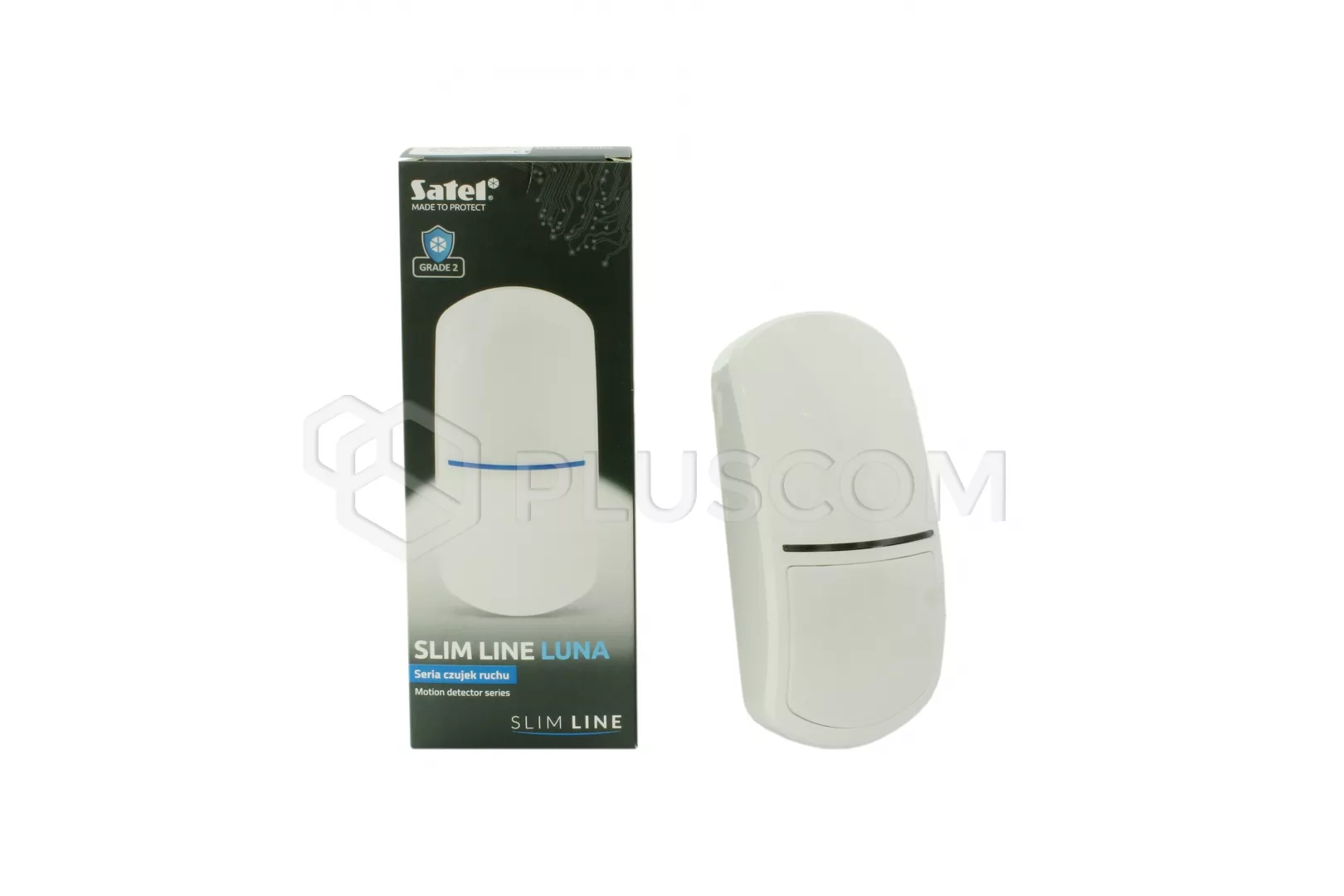

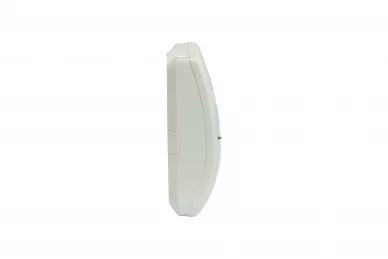

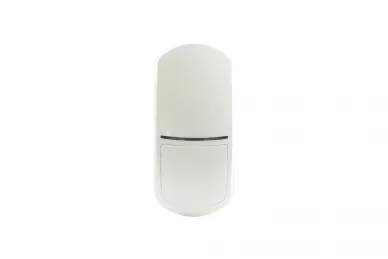

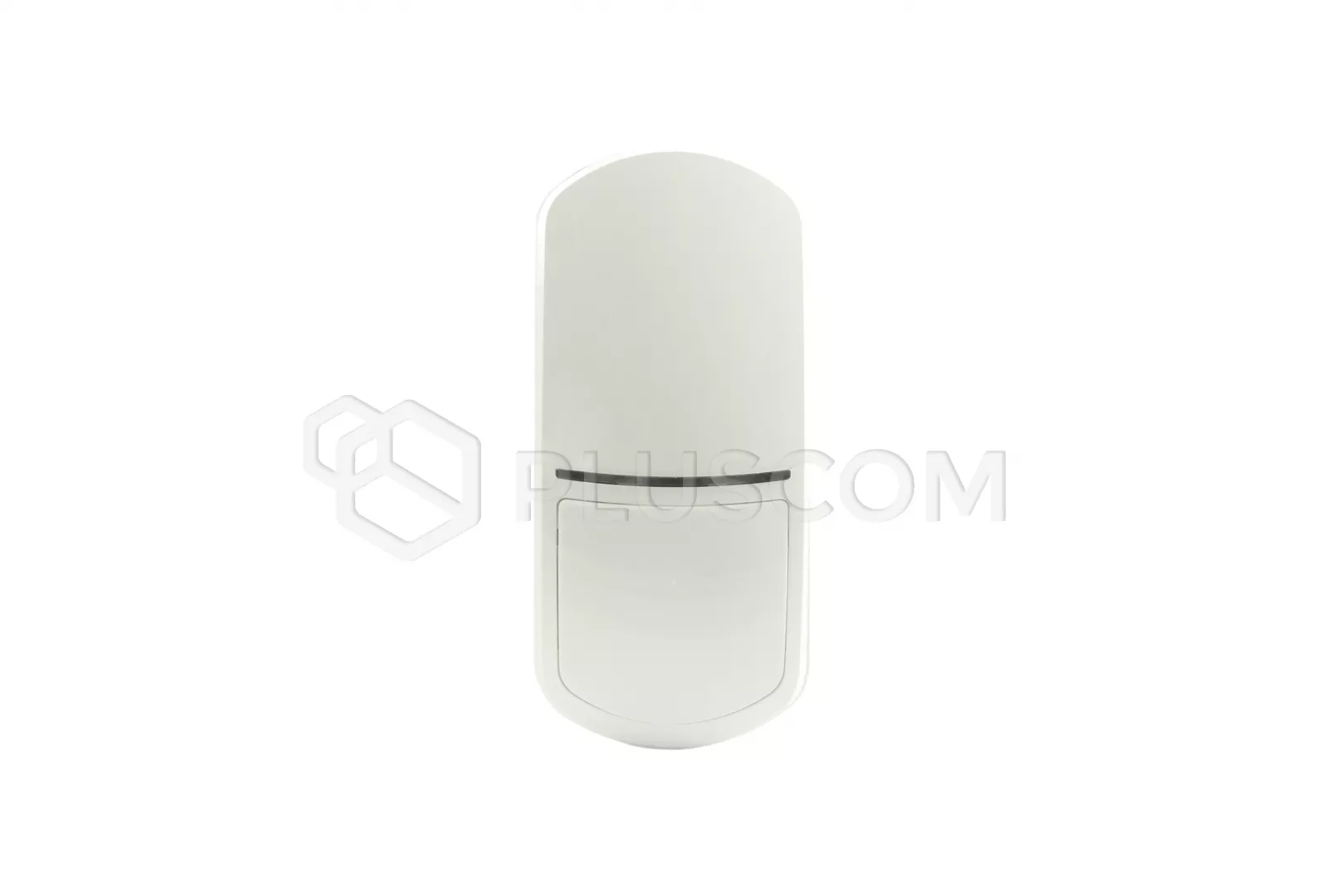

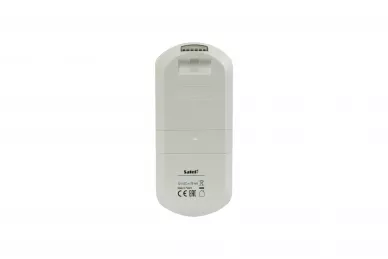

Satel SLIM-DUAL-LUNA DUAL–TECH PIR+MW Mottion Detector

57,60 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #20707
Manufacturer: Satel
  • two detection paths: PIR and MW
  • coverage area 20x24m, 90°
  • creep zone protection
  • additional light source
  • option to replace the wide-angle lens with a curtain or long-range one
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel CT-CL2 Housing cover with a curtain lens Satel LR-CL2 Enclosure cover with LR Fresnel lens

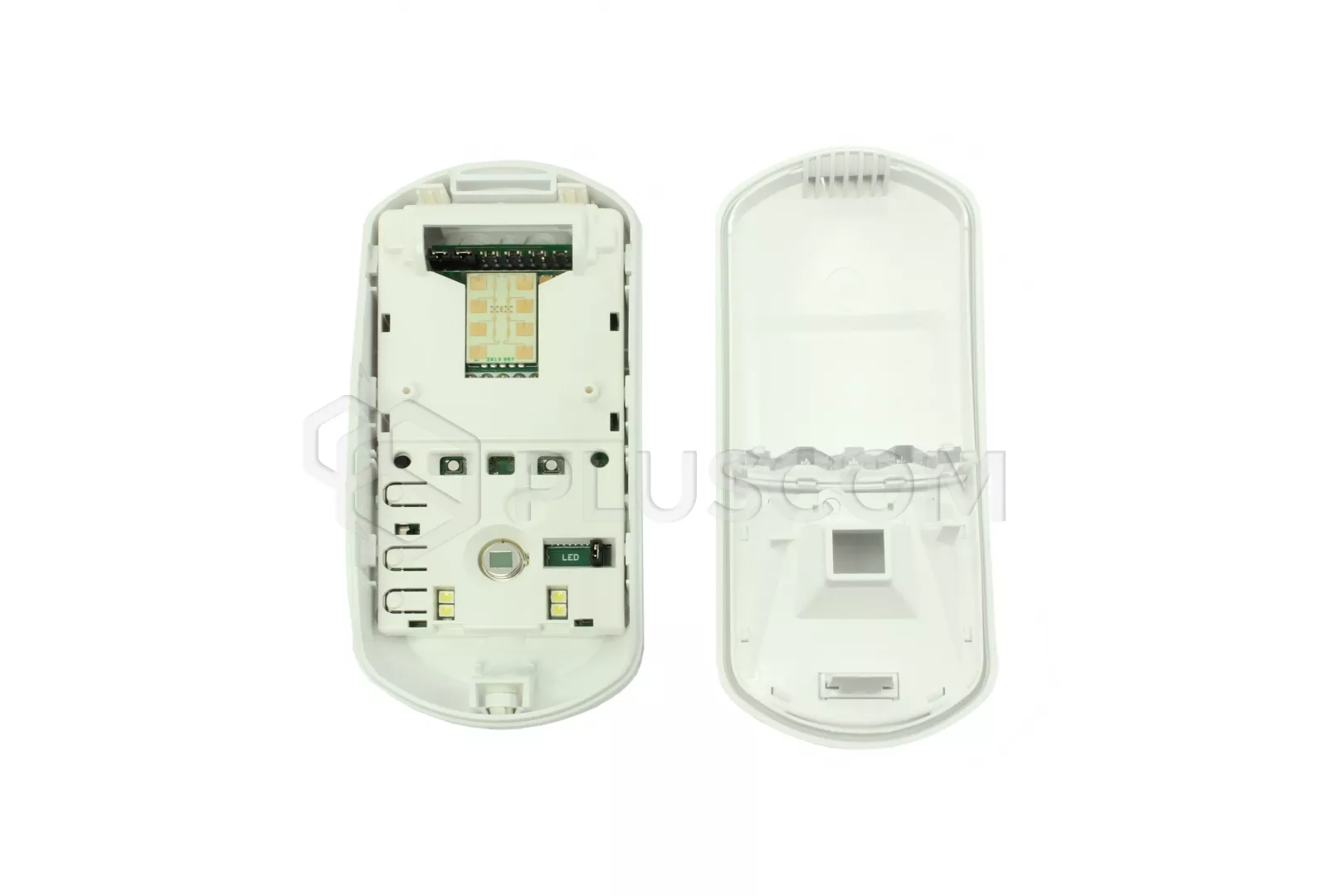

Satel SLIM-DUAL-LUNA DUAL–TECH PIR+MW Mottion Detector



SLIM-DUAL-LUNA detects motion in the protected area. Additionally, the detector has a set of LEDs to implement the lighting feature.

CHARACTERISTICS:
  • compliance with EN 50131 requirements for Grade 2
  • motion detection using two sensors: a passive infrared (PIR) sensor and a microwave (MW) sensor
  • adjustable detection sensitivity of both sensors
  • digital motion detection algorithm
  • digital temperature compensation
  • digital filter of signals received by the microwave sensor to ensure immunity to false alarms caused by the power network and discharge lamps
  • operating mode selection: basic, advanced, PIR or MW
  • option to enable/disable the creep zone protection
  • wide-angle lens, designed specifically for SLIM LINE detectors
  • option to replace the wide-angle lens with a curtain (CT-CL) or long-range (LR-CL) one
  • ability to configure detector operating parameters using the OPT-1 keyfob
  • built-in end-of-line resistors (2EOL: 2 x 1,1 kΩ / 2 x 4,7 kΩ / 2 x 5,6 kΩ)
  • lighting feature implemented with white LEDs
  • remote lighting control or motion activated lighting capability
  • LED indicator
  • selectable color of LED indicator (7 colors available)
  • LED indicator remote enable/disable
  • remote switching between two sets of detector operating parameters
  • configuration mode remote enable/disable
  • supervision of motion detection and supply voltage circuit
  • tamper protection against opening of enclosure and removal from mounting

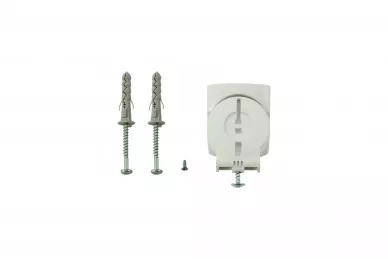

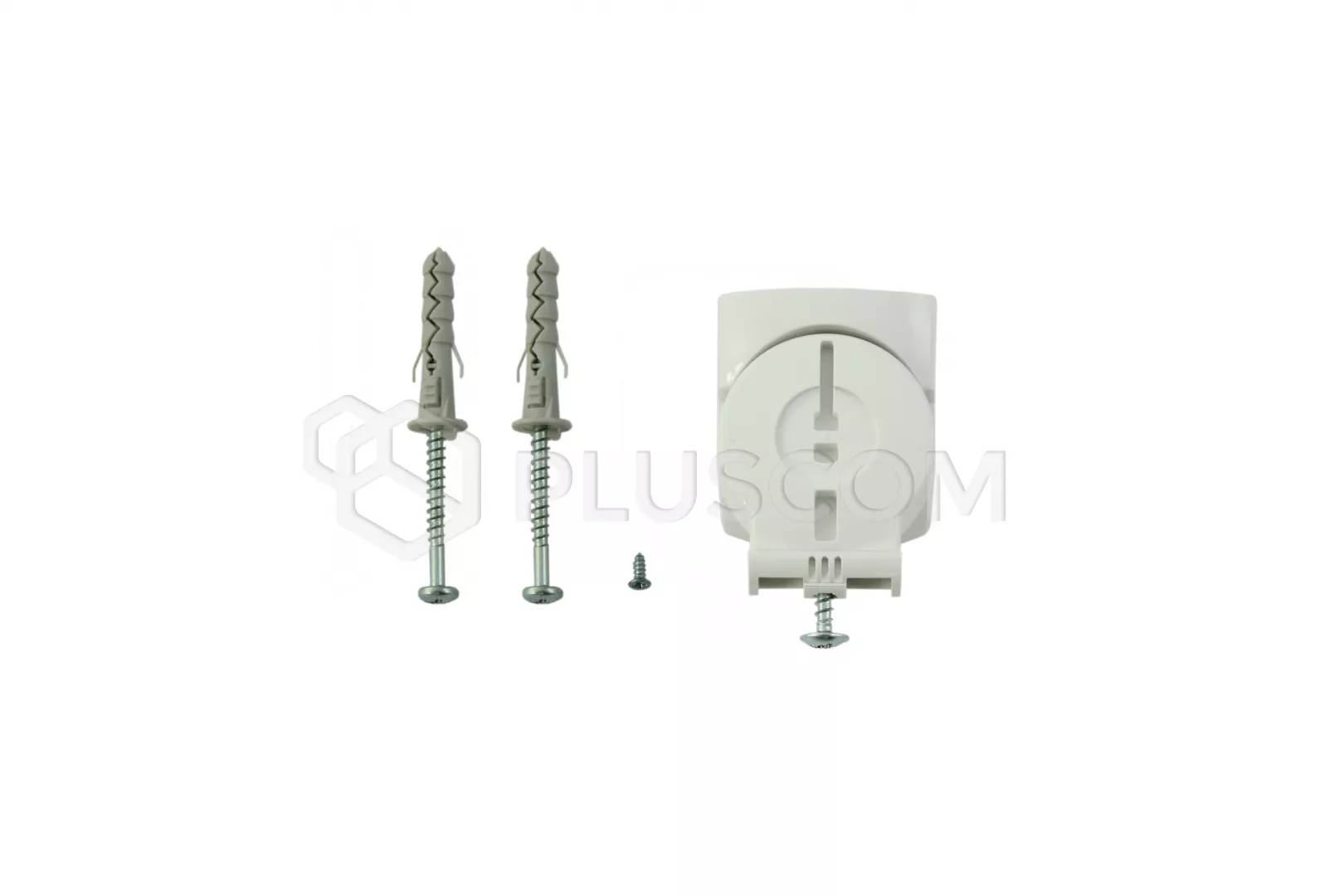

  • adjustable mounting holder (BRACKET D) included

Remote configuration of the detector operating parameters can be made using the OPT-1 keyfob.
Satel OPT-1 Infrared remote control
Satel OPT-1 Infrared remote control
25.53 EUR
 Add to cart
Download
Datasheet 0.11 MB
User Manual 0.43 MB
